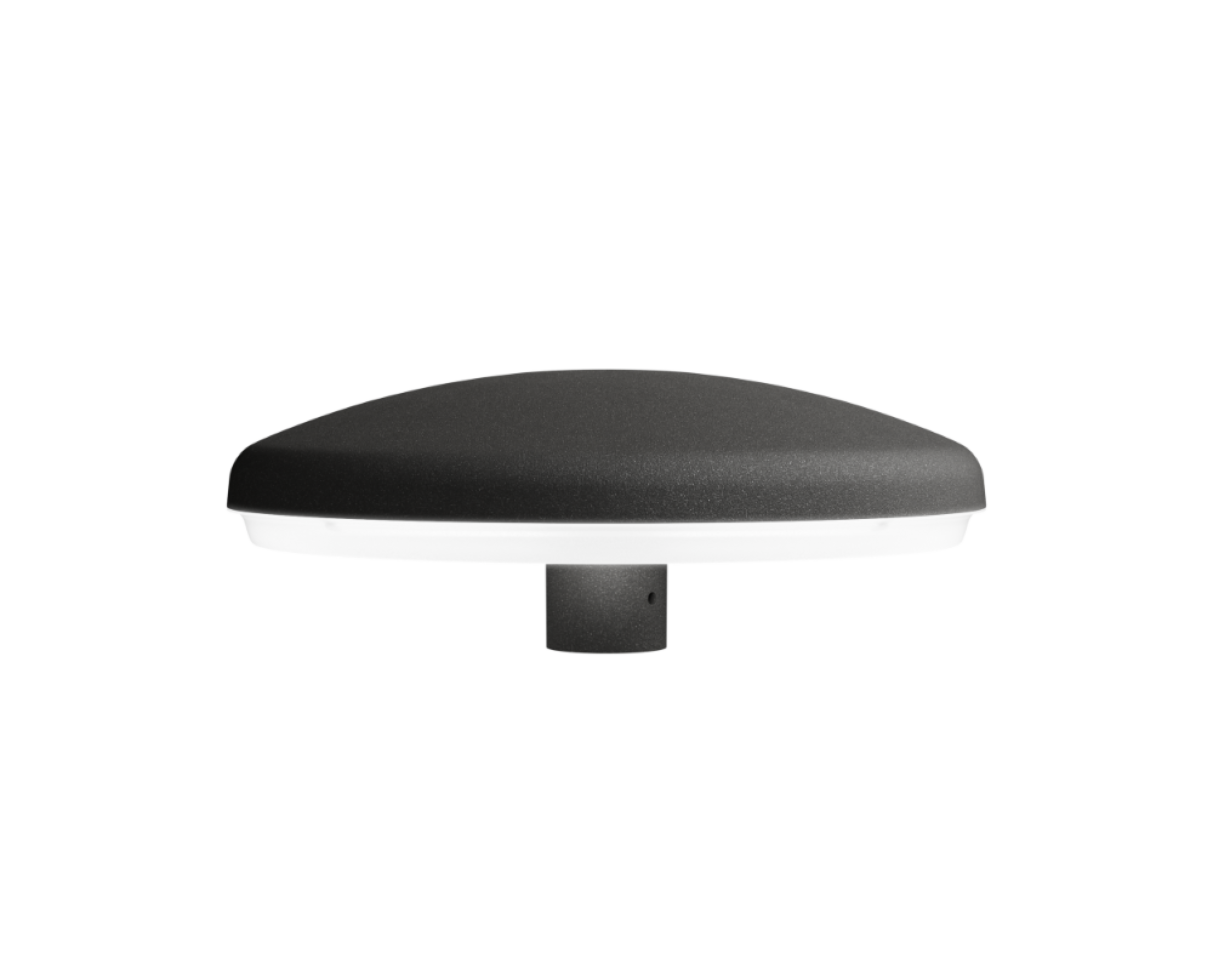

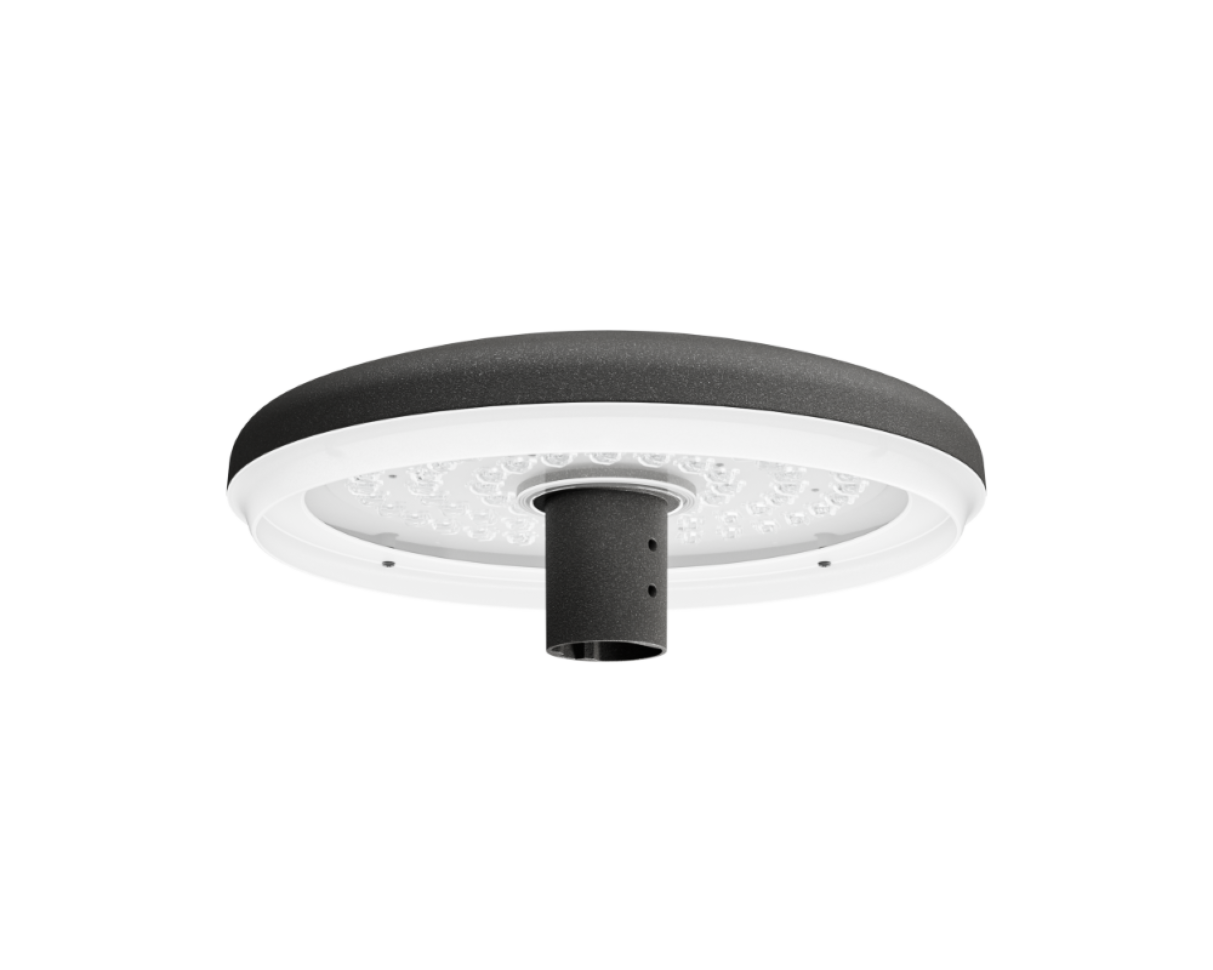

LAPWING Mushroom

Product Overview

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Coming soon

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 130

lm

Up to 18850 2

lm/W

Up to 160

K

2700 / 3000 / 4000 /
TW 2700 - 6500 3

-40 to +50 | up to 100W
-40 to +35 | 100 - 130W

CRI

>70 / >80 / >90 3

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Tool-less / Pre-wired cable 30 cm 4

Spigot: 32 - 40 mm 4 / 40 - 60 mm / 76 mm 5

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 6

Nature friendly: PC Amber / Red / 1800 K

Corrosion protection: Up to C5

Neto weight: Up to 9.5 kg

Class I
Class II
IP66
IK08
CE
UKCA
RoHS
cUL 7
Zhaga zdi4 7
ENEC 7
ENEC Plus 7
International EPD System 7
Synergrid approved 7
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3
1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 Other lengths available on request
5 Achievable with an adapter for 40 - 60 mm spigot
6 10 kV (L-N; L/N-PE) surge protection device available on request

7 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
