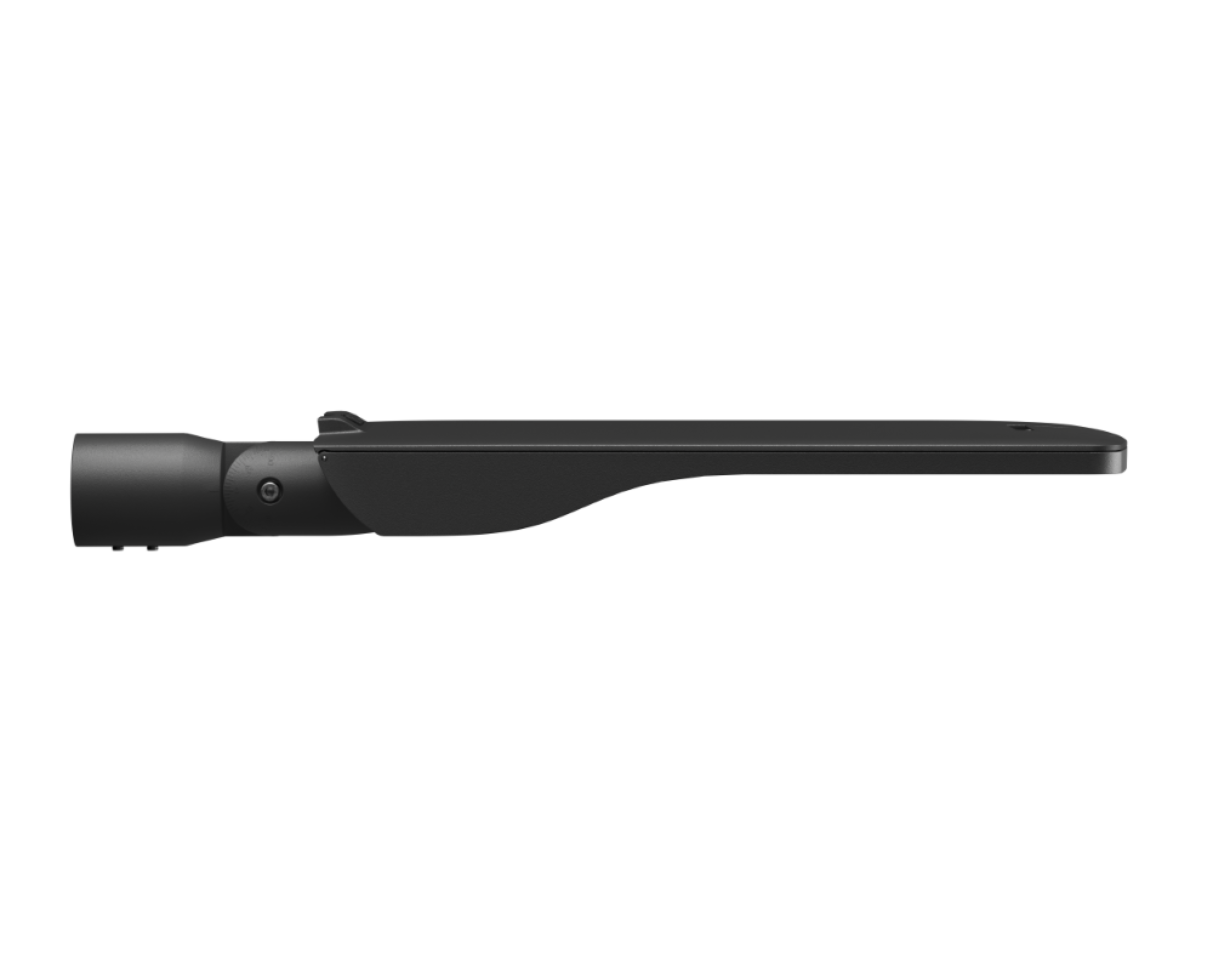

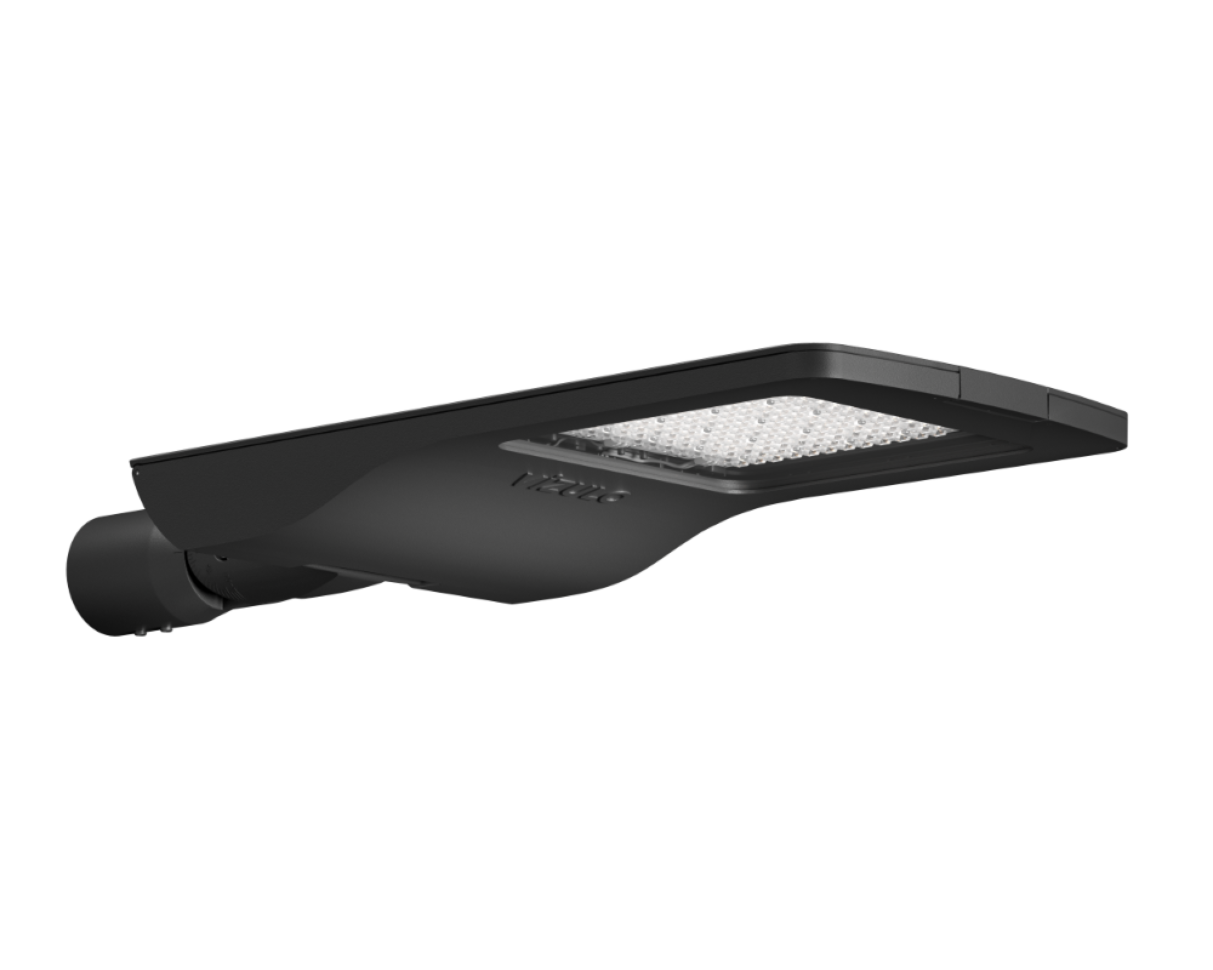

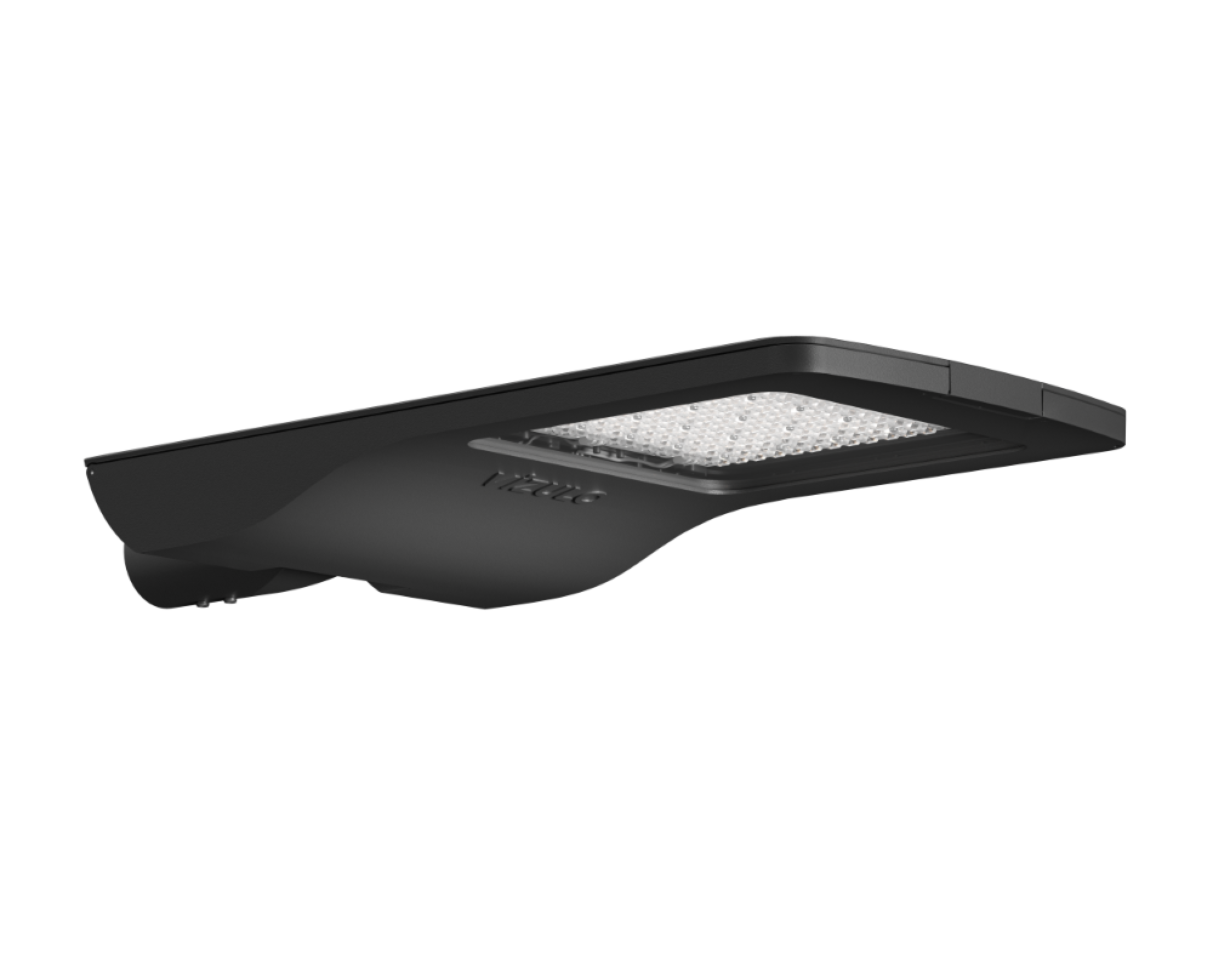

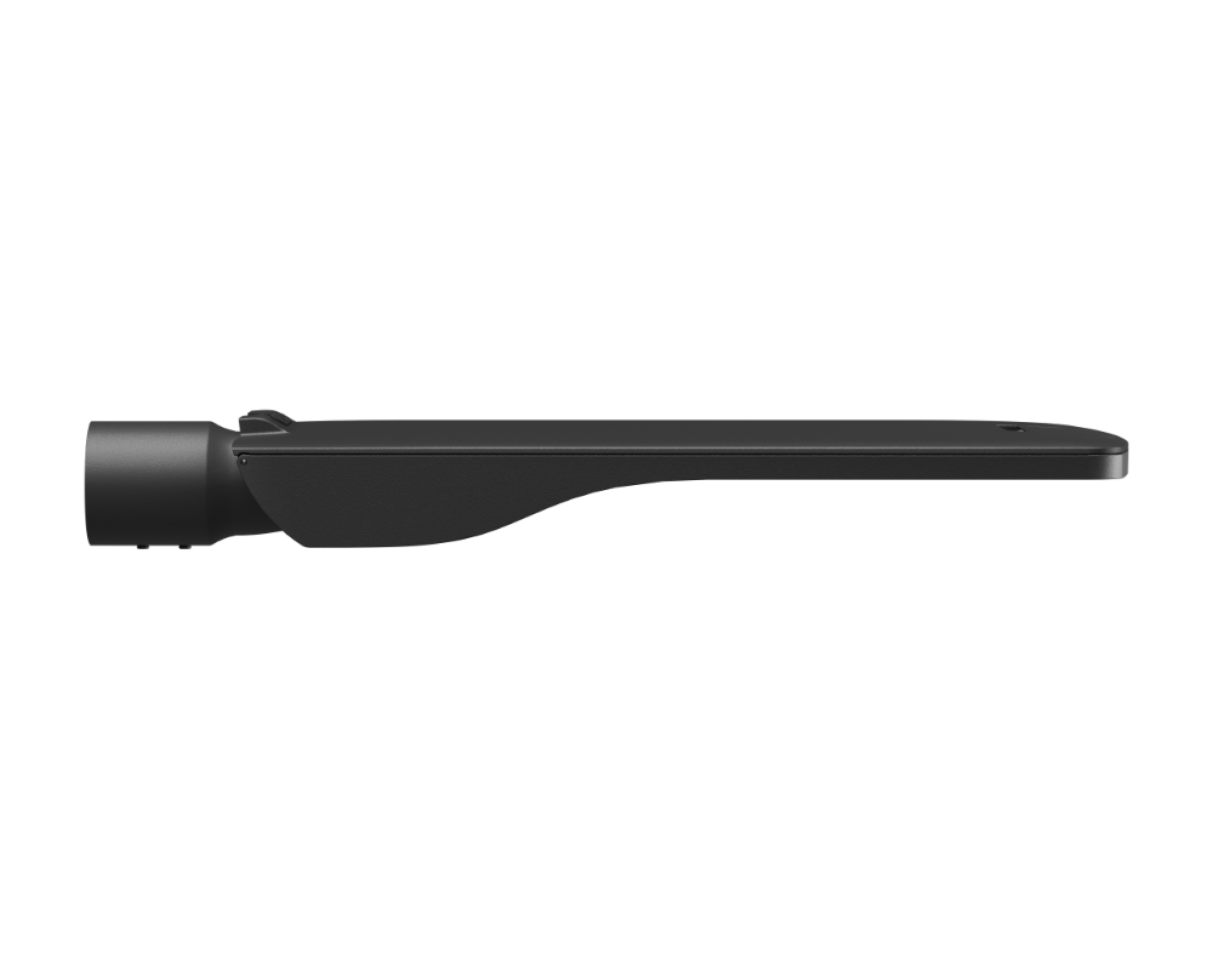

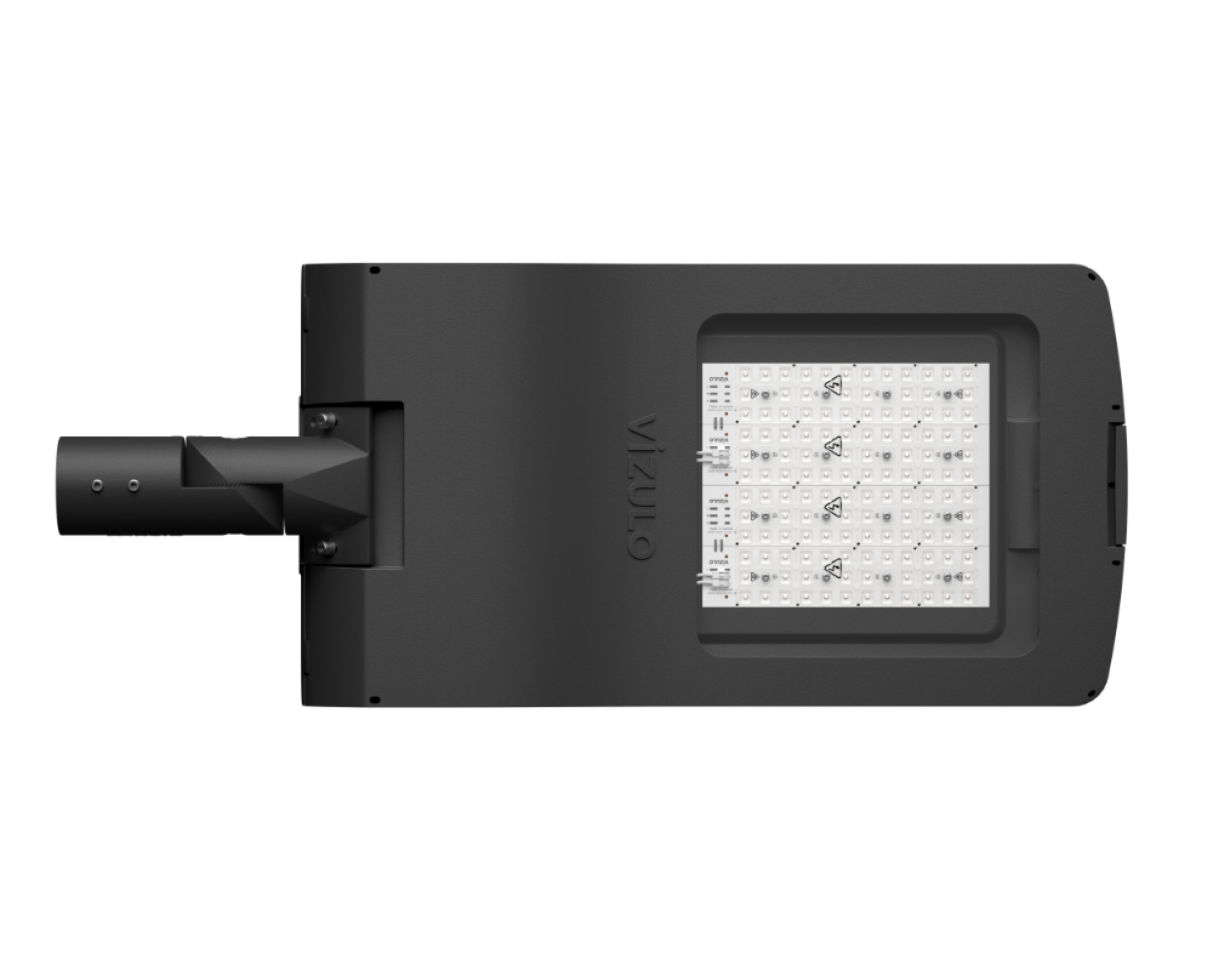

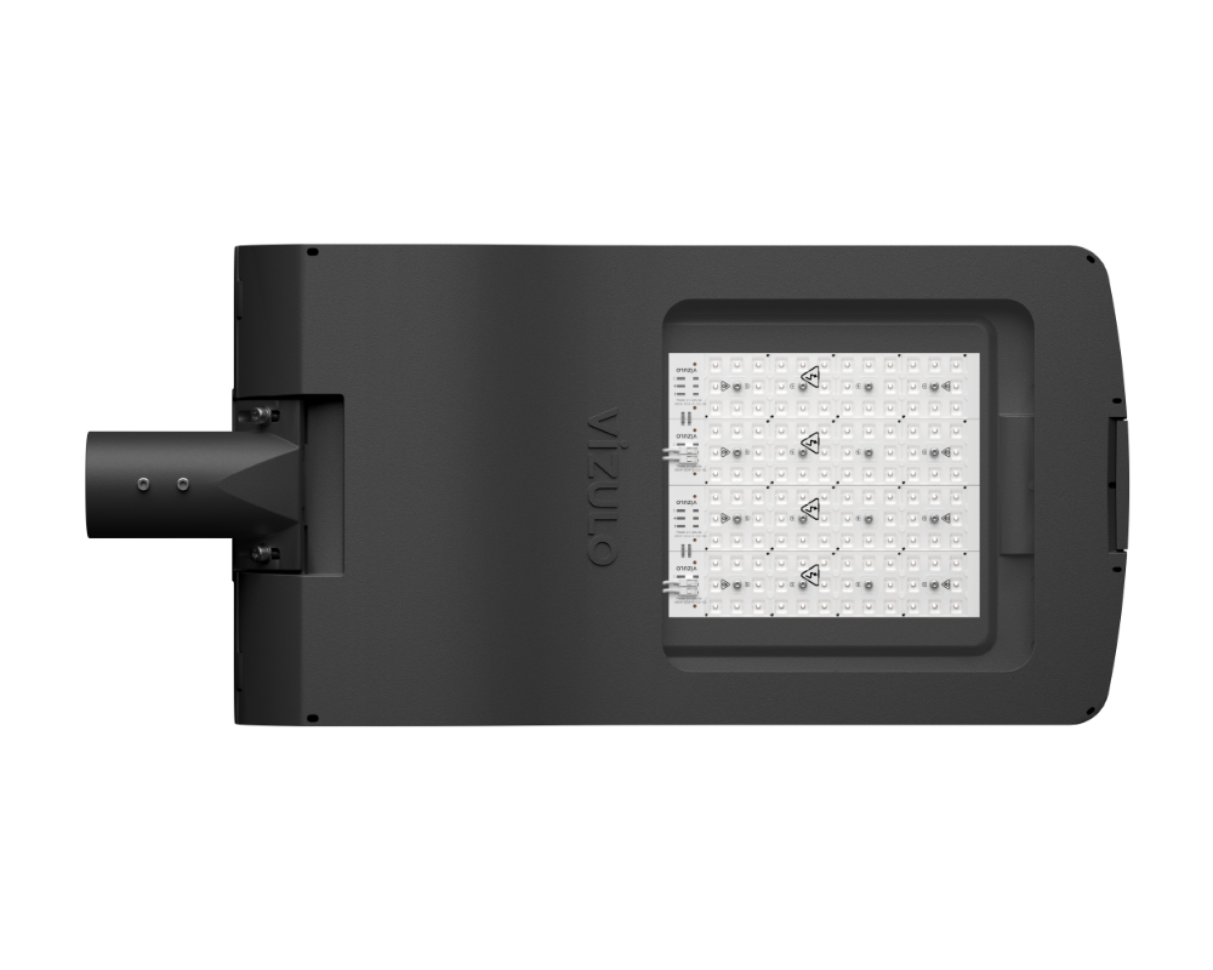

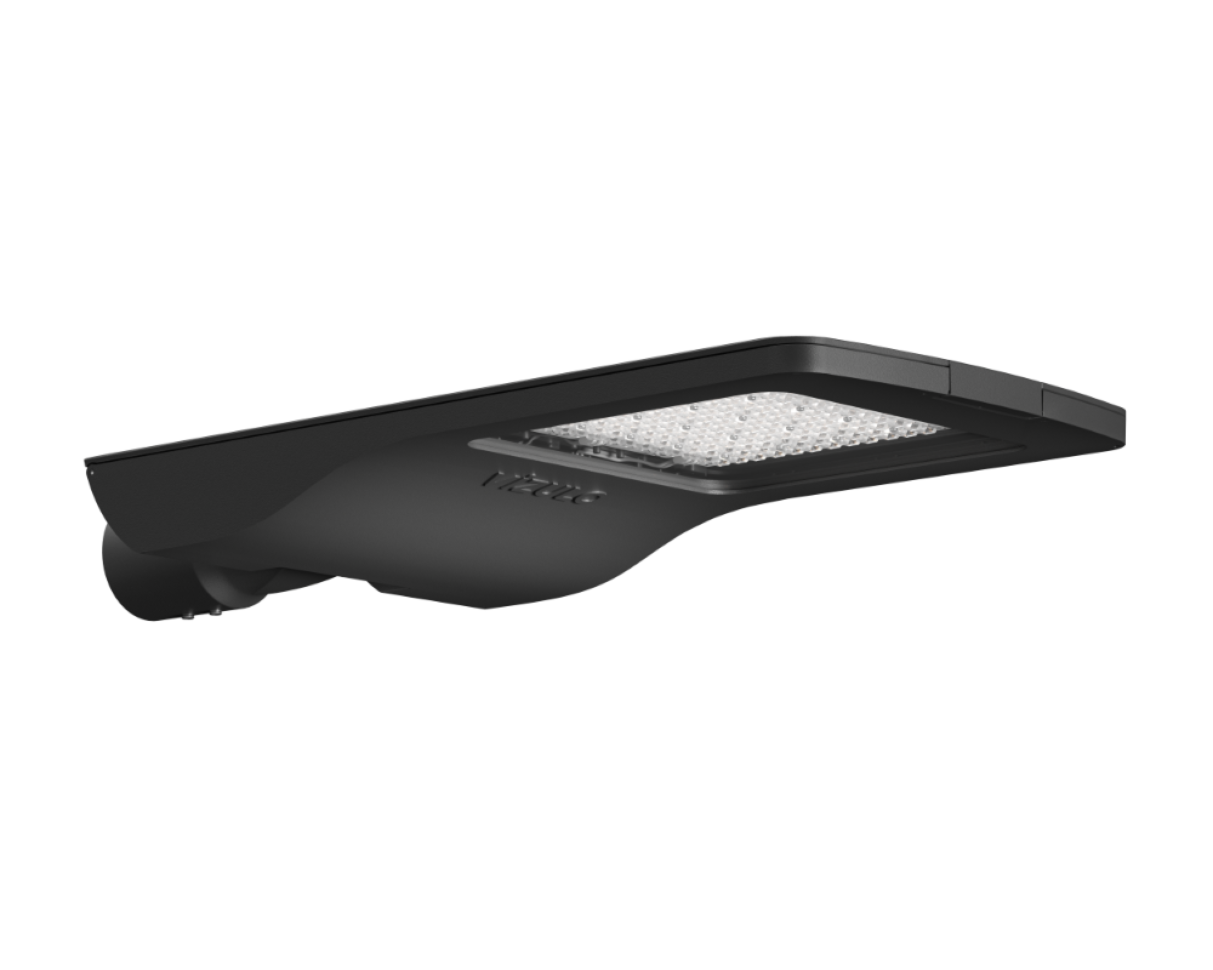

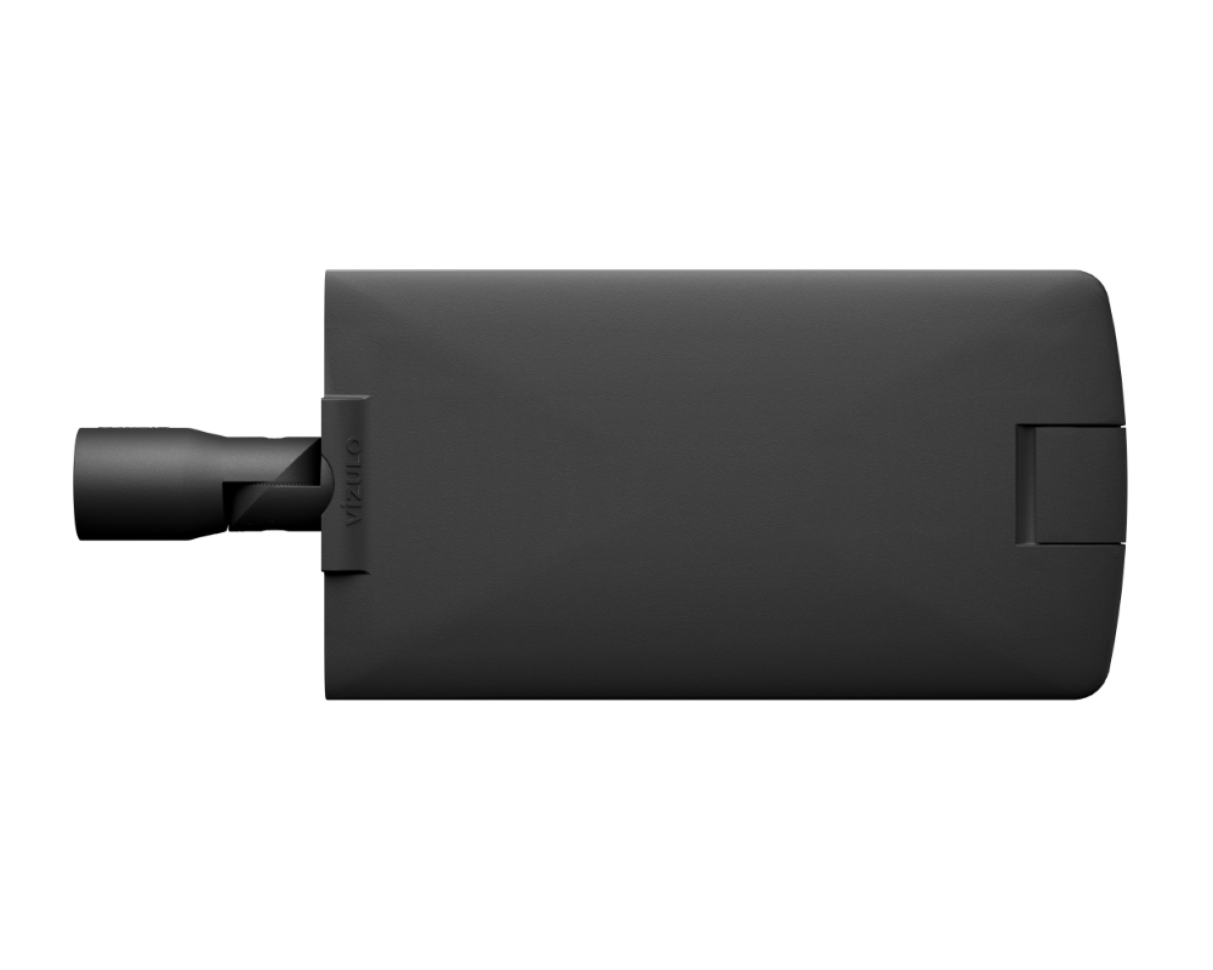

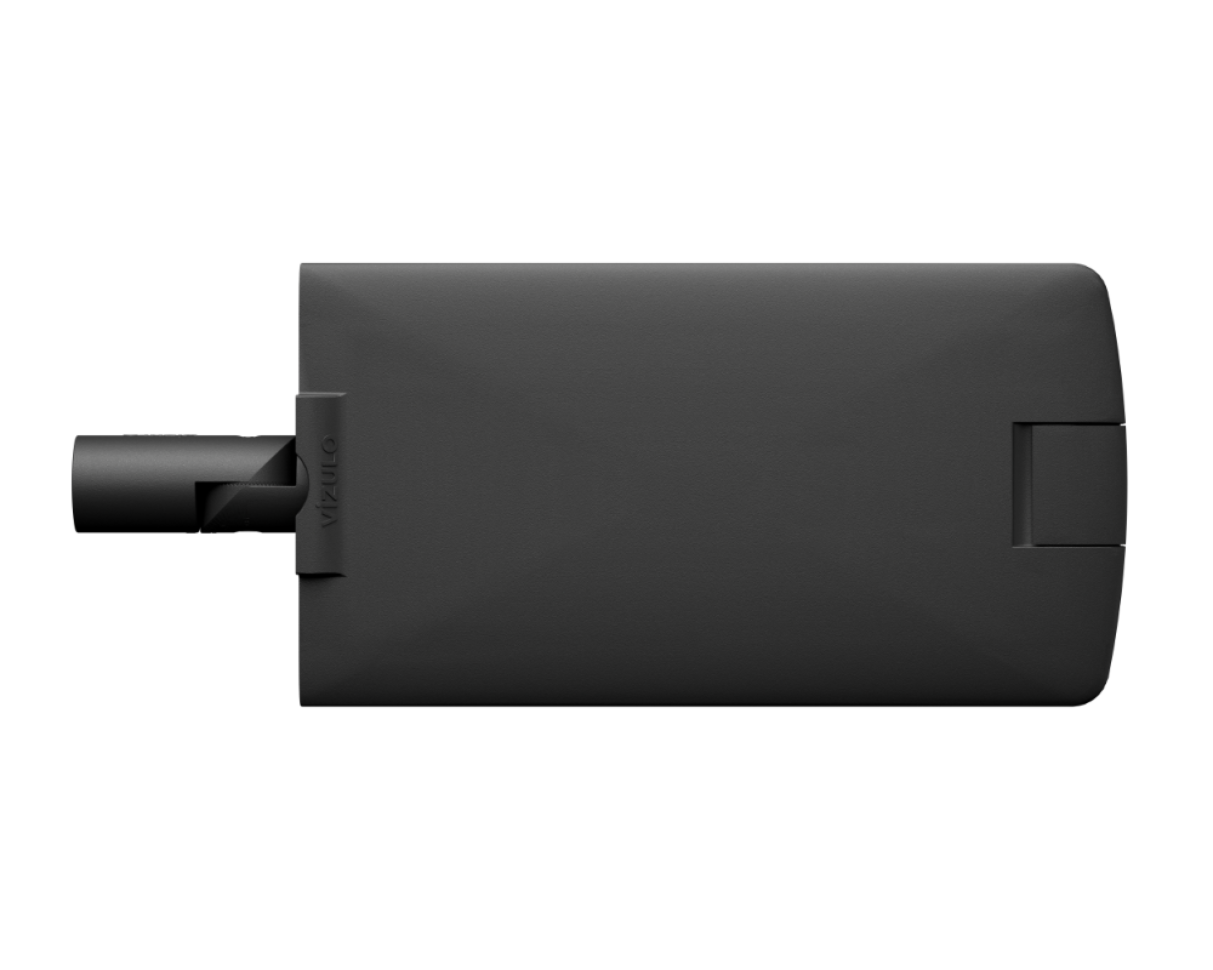

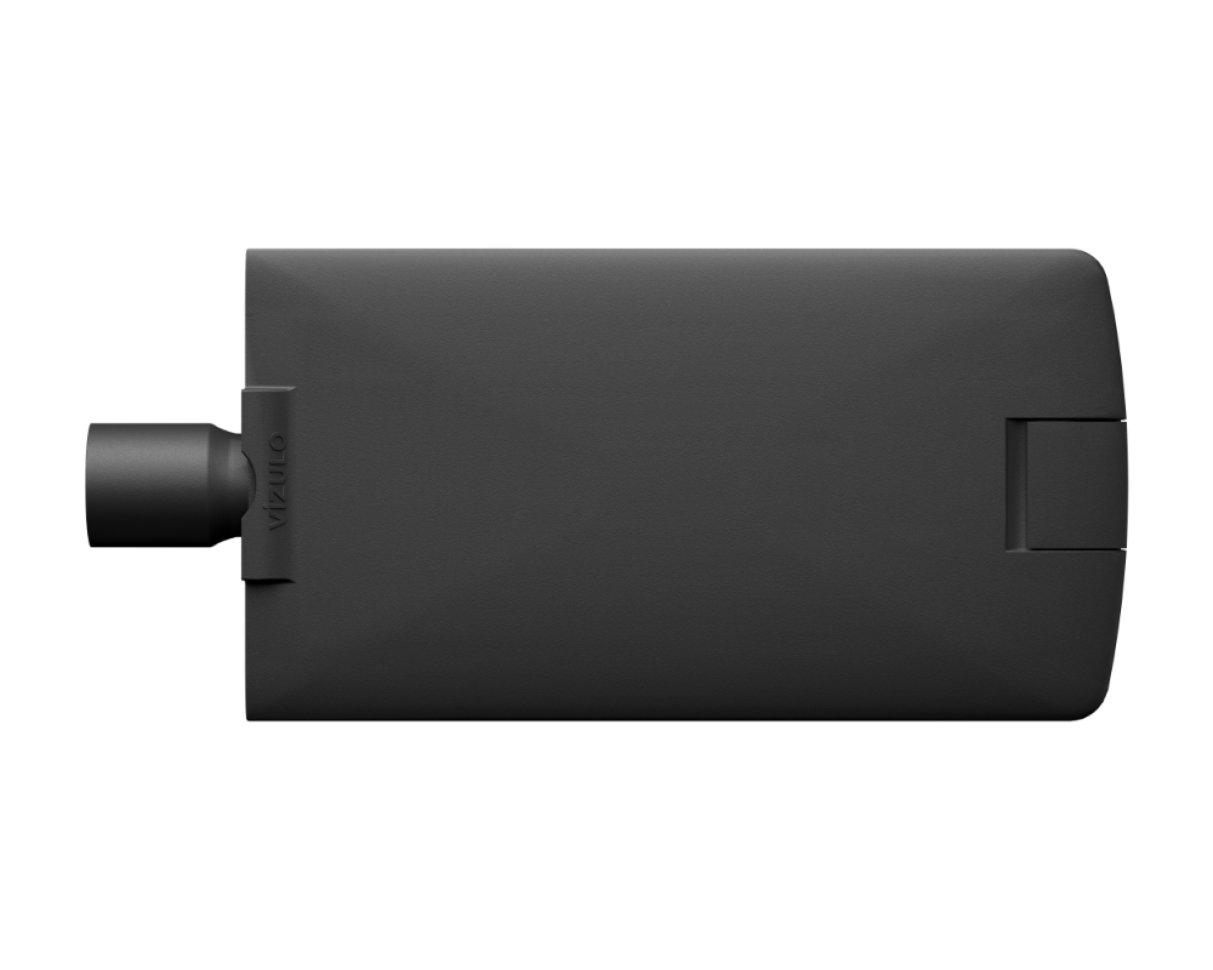

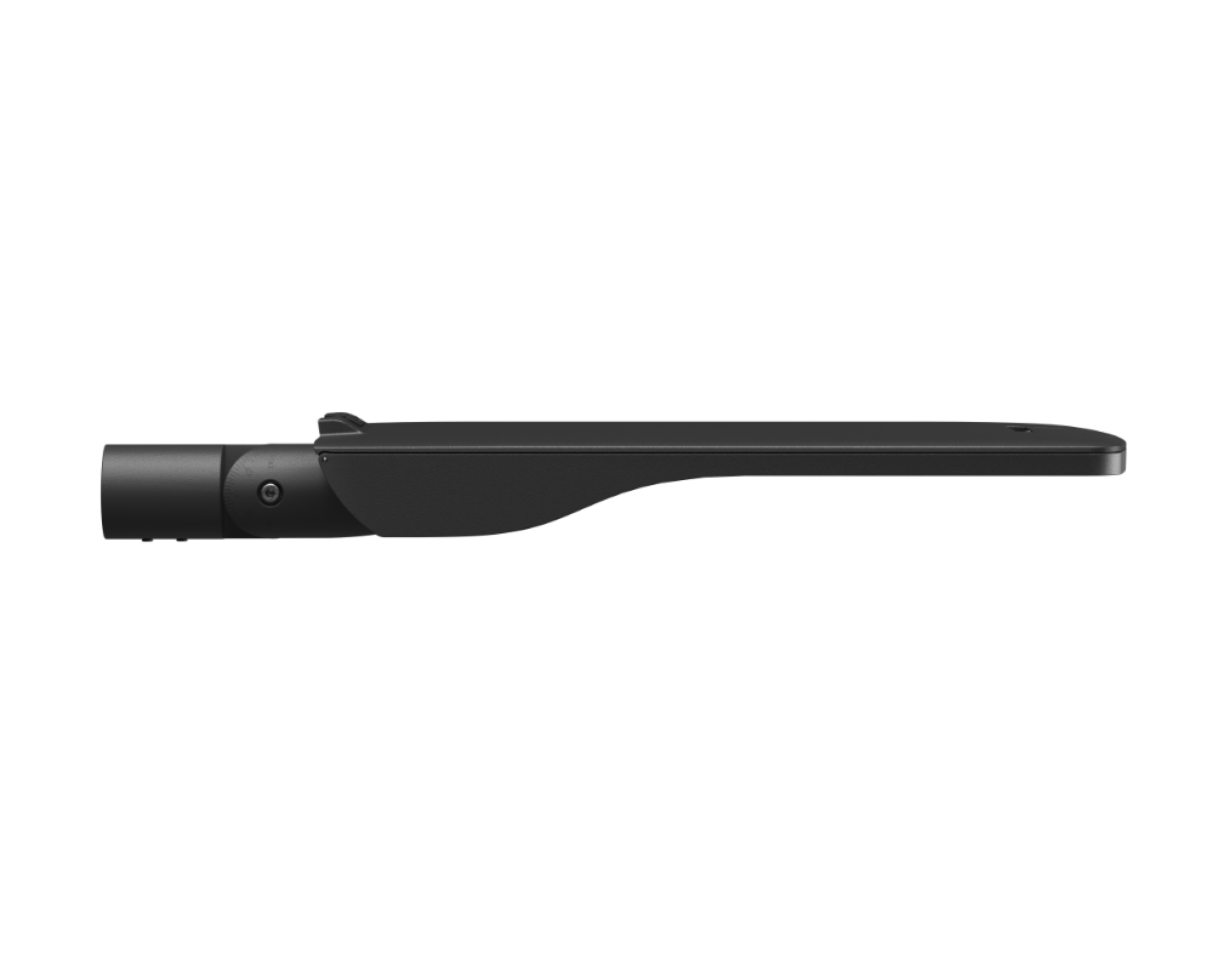

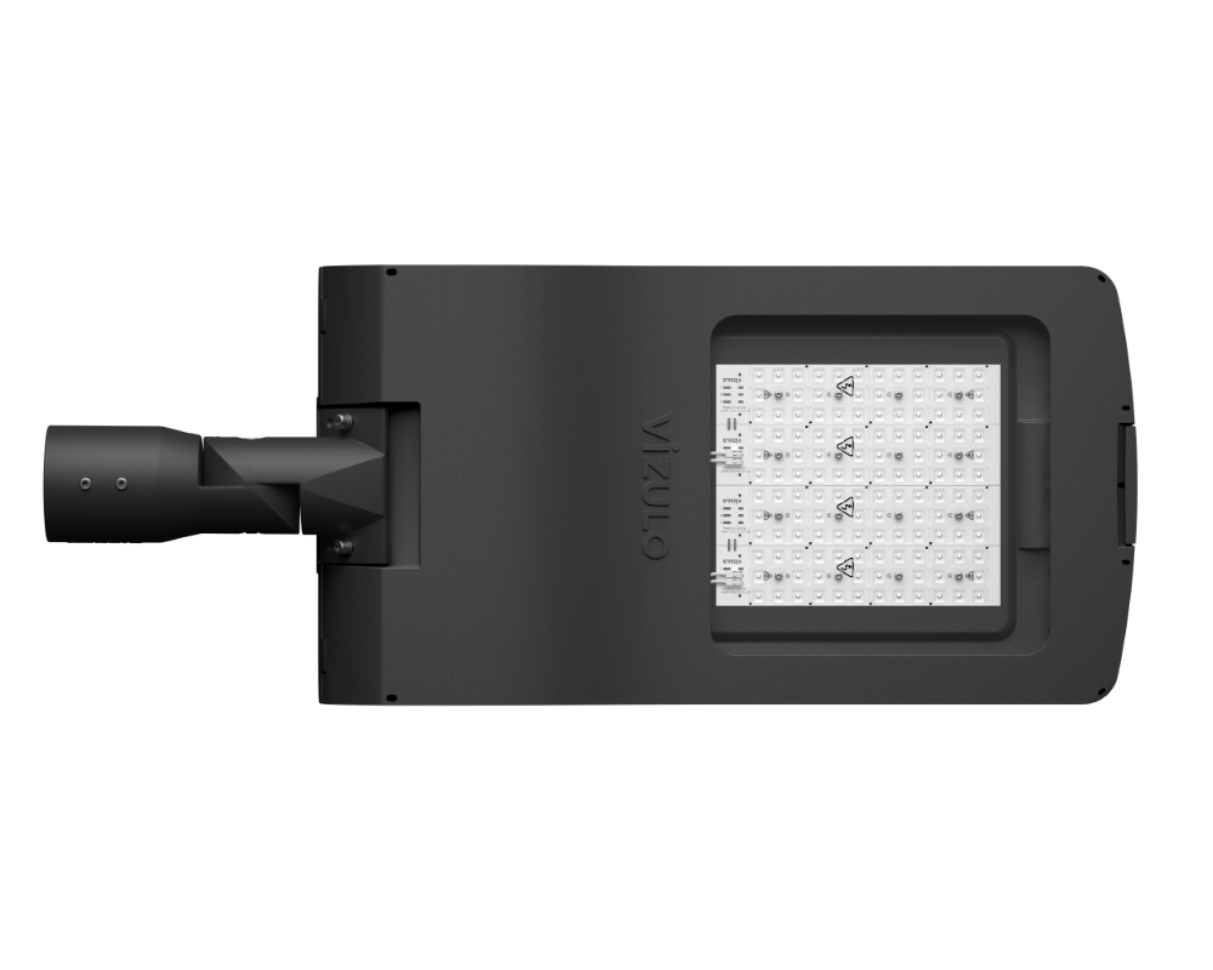

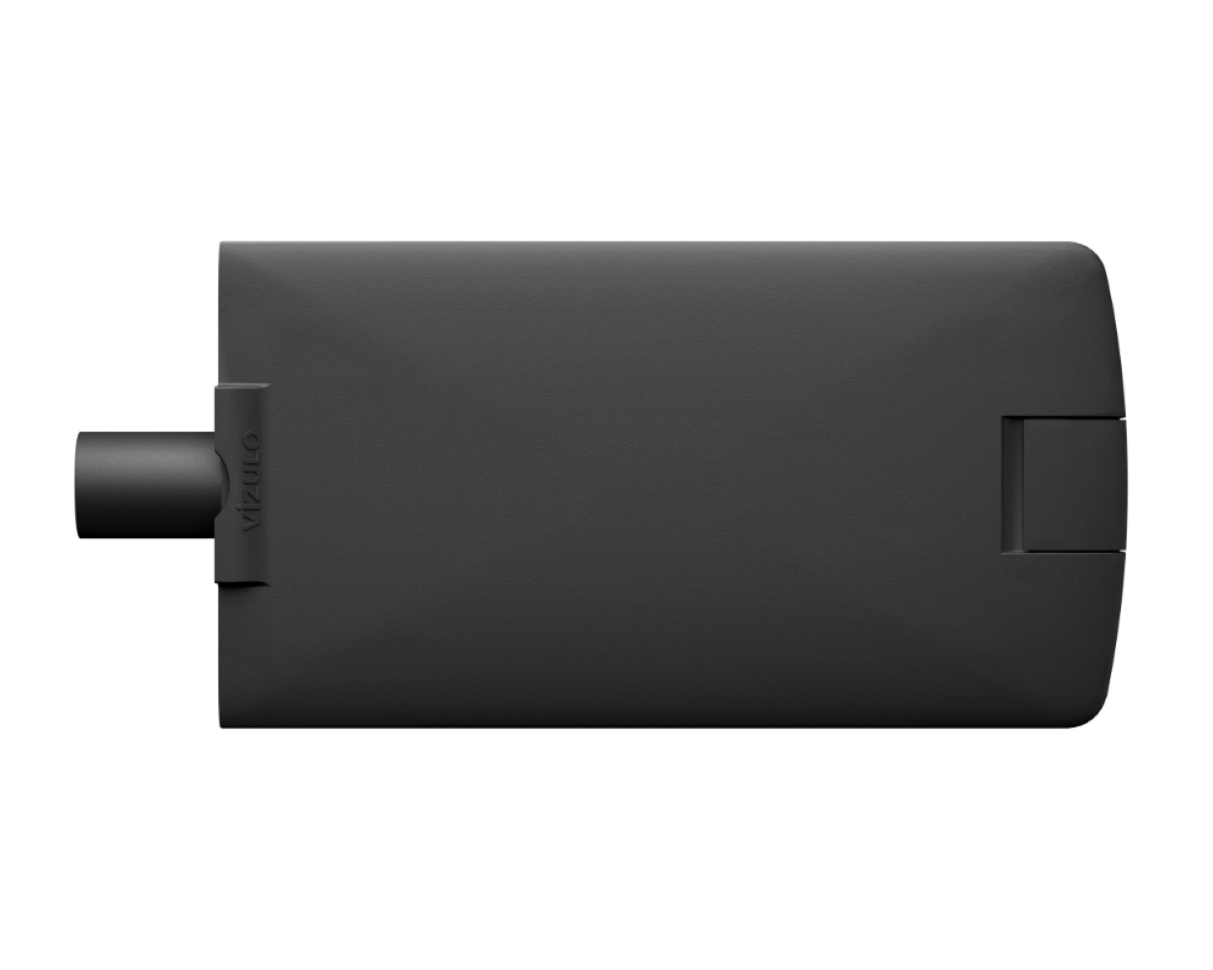

STORK Smooth
Produktübersicht
Inspired by nature, created by engineers, approved by science – that is the Stork product family.
Stork is the award-winning foundation of our street luminaire portfolio. This luminaire embodies VIZULO’s core values: exceptional quality and thoughtful design. For nearly a decade, it has illuminated streets in the Netherlands, Switzerland, Iceland, and many other countries around the world.
Grundfarben
Spezifikationen
V
198 - 264 / 110 - 277 1
Hz
50 - 60
W
5 - 260
lm
555 - 40 670 2
lm/W
113 - 161 3
K
2700 / 3000 / 4000 4
°C
-40 up to +55 5
CRI
>70 / >80 / >90 4
mm
801 x 370 x 94
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming
Initial chromaticity: MacAdam 5
Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /
Standard / High density 100 000 h (L98B10) at Ta = 25 °C*
Warranty: 5 years
Installation: Tool-less
Spigot: 32 - 40 mm 6 / 40 - 60 mm / 60 - 76 mm
Socket: NEMA Top / Zhaga Top and Bottom
Intelligent control: Stand-alone / Group / CMS
Sensor: Motion / Motion + Daylight / Daylight
Surge protection: 4 / 6 / 10 kV 7
Nature friendly: PC Amber / Red / 1800 K
Corrosion protection: Up to C5
Neto weight: Up to 13.8 kg
Max. wind load area, SCd: 0.047 m2
