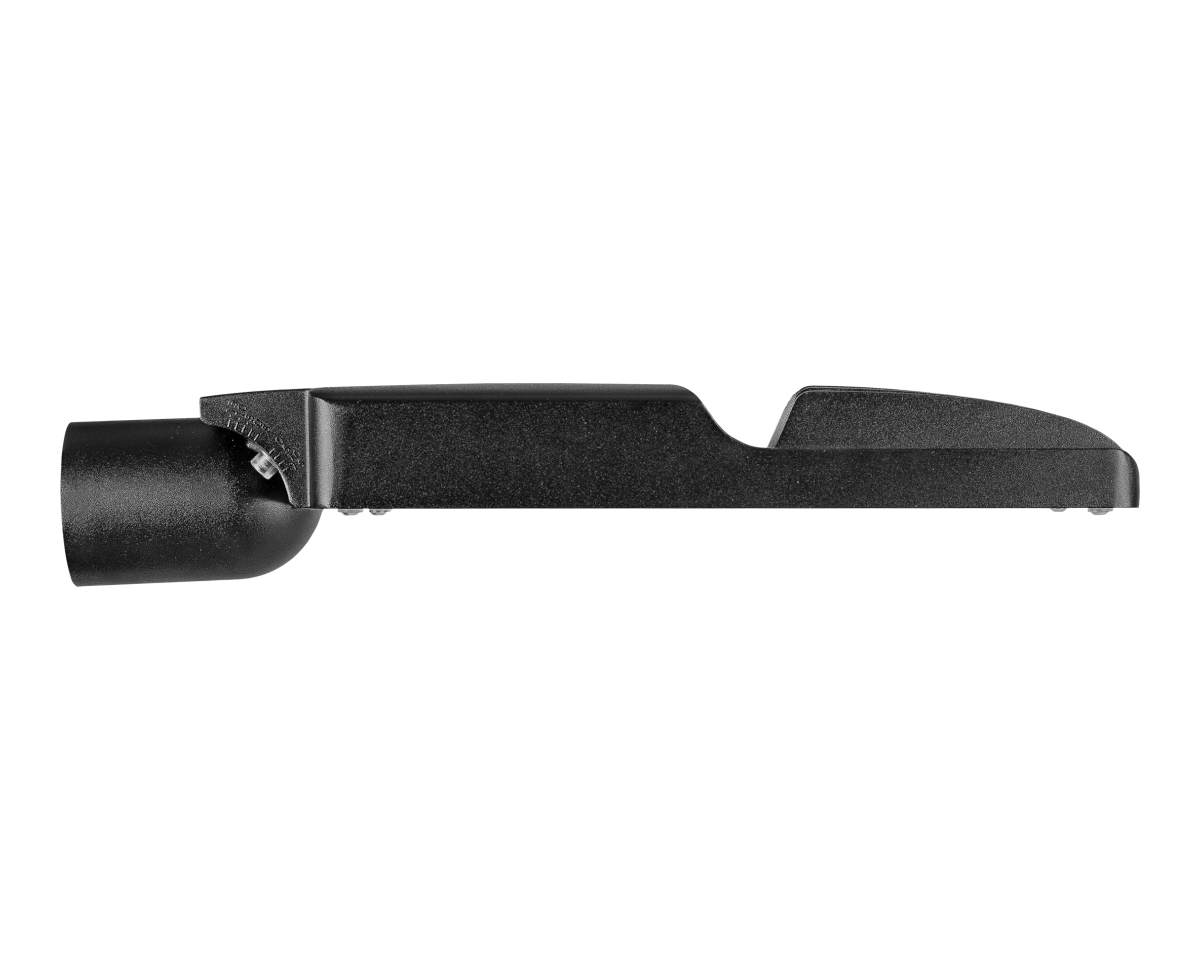

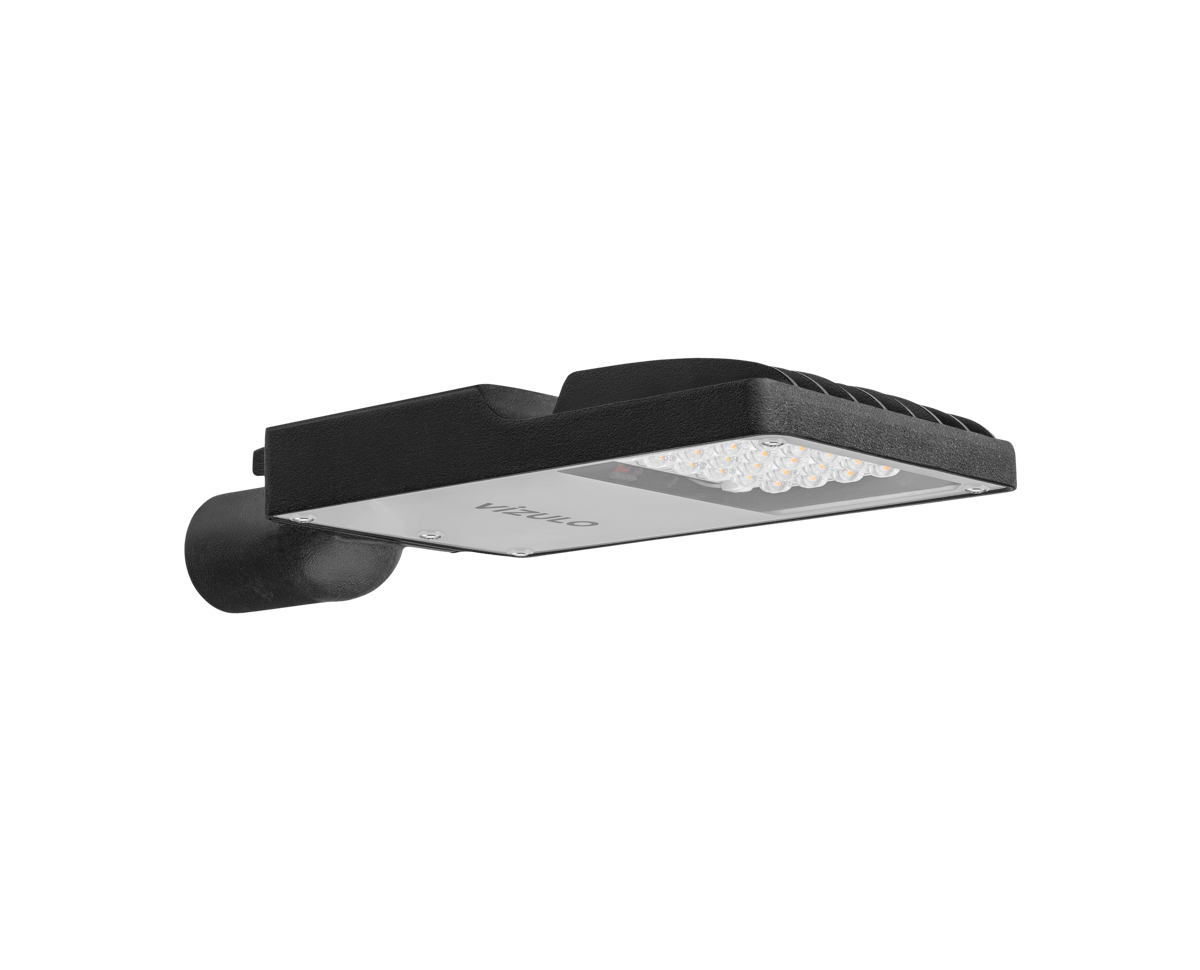

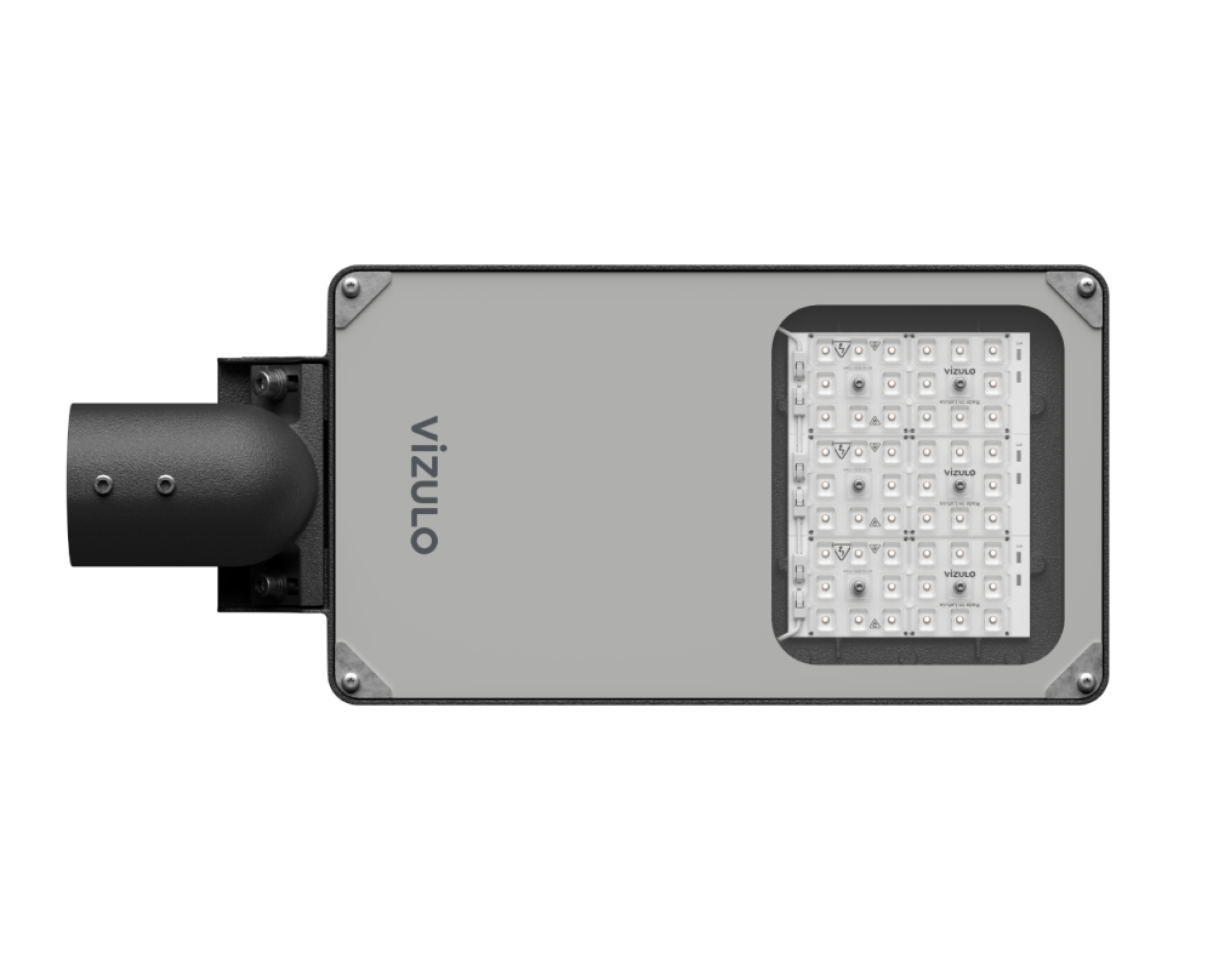

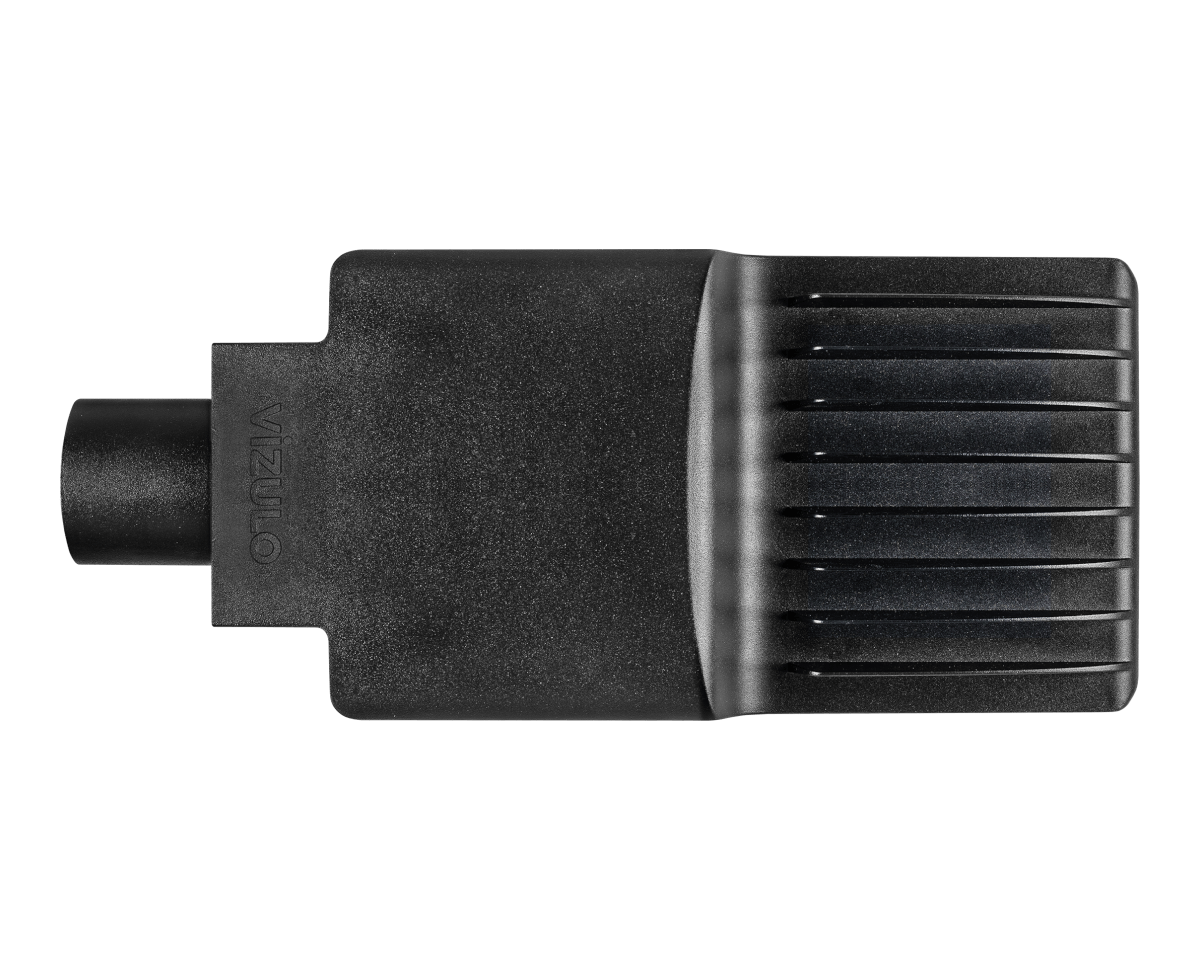

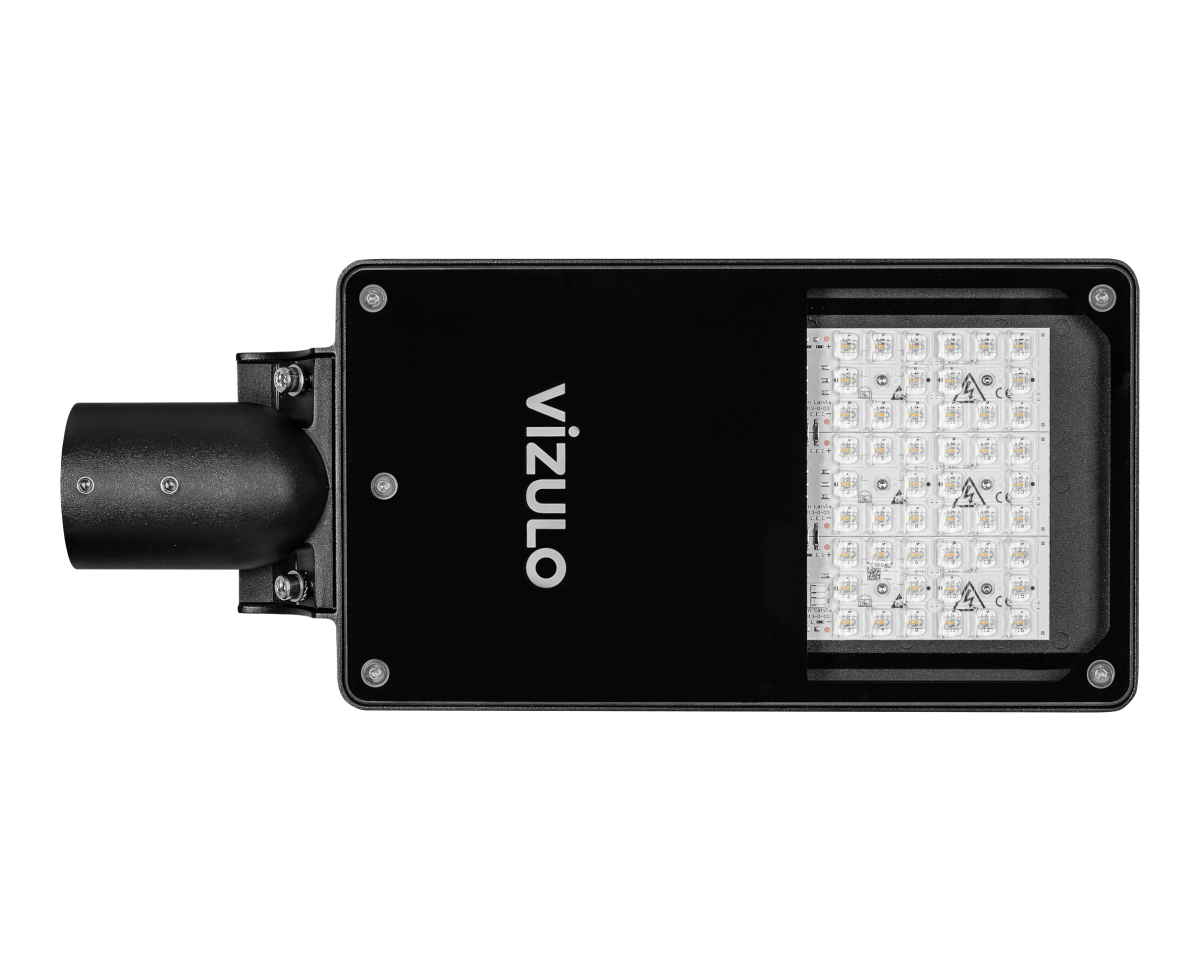

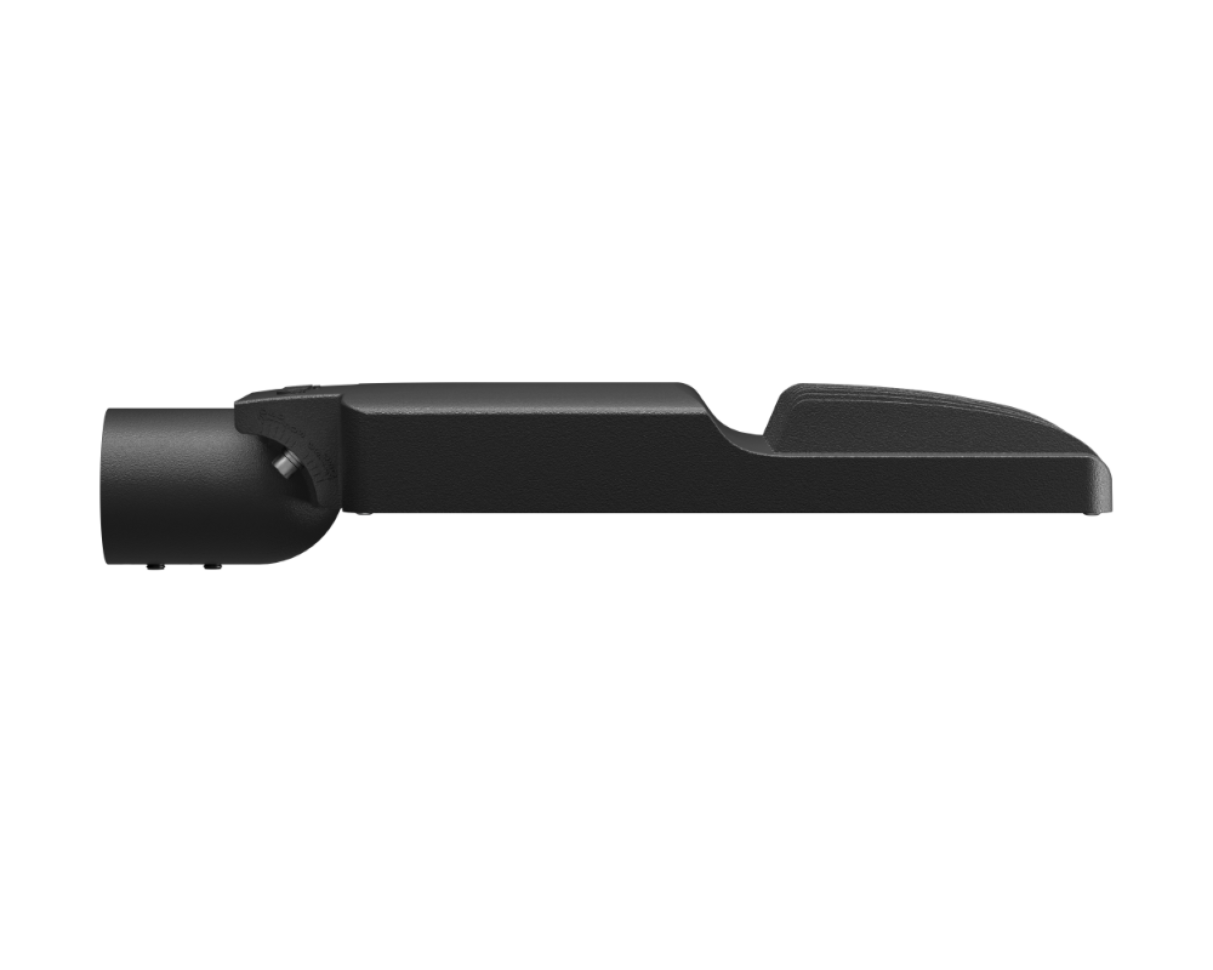

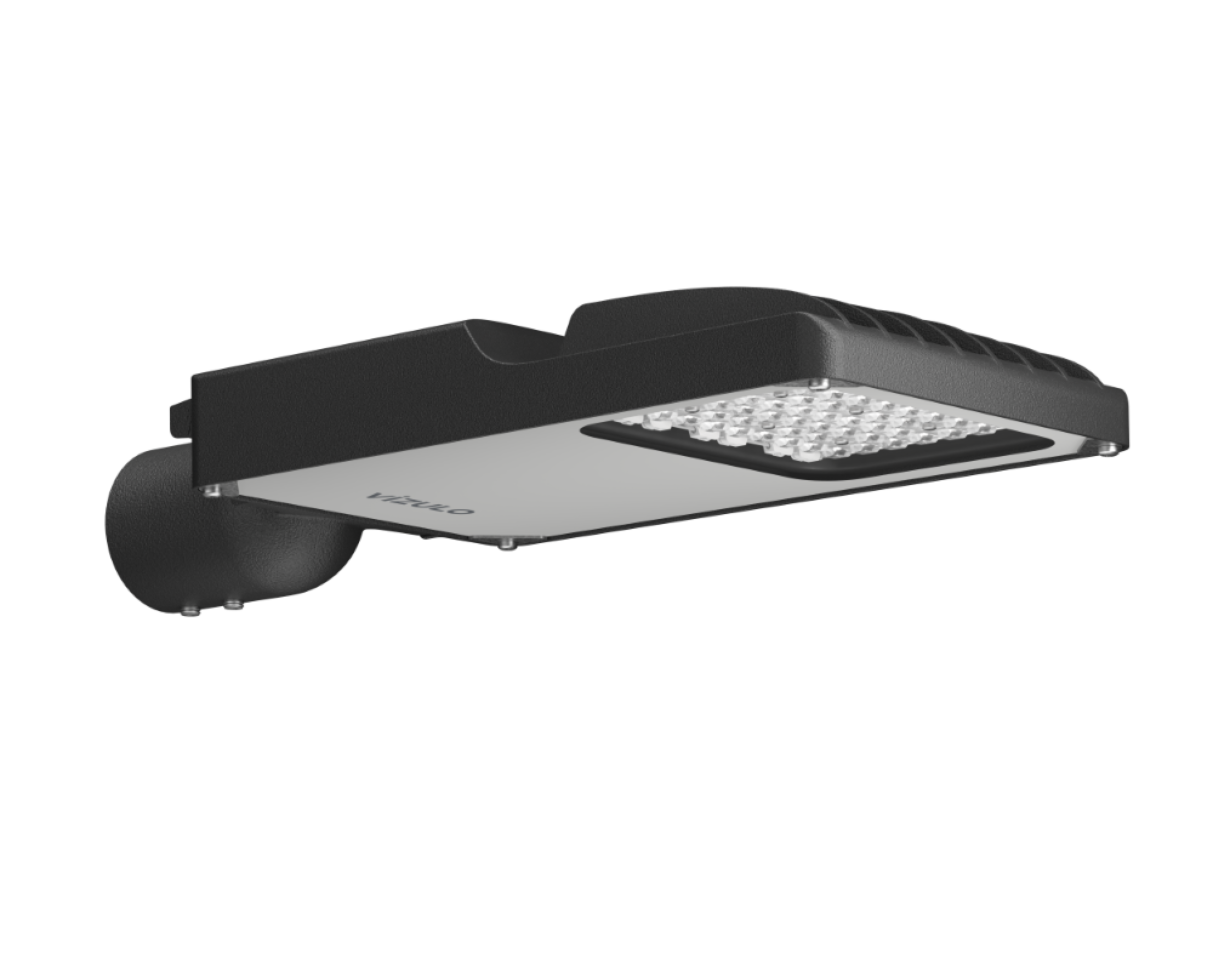

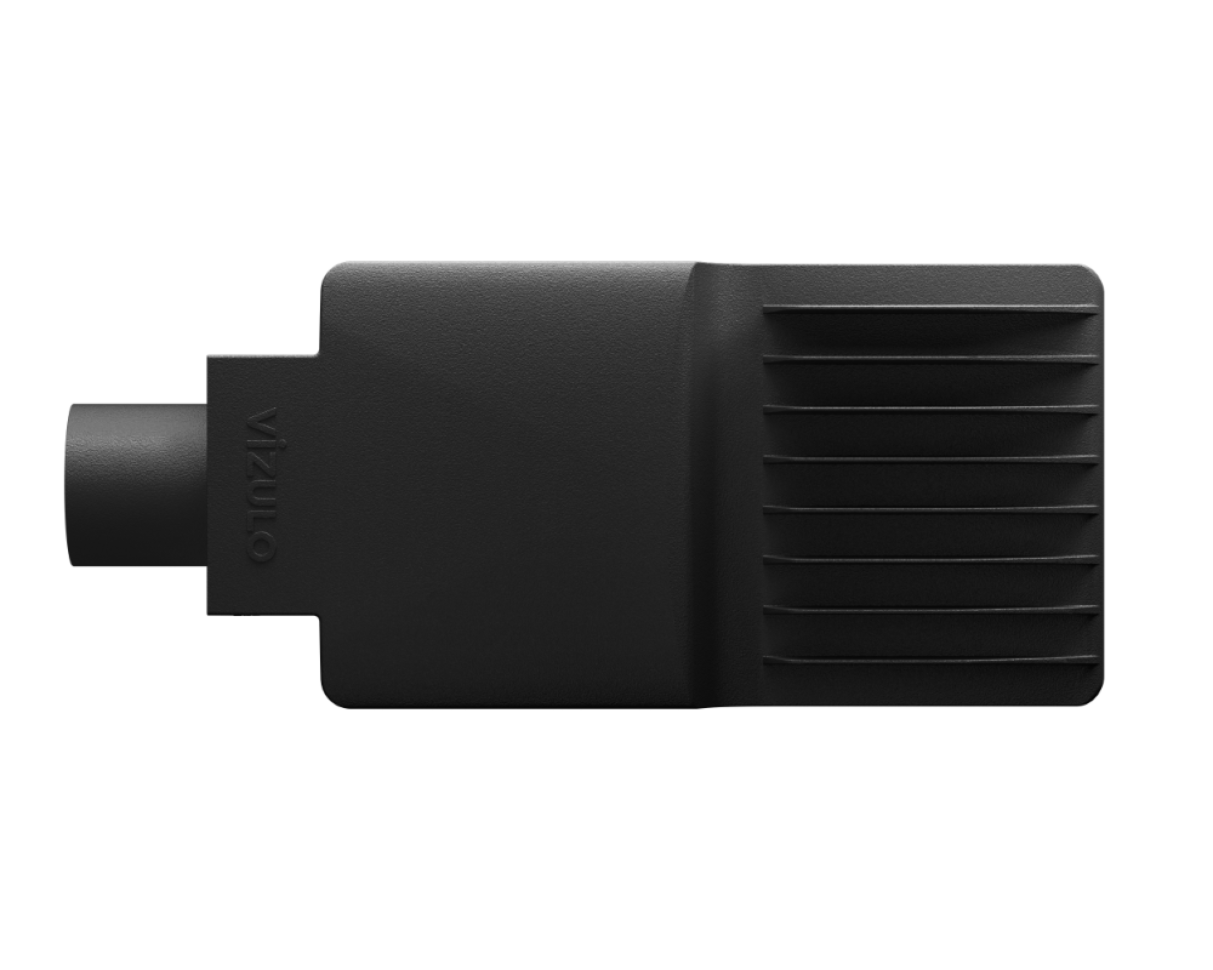

MINI MARTIN

Product Overview

If you love the minimalist die-cast aluminium design of our Micro Martin, but need something a bit brighter, Mini Martin is up for the challenge! Reaching brightness up to 17856 lm, Mini Martin has proved itself among the cloudy landscapes of Iceland, the stormy streets of Israel, and even the official hometown of Santa Claus on the Arctic Circle – Rovaniemi, Finland.  Sturdy and powerful, easy to install, even easier to maintain: there is an optional enclosure for tool-less opening. Like many VIZULO products, Mini Martin offers broad customization options: different drivers, optics, sockets (Zhaga/NEMA), reflectors, and connectors. Let us know what you need – and we can assemble the perfect Mini Martin for your project!

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 140

lm

446 - 18540 2

lm/W

90 - 160

K

2700 / 3000 / 4000 3

-40 to +50 | 5 - 110W
-40 to +40 | 111 - 140W

CRI

>70 / >80 / >90 3

mm

520 x 220 x 96

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 4

Spigot: 32 - 40 mm 5 / 40 - 60 mm / 60 - 76 mm

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 6

Corrosion protection: Up to C5

Neto weight: Up to 6.5 kg

Max. wind load area, SCd, m2: 0.039

Class I
Class II
IP66
IK08
IK09 7
CE
UKCA
EAC
RoHS
cUL 8
Zhaga zdi4
ENEC
ENEC Plus
International EPD System 9
LED module replaceable by a professional
LED driver replaceable by a professional

1  Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2
 Lumen output indicated at CRI > 70
3  1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4  Other lengths available on request
5  Achievable with an adapter for 40 - 60 mm spigot
6  10 kV (L-N; L/N-PE) surge protection device available on request
7  With clear glass
8  Coming soon
9  EPD registration number: S-P-04350 (link to page)

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
