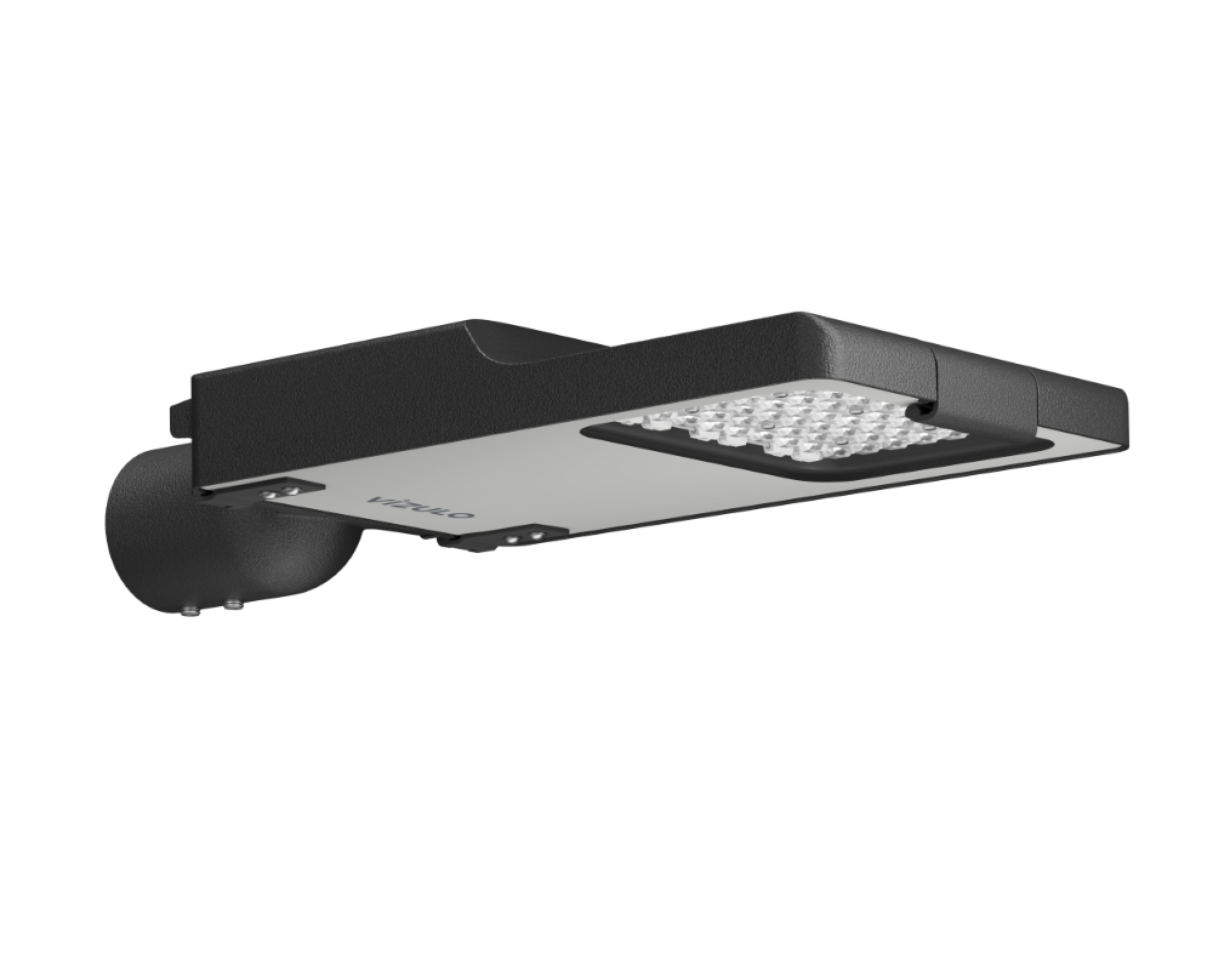

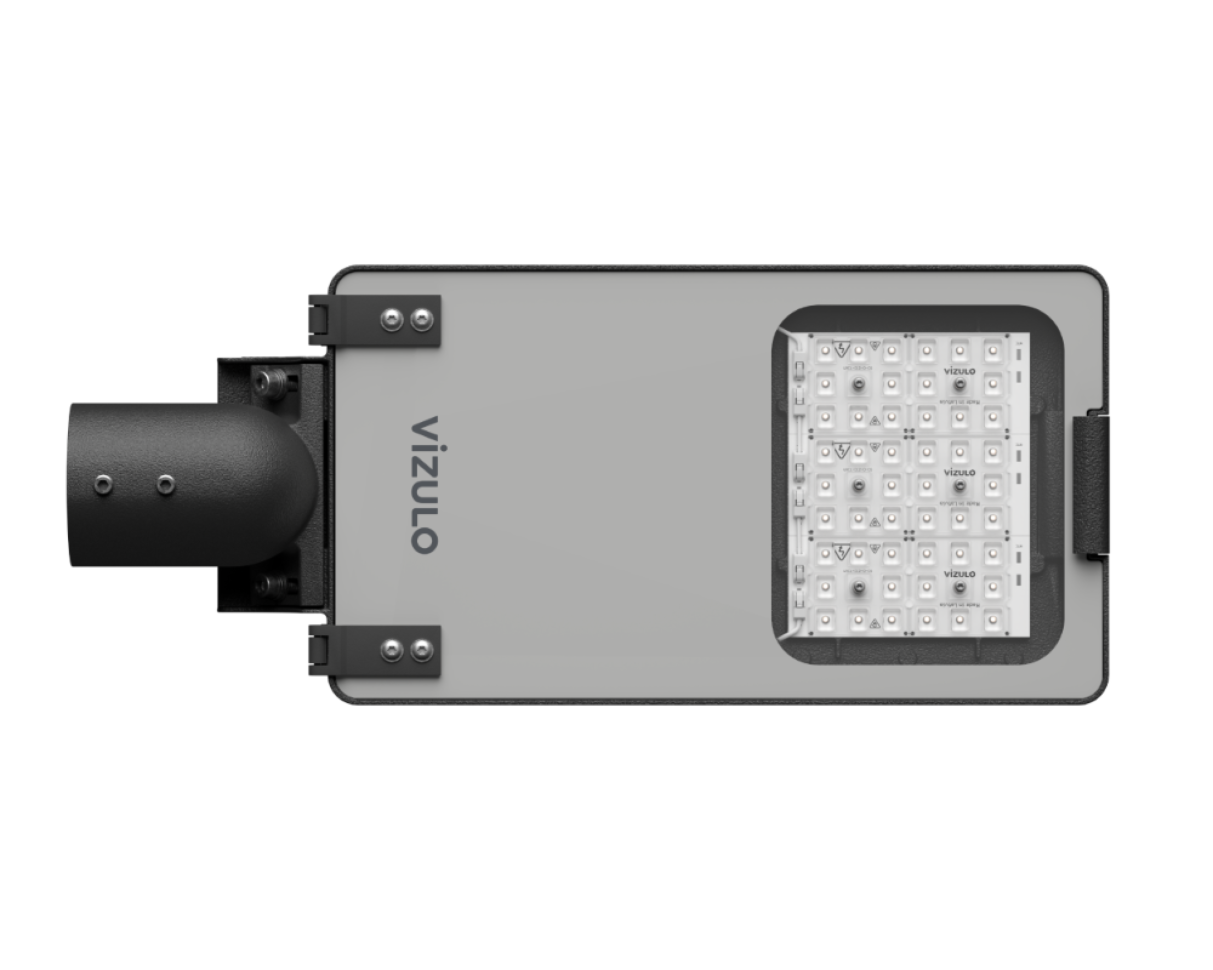

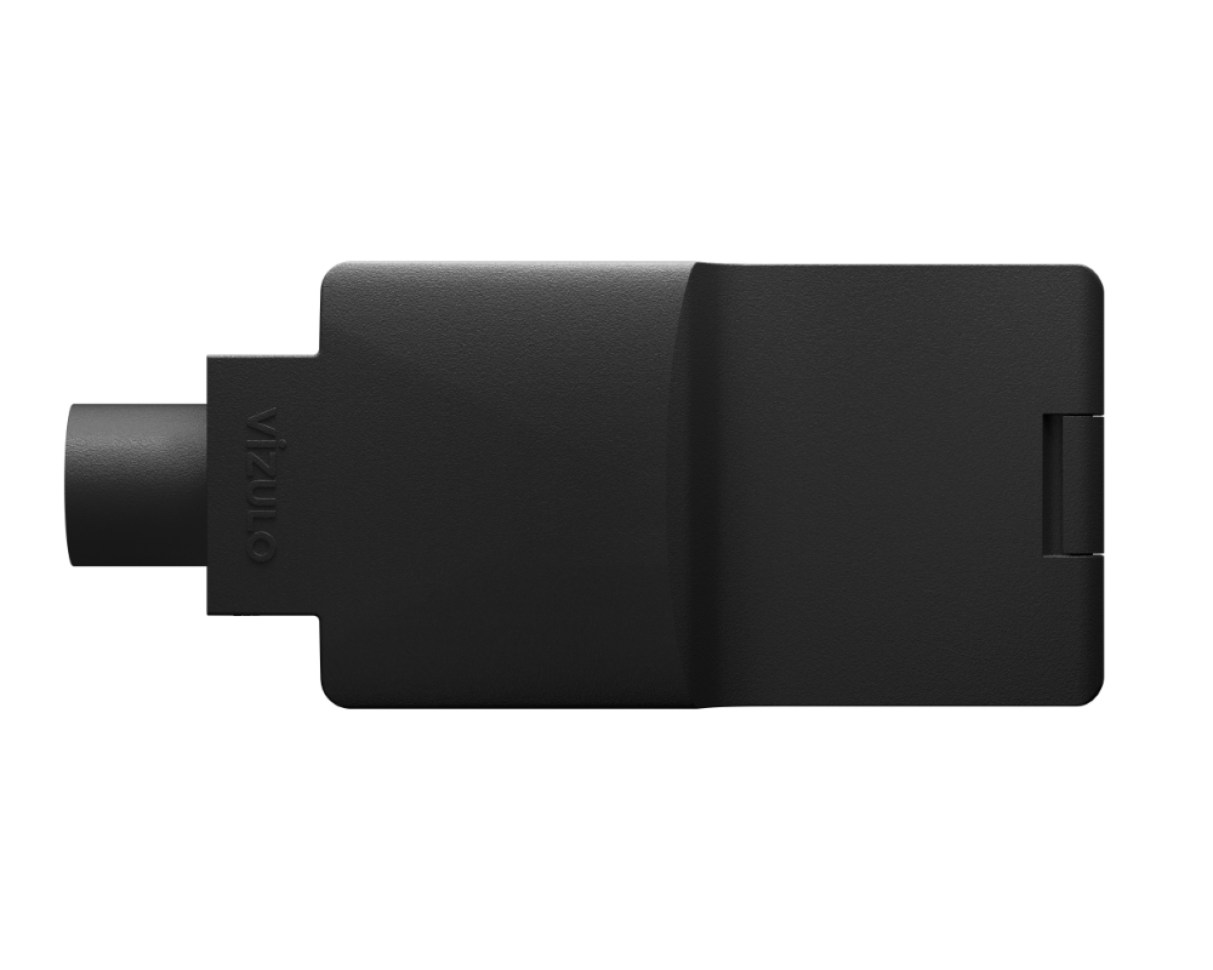

MINI MARTIN Tool-less | Smooth

Przegląd informacji o produkcie

If you love the minimalist die-cast aluminium design of our Micro Martin, but need something a bit brighter, Mini Martin is up for the challenge! Reaching brightness up to 18260 lm, Mini Martin has proved itself among the cloudy landscapes of Iceland, the stormy streets of Israel, and even the official hometown of Santa Claus on the Arctic Circle – Rovaniemi, Finland.  Sturdy and powerful, easy to install, even easier to maintain: there is an optional enclosure for tool-less opening. Like many VIZULO products, Mini Martin offers broad customization options: different drivers, optics, sockets (Zhaga/NEMA), reflectors, and connectors. Let us know what you need – and we can assemble the perfect Mini Martin for your project!

Podstawowe kolory

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specyfikacja

V

198 - 264

Hz

50 - 60

W

5 - 130

lm

446 - 18 260 1

lm/W

90 - 187 2

K

2700 / 3000 / 4000 3

°C

-40 up to +50 4

CRI

>70 / >80 / >90 3

mm

520 x 220 x 96

Body:   Die-cast aluminium

Dimming:   DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming

Initial chromaticity:   MacAdam 5

Lifetime:   Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty:   5 years

Installation:   Tool-less

Spigot:   32 - 40 mm 5 / 40 - 60 mm / 60 - 76 mm

Socket:   NEMA Top / Zhaga Top and Bottom

Intelligent control:   Stand-alone / Group / CMS

Sensor:   Motion / Motion + Daylight / Daylight

Surge protection:   4 / 6 / 10 kV 6

Corrosion protection:   Up to C5

Neto weight:   Up to 5.7 kg

Max. wind load area, SCd:   0.037 m2
