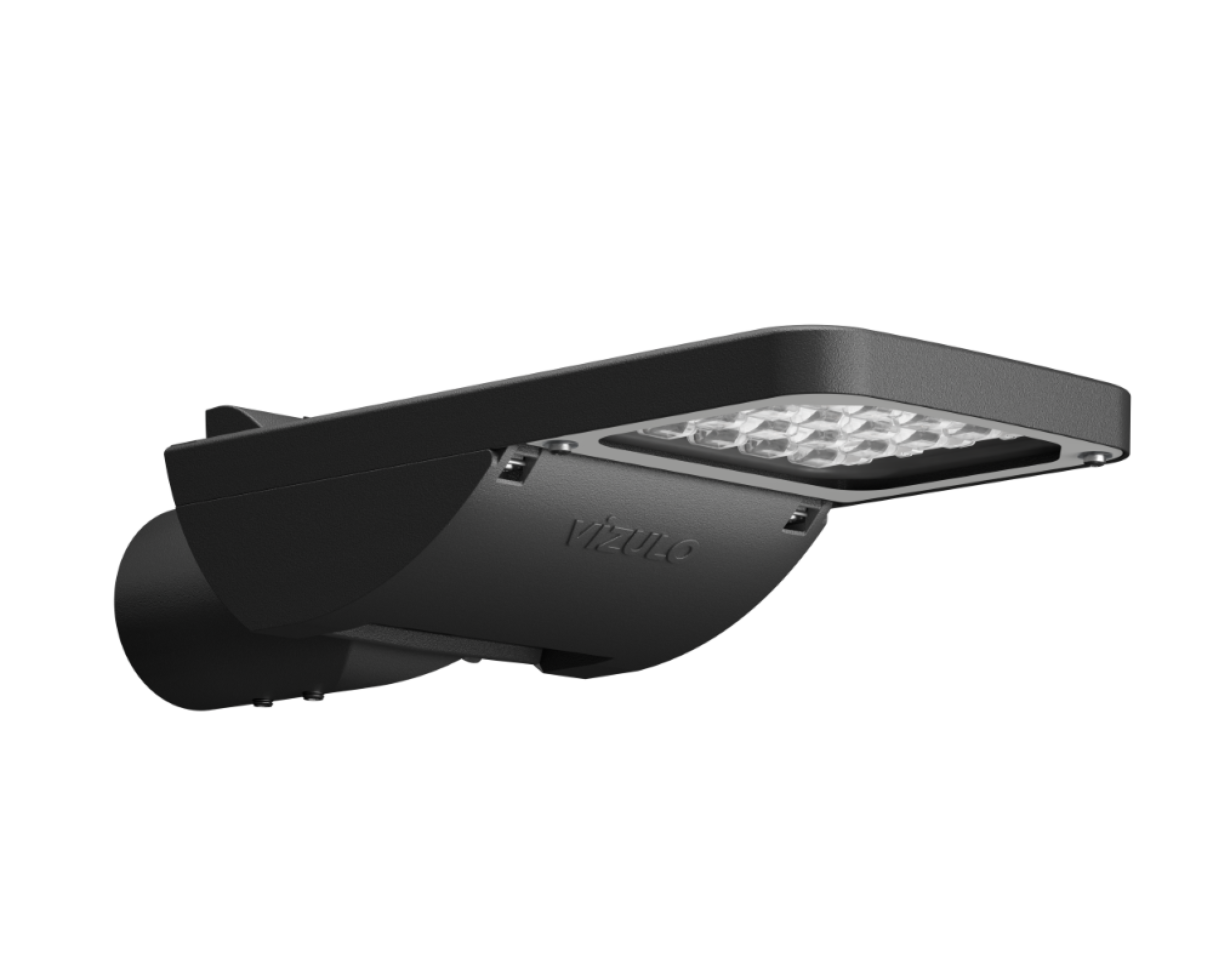

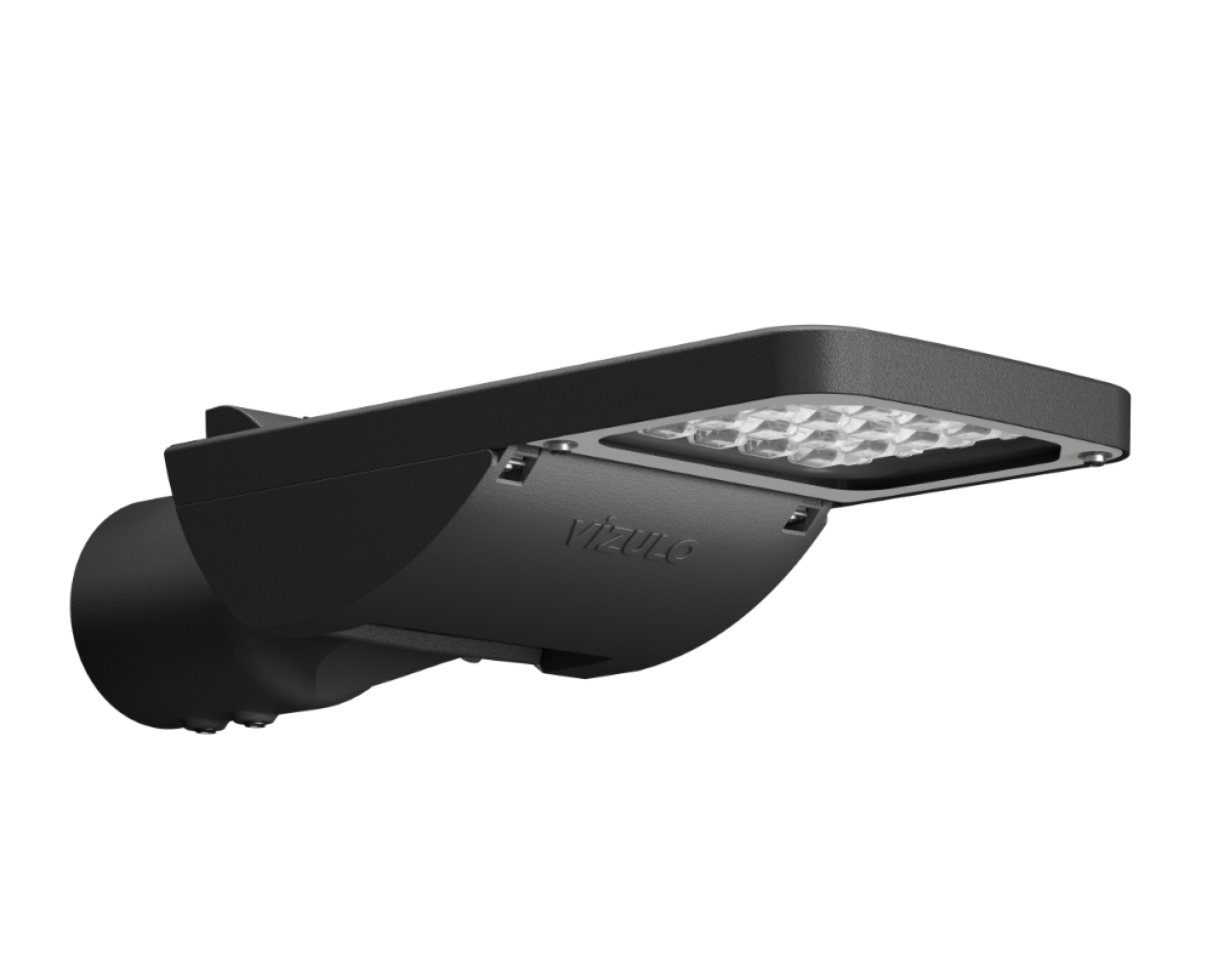

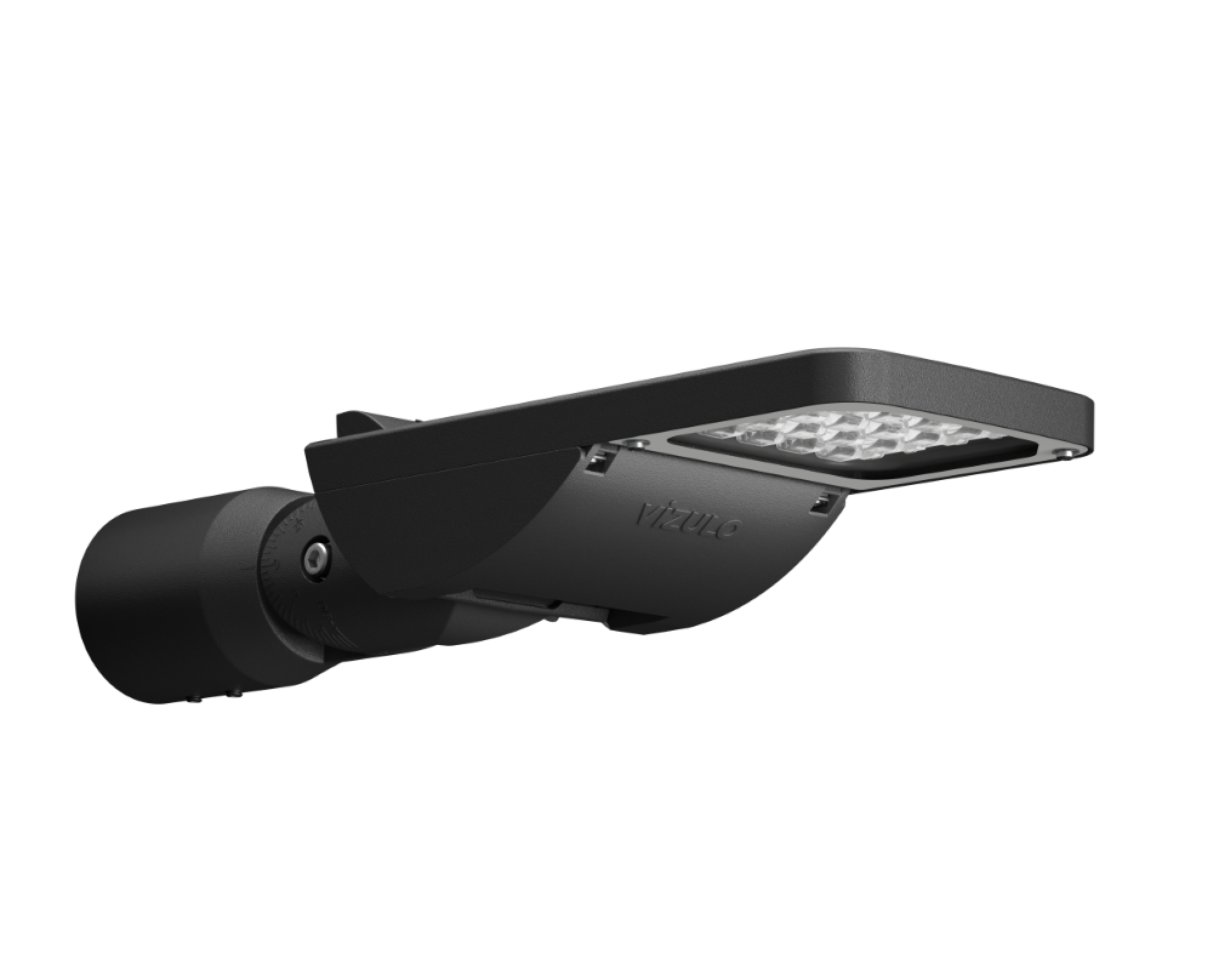

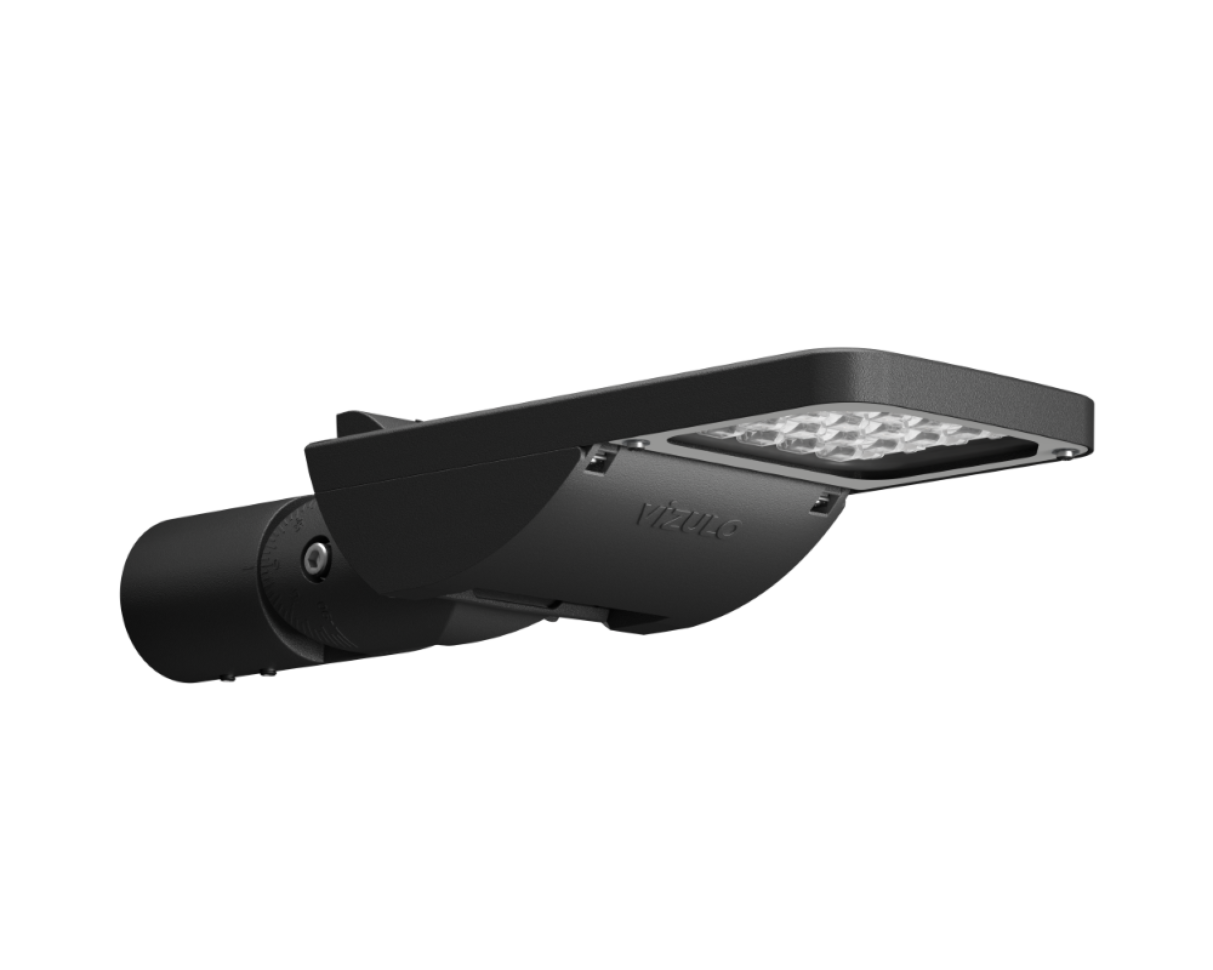

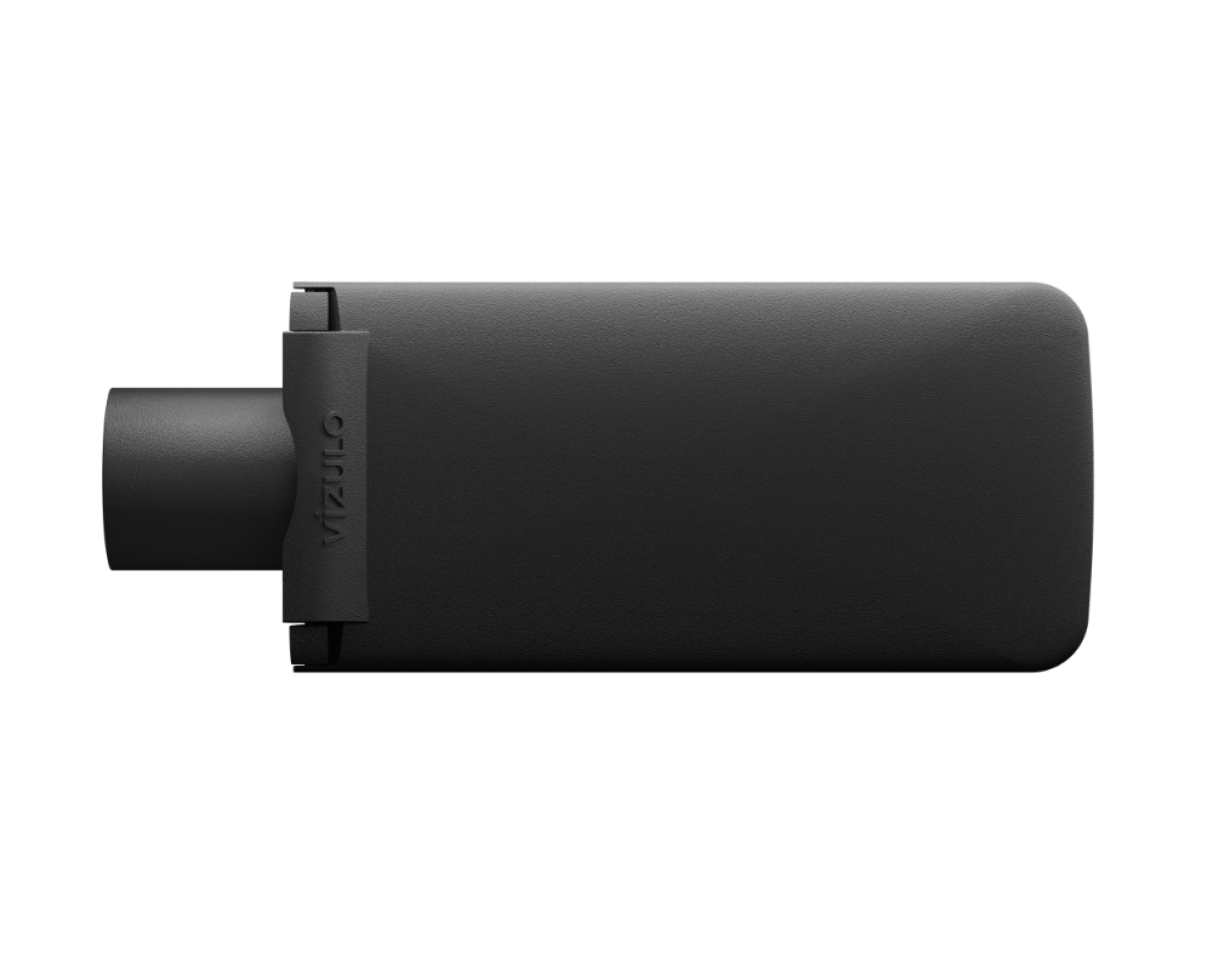

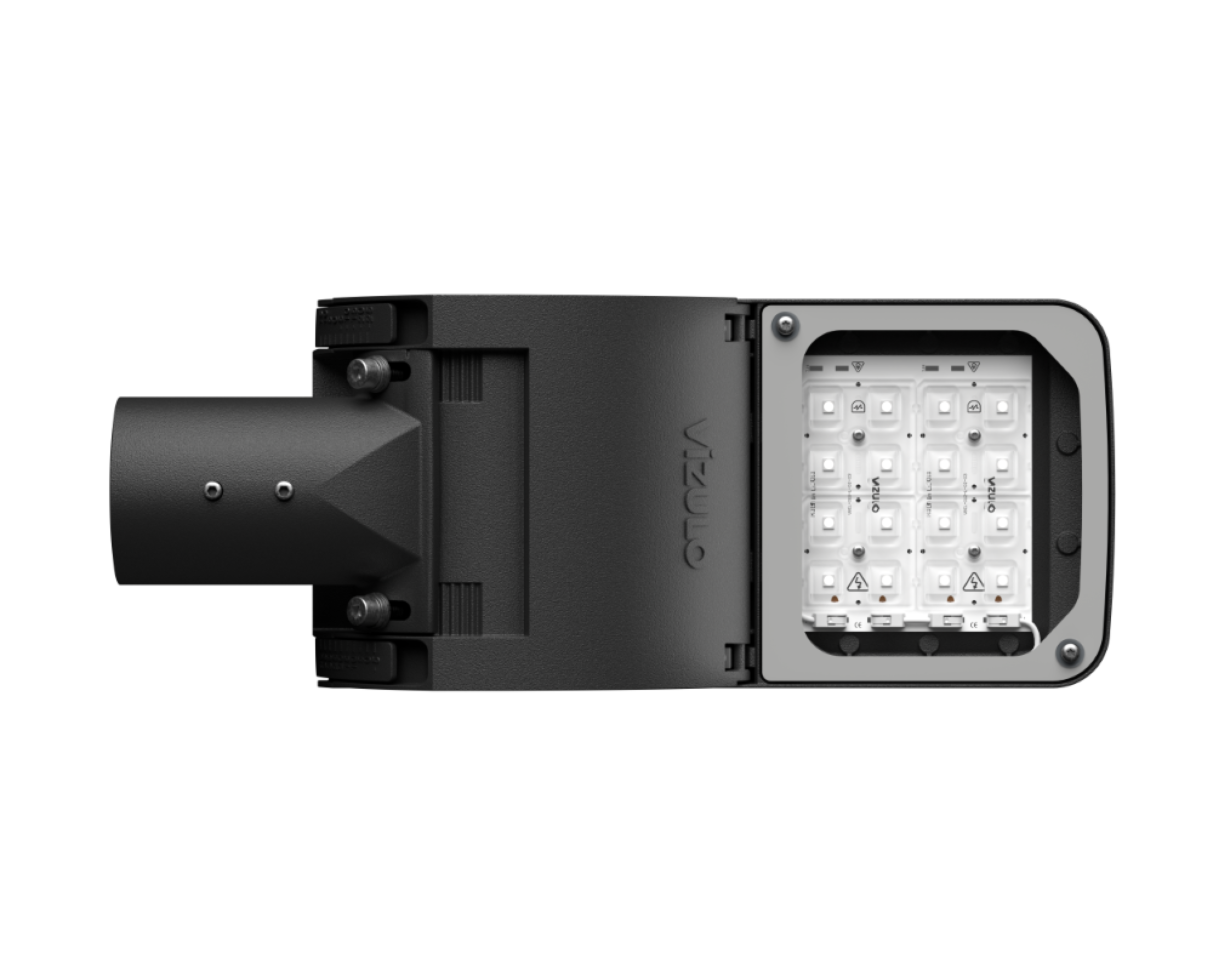

STORK LITTLE SISTER Smooth
Przegląd informacji o produkcie
Like all Stork family products, Stork Little Sister is an elegant powerhouse, offering the perfect balance of performance and design.
Despite its compact size, it delivers extraordinary power - ensuring well-lit streets and spaces, regardless of scale.
Podstawowe kolory
Specyfikacja
V
198 - 264 / 110 - 277 1
Hz
50 - 60
W
5 - 90
lm
430 - 12 900 2
lm/W
86 - 181 3
K
2700 / 3000 / 4000 4
°C
-40 up to +55 5
CRI
>70 / >80 / >90 4
mm
433 x 170 x 100
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming
Initial chromaticity: MacAdam 5
Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /
Standard / High density 100 000 h (L98B10) at Ta = 25 °C*
Warranty: 5 years
Installation: Tool-less
Spigot: 32 - 40 mm 6 / 40 - 60 mm / 60 - 76 mm
Vibration resistance: 3G (according to ANSI C136.31)
Socket: NEMA Top / Zhaga Top and Bottom
Intelligent control: Stand-alone / Group / CMS
Sensor: Motion / Motion + Daylight / Daylight
Surge protection: 4 / 6 / 10 kV 7
Nature friendly: PC Amber / Red / 1800 K
Corrosion protection: Up to C5
Neto weight: Up to 4.2 kg
Max. wind load area, SCd: 0.033 m2
Pobierz dokumenty
Download product information
Funkcje
Electronics
Controls & Connectivity
Światło
Optics
Akcesoria
Optical
Mounting
Controllers and sensors for smart systems
Terminal blocks and plugs
Cables
Sockets and caps for smart systems
Fuses
