FERN

Przegląd informacji o produkcie

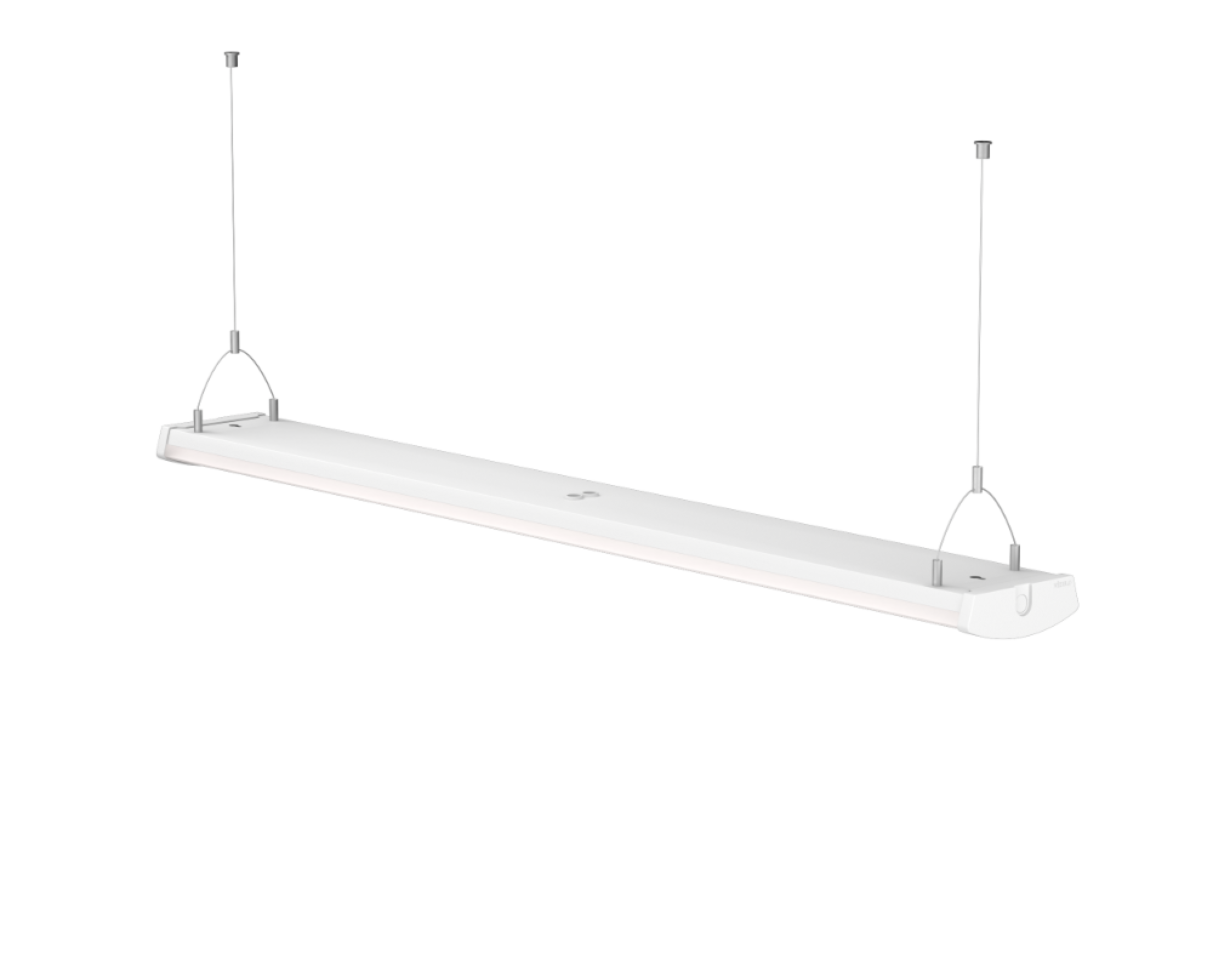

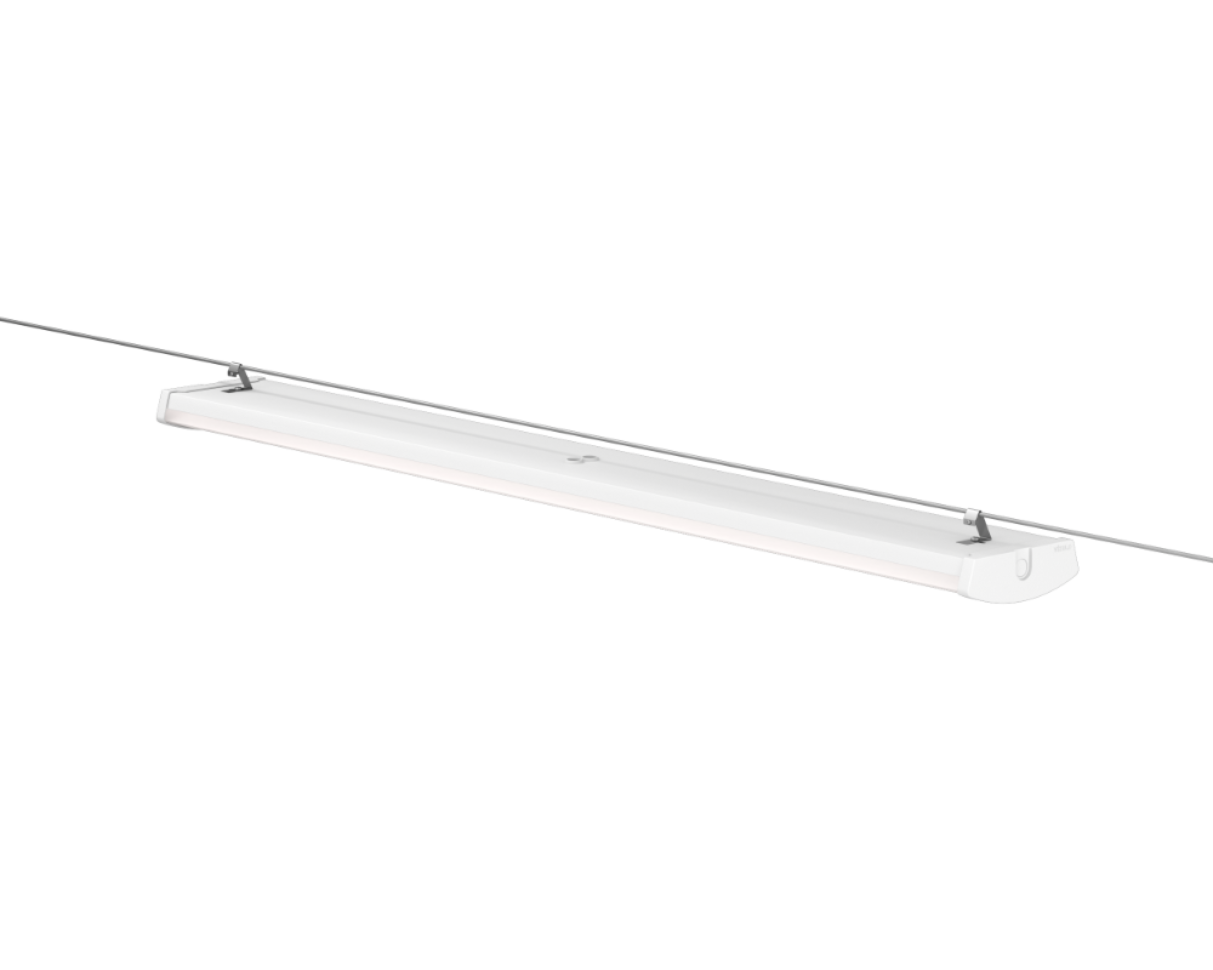

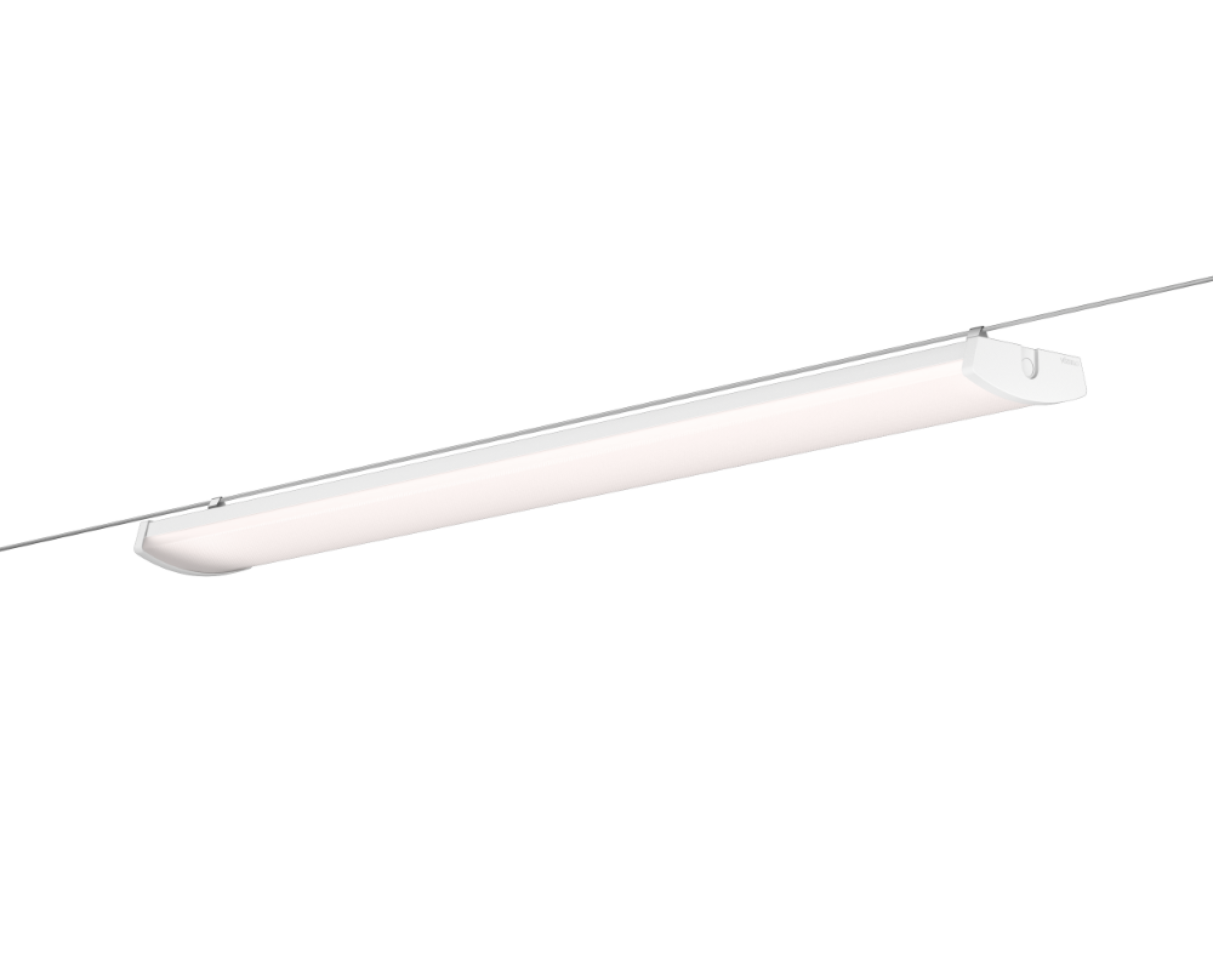

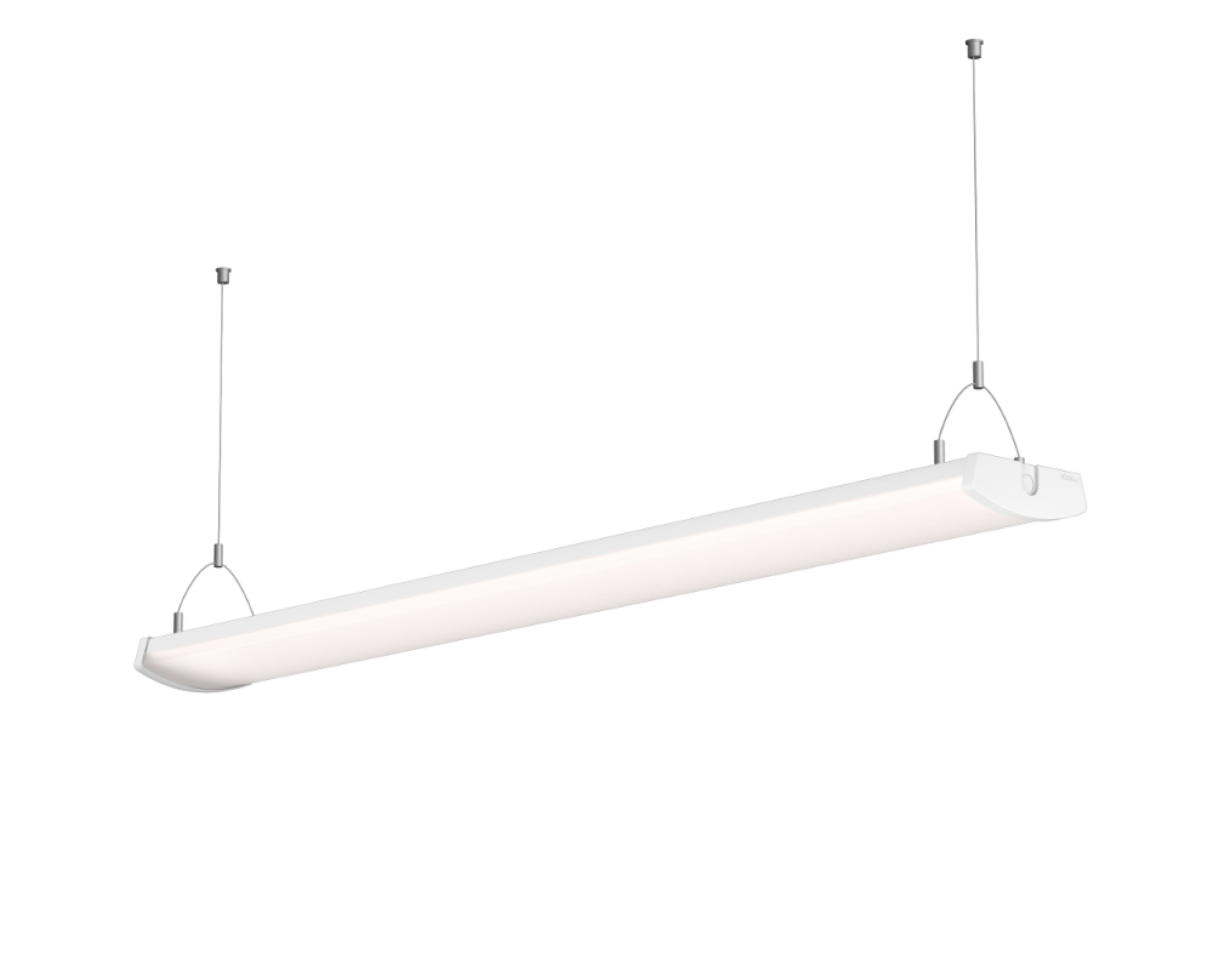

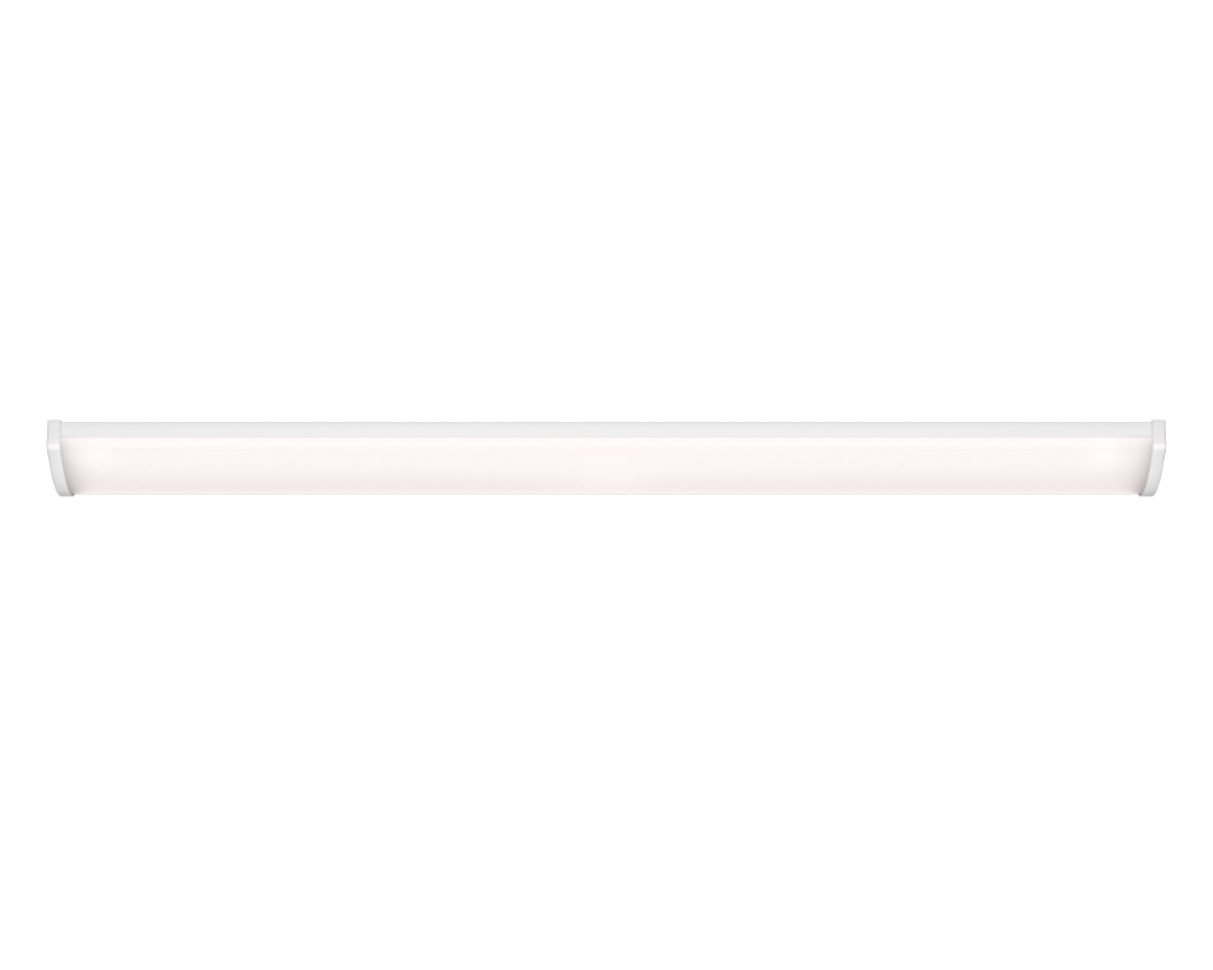

It all starts with the basics - Fern surface. It is an industrial luminaire, available with a length of 60 cm, 120 cm, or 150 cm on your choice. If you want to get Fern closer to your eyes – we invite You to choose a suspended version. Fern can also be mounted on wire or the wall using special mount kits available as an accessory. Fern is the luminaire for public areas, usable in various premises and projects: corridors, basements, utility rooms, small warehouses, as an emergency luminaire, etc.  A wide range of drivers allows adapting luminaires to specific project needs, while sensors adjust Fern into creating smart solutions.

Podstawowe kolory

  • White

Specyfikacja

V

220 - 240

Hz

50 - 60

W

12 - 75

lm

Do 9700 1

lm/W

Do 140

K

3000 / 4000 2

°C

+10 to +40

CRI

>80 / >90 / >95 3
>90 / >95 4

Body: Alu-zinc

Dimming: DALI / 1-10 V / Bluetooth / Non dimmable

Sensor: Microwave / RF / PIR / PIR + Daylight

Initial chromaticity: MacAdam 3

Lifetime: 100 000 h (L80B10) at Ta = 25 °C*

                 50 000 h (L90B10) at Ta = 25 °C*

Warranty: 5 years

                  2 years (emergency configuration)

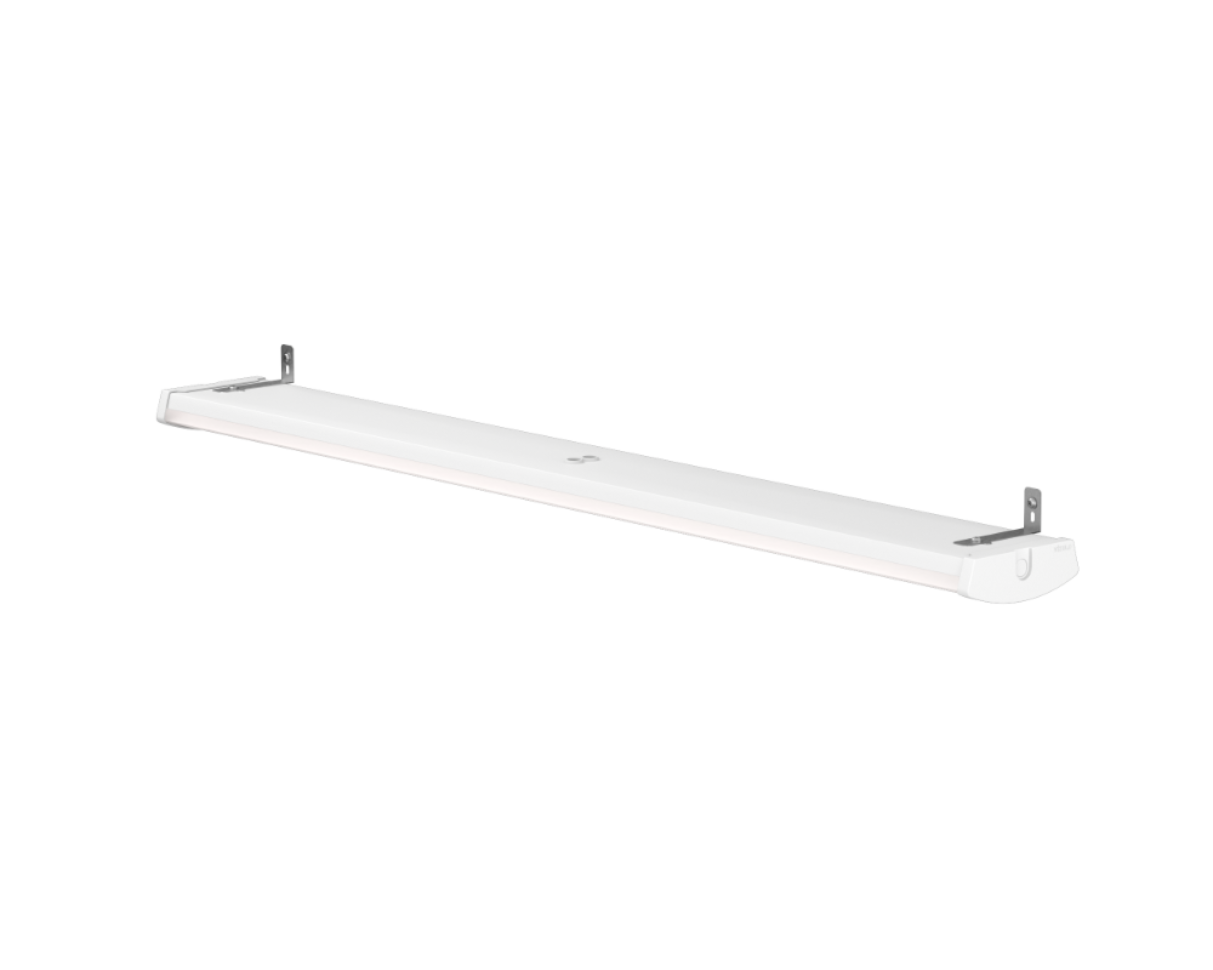

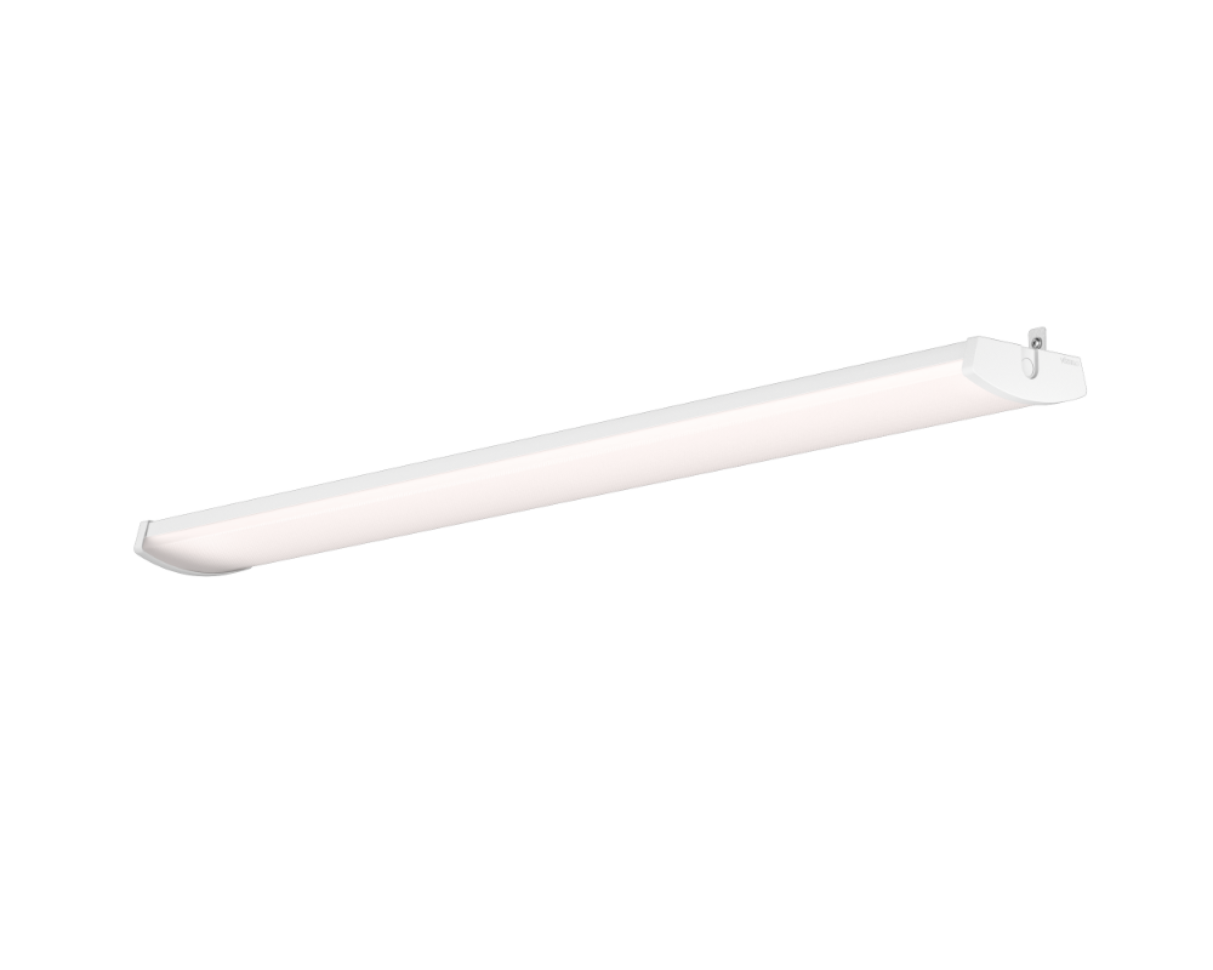

Mounting: Surface / Wire / Pendant / Wall

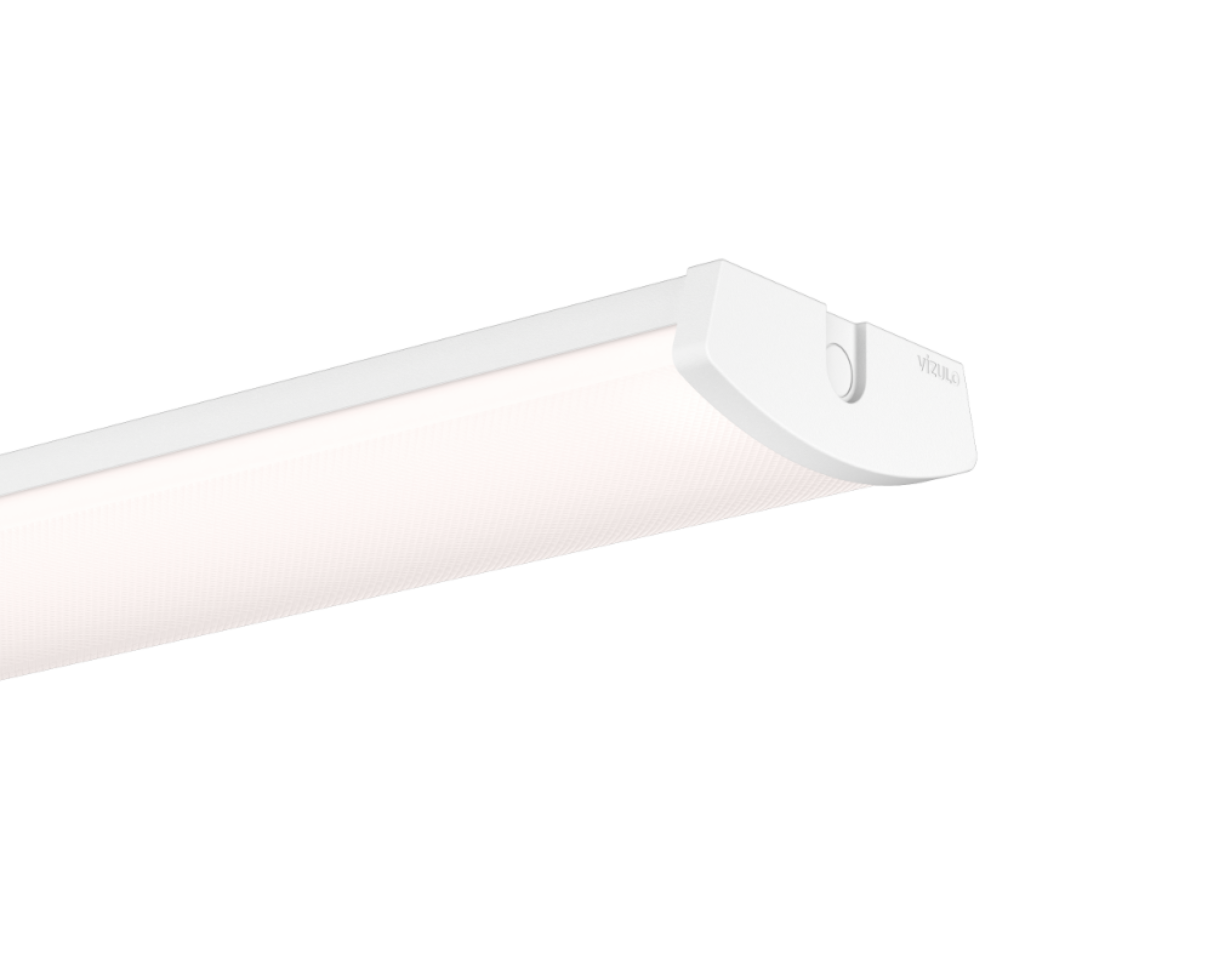

Cover: Prismatic PMMA

Human Centric Lighting: Available
