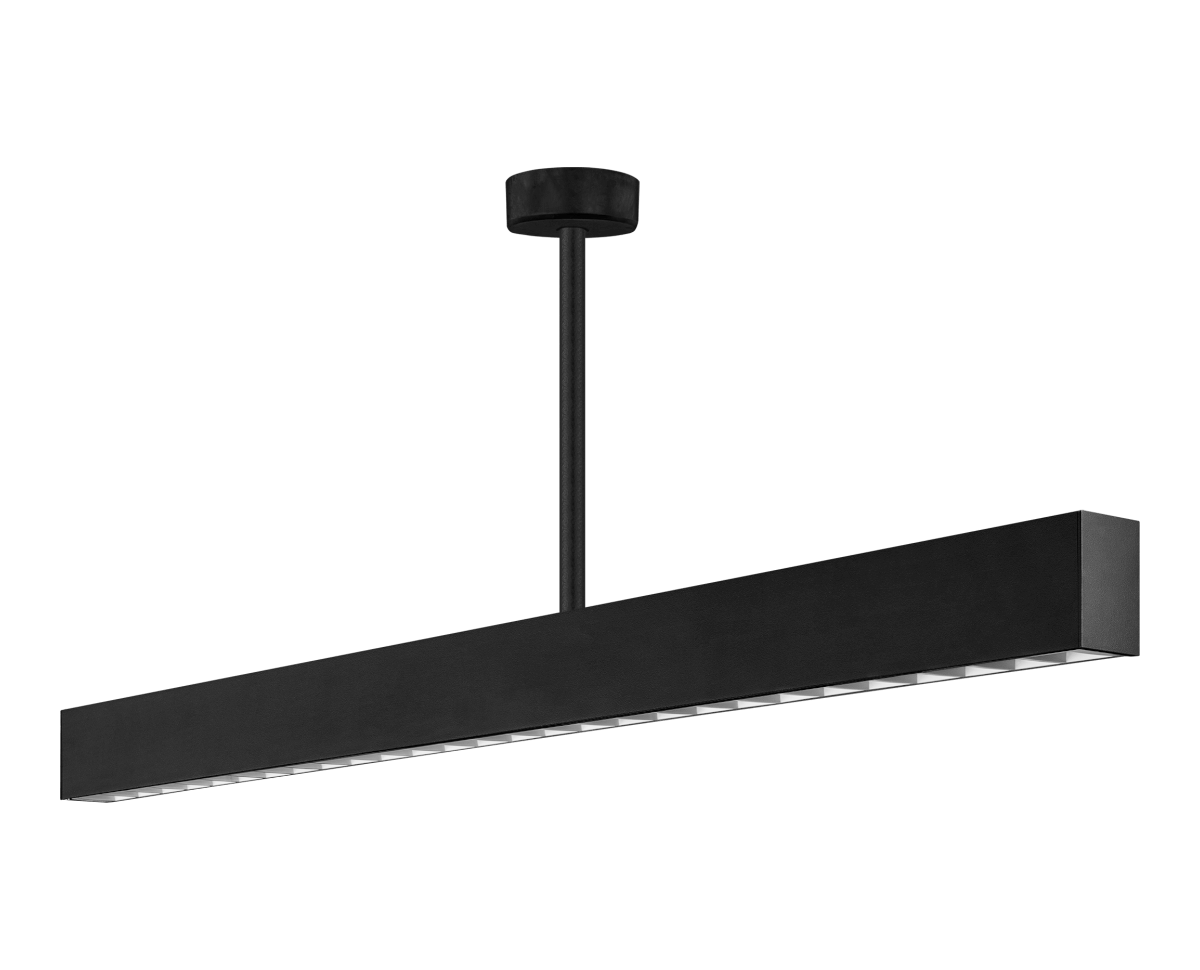

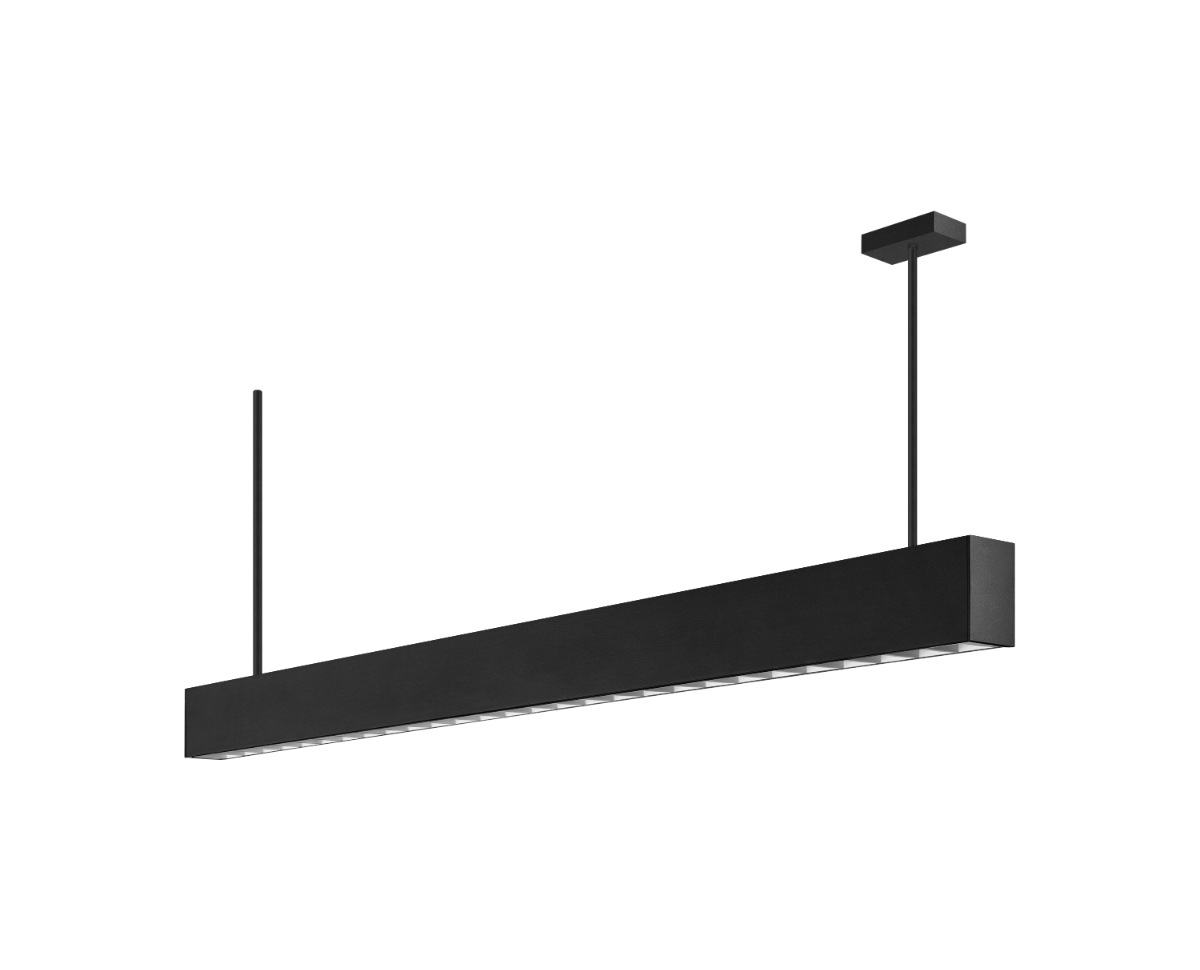

MILZO Number 2 with Rod suspension

Product Overview

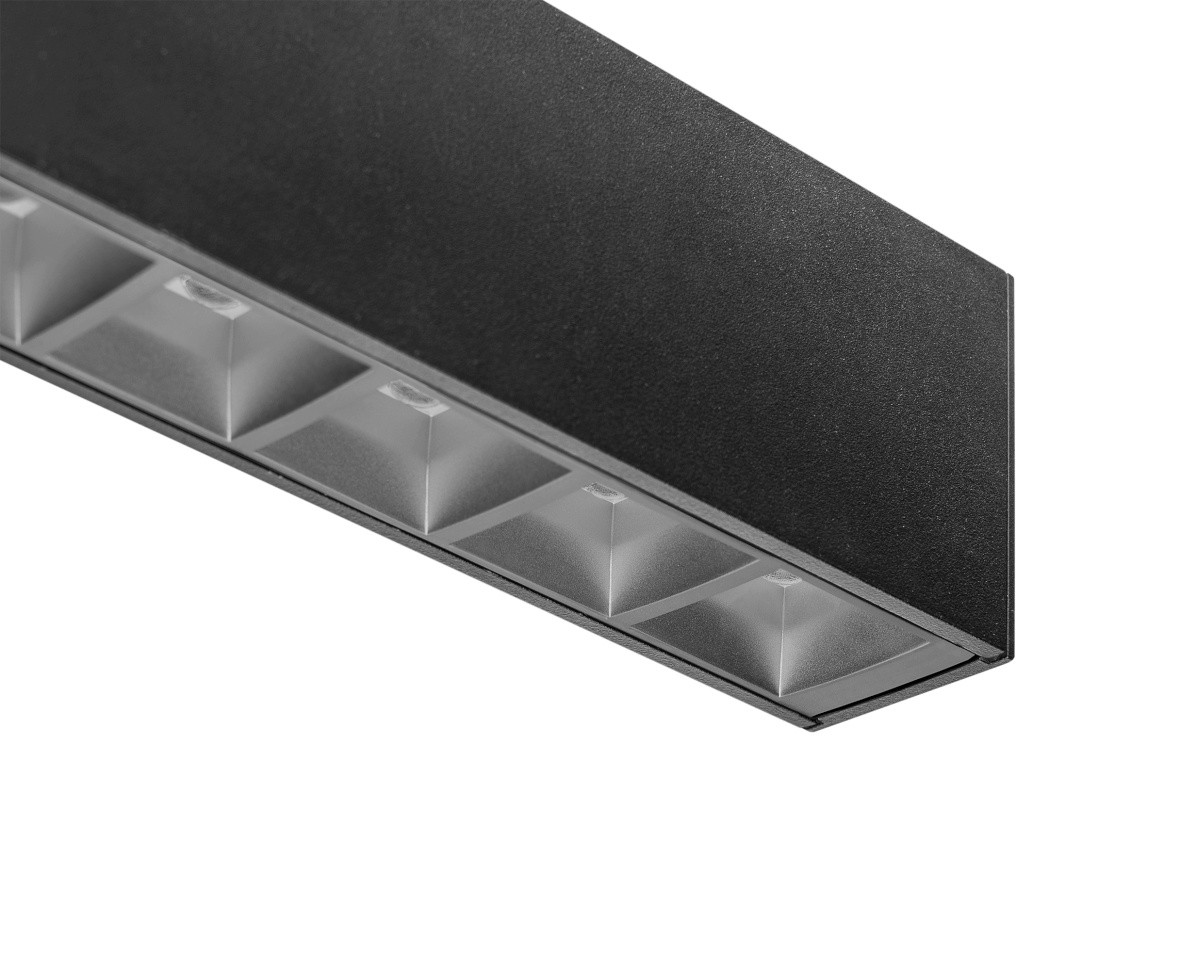

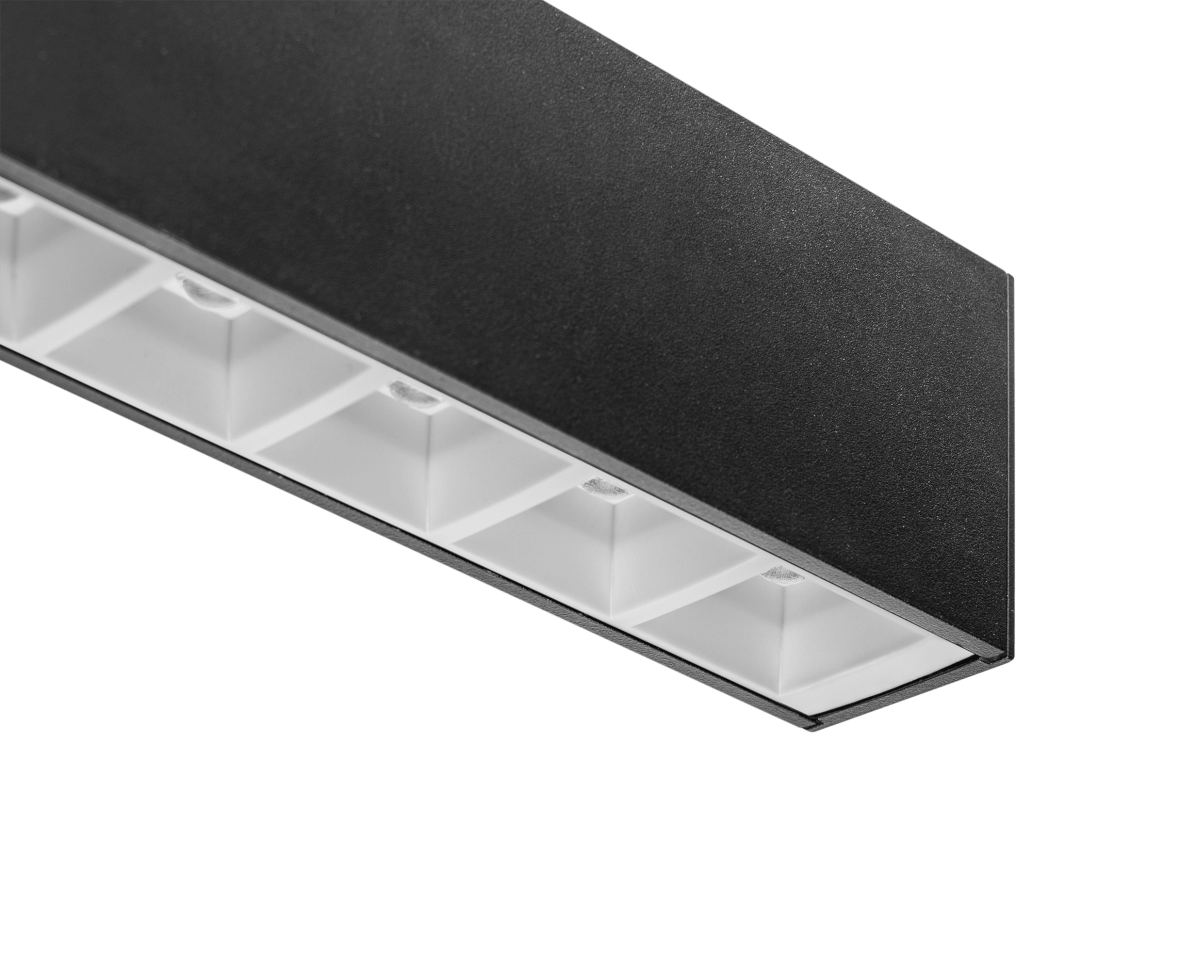

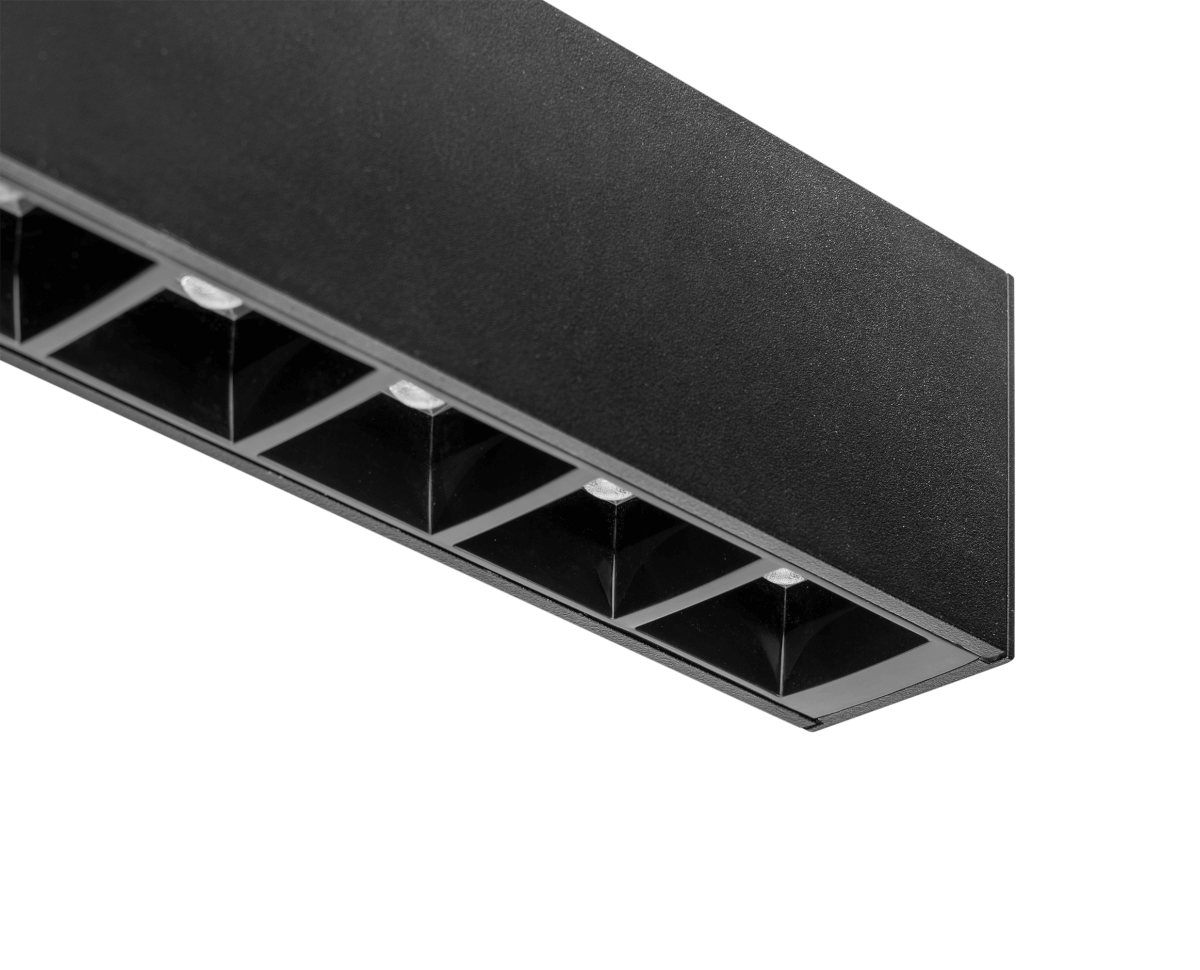

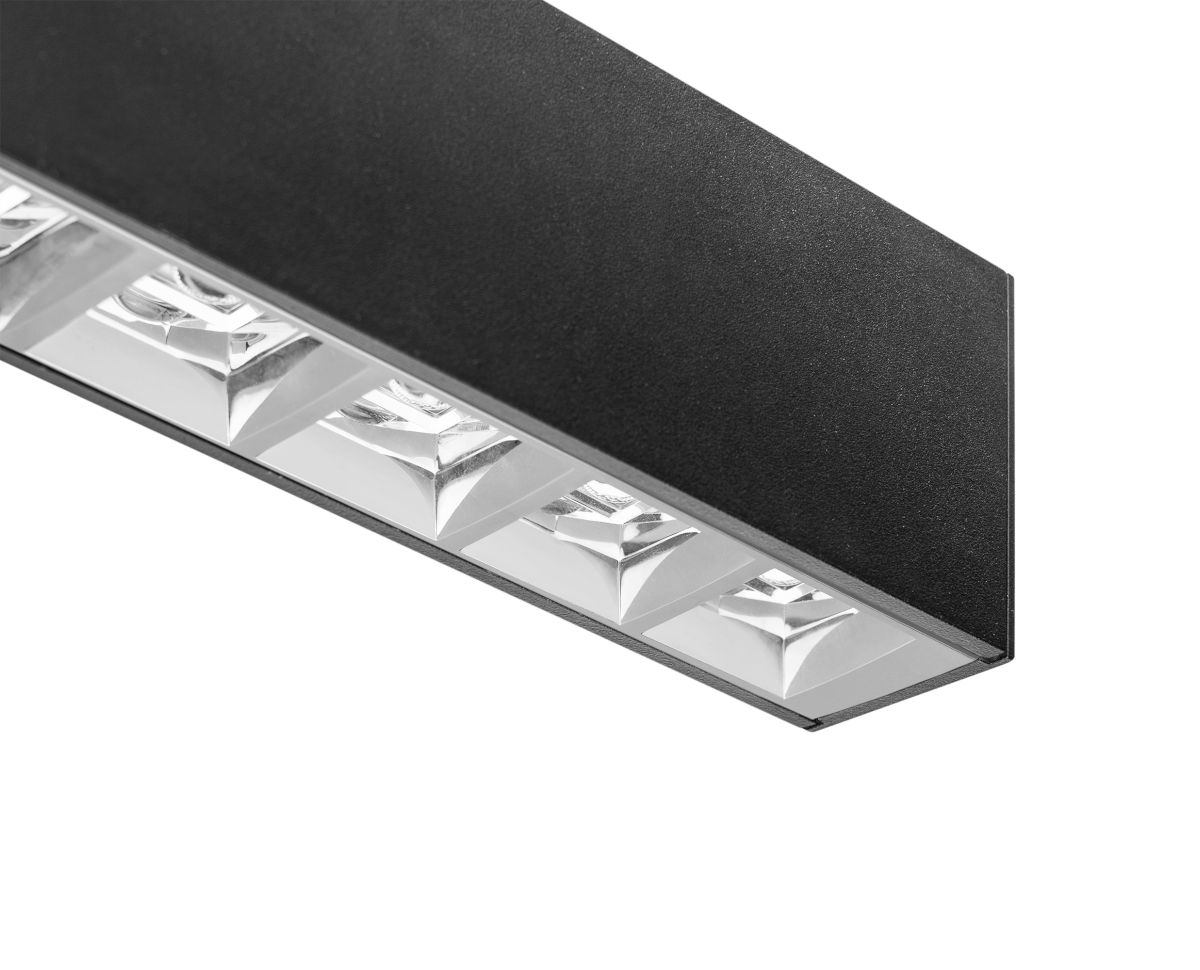

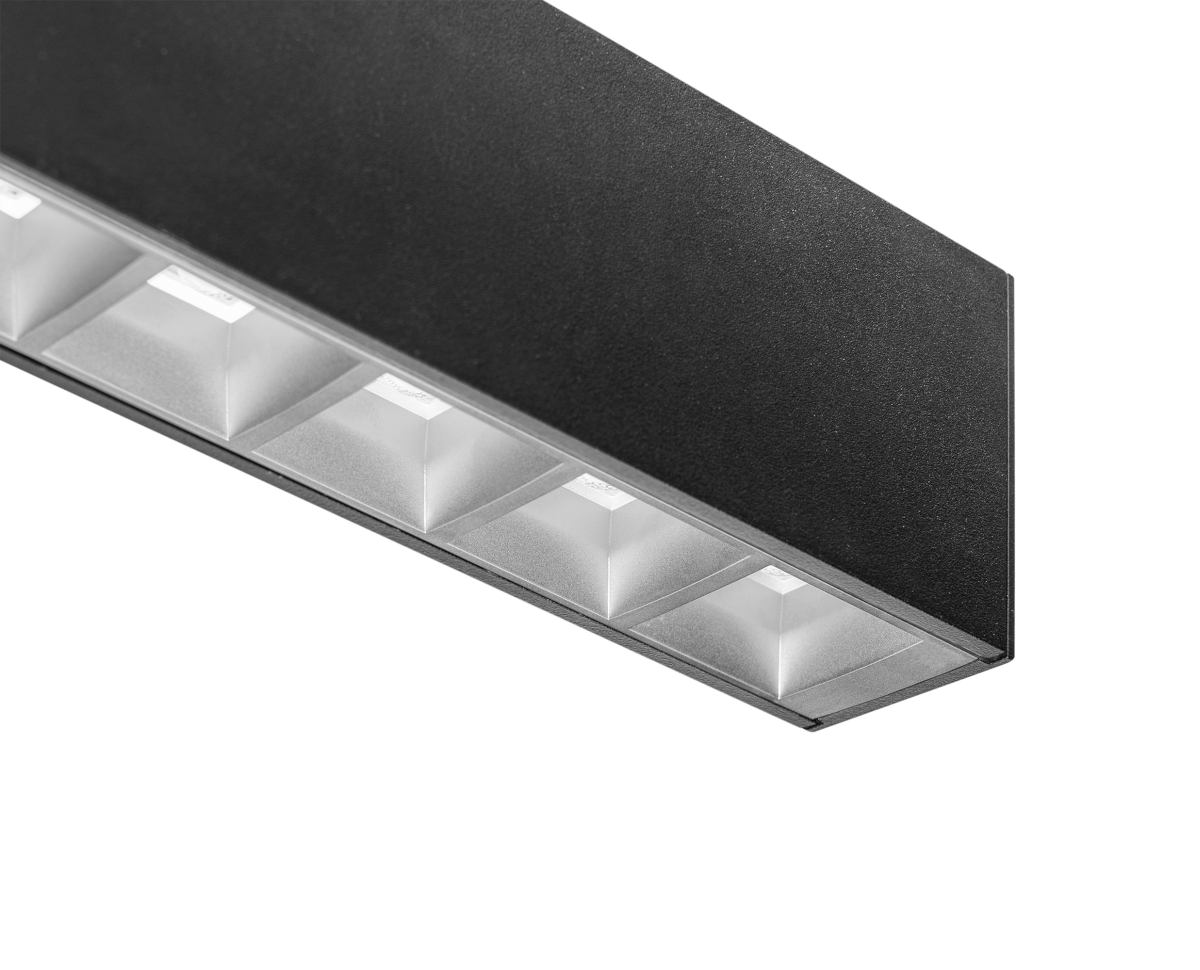

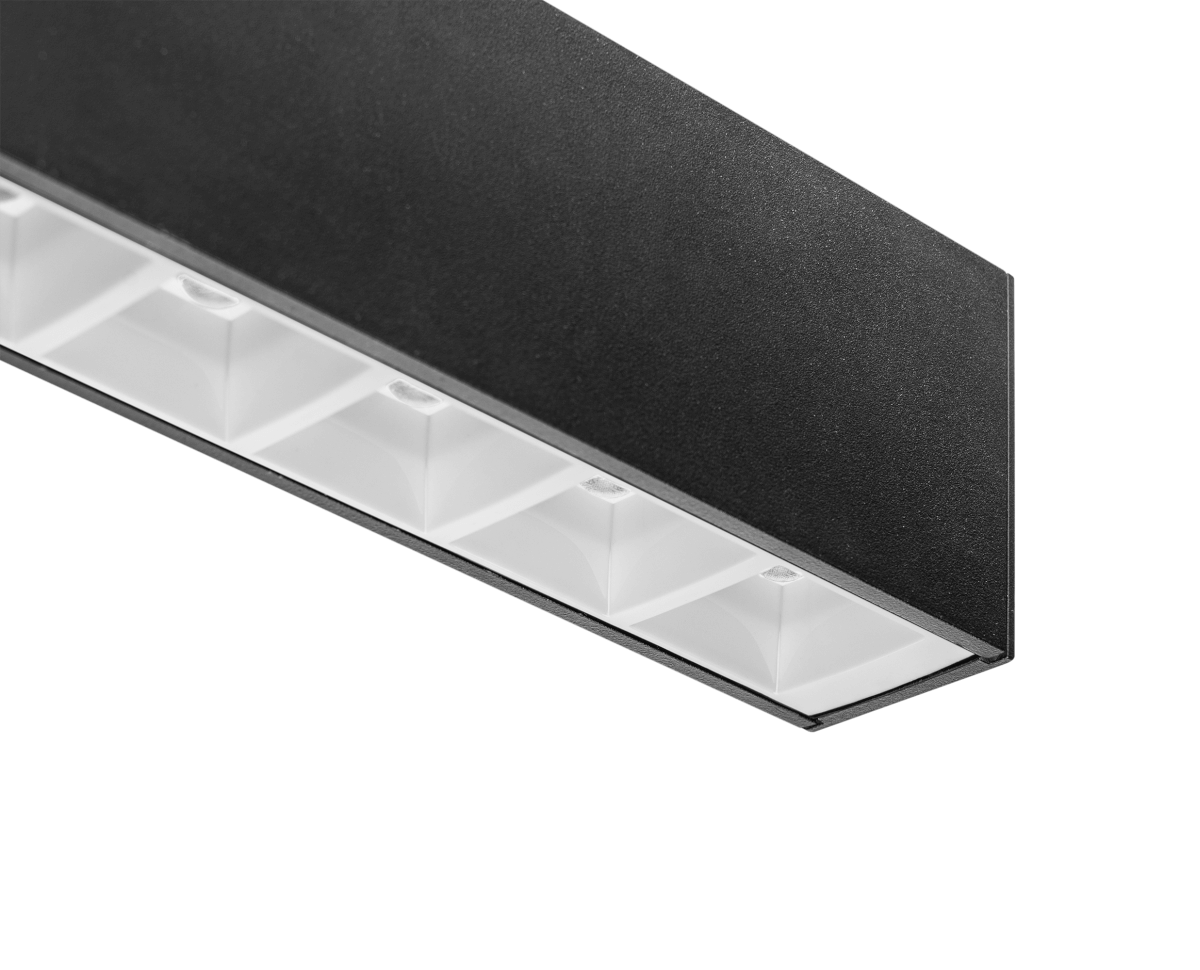

With its strict lines, modern minimalist design, and the most promising technologies, Number 2 can be used in public premises, offices, schools, kindergartens, and private spaces. You can adapt Milzo No 2 to Your room coloristic, design, and needs by choosing luminaire body-color, reflectors type and color, and optics variety. Luminaire proposes to select from 3 mounting types: surface, suspended, with rod suspension, to achieve the most comprehensive design possibilities.

Basic colours

  • Silver RAL9006
  • Black RAL9005
  • White RAL9016

Specification

V

220 - 240

Hz

50 - 60

W

12 - 90

lm

Up to 9290 1
Up to 12474 2

lm/W

Up to 130 1
Up to 120 2

K

3000 / 4000 3

°C

+10 to +35

CRI

>80 / >90 / >95 4
>90 / >95 5

Body:   Aluminium profile

Dimming:   DALI / 1-10 V / Pull dimmer / Bluetooth / Non dimmable

Sensor:   PIR / PIR + Daylight

Initial chromaticity:   MacAdam 3

Lifetime:   50 000 h (L90B10) at Ta = 25 °C*

                 100 000 h (L80B10) at Ta = 25 °C*

Warranty:   5 years

                     2 years (emergency configuration)

Optics:   PMMA optic / PC shade

Uplight/Downlight:   Opal / Microprismatic

Mounting:   On Rod

Human Centric Lighting:   Available
