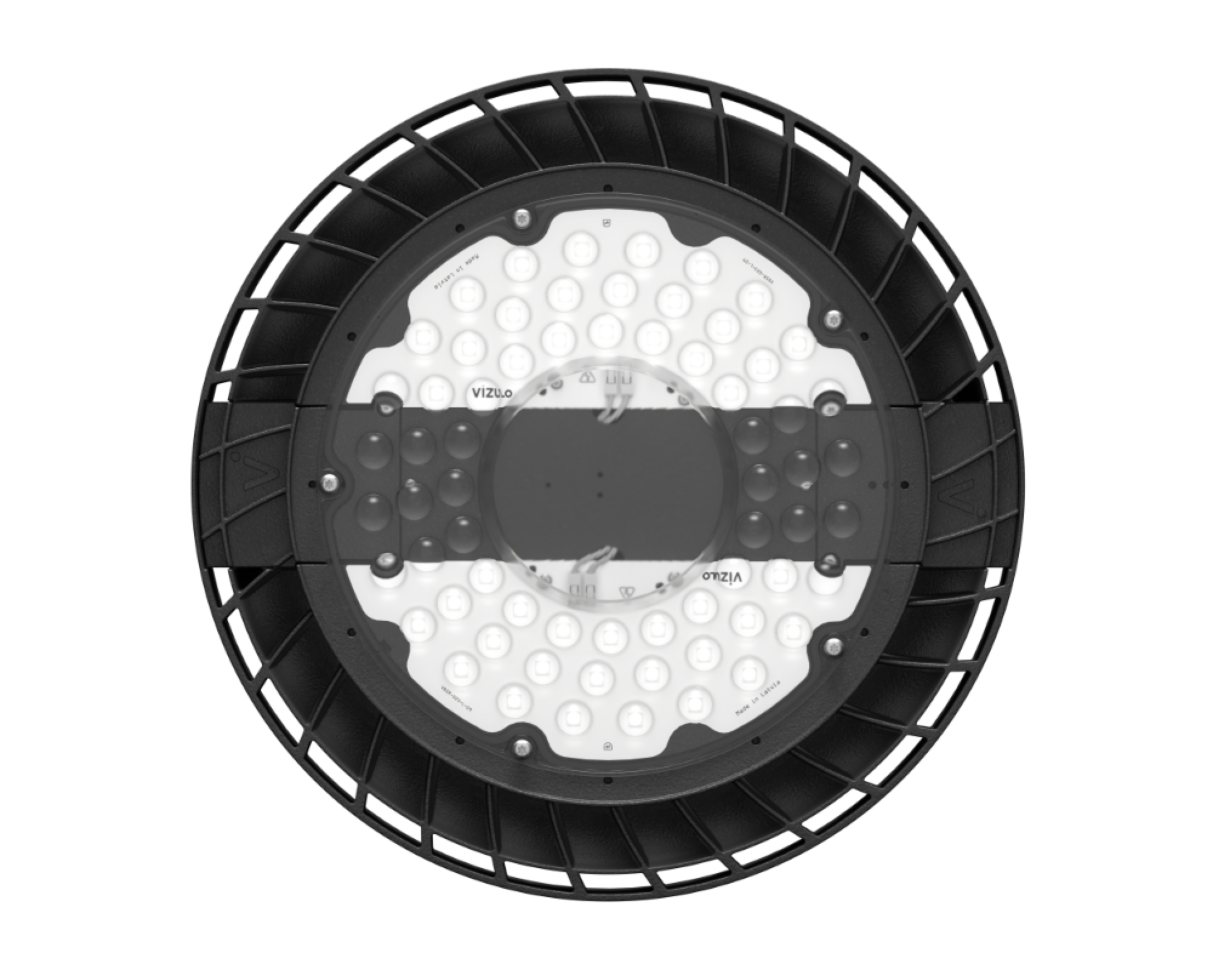

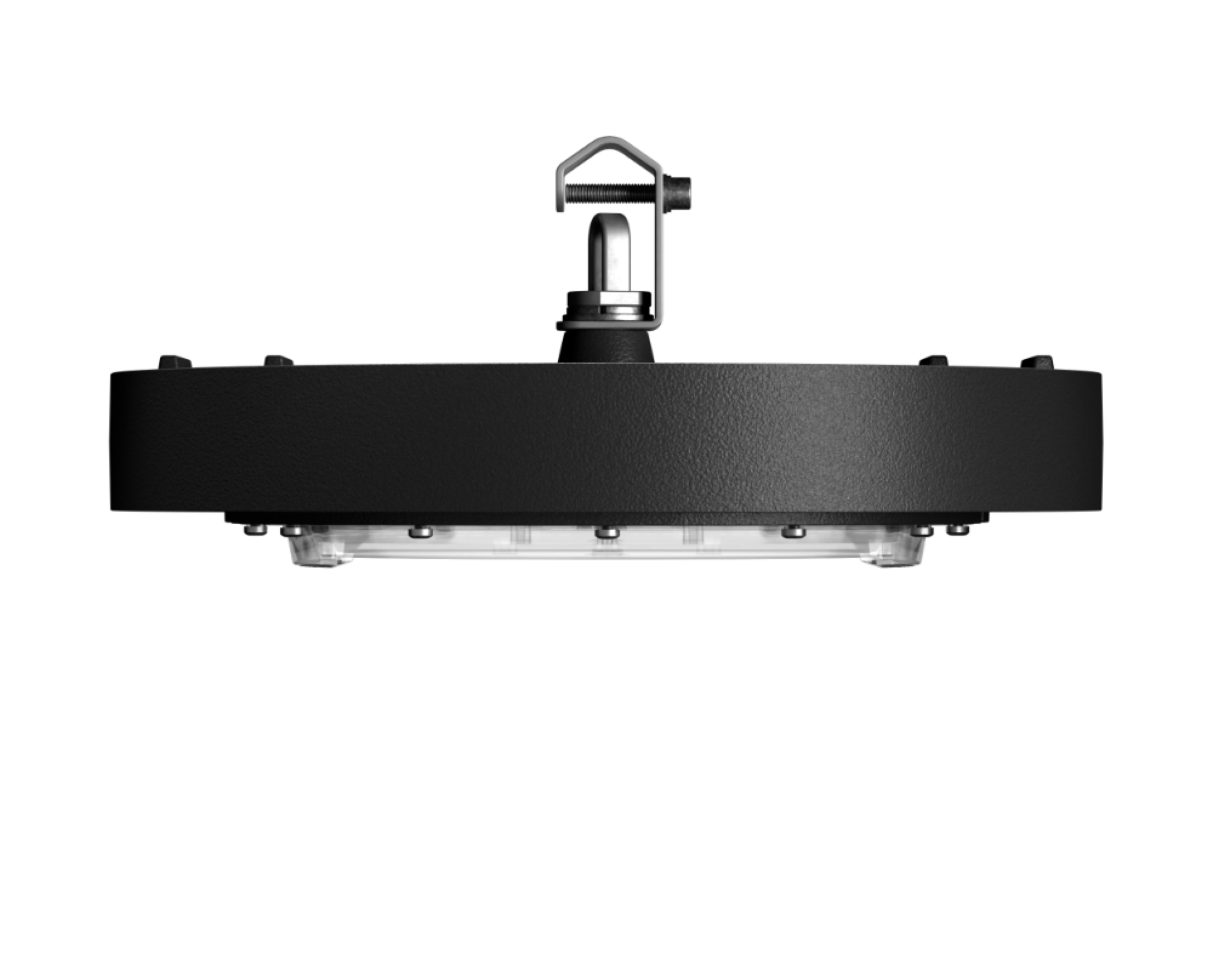

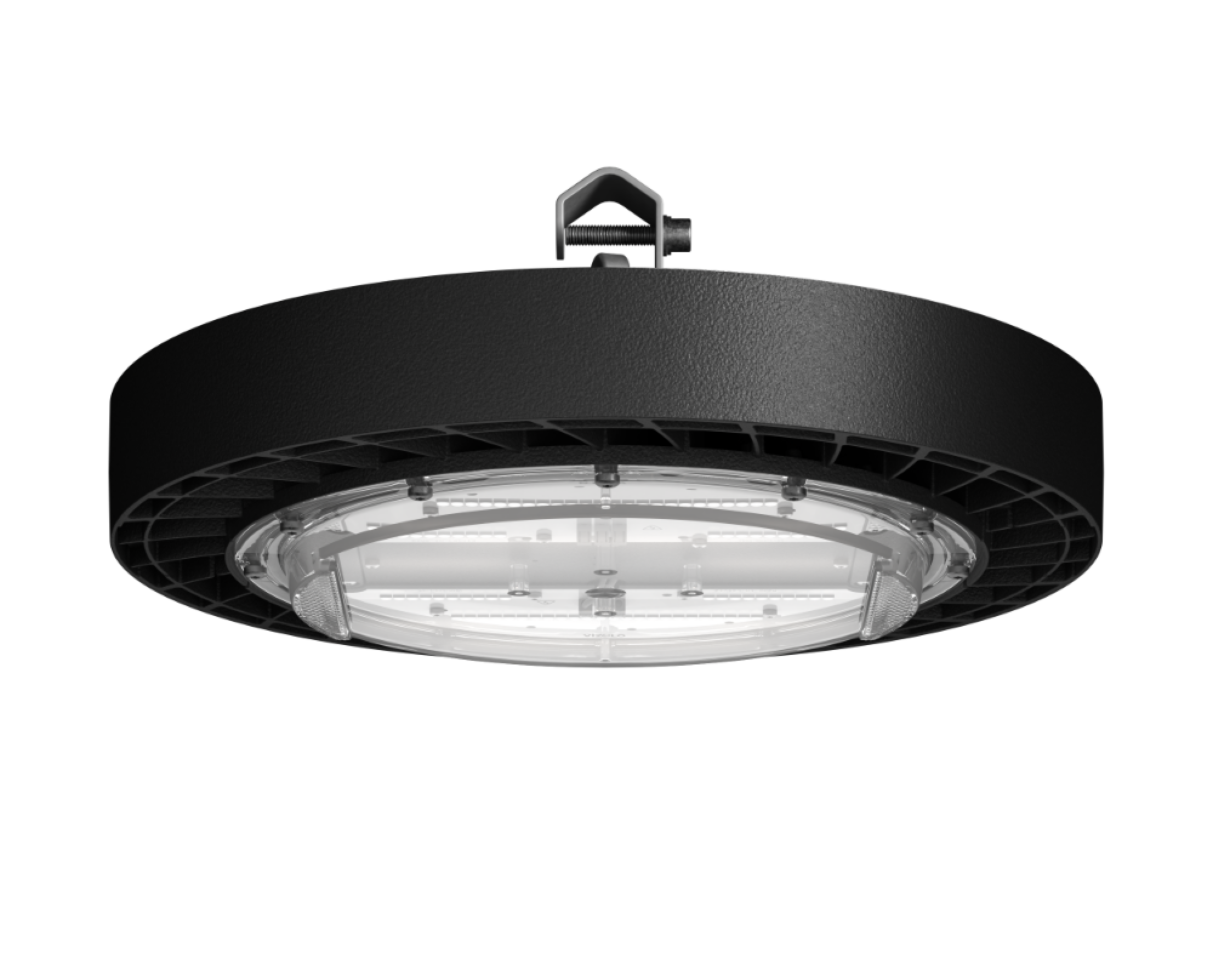

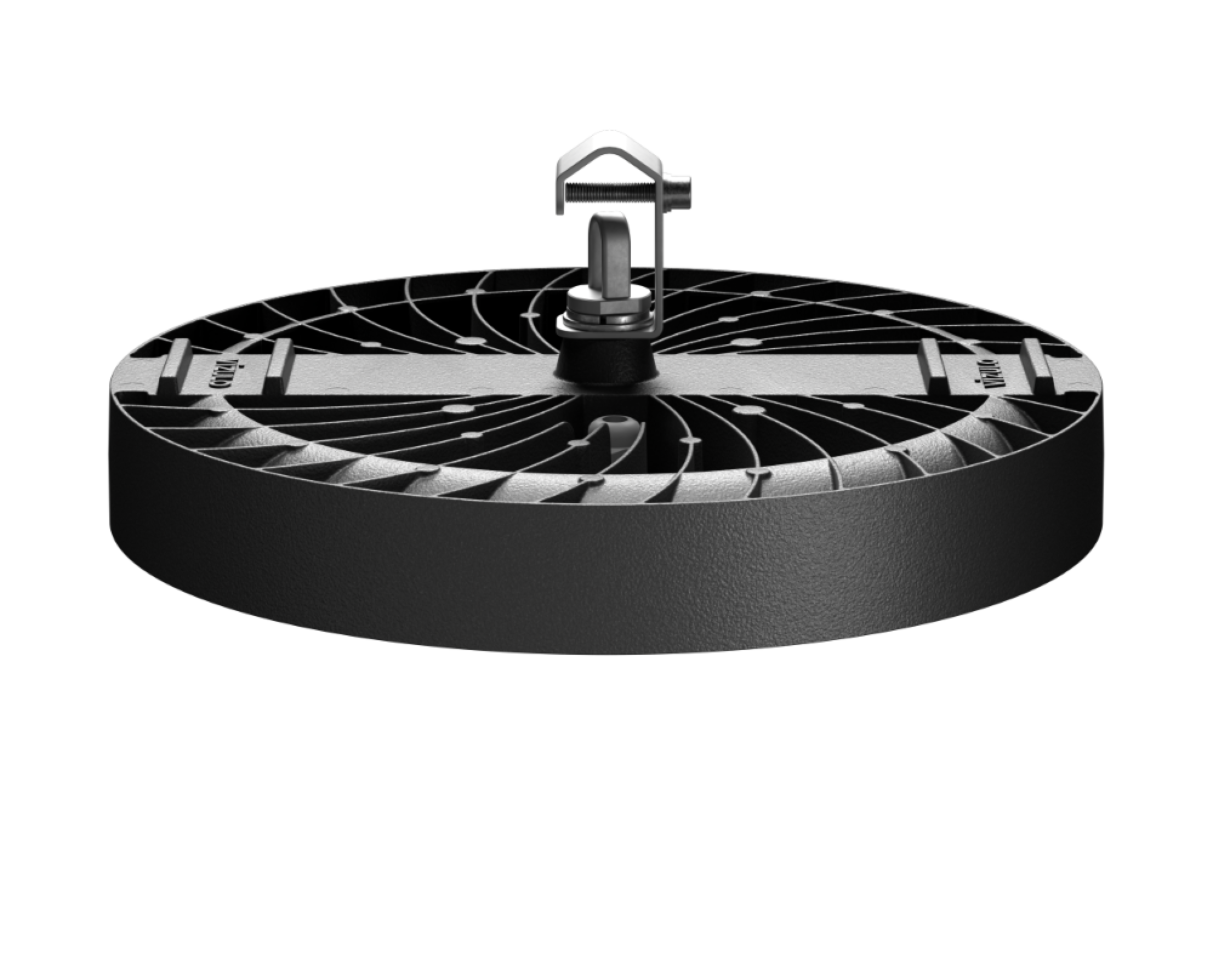

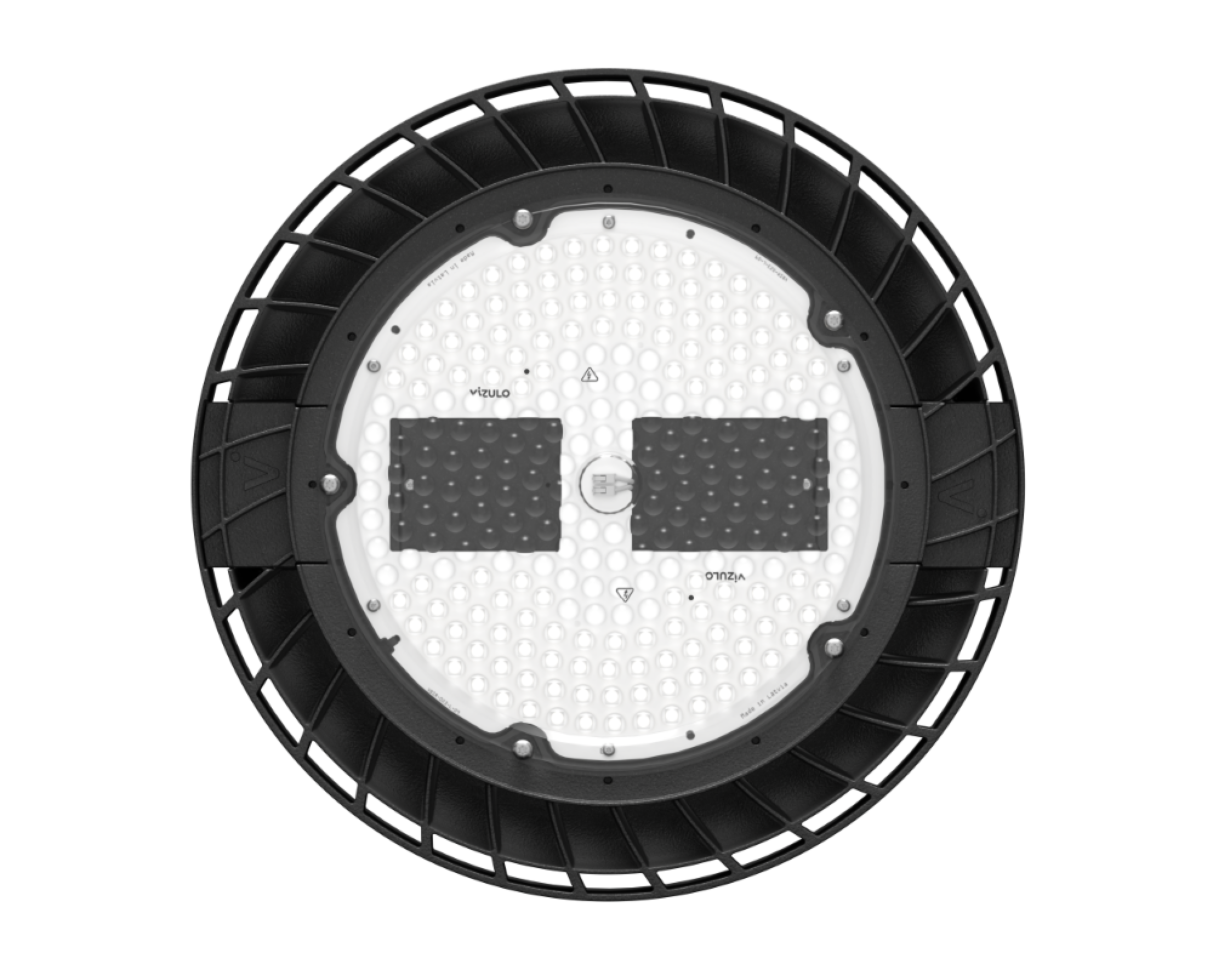

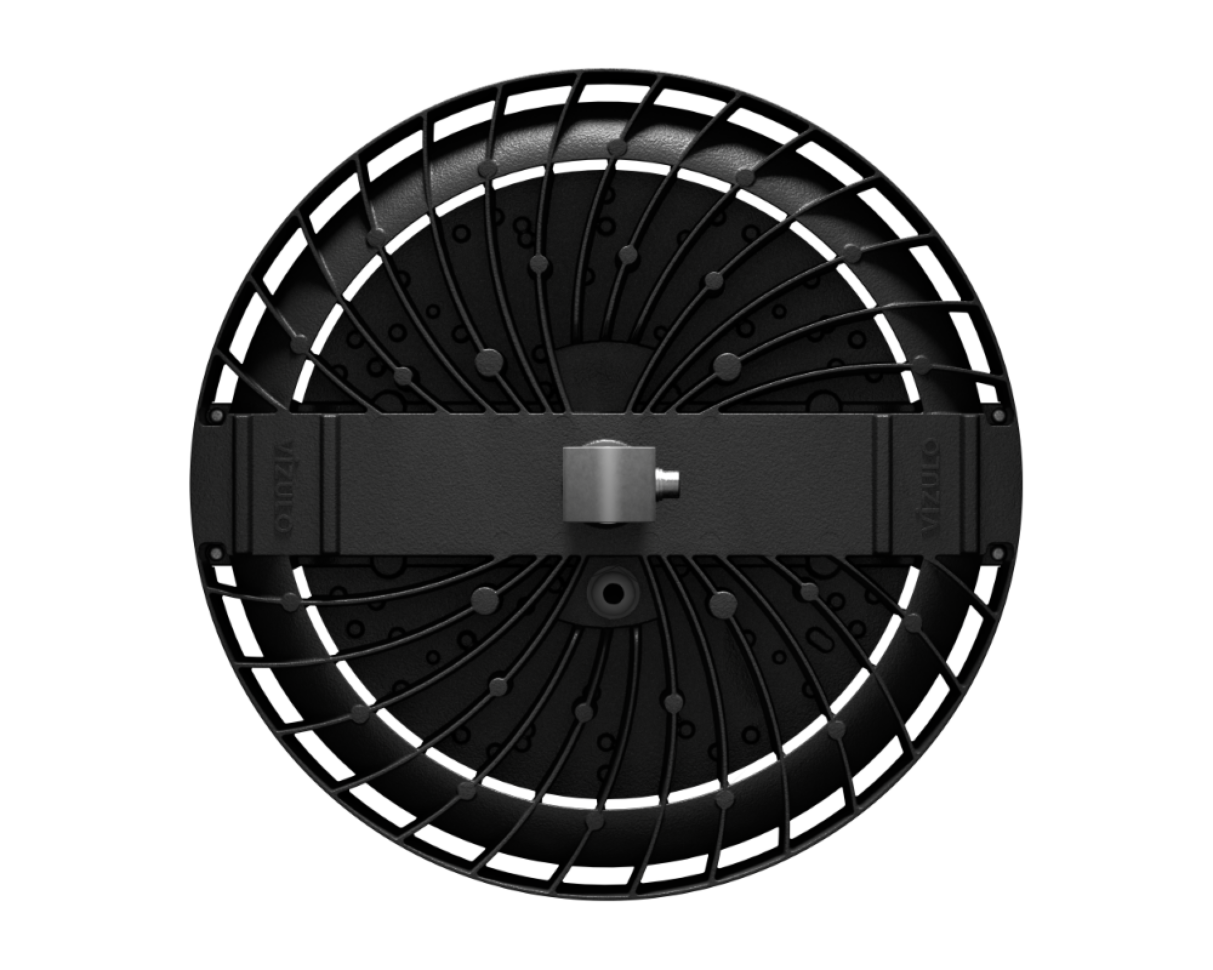

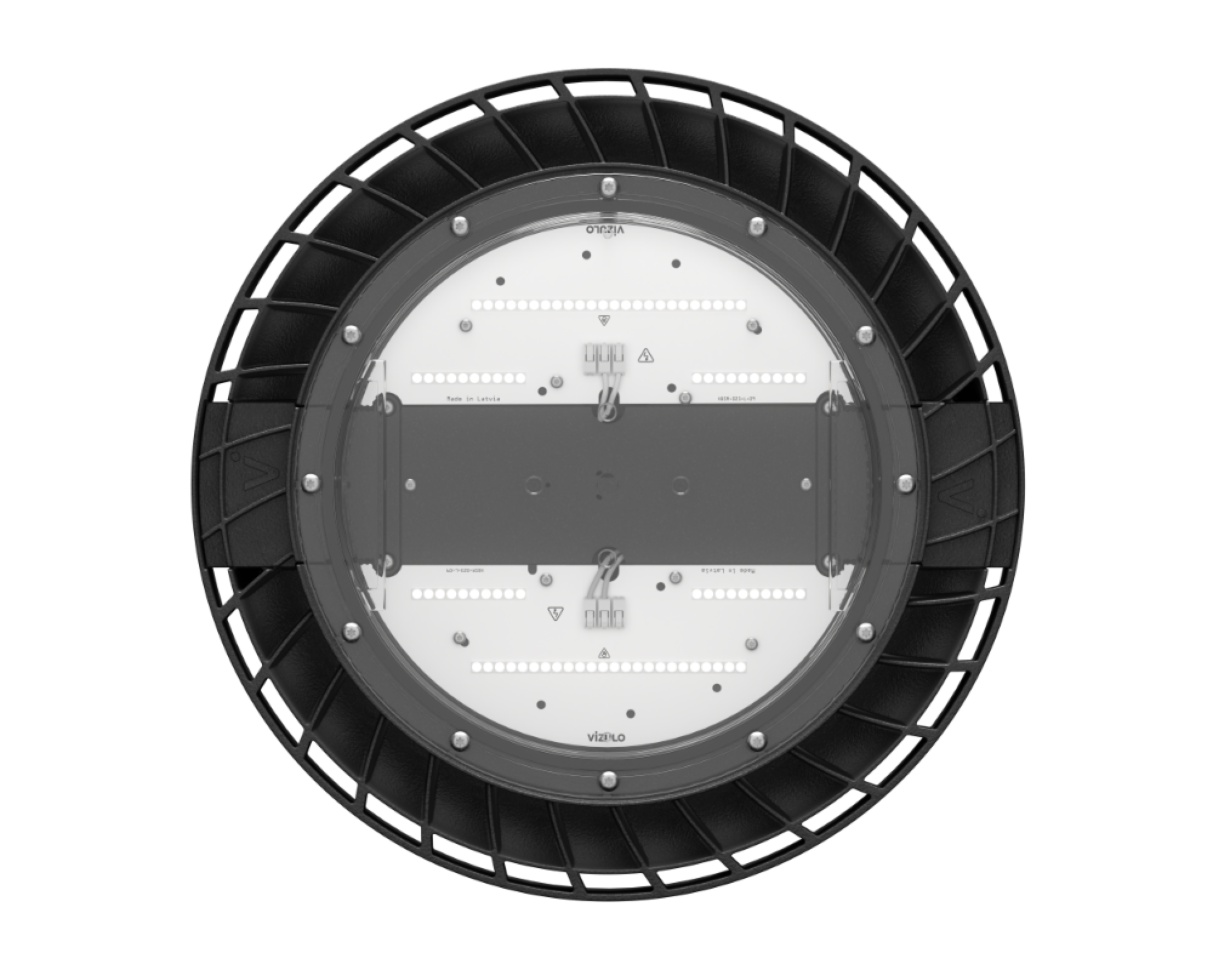

ACORN Gen2 Catenary
Product Overview
A powerful, round high bay luminaire with its unique design and cooling system can provide light output up to 35 037 lm. It can be ordered with a wide range of optics, drivers, and sensors to meet the requirements of any project. You can choose between 5 mounting types: pendant, chain mounting, wire mounting, or two floodlight consoles. The reflector is available as an accessory. The model is adaptable to the smart luminaire.
Basic colours
Specification
V
220 - 240
Hz
50 - 60
W
50 - 270 1
30 - 200 2
30 - 150 3
lm
4 902 - 45 172 4
lm/W
Up to 167
K
3000 / 4000 5
°C
-40 up to +50 6
CRI
>70 / >80 / >90 5
in
400 x 400 x 133
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Bluetooth / Non dimmable
Sensor: Microwave / PIR / PIR + Daylight
Initial chromaticity: MacAdam 5 / MacAdam 3 (on request)
Lifetime: 100 000 h (L80B10) at Ta = 25 °C*
Warranty: 5 years / 2 years (emergency configuration)
Optics: Symmetrical / Asymmetrical
Mounting: Catenary (wire rope suspension)
Human Centric Lighting: Available
Neto weight: Up to 6.12 kg
