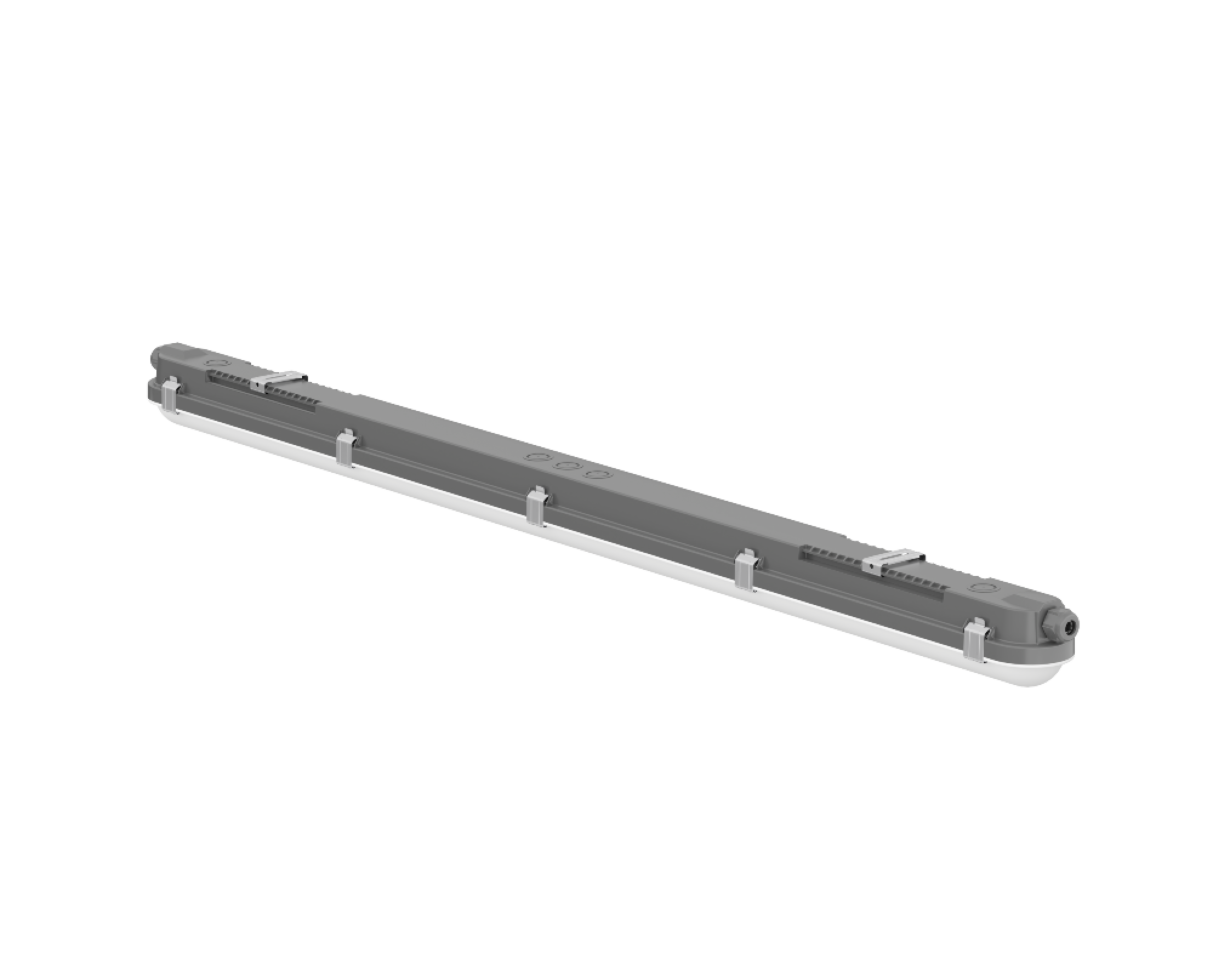

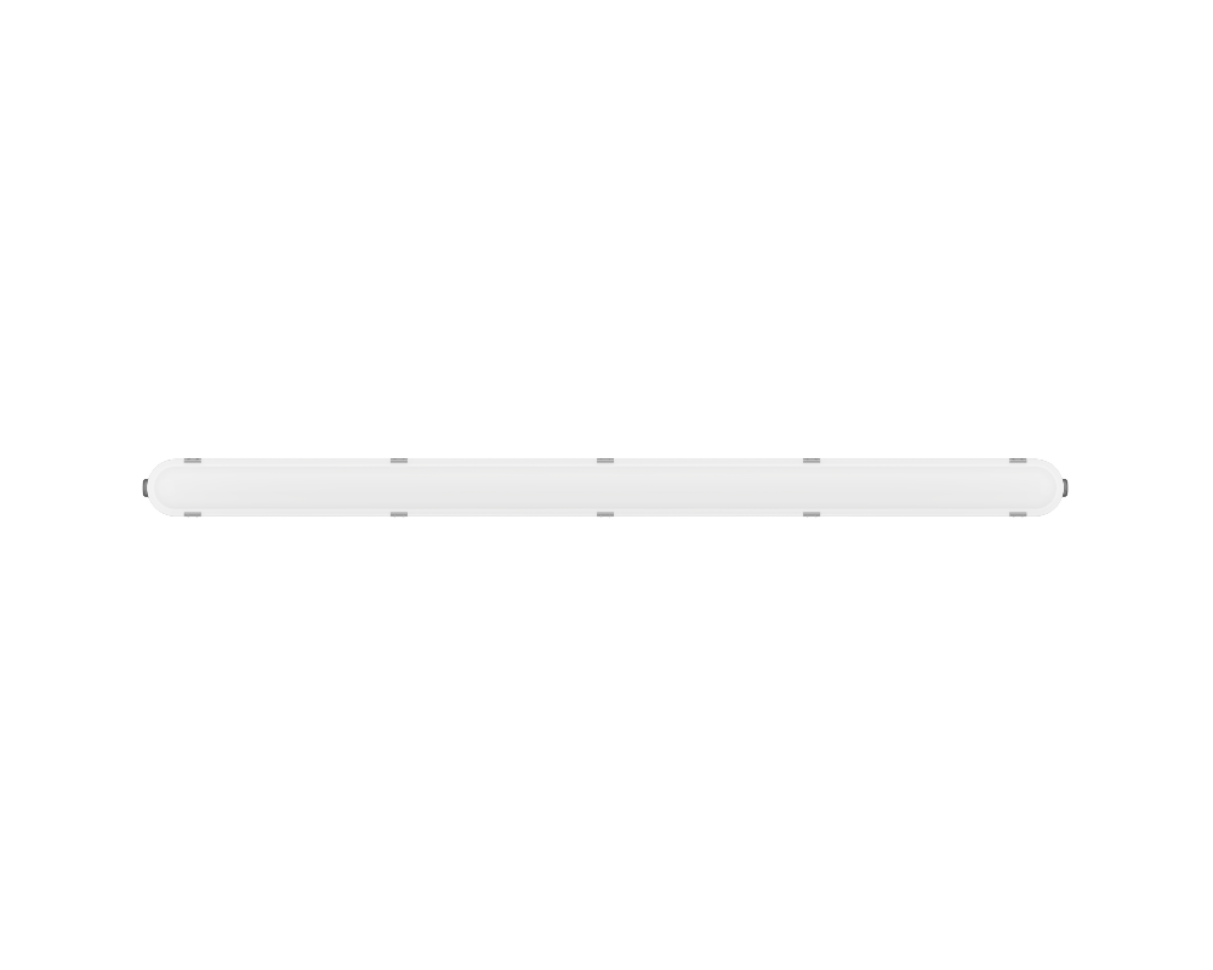

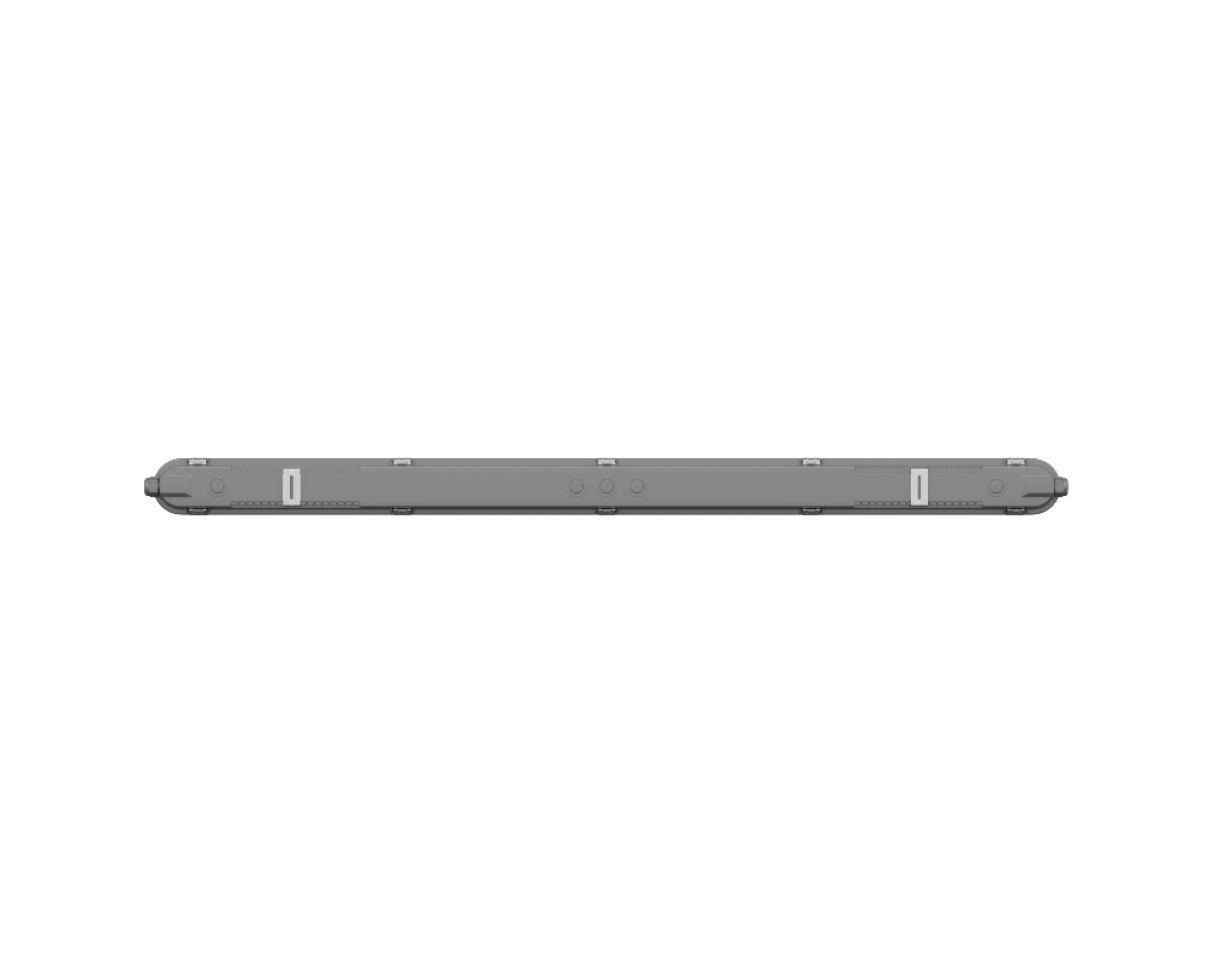

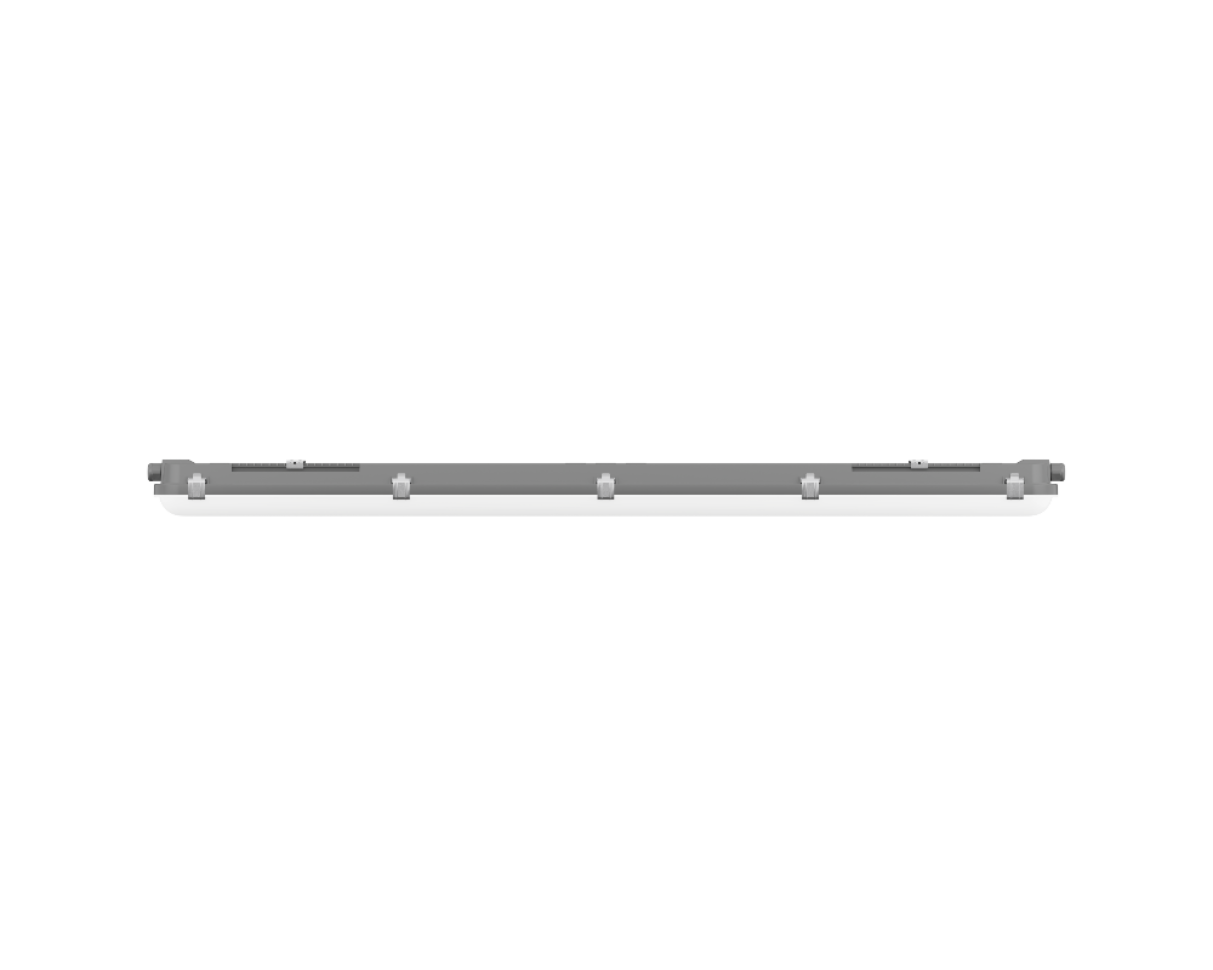

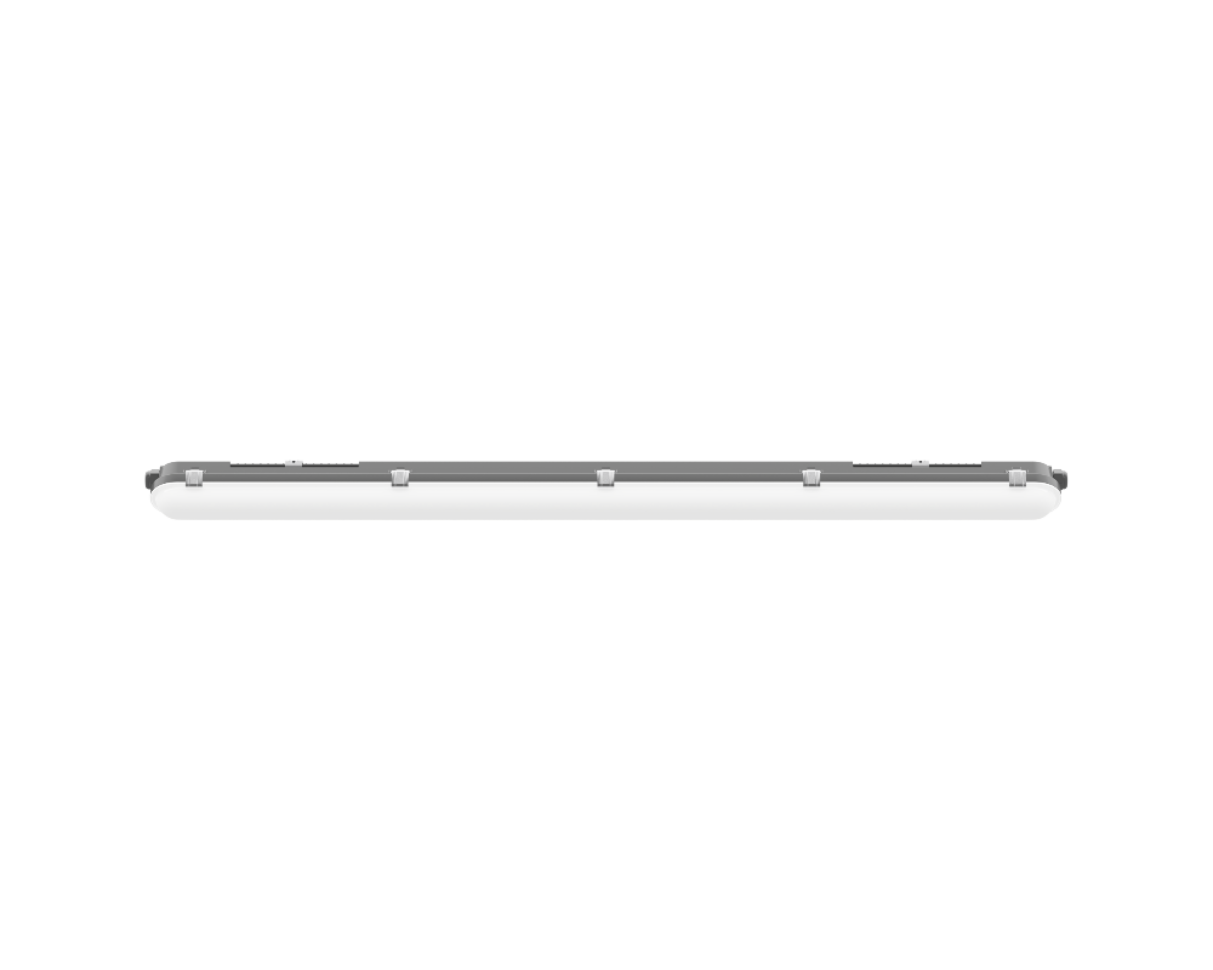

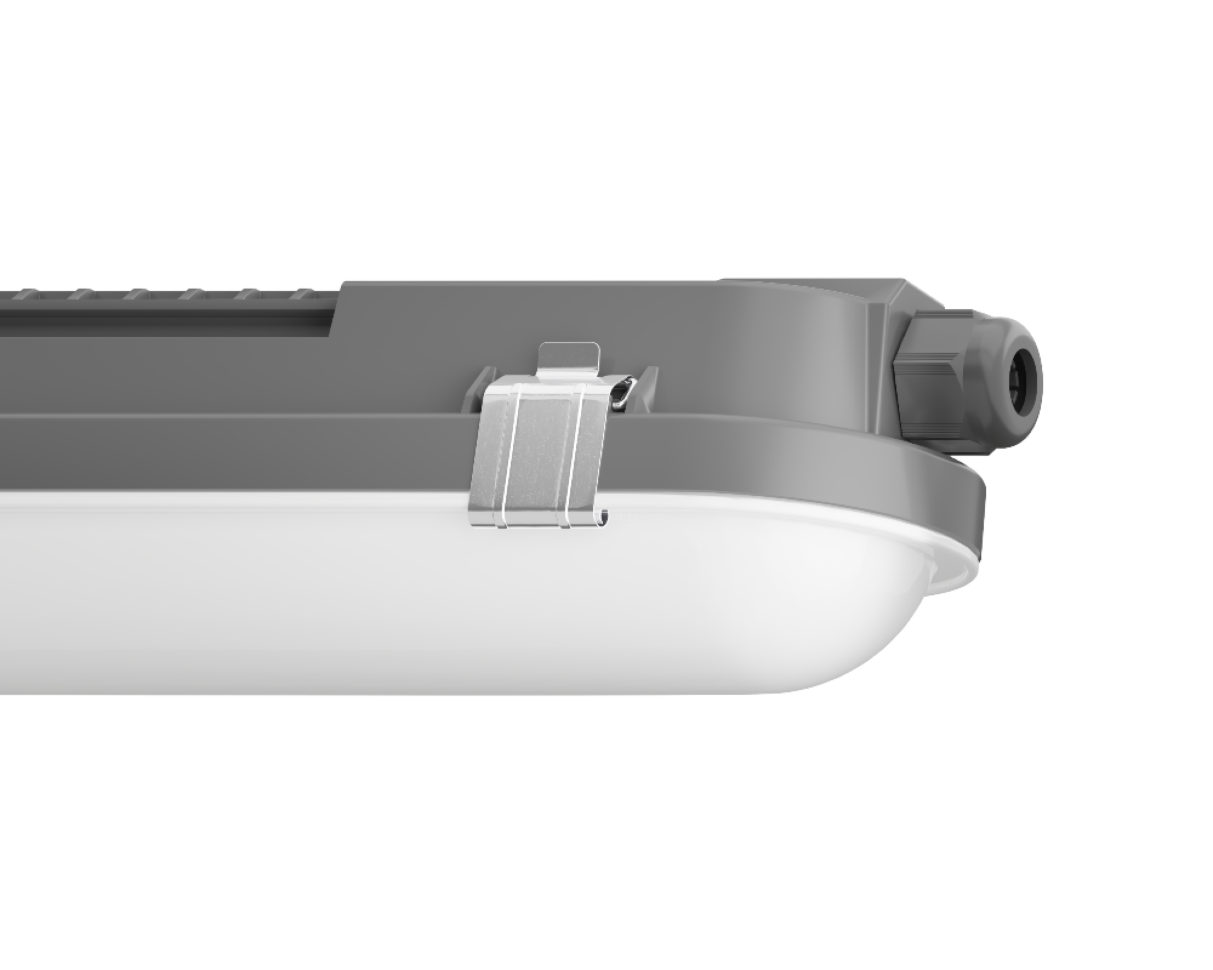

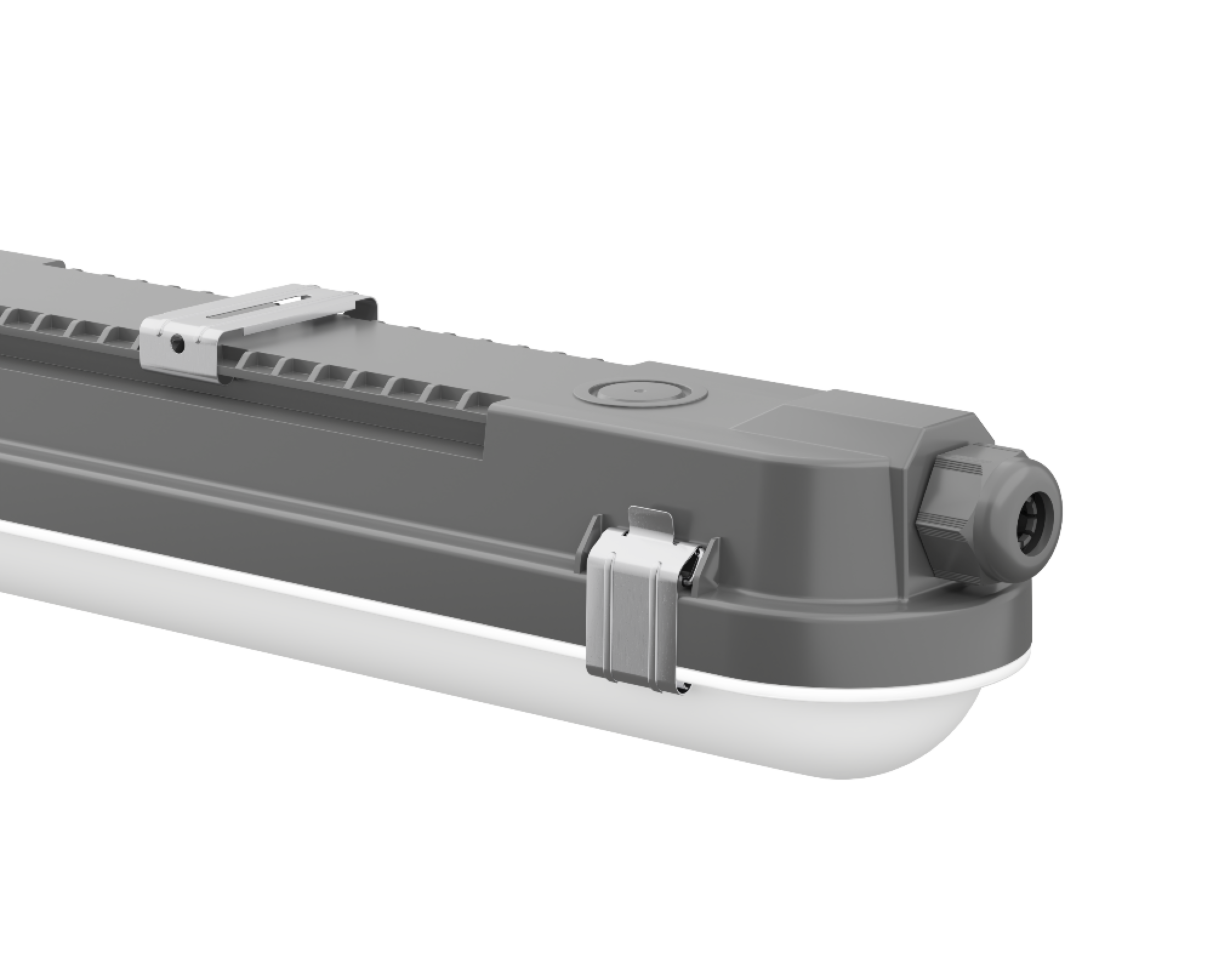

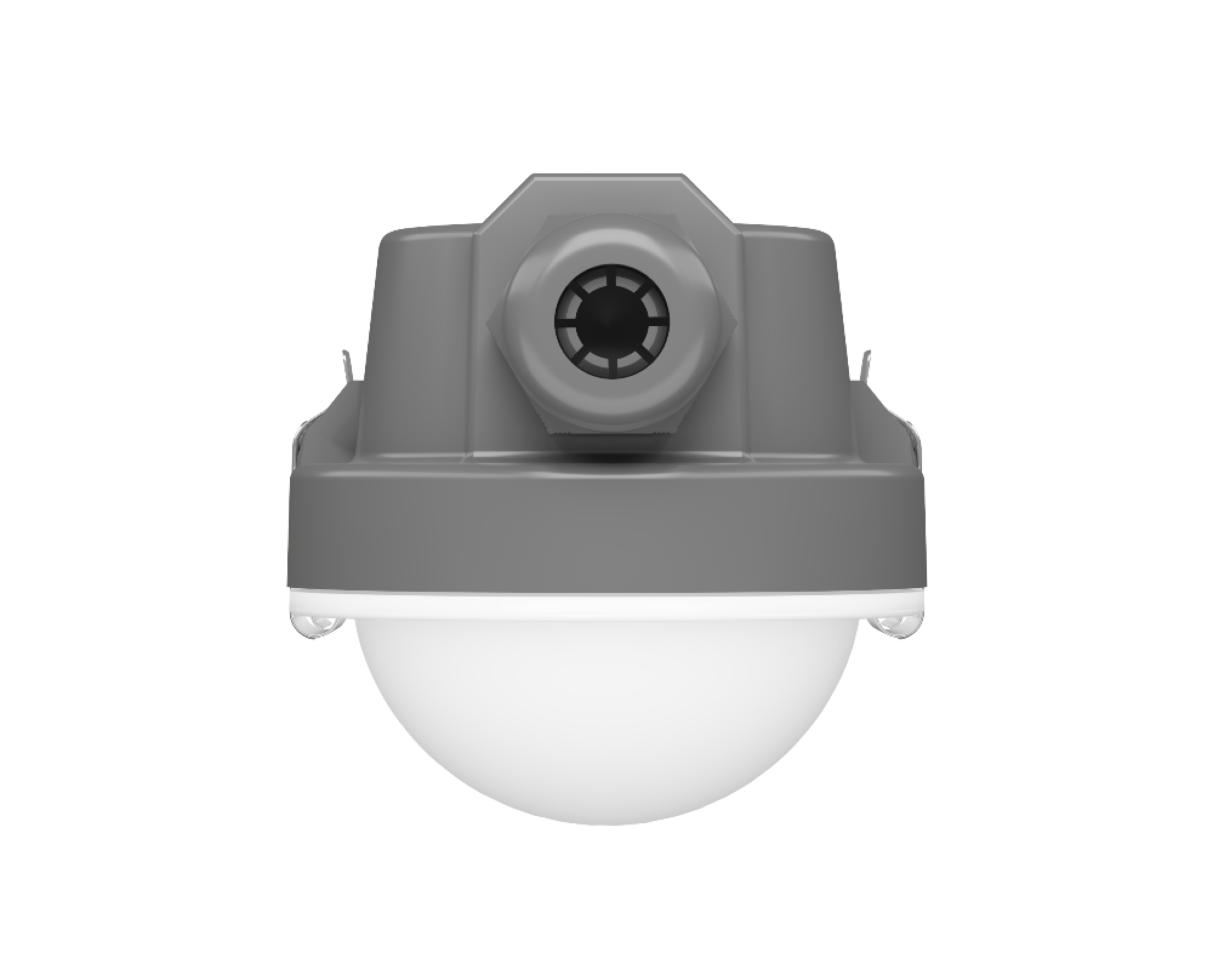

STONE
Product Overview

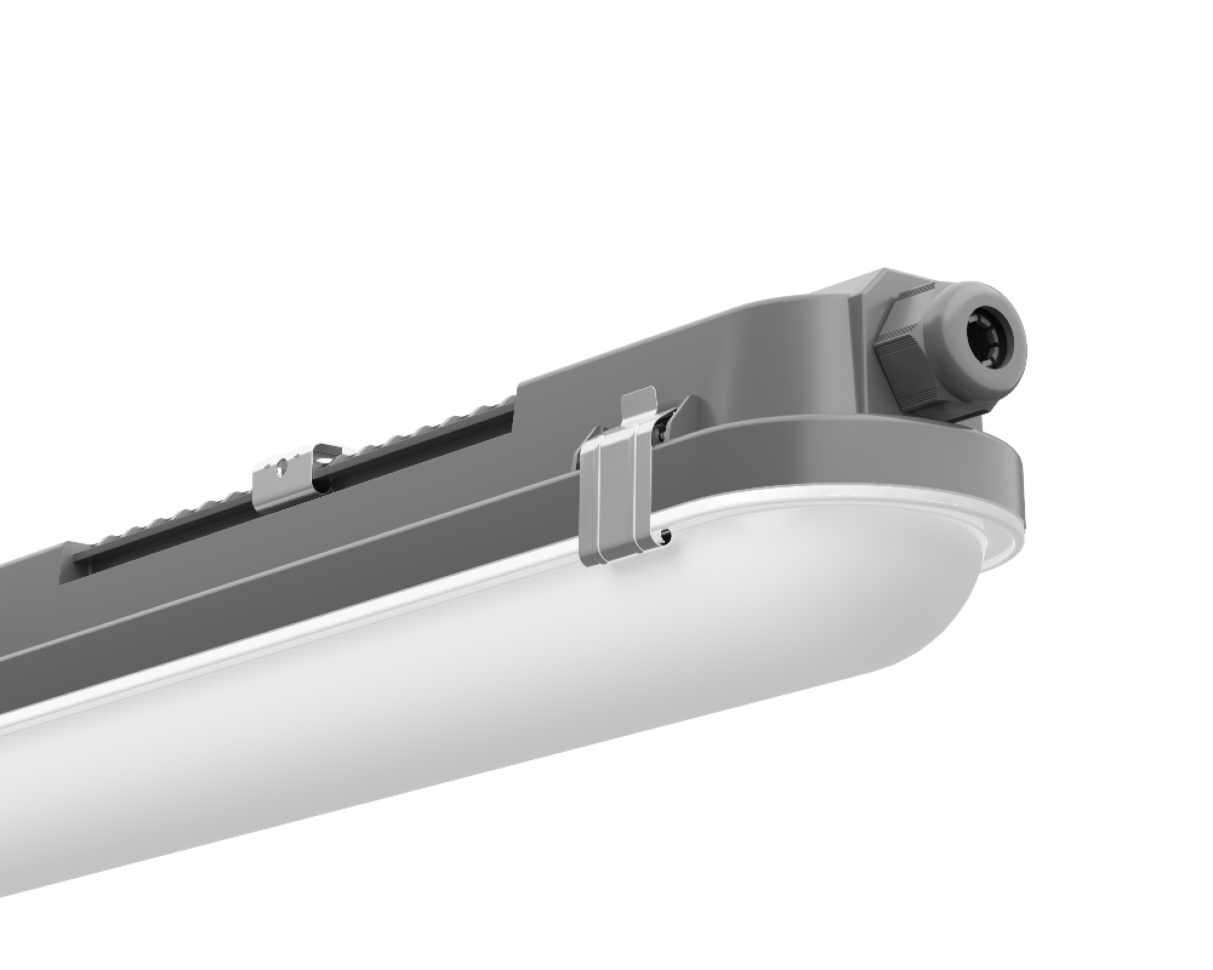

Classic, waterproof industrial linear luminaire which is well dedicated for using in a wide variety of premises and projects: warehouses, parking garages, utility rooms, factories, laboratories, cooking areas, freezers, as emergency luminaire, etc. Stone offers two mounting options – Surface & Pendant. With its polycarbonate body and cover it ensures the highest IP and IK protection required for these specific areas.
Basic colours
Specification
V
220 - 240
Hz
50 - 60
W
10 - 75
lm
1300 - 10489 1
lm/W
122 - 146
K
3000 / 4000 2
°F
-40 to +95
CRI
>80 / >90 / >95 3
>90 / >95 4
in
23.62" x 3.66" x 3.22"
47.24" x 3.66" x 3.22"
59.05" x 3.66" x 3.22"
Body: Light grey polycarbonate (PC)
Dimming: DALI / 1-10 V / Bluetooth / Non dimmable
Sensor: Microwave / RF
Lifetime: 100 000 h (L80B10) at Ta = 77 °F
50 000 h (L90B10) at Ta = 77 °F
Warranty: 5 years
2 years (emergency configuration)
Mounting: Surface / Pendant
Cover: Opal palycarbonate (PC)
Human Centric Lighting: Available
Ambient temperature +5 ... +95°F | non dimmable 5
-13 ... +95°F | dimmable 5
-40 ... +95°F | freezers 5
+32 ... +95°F | emergency
