LEAF Slim
Product Overview

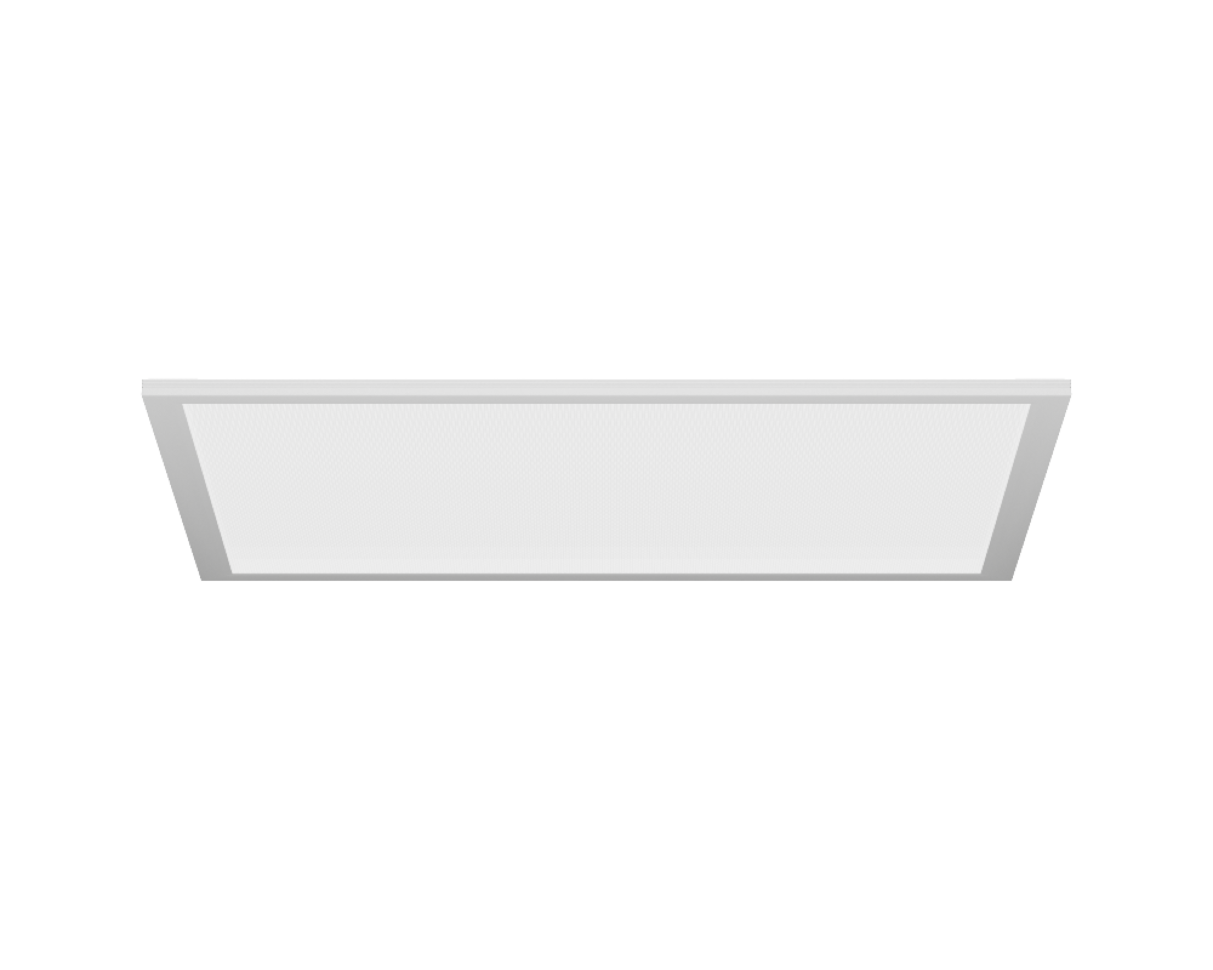

LEAF Slim offers a minimalistic and classic design. Mainly used as an office luminaire, it can also complement the interior of the classrooms, kindergartens, and common areas. LEAF Slim is available as Suspended (pendant), Surface & Recessed versions.
Basic colours
Specification
V
220 - 240
Hz
50 - 60
W
15 - 45
lm
1875 - 5157 1
lm/W
Up to 125
K
3000 / 4000 2
°F
+14 to +113
CRI
>80 / >90 / >95 3
>90 / >95 4
in
23.43" x 23.43" x 0.49"
Body: Aluminium profile
Dimming: DALI / 1-10 V / Bluetooth / Non dimmable
Sensor: Microwave
Initial chromaticity: MacAdam 3
Lifetime: 100 000 h (L80B10) at Ta = 77 °F*
50 000 h (L90B10) at Ta = 77 °F*
Warranty: 5 years
2 years (emergency configuration)
Cover: Microprismatic / Opal
Mounting: Recessed / Surface / Pendant
Human centric lighting: Available
Neto weight: Up to 6.4 lbs
