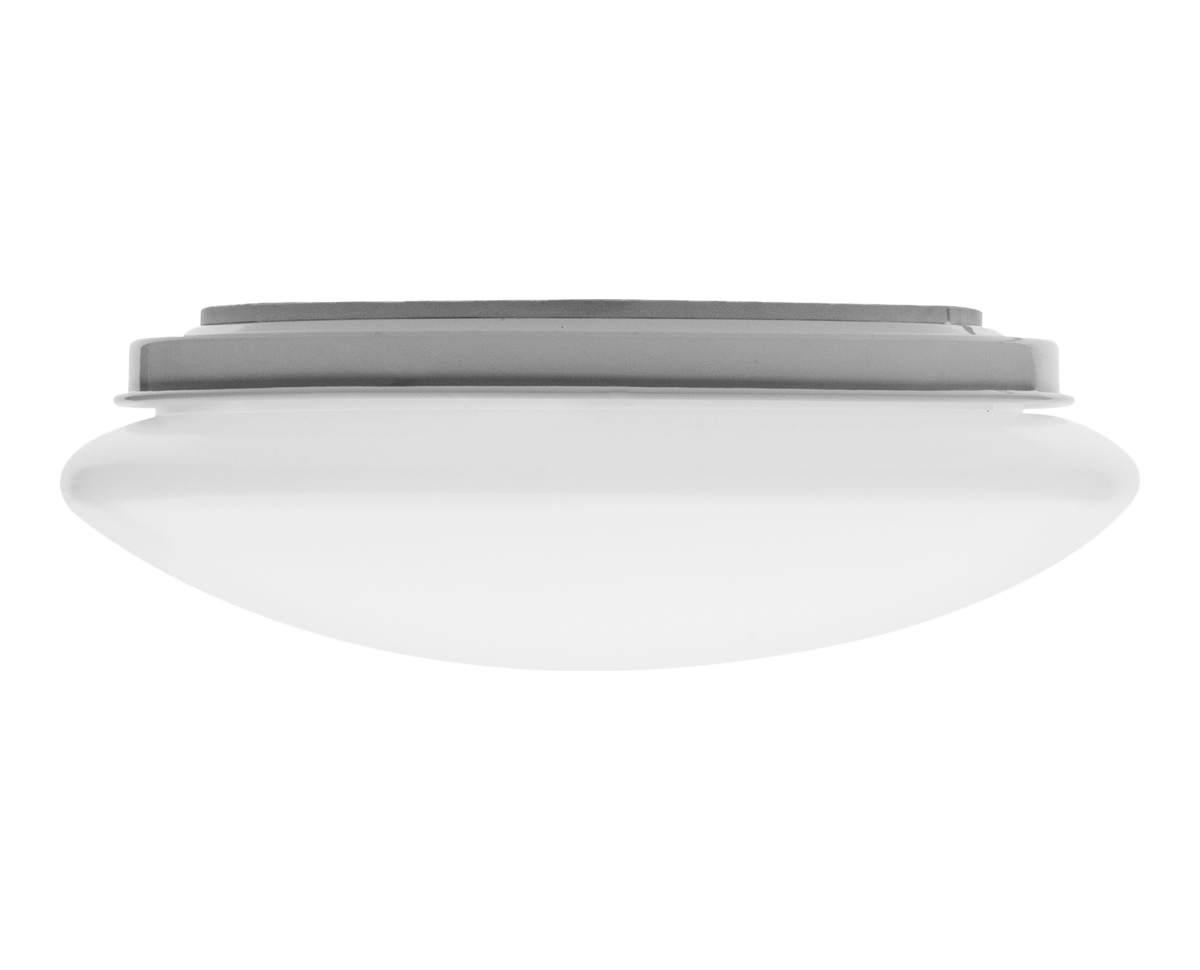

SHELL Basic

Product Overview

SHELL Basic is classic, downlight luminaire which is well dedicated for use in a wide  variety of premises  and projects: offices,  classrooms, common areas as showrooms or administrative premises, as well as auxiliary rooms such as corridors, dressing rooms, bathrooms, toilets, utility rooms, as an emergency luminaire, etc.

Basic colours

  • White RAL9016

Specification

V

220 - 240

Hz

50 - 60

W

7 - 28

lm

745 - 2860 1

lm/W

102 - 110

K

3000 / 4000 2

°F

+50 to +95

CRI

>80 / >90 / >95 3
>90 / >95 4

in

13.86" x 3.94"

Body: Steel

Dimming: DALI / 1 - 10 V / Bluetooth / Non dimmable

Sensor: Microwave / RF

Initial chomaticity: MacAdam 3

Lifetime: 50 000 h (L90B10) at Ta = 77 °F

               100 000 h (L80B10) at Ta = 77 °F

Warranty: 5 years

Cover: Opal

Mounting: Surface

Neto weight: Up to 1.41 lbs
