EAGLE 3 heads

Product Overview

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

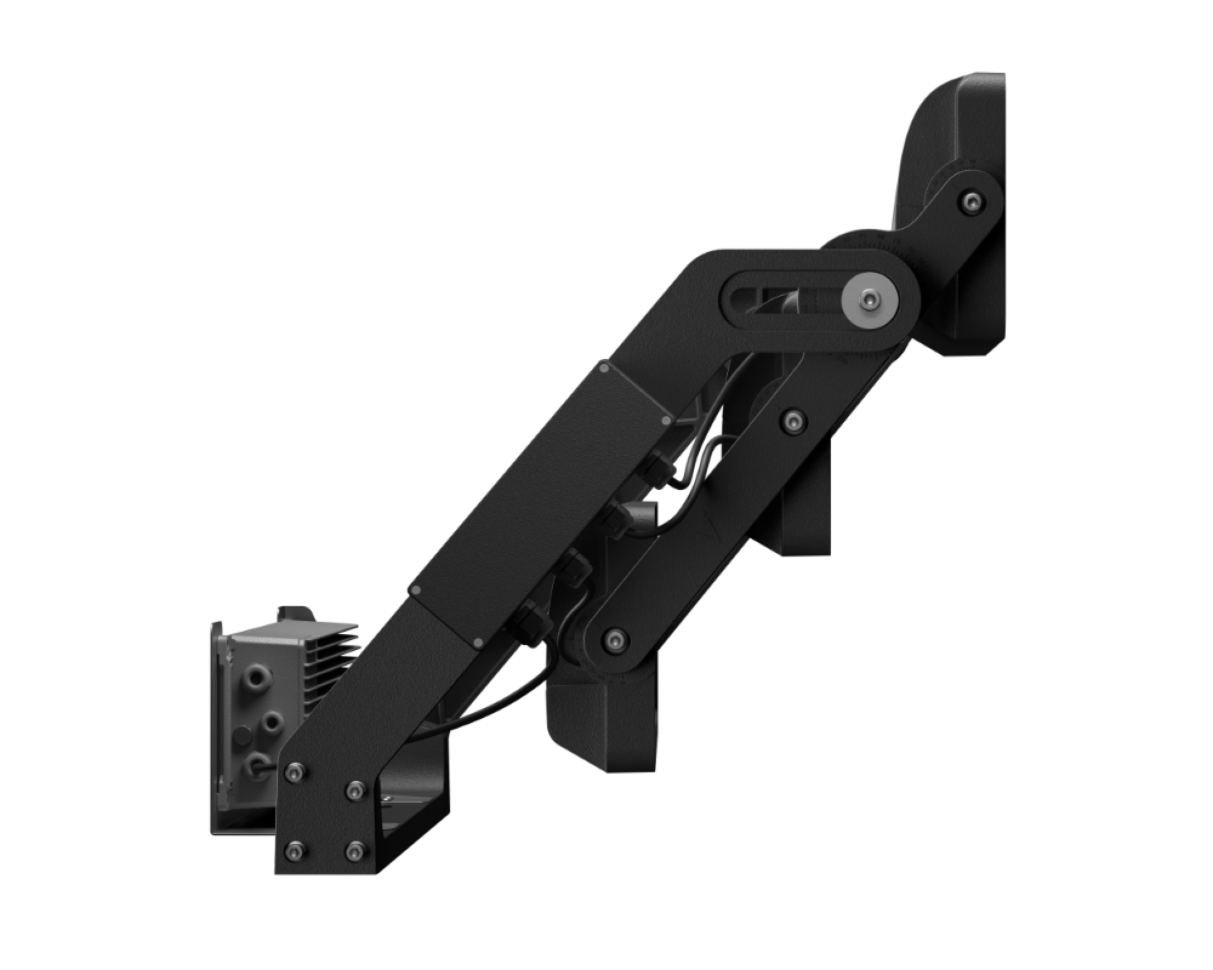

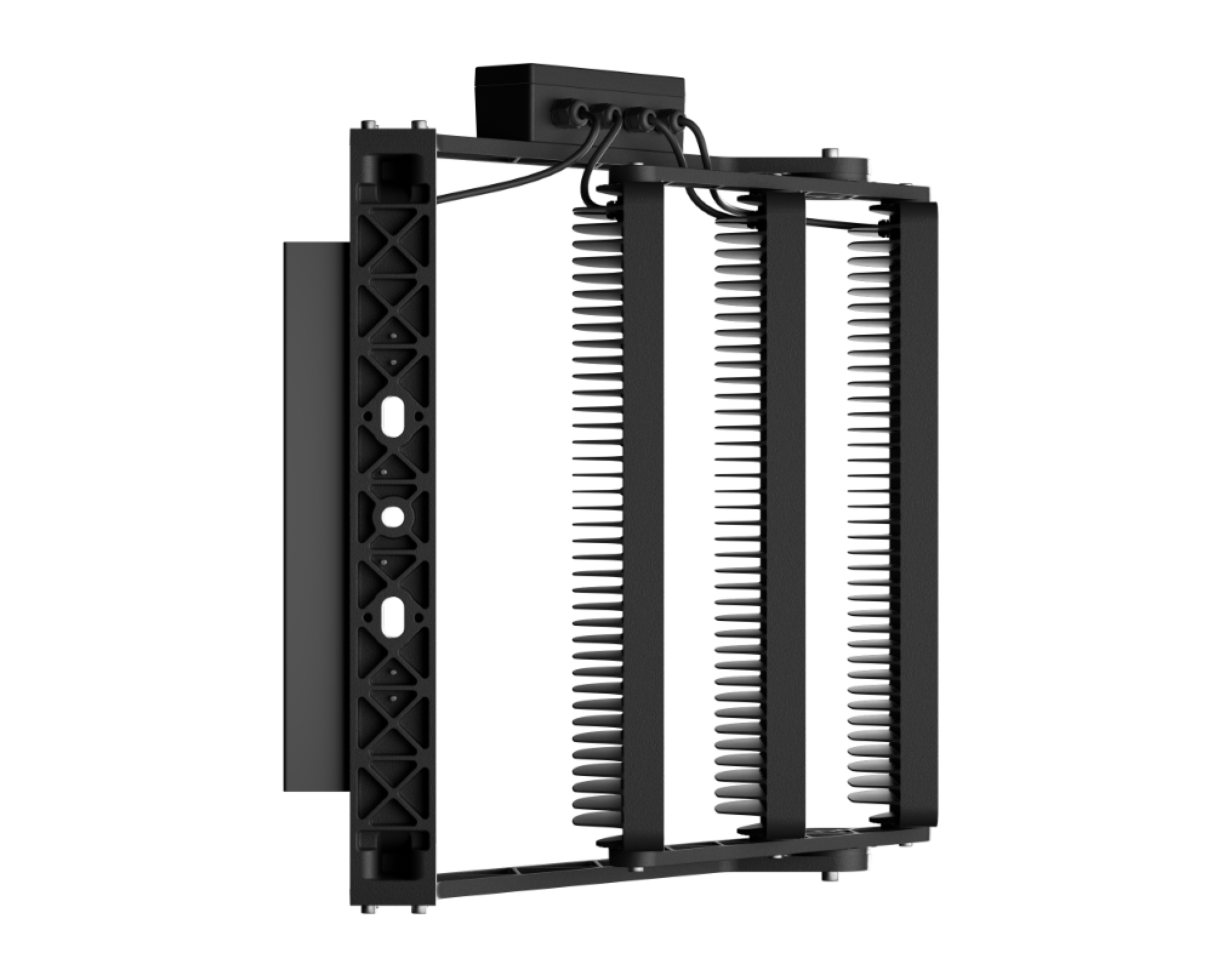

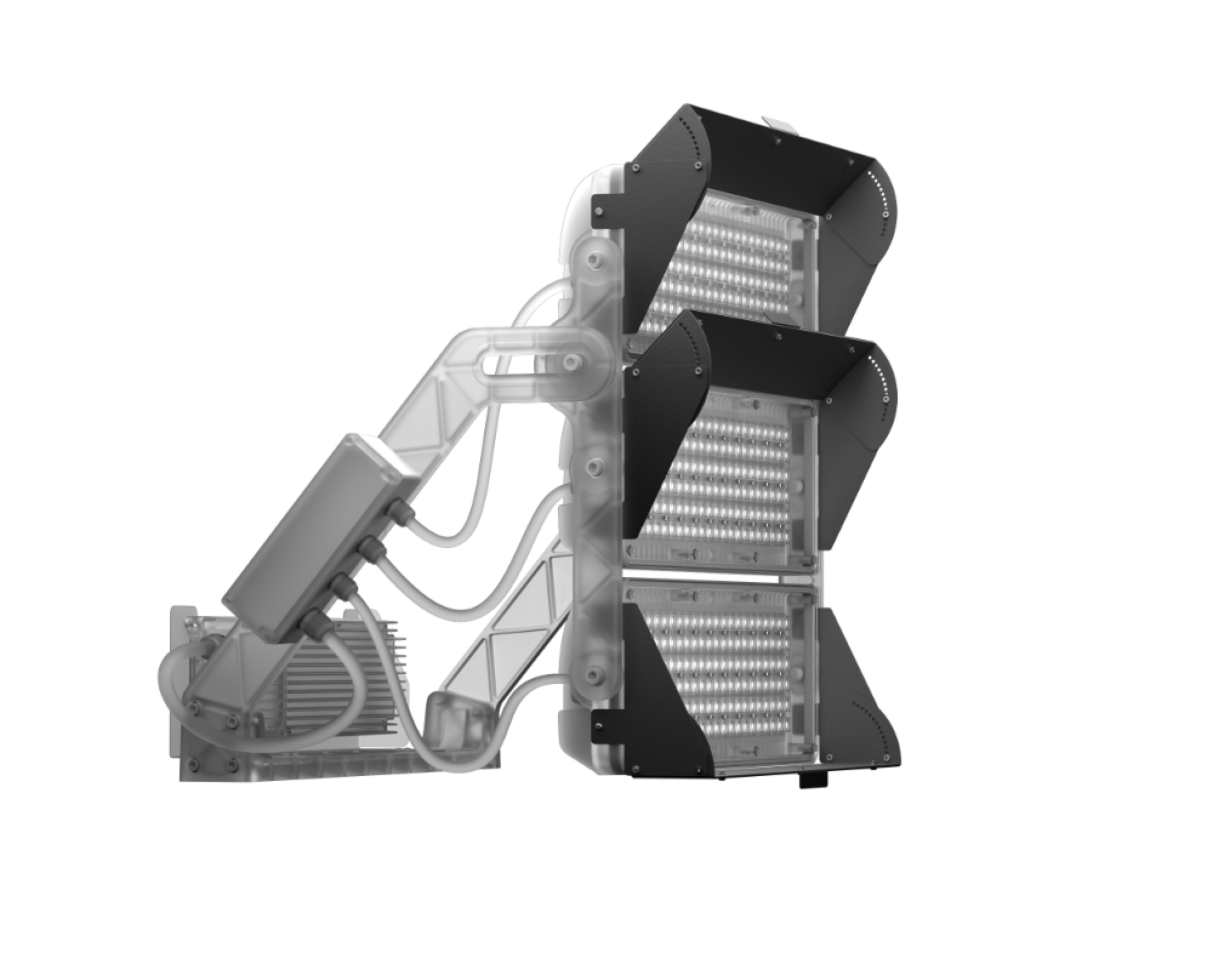

EAGLE 3 heads
EAGLE 3 heads
EAGLE 3 heads
EAGLE 3 heads
EAGLE 3 heads
EAGLE 3 heads

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

765 - 1580 | 360 LED version
765 - 1800 | 432 LED version

lm

Up to 228 472 2

lm/W

Up to 157

K

4000 / 5000 / 5700 3

℃

-40 to +50

CRI

>70 / >80 / >90 3

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / DMX / Midnight dimming / Step dimming / Mains dimming

TLCI: >90 4

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: On bracket / wall / ceiling

Socket: NEMA / Top Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Daylight

Surge protection: 10 kV

Corrosion protection: Up to C5

Neto weight: Up to 33.1 kg

Class I
IP66
IK10
CE
UKCA
RoHS
Ball proof test 5
cUL 6
Zhaga zdi4
ENEC
ENEC Plus
International EPD System
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 2700 / 3000 / 3500 / 6500 K available on request along with other not listed CRI and CCT
4 For CRI > 90 and CCT 5000, 5700 K
5 Ball proof: tested according to DIN 57710-13
6 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L15
L87
L88
L89
LB6
Flux (lm)
169897
215054
169897
215054
Efficacy (lm/W)
109
138
108.9
137.9
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
  • 5700
Optic Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming LED type Datasheet LDT file
EG3E 1560 730 L15 BB0360 CJA DI186100272 192397 123.3 1560 70 3000 DALI Eco
EG3E 1560 730 L15 BB0432 CJA DI186100273 201540 129.2 1560 70 3000 DALI Eco
EG3E 1560 730 L87 BB0360 CJA DI186100274 178793 114.6 1560 70 3000 DALI Eco
EG3E 1560 730 L87 BB0432 CJA DI186100275 187290 120.1 1560 70 3000 DALI Eco
EG3E 1560 730 L88 BB0360 CJA DI186100276 182680 117.1 1560 70 3000 DALI Eco
EG3E 1560 730 L88 BB0432 CJA DI186100277 191361 122.7 1560 70 3000 DALI Eco
EG3E 1560 730 L89 BB0360 CJA DI186100278 196284 125.8 1560 70 3000 DALI Eco
EG3E 1560 730 L89 BB0432 CJA DI186100279 205611 131.8 1560 70 3000 DALI Eco
EG3E 1560 730 LB6 BB0360 CJA DI186100280 200171 128.3 1560 70 3000 DALI Eco
EG3E 1560 730 LB6 BB0432 CJA DI186100281 209683 134.4 1560 70 3000 DALI Eco
