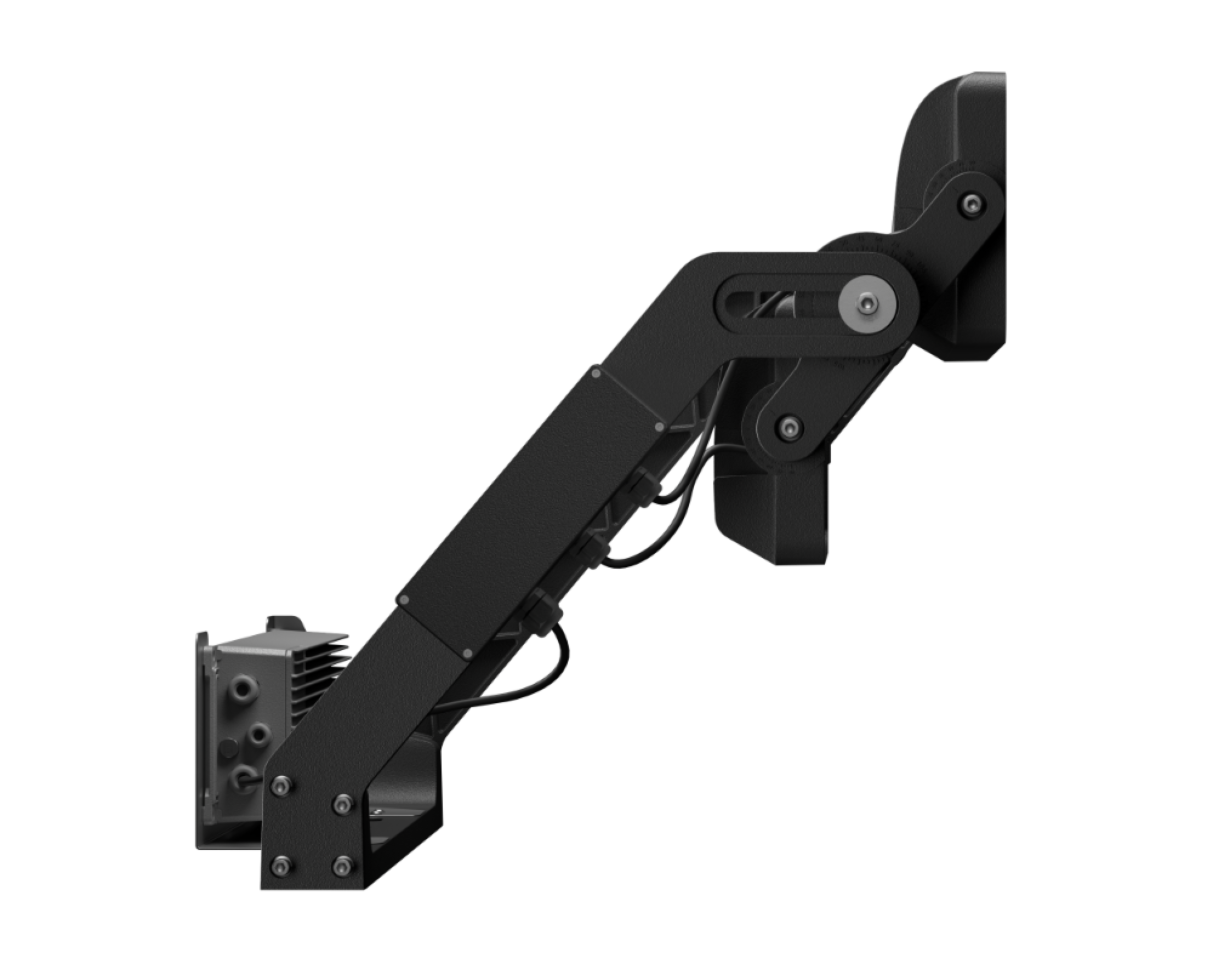

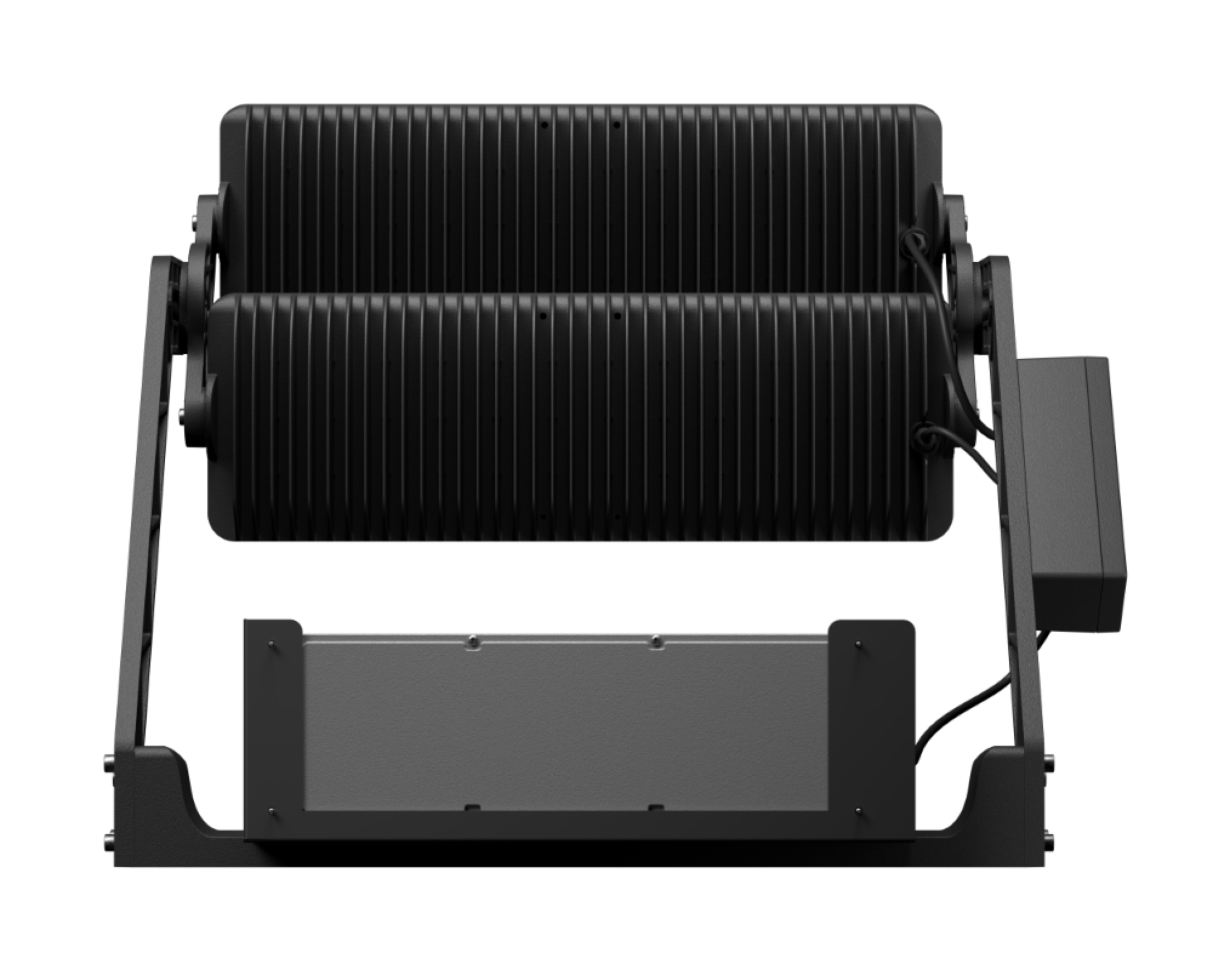

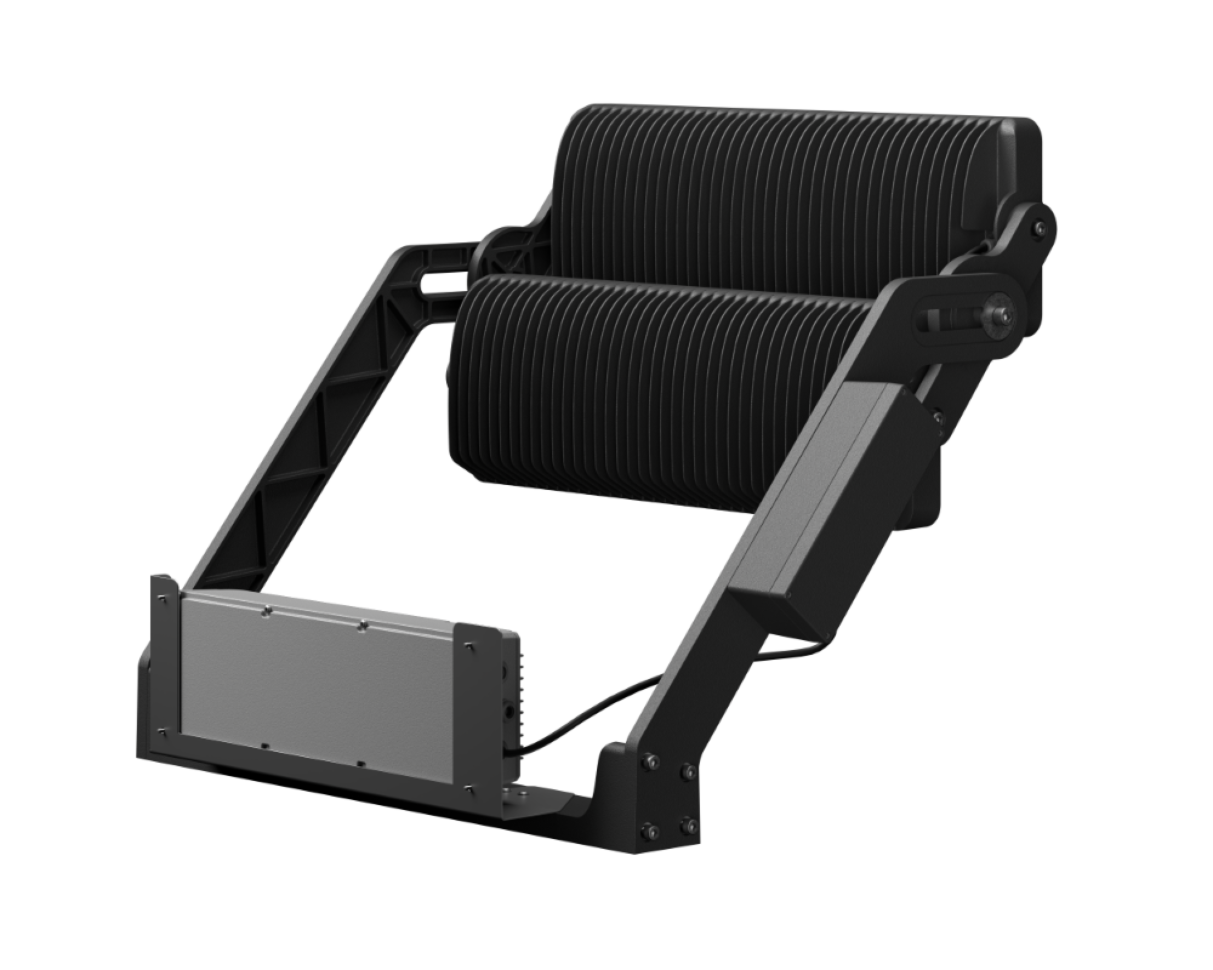

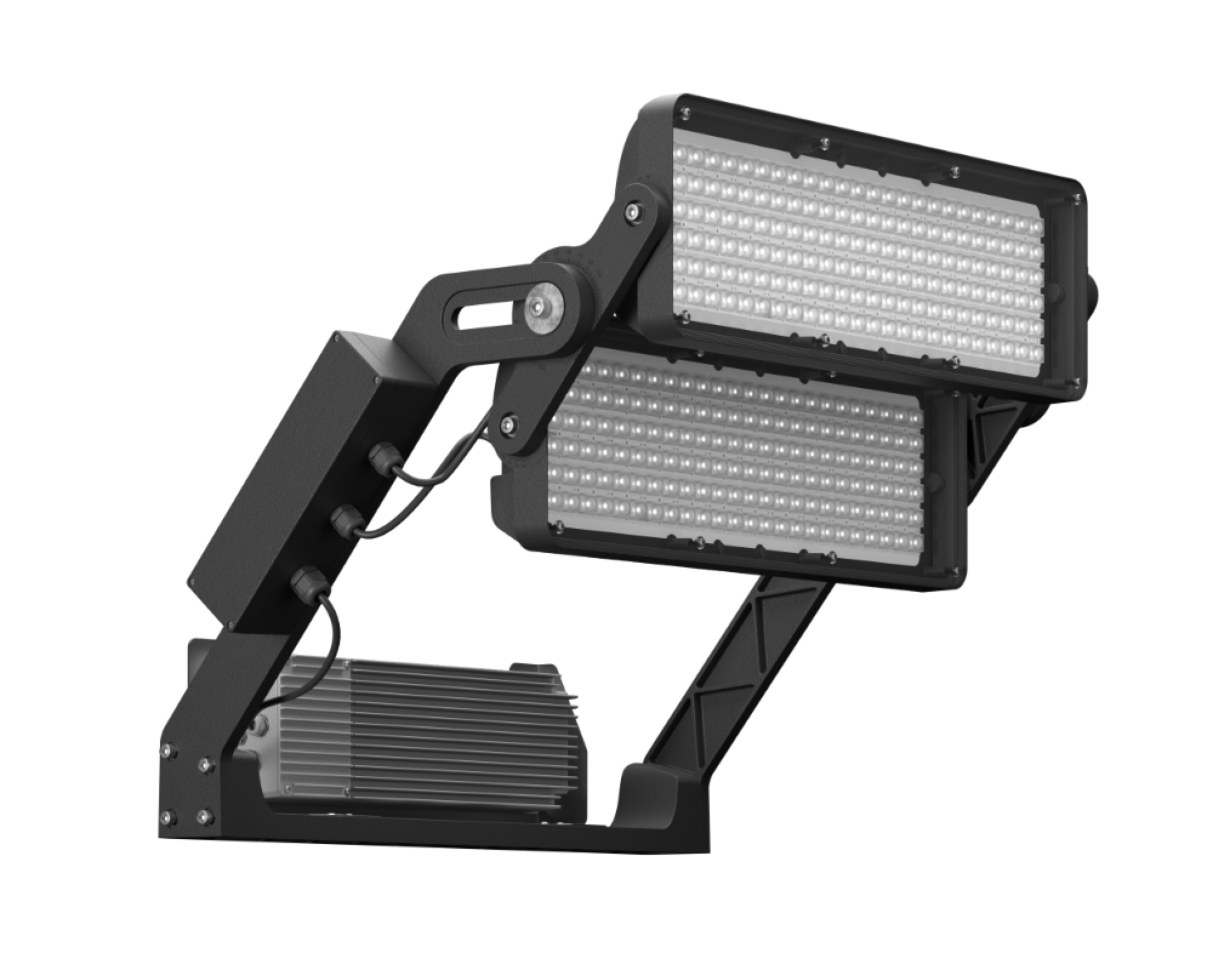

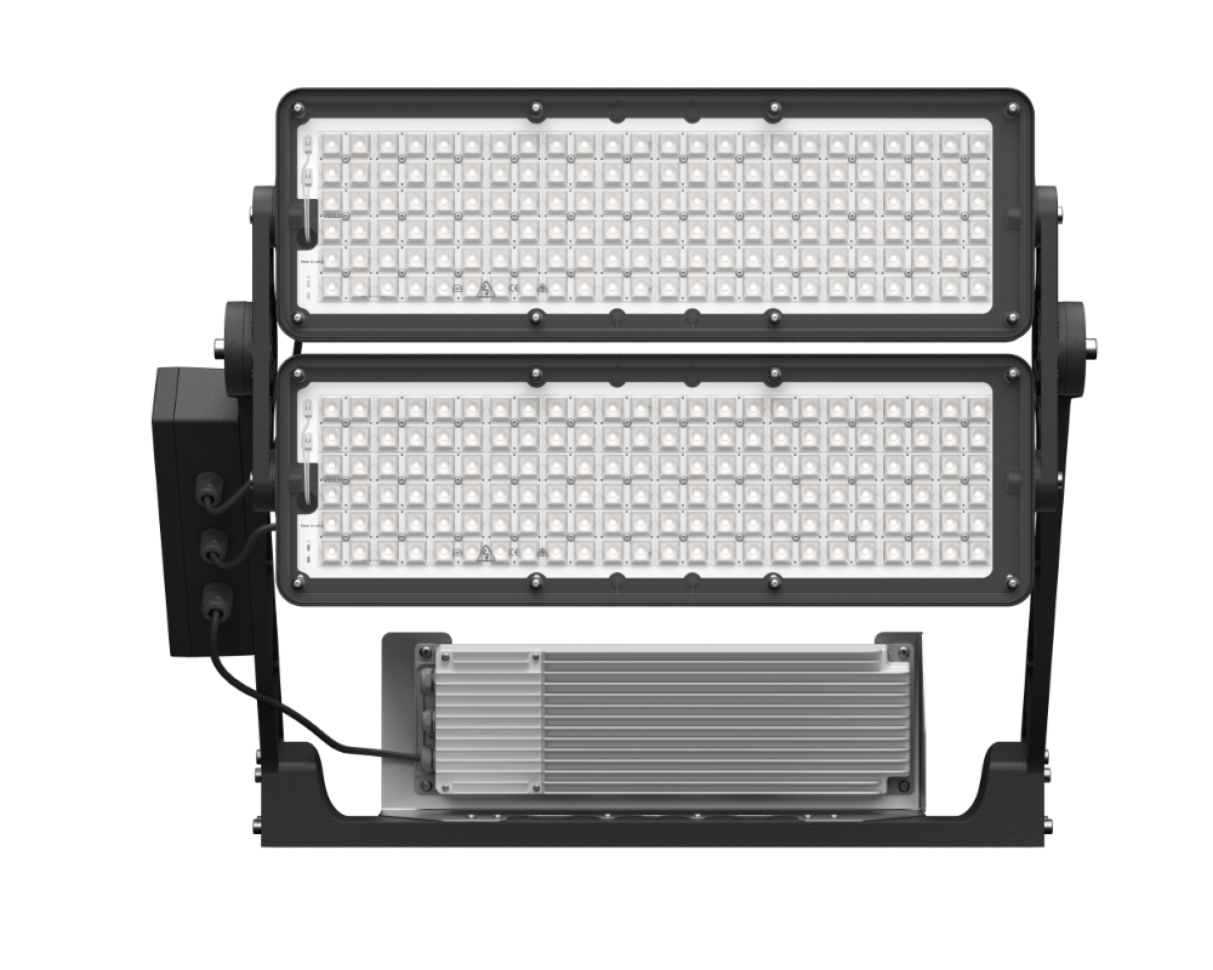

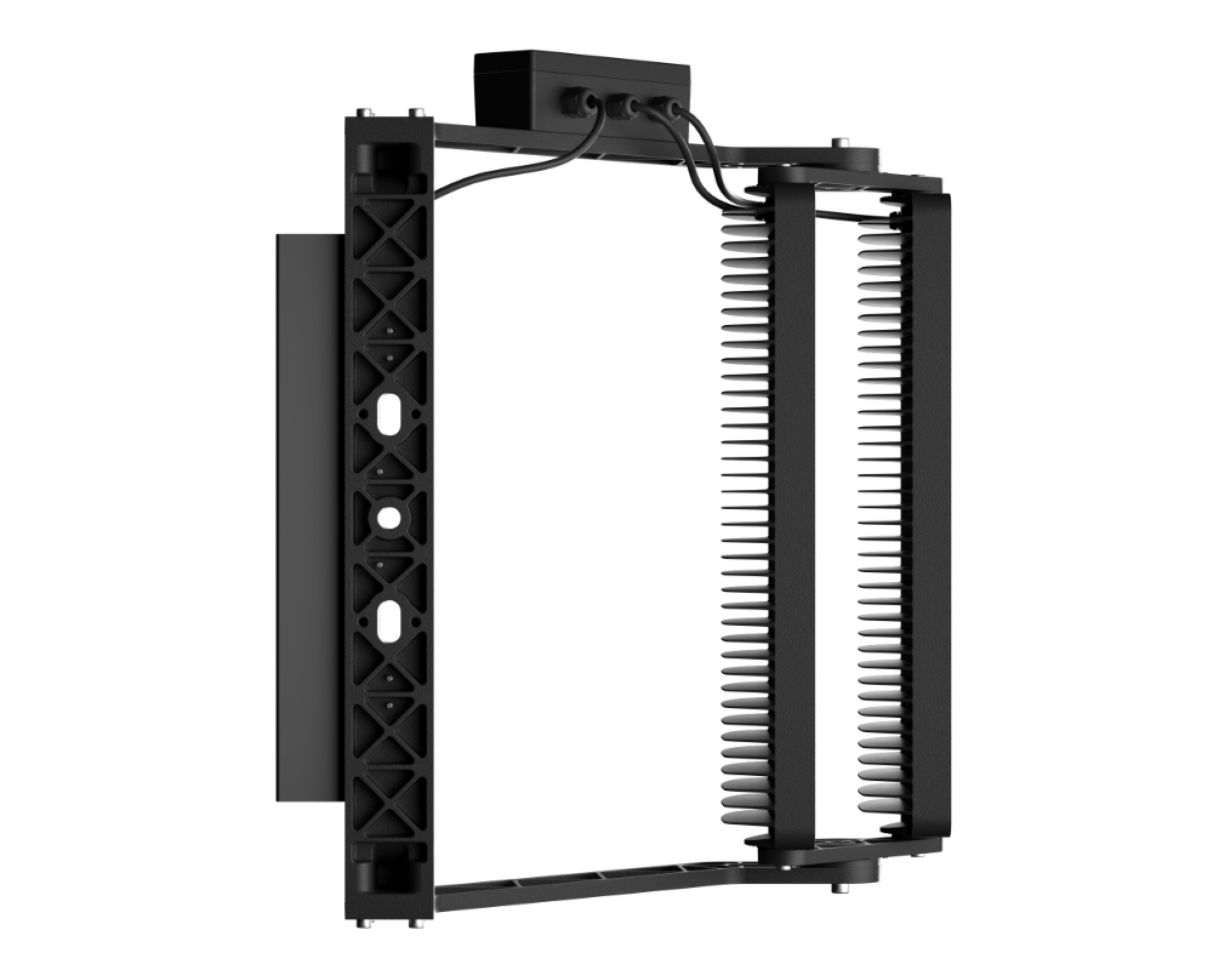

EAGLE 2 heads

Product Overview

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

510 - 1040 | 240 LED version
510 - 1200 | 288 LED version

lm

Up to 156 575 2

lm/W

Up to 157

K

4000 / 5000 / 5700 3

-40 to +50

CRI

>70 / >80 / >90 3

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / DMX / Midnight dimming / Step dimming / Mains dimming

TLCI: >90 4

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: On bracket / wall / ceiling

Socket: NEMA / Top Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Daylight

Surge protection: 10 kV

Corrosion protection: Up to C5

Neto weight: Up to 24.3 kg

Class I
IP66
IK10
CE
UKCA
RoHS
Ball proof test 5
cUL 6
Zhaga zdi4
ENEC
ENEC Plus
International EPD System
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2
 Lumen output indicated at CRI > 70

3 1800 / 2200 / 2700 / 3000 / 3500 / 6500 K available on request along with other not listed CRI and CCT
4 For CRI > 90 and CCT 5000, 5700 K
5 Ball proof: tested according to DIN 57710-13
6 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L15
L87
L88
L89
LB6
Flux (lm)
115686
146244
115686
146244
Efficacy (lm/W)
111
141
111.2
140.6
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
  • 5700
Optic Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming LED type Datasheet LDT file
EG2E 1040 730 L15 BB0240 CJA DI186100233 131011 126 1040 70 3000 DALI Eco
EG2E 1040 730 L15 BB0288 CJA DI186100234 137050 131.8 1040 70 3000 DALI Eco
EG2E 1040 730 L87 BB0240 CJA DI186100235 121748 117.1 1040 70 3000 DALI Eco
EG2E 1040 730 L87 BB0288 CJA DI186100236 127360 122.5 1040 70 3000 DALI Eco
EG2E 1040 730 L88 BB0240 CJA DI186100237 124395 119.6 1040 70 3000 DALI Eco
EG2E 1040 730 L88 BB0288 CJA DI186100238 130128 125.1 1040 70 3000 DALI Eco
EG2E 1040 730 L89 BB0240 CJA DI186100239 133658 128.5 1040 70 3000 DALI Eco
EG2E 1040 730 L89 BB0288 CJA DI186100240 139819 134.4 1040 70 3000 DALI Eco
EG2E 1040 730 LB6 BB0240 CJA DI186100241 136305 131.1 1040 70 3000 DALI Eco
EG2E 1040 730 LB6 BB0288 CJA DI186100242 142587 137.1 1040 70 3000 DALI Eco
