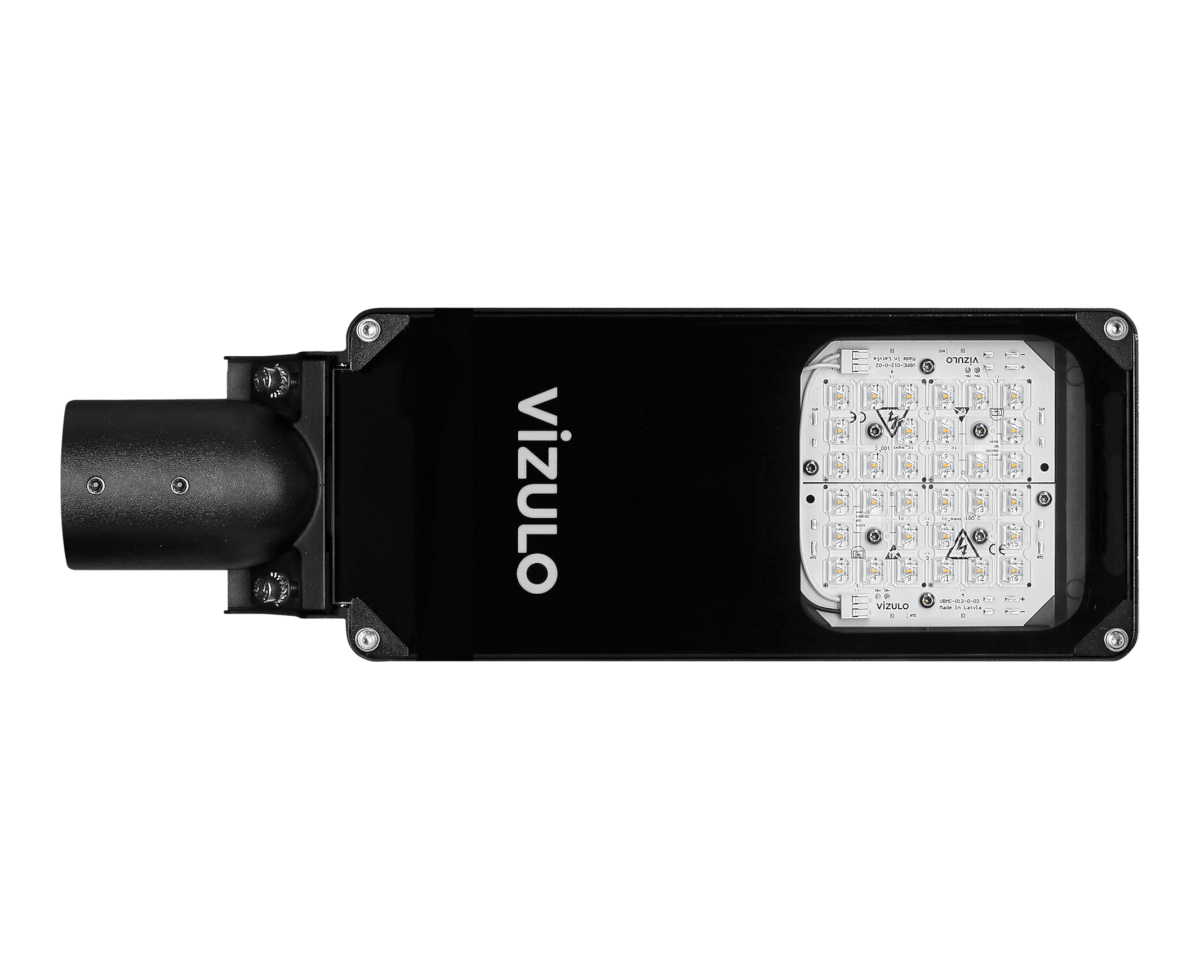

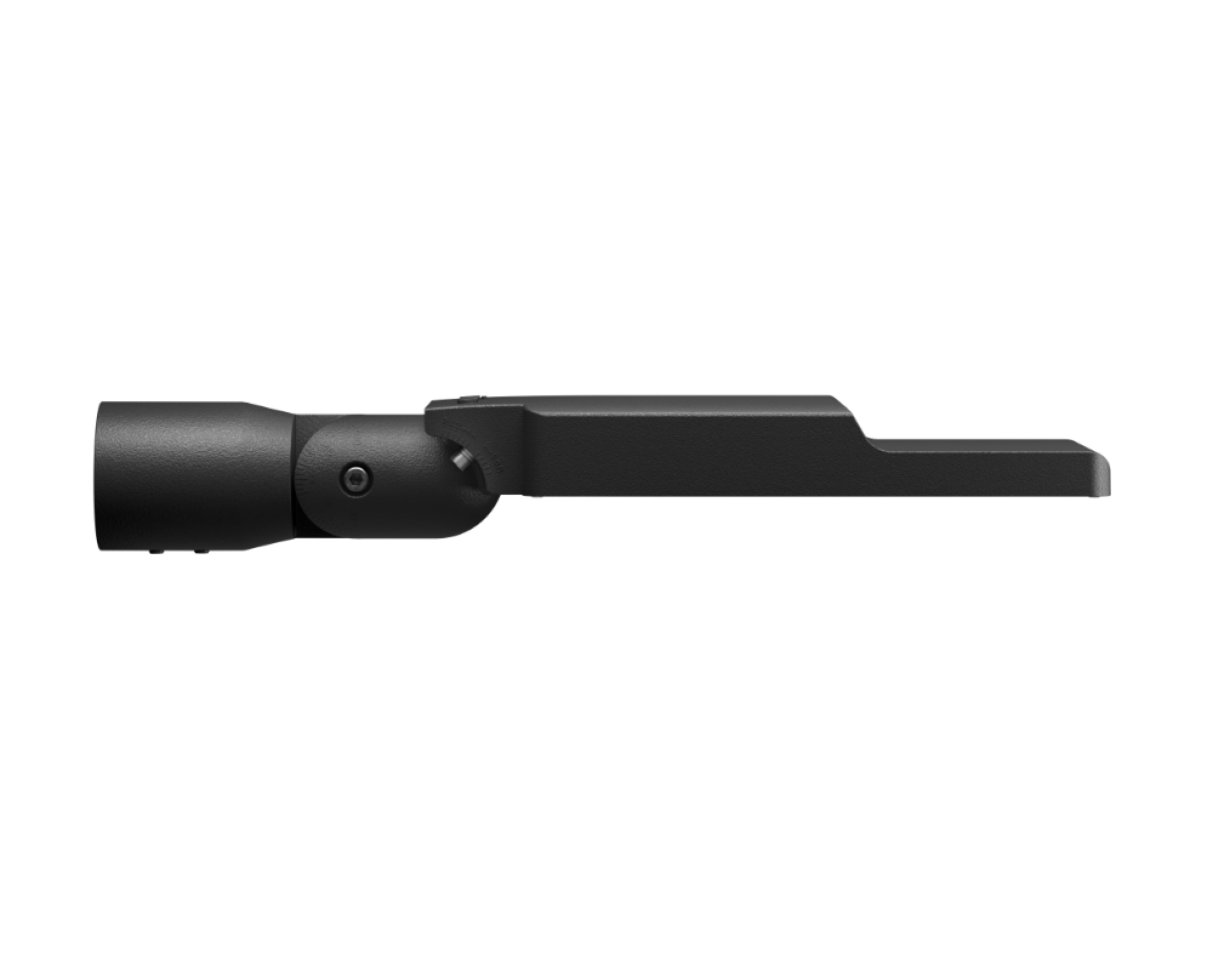

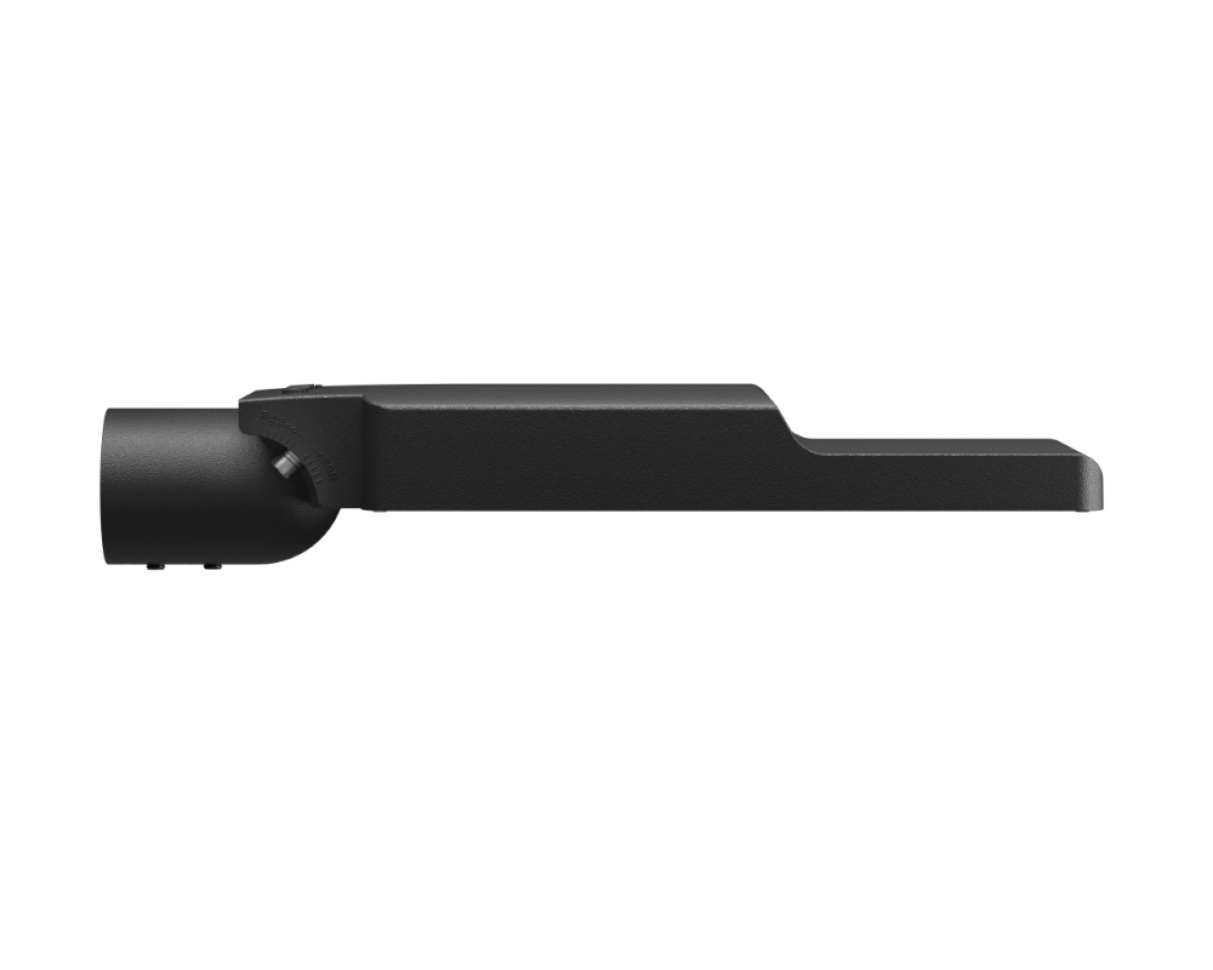

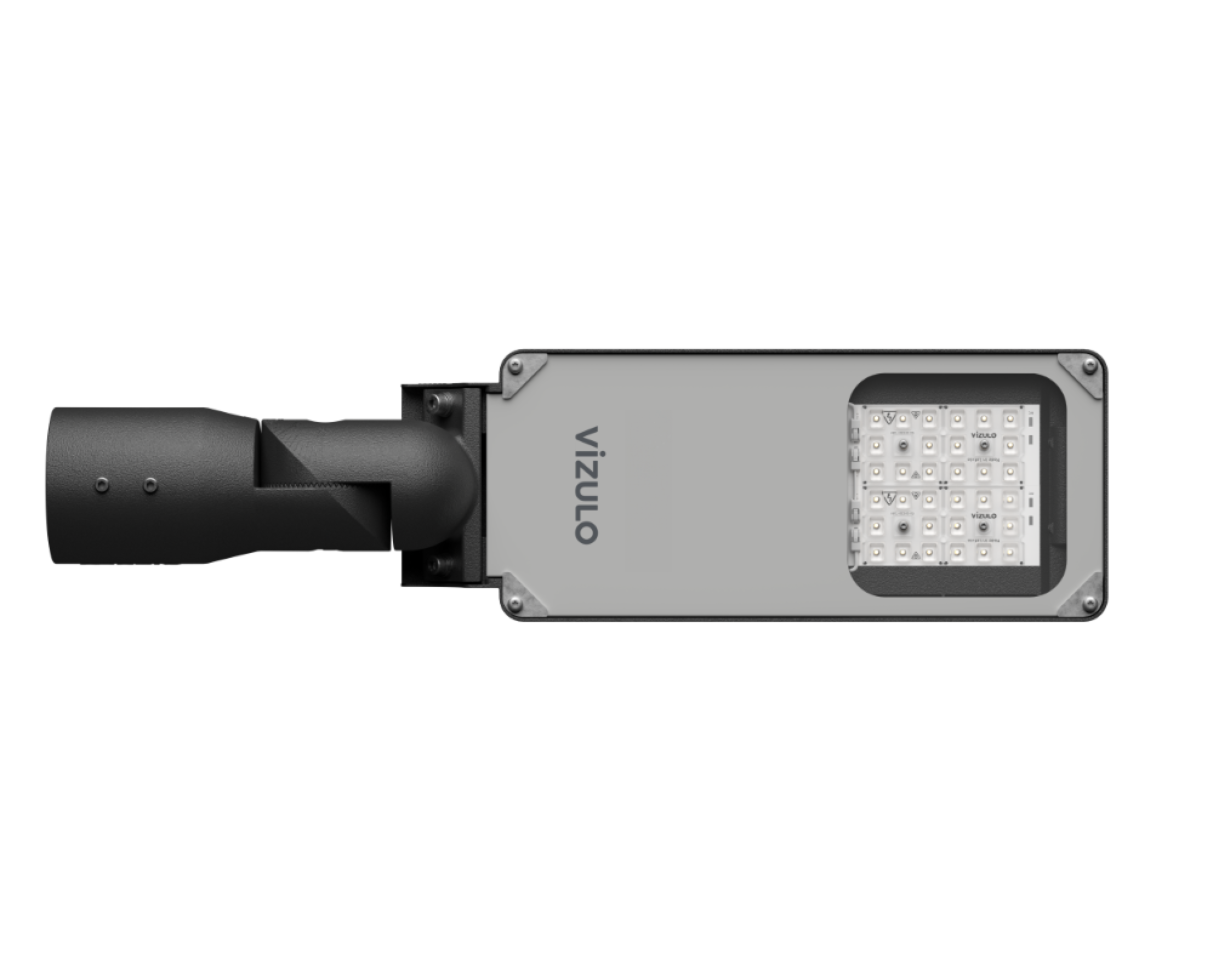

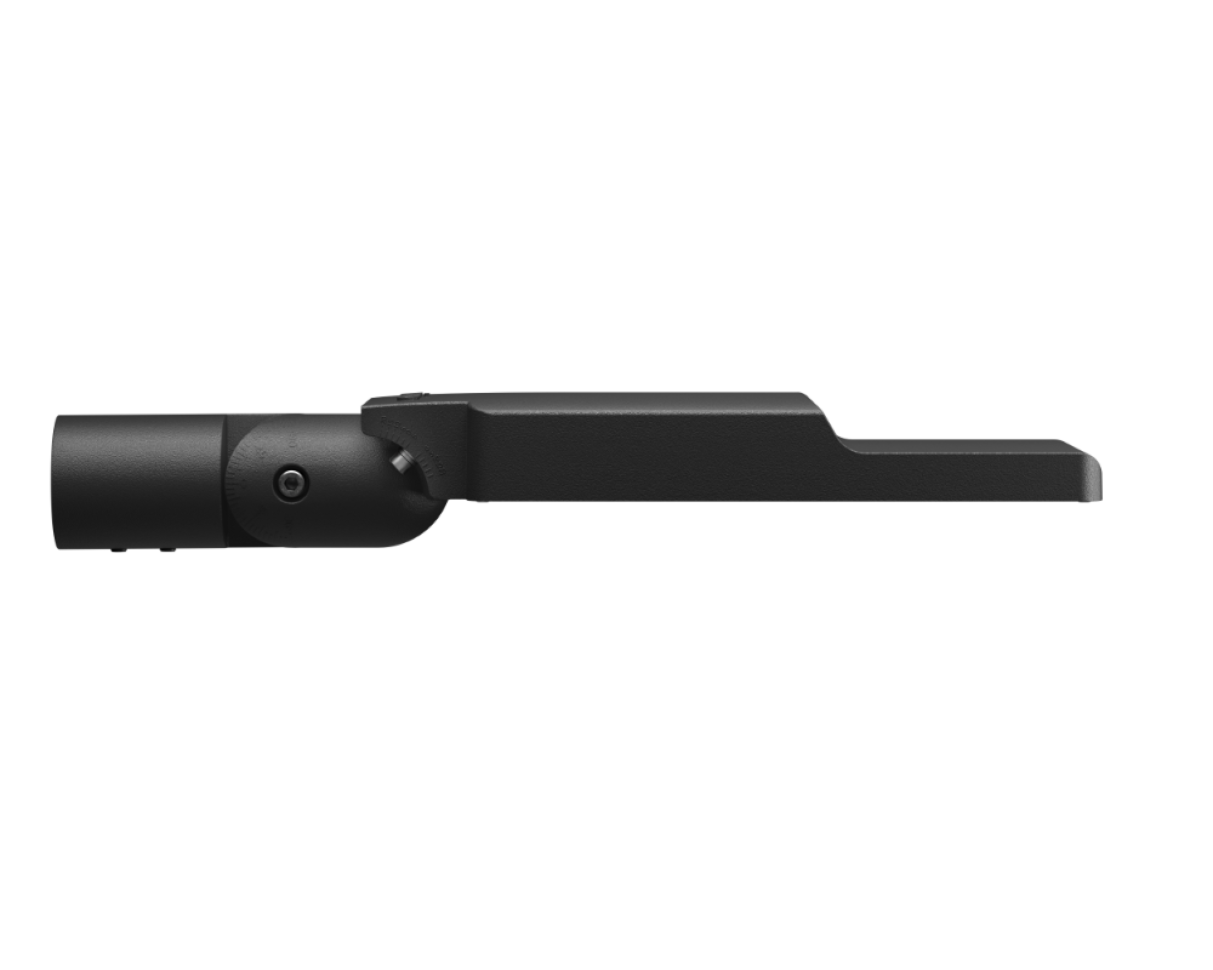

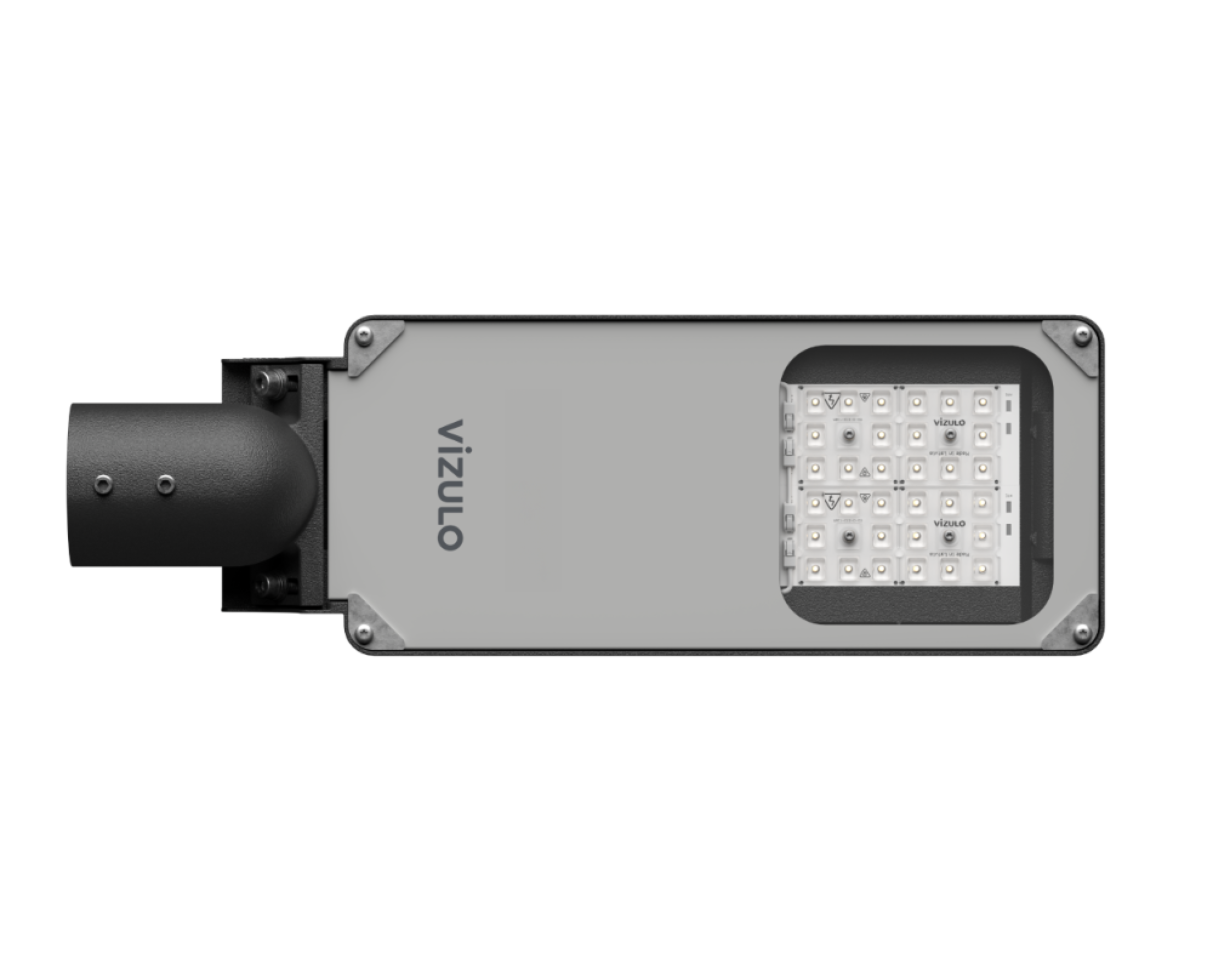

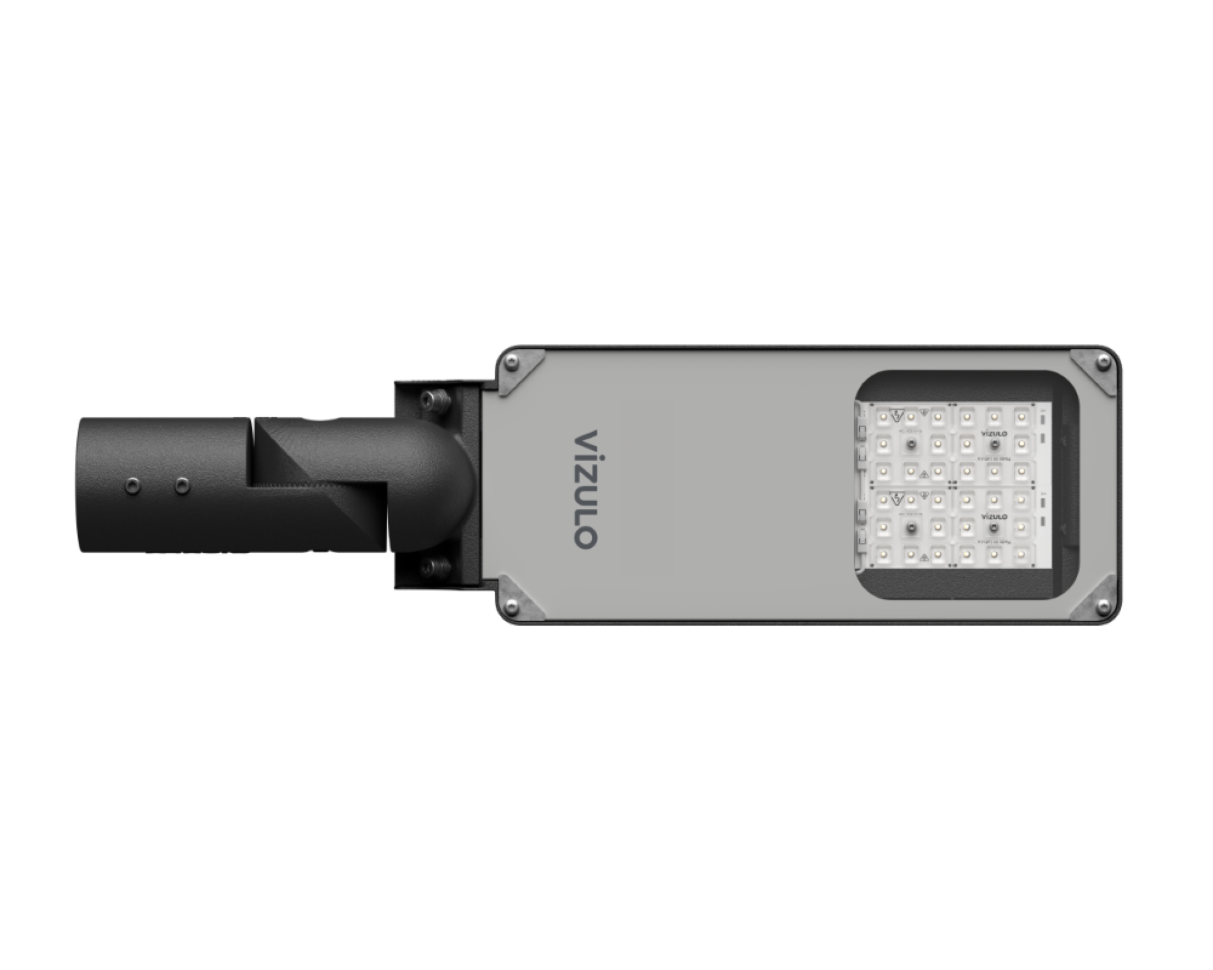

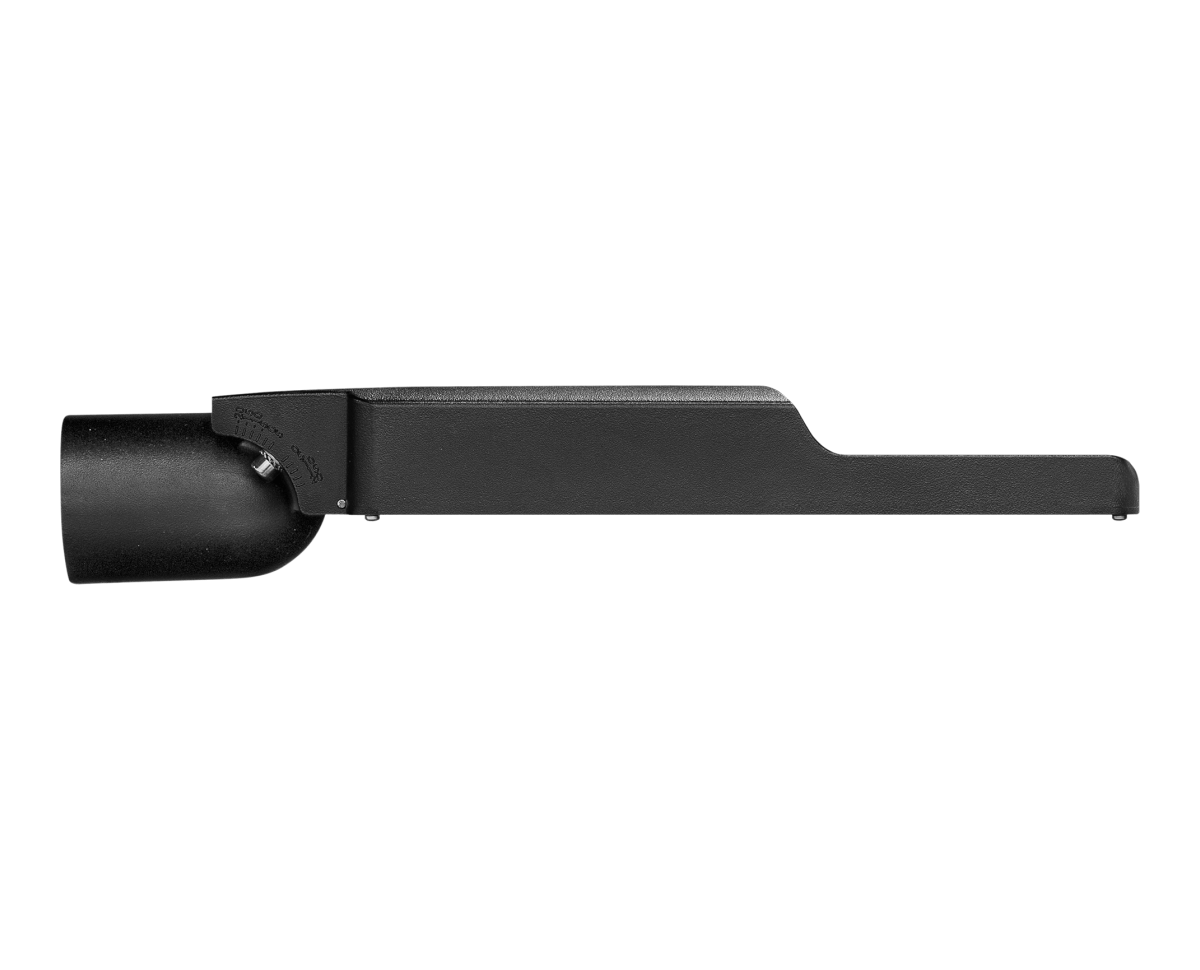

    Product overview

    This little bird has the heart of an eagle. Remarkable power and precision with more than 50 optics ready to illuminate city landscapes, sports events and large industrial areas. The sturdy Micro Martin won’t let you down even in the harshest environments.We have developed four convenient enclosure options, including a tool-less configuration – for ultimate accessibility. Spend less time on installation or maintenance, and more time living!

    Basic Colours
    • Silver   RAL9006
    • Asphalt     DB703
    • Black        RAL9005

    Other colors available on request

    General Information
    • V198 - 264
    • Hz50 - 60
    • W5 - 75
    • lm446 - 10400 1
    • lm/W90 - 160
    • K2700 / 3000 / 4000 2
    • -40 to +50 (5 - 50 W) -40 to +35 (50 - 75 W)
    • CRI>70 / >80 3
    • mm517 x 170 x 96

    1-10 V; DALI; Midnight dimmingChromaticity tolerance (initial MacAdam): 5Warranty 5 years100 000 h (L95B10) at Ta = 25°C100 000 h (L80B10C10) 4

    Surge protection: 6 kV / separate built-in 10 kVSpigot: ø 40 - 60 mmIntelligent light control system: Radio frequency 5Socket: Zhaga / NEMABody: Die-cast aluminiumNeto weight: 3,65 - 3,7 kgMax. wind load area, SCd, m2: 0,037

    Class I

    Class II

    CE

    EAC

    ENEC

    ENEC Plus

    International EPD System 6

    RoHS

    SundaHus assessment available 7

    IP66

    IK08

    IK09 8

    Zhaga zdi4

    cUL 9

    LED module replaceable by a professional

    LED driver replaceable by a professional

    1 Lumen output indicated at CRI > 702 1800 / 2200 / 5000 / 5700 / 6500 K available on request  Amber option available3 Luminaries with color rendering index (CRI): Ra > 90 on request4 Average lifetime value for ECO model at Ta = 25 °C is 100 000 h L80/B10*5 Optional. Available only with DALI ; 1 - 10 V6 EPD registration number: S-P-04351 (link to page)7 Check SundaHus web page for product assessment results8 IK09 - screw version with tempered unprinted glass9 Coming soon

    *This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models and will reach 100 000 h L90/B10. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

    Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

    Features

    Driver modularity

    Modular drivers offer you a new and improved experience of luminaries service and maintenance procedures- toolless, effortless mounting to spare your time and energy for more essential things in life.

    Lens variety and supply flexibility

    Multifocal eye lenses are common in the animal kingdom, from amphibians to mammals, including primates: different habitats demand different optical structures. VIZULO always takes an example from nature’s perfection; as a result, offering endless diversity with more than 100 optics to choose from, providing the best solutions for most simple to most complicated “habitats”.

    Human centric lighting

    Benefits from working in natural daylight are evident- improved mood, higher productivity, better emotional and physical wellbeing. For a simple reason: daylight constantly changes! From warm, pink rays in the dawn to cool, bright light in the middle of the day and back to calm, golden rays in the dusk. Human-centric lights by VIZULO offer you the experience of living under natural light, thus living in accordance with your body’s natural circadian rhythm, breaking down the borders between natural and artificial lighting. Inspired by nature, created by engineers, approved by science. Traditional lighting designed to change for your comfort.
