BLACKBIRD Post top

Product Overview

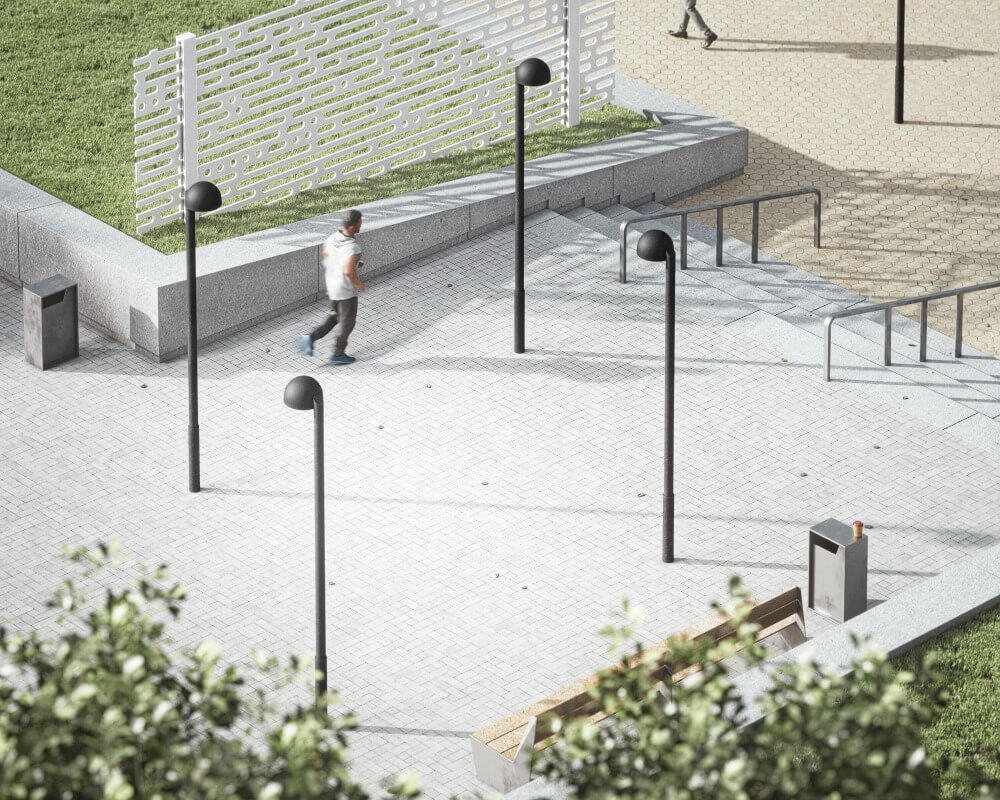

Bring out the natural beauty of any environment with this unique example of Scandinavian design. The multifunctional luminaire really shines in both classic and modern urban exteriors, creating a sense of wonder and delight. With seven different shapes and plenty of configuration options available, the Blackbird will find its place in projects of any scale.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 100

lm

441 - 16220 2

lm/W

88 - 162

K

2700 / 3000 / 4000 3

°C

-40 up to +50 4

CRI

>70 / >80 / >90 3

mm

450 x 380 x 355

Body: Die-cast aluminium

Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 5

Spigot: 32 - 40 mm 6 / 40 - 60 mm / 76 mm 6

Socket: NEMA Top / Zhaga Top and Bottom

Intelligent control: Stand-alone / Group / CMS

Surge protection: 4 / 6 / 10 kV 7

Corrosion protection: Up to C5

Neto weight: Up to 8.2 kg

Max. wind load area, SCd: 0.10 m2

Class I
Class II
IP66
IK10
CE
UKCA
EAC
RoHS
cUL 8
Zhaga zdi4
ENEC
ENEC Plus
DarkSky Approved
Synergrid approved 8
International EPD System 9
LED module replaceable by a professional
LED driver replaceable by a professional

Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2
  Lumen output indicated at CRI > 70
3  1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
    Note! Only fixtures with CCT of 3000 K or lower are DarkSky approved!
4  Operating temperature differs depending on chosen output wattage
5  Other lengths available on request
6  Achievable with an adapter for 40 - 60 mm spigot
7  10 kV (L-N; L/N-PE) surge protection device available on request
8  Coming soon
9  EPD registration number: S-P-05892 (link to page)

* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
