BLACKBIRD Side entry

Product Overview

Bring out the natural beauty of any environment with this unique example of Scandinavian design. The multifunctional luminaire really shines in both classic and modern urban exteriors, creating a sense of wonder and delight. With seven different shapes and plenty of configuration options available, the Blackbird will find its place in projects of any scale.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

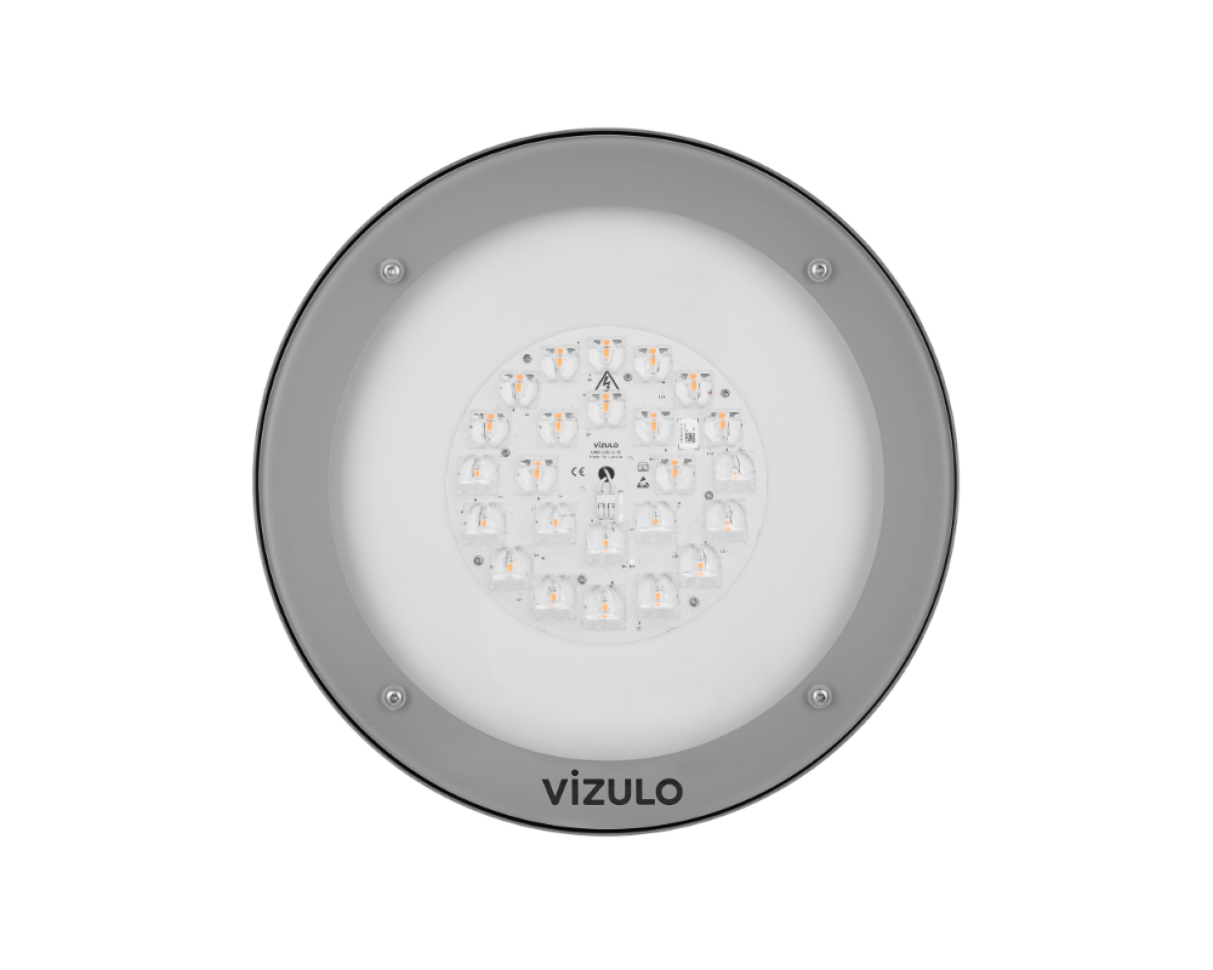

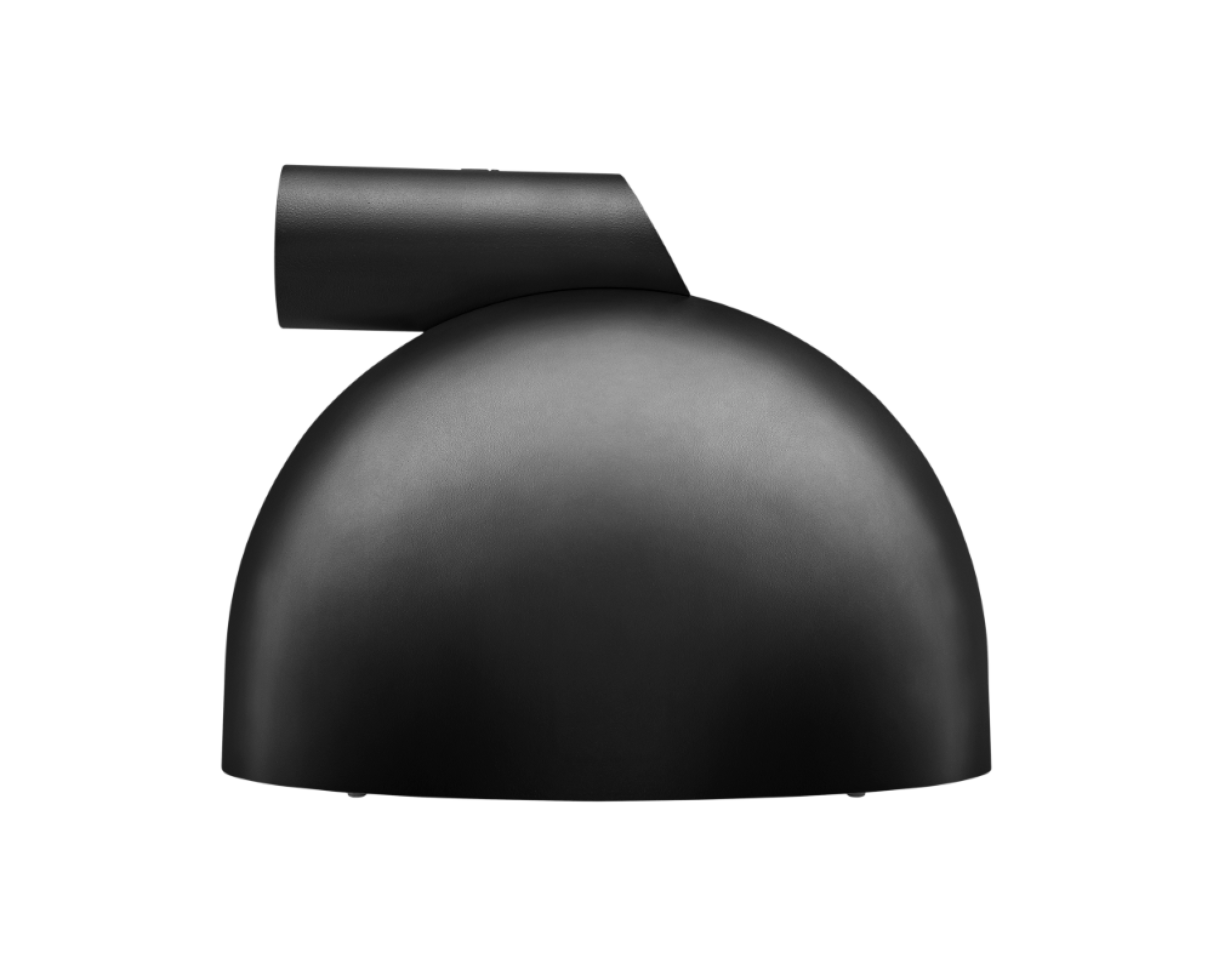

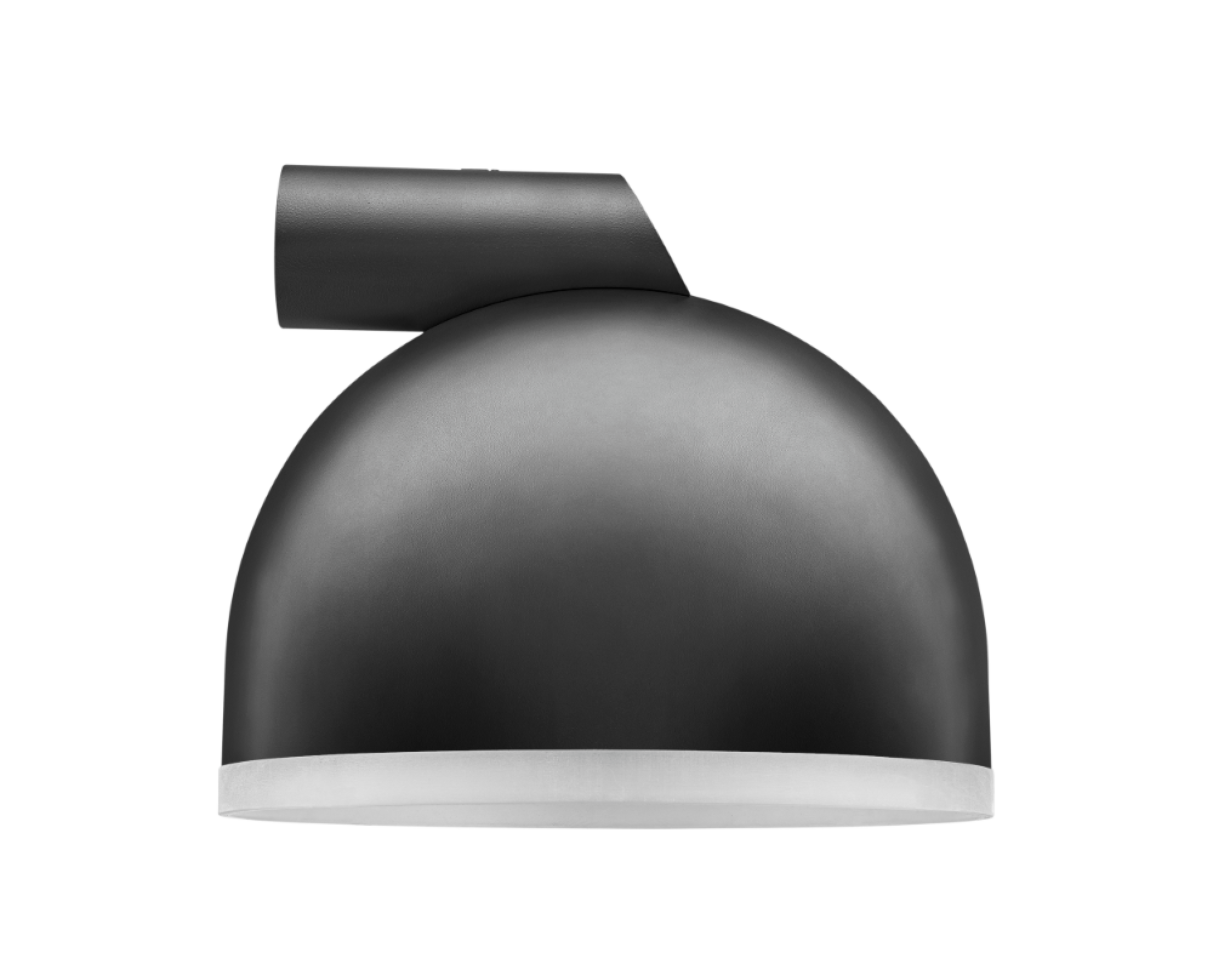

BLACKBIRD Side entry
BLACKBIRD Side entry
BLACKBIRD Side entry
BLACKBIRD Side entry
BLACKBIRD Side entry
BLACKBIRD Side entry

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 100

lm

441 - 15500 2

lm/W

88 - 160

K

2700 / 3000 / 4000 /
TW 2700 - 6500 3

℃

-40 to +50

CRI

>70 / >80 / >90 3

mm

380 x 305

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming / Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 4

Spigot: 32 - 40 mm 5 / 40 - 60 mm / 76 mm 5

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Surge protection: 4 / 6 / 10 kV 6

Corrosion protection: Up to C5

Neto weight: Up to 8.1 kg

Max. wind load area, SCd, m2: 0.10

Class I
Class II
IP66
IK10
CE
UKCA
EAC
RoHS
cUL 7
Zhaga zdi4
ENEC
ENEC Plus 7
Synergrid approved 7
International EPD System
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 Other lengths available on request
5 Achievable with an adapter for 40 - 60 mm spigot
6 10 kV (L-N; L/N-PE) surge protection device available on request
7 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

BLACKBIRD Side entry

Features

Electronics

Controls & Connectivity

Light

Optics

Accessories

Best selling articles

Other options available on request

Lens
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L05
L22
L35
V05
V22
V35
Flux (lm)
1959
15564
1959
15564
Efficacy (lm/W)
98
156
98
156
Power (W)
20
100
20
100
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 2700
  • 3000
  • 4000
LED module
AA
AB
AF
AG
BE
BF
BL
BM
Color
Other colors available on request
  • Jet black
  • Light grey
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • D4i (Zhaga)
  • Midnight dimming
  • Midnight dimming + DALI
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • ≥6 kV
  • SPD 10 kV
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
Lumen depreciation
Standard (outdoor) - Premium LED's (L98 at 100 000 h) Eco - Economic LED's (L90 at 100 000 h)
  • L90 (Eco)
  • L98
Lens Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming Datasheet LDT file
BBCE 050 740 L35 AB016 CJ MG182114893 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CJ MG282114894 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CJ MH182114895 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CJ MH282114896 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CB MG182114897 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CB MG282114898 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CB MH182114899 6092 122 50 70 4000 Midnight dimming
BBCE 050 740 L35 AB016 CB MH282114900 6092 122 50 70 4000 Midnight dimming
BBCE 050 830 L05 AB016 CJ MG182114901 5789 116 50 80 3000 Midnight dimming
BBCE 050 830 L05 AB016 CJ MG282114902 5789 116 50 80 3000 Midnight dimming
Rows per page
prev
page of 864
next

Accessories

Reset

Optical

Mounting

Controllers and sensors for smart systems

Terminal blocks and plugs

Cables

Sockets and caps for smart systems
