EAGLE 4 heads

Product Overview

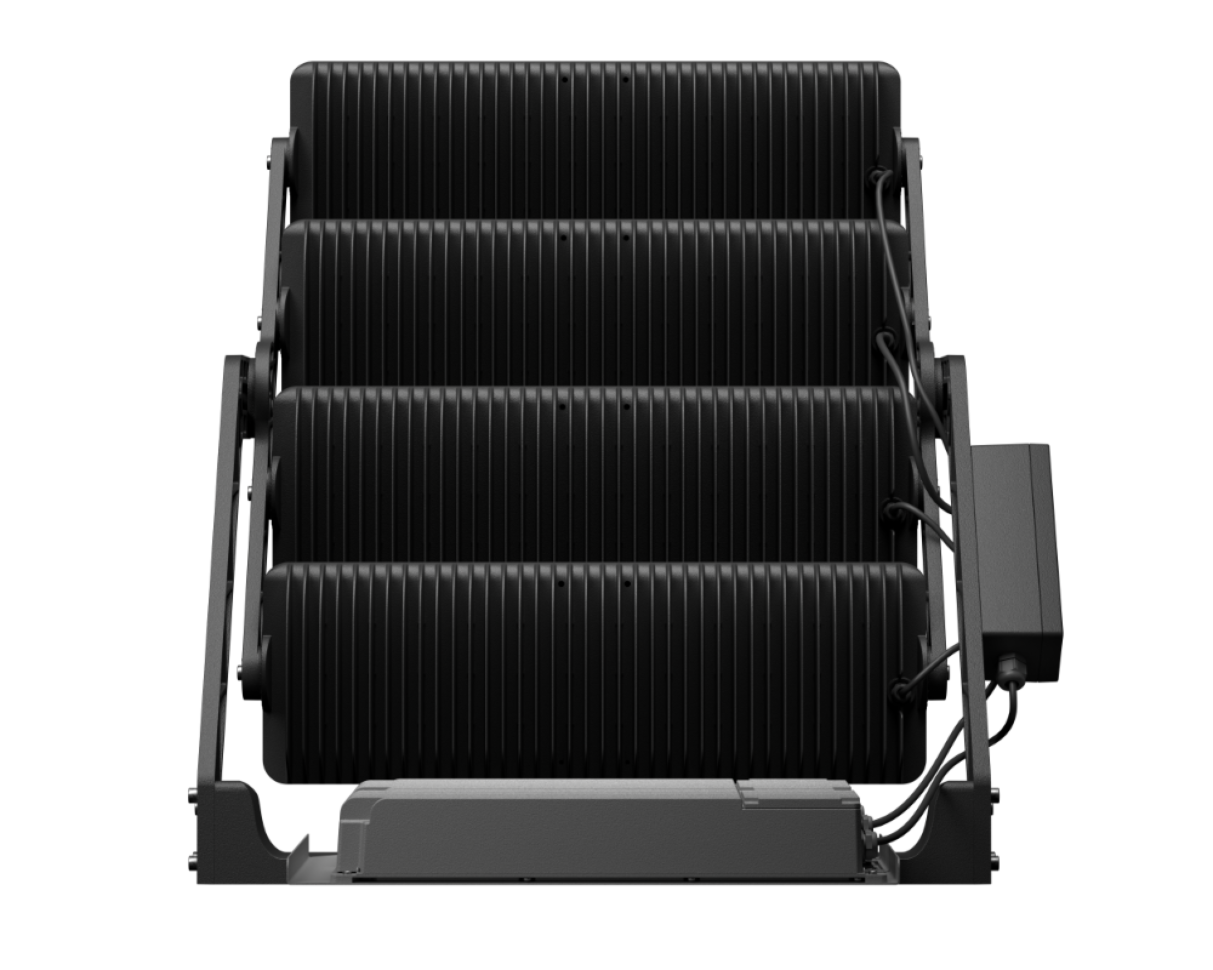

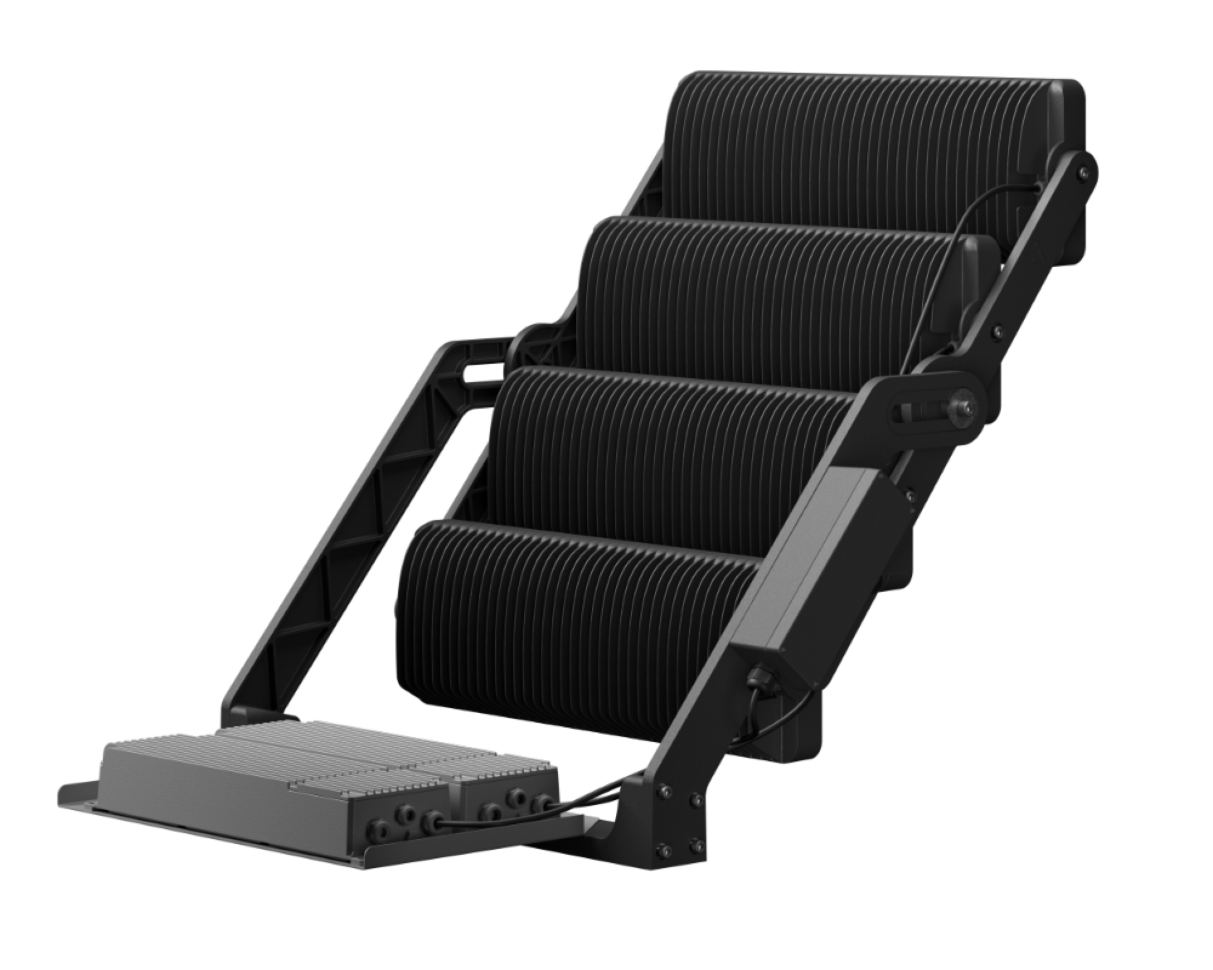

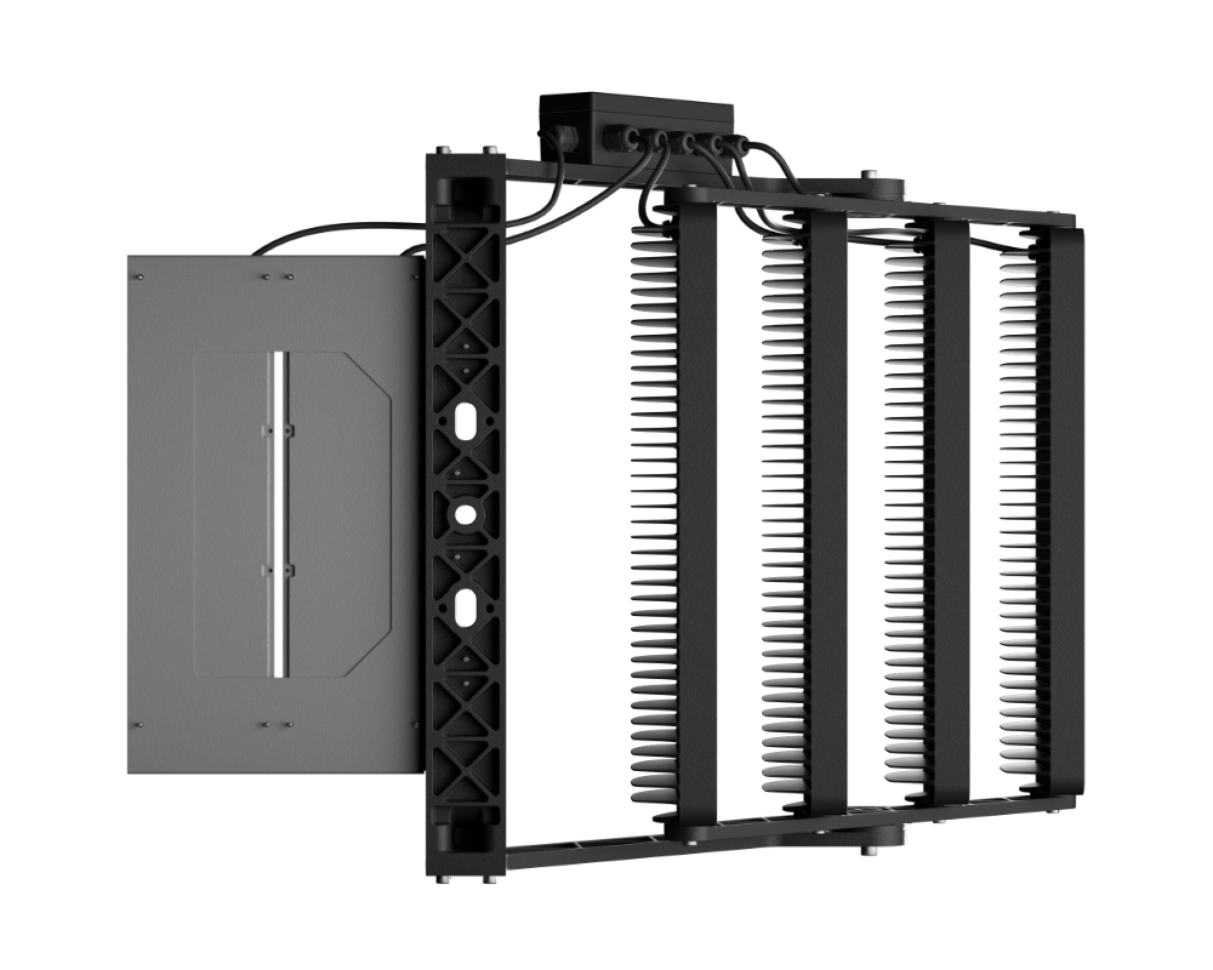

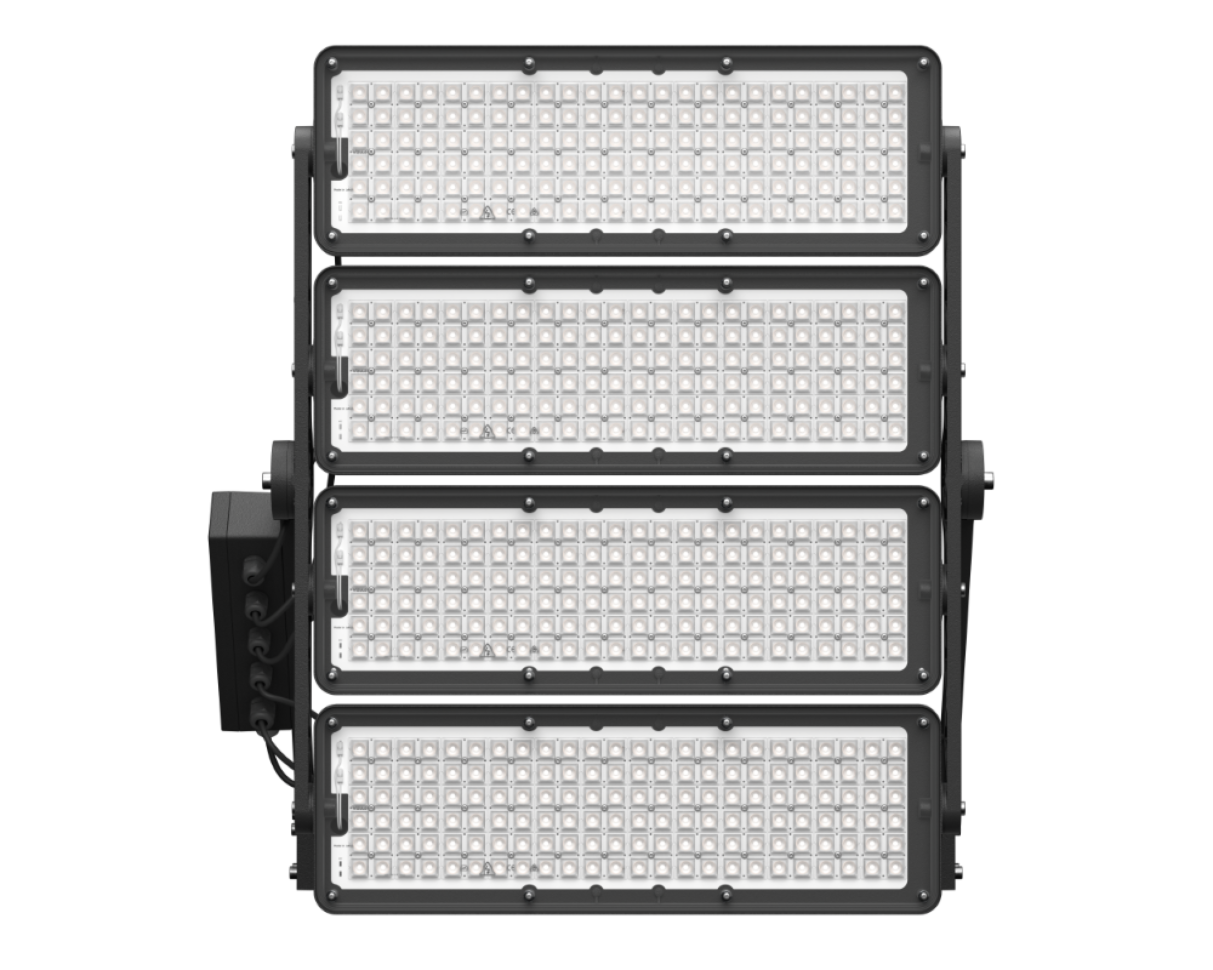

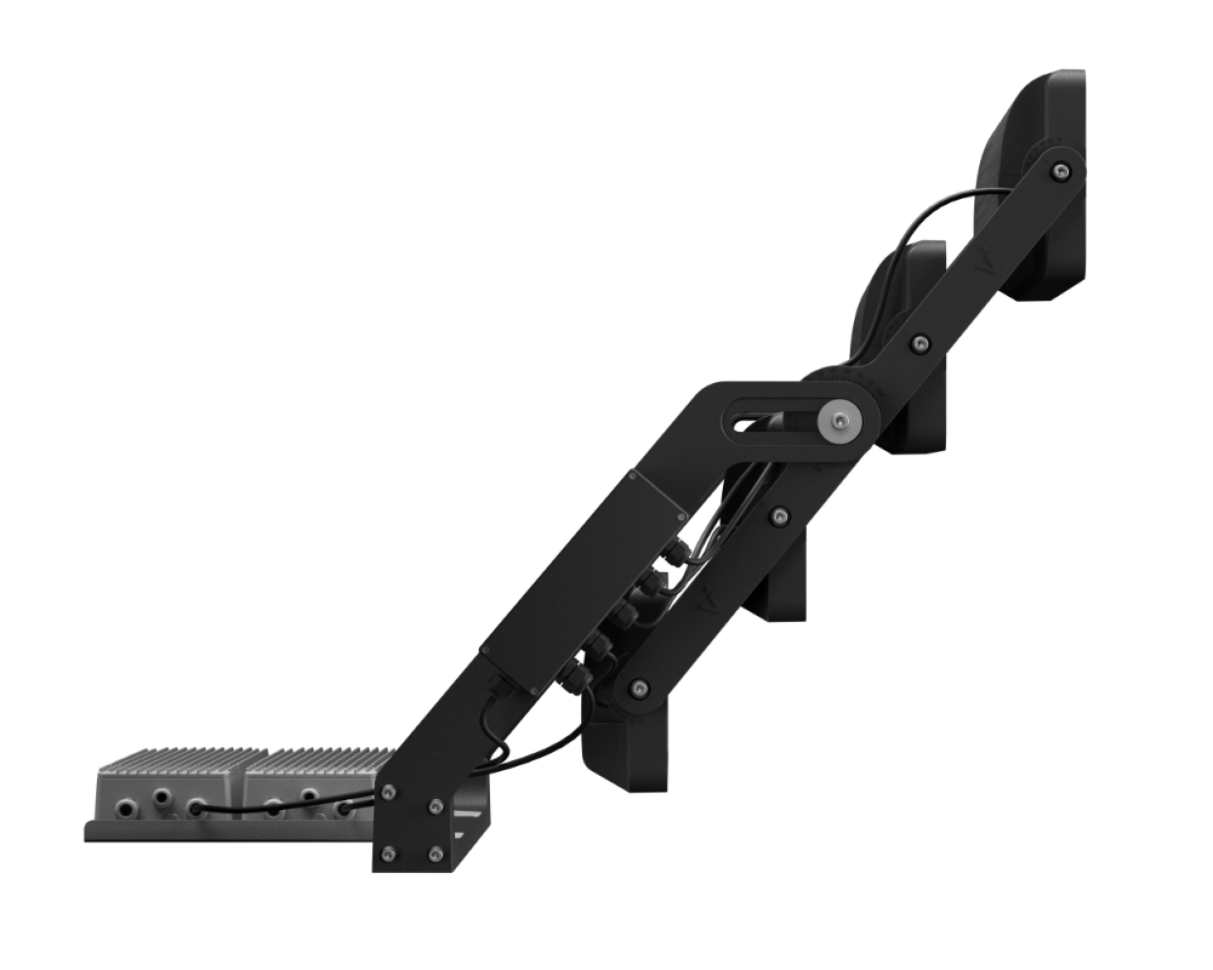

Light up even the most prominent venues with the mighty EAGLE. This high-power projector is a perfect match for film studios, stadiums, and even airports. While it can reach brightness up to 301 450 lm, our EAGLE 4 head is not only about raw power. You can choose between different color temperatures (3000, 4000, 5000 K) and rendering indexes (70, 80, 90). If you deal with live broadcasts or massive movie sets, you will love the HDTV optimized flicker-free performance. And there is an optional laser pointer – to calculate the perfect sports field lighting. The four heads are individually adjustable, providing even better illumination of the area. This projector is also available with a NEMA socket connected to the driver box. EAGLE 4 heads – European quality, stellar power.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

1020 - 2190 | 480 LED version
1020 - 2400 | 576 LED version

lm

Up to 301 450 2

lm/W

Up to 156

K

4000 / 5000 / 5700 3

-40 to +50

CRI

>70 / >80 / >90 3

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / DMX / Midnight dimming / Step dimming / Mains dimming

TLCI: >90 4

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: On bracket / wall / ceiling

Socket: NEMA / Top Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Daylight

Surge protection: 10 kV

Corrosion protection: Up to C5

Neto weight: Up to 41.7 kg

Class I
IP66
IK10
CE
UKCA
RoHS
Ball proof test 5
cUL 6
Zhaga zdi4
ENEC
ENEC Plus
International EPD System
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2
 Lumen output indicated at CRI > 70

3 1800 / 2200 / 2700 / 3000 / 3500 / 6500 K available on request along with other not listed CRI and CCT
4 For CRI > 90 and CCT 5000, 5700 K
5 Ball proof: tested according to DIN 57710-13
6 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L15
L87
L88
L89
LB6
Flux (lm)
224615
310490
224615
310490
Efficacy (lm/W)
107
137
107.1
136.7
Power (W)
2080
2400
2080
2400
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
  • 5700
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level than the former. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • 10 kV
  • 6 ... 10 kV
Optic Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming LED type Datasheet LDT file
EG4E 2080 730 L15 BB0480 CJA DI186100311 254389 122.3 2080 70 3000 DALI Eco
EG4E 2080 730 L15 BB0576 CJA DI186100312 266539 128.1 2080 70 3000 DALI Eco
EG4E 2080 730 L87 BB0480 CJA DI186100313 236402 113.7 2080 70 3000 DALI Eco
EG4E 2080 730 L87 BB0576 CJA DI186100314 247693 119.1 2080 70 3000 DALI Eco
EG4E 2080 730 L88 BB0480 CJA DI186100315 241541 116.1 2080 70 3000 DALI Eco
EG4E 2080 730 L88 BB0576 CJA DI186100316 253077 121.7 2080 70 3000 DALI Eco
EG4E 2080 730 L89 BB0480 CJA DI186100317 259528 124.8 2080 70 3000 DALI Eco
EG4E 2080 730 L89 BB0576 CJA DI186100318 271923 130.7 2080 70 3000 DALI Eco
EG4E 2080 730 LB6 BB0480 CJA DI186100319 264667 127.2 2080 70 3000 DALI Eco
EG4E 2080 730 LB6 BB0576 CJA DI186100320 277308 133.3 2080 70 3000 DALI Eco
