MUSTANG

Product Overview

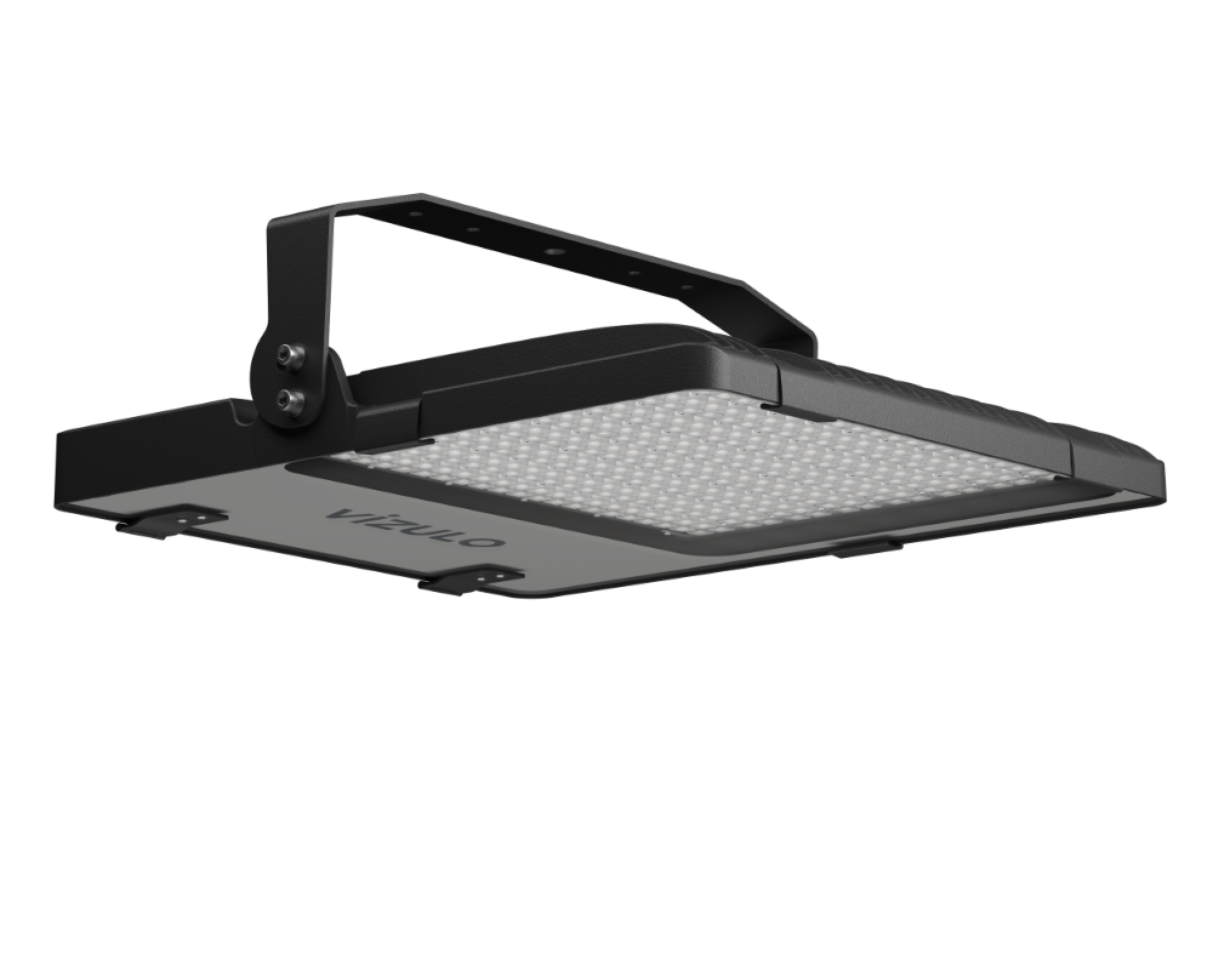

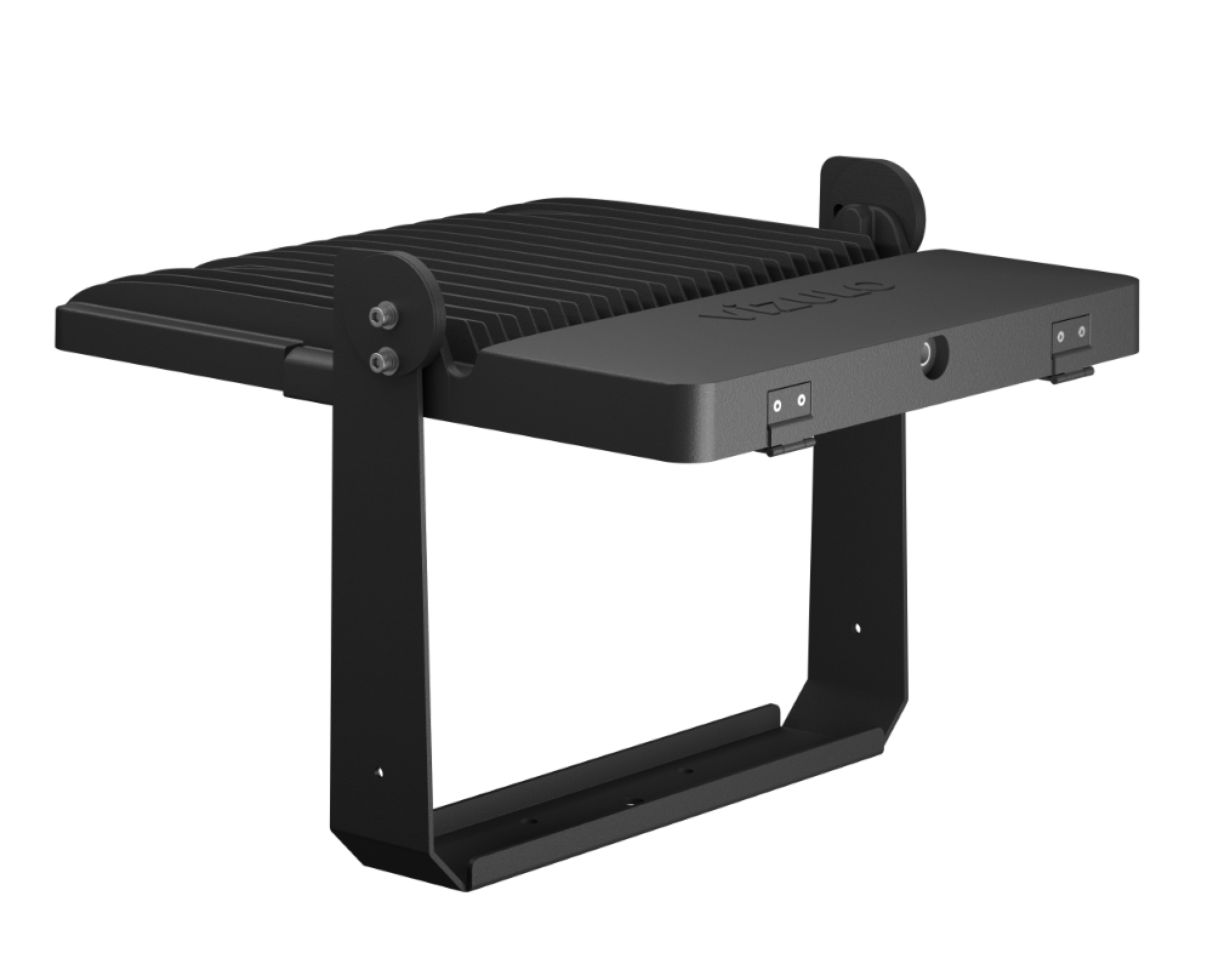

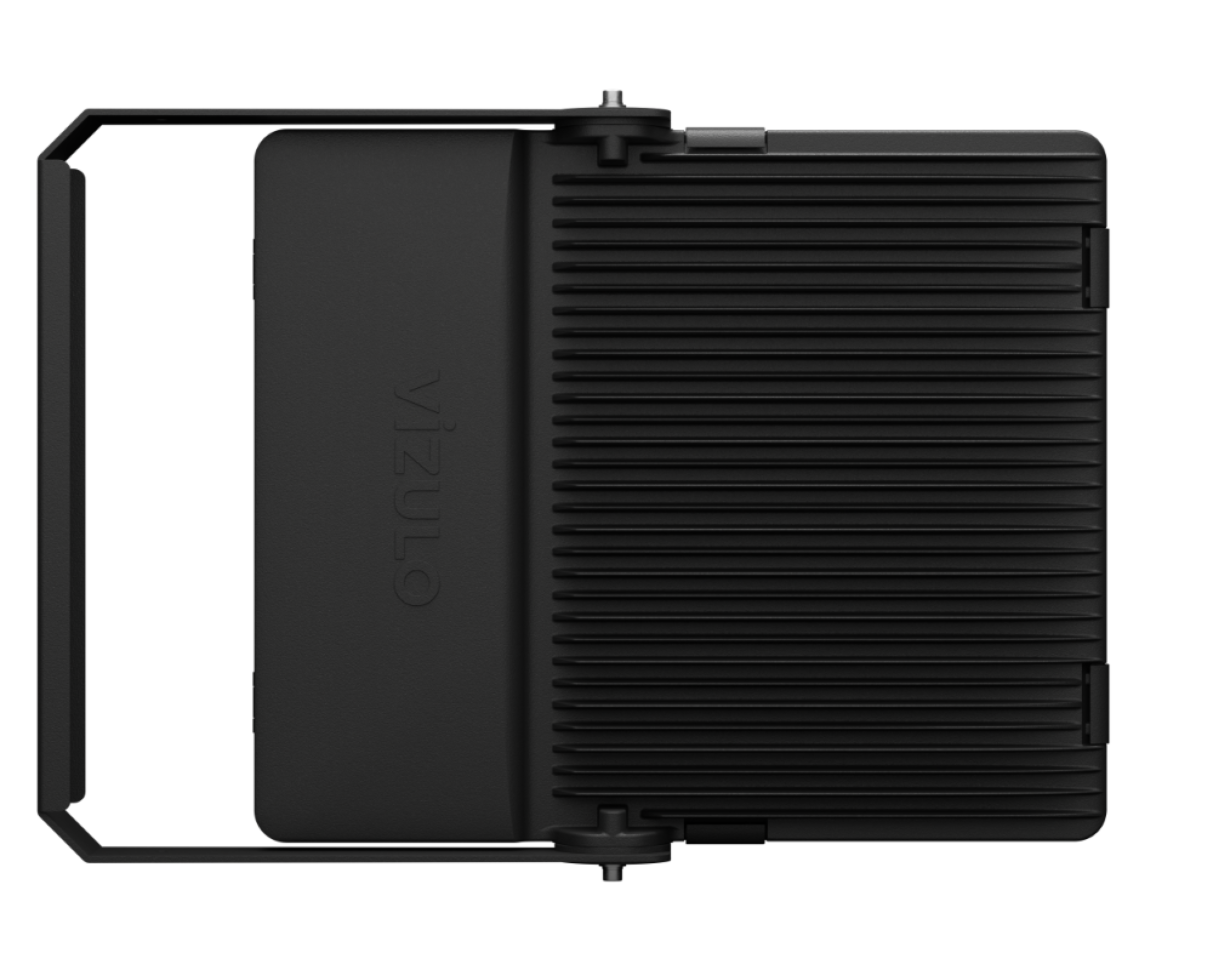

Free, wild, powerful, and beautiful. It all characterizes Mustang. High-quality floodlight. It has power up to 700 W and light output up to 103 320 lm to lighten territories, sports fields, airports, seaports, railways infrastructure, industrial plants, and parking areas. Tool-less opening ensures quick and easy installation and maintenance. A wide range of optics, drivers, connectors allows adapting luminaires to specific project needs.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

50 - 700

lm

29535 - 103320 2

lm/W

119 - 165

K

2700 / 3000 / 4000 3

-40 to +50

CRI

>70 / >80 / >90 3

mm

789 x 690 x 216

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming / Step dimming / Mains dimming

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: On bracket / wall / ceiling

Socket: NEMA / Top Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Daylight

Surge protection: 10 kV

Corrosion protection: Up to C5

Neto weight: Up to 41 kg

Class I
Class II
IK08 4
IK09 5
IP66
CE
UKCA
cUL 6
EAC
RoHS
ENEC
Zhaga zdi4
International EPD System
Ball proof test
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT

4 Housing
5 Glass cover
6 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
