OWL

Product Overview

Owl - the first Vizulo floodlight. Powerful yet cost-effective, dedicated for sports premises - small and medium sports fields and large territories such as car parks, airports, seaports, cargo handling terminals, warehouses, etc. It is a beautiful luminaire that has a durable and time-tested design. Tool-less opening ensures quick and easy installation and maintenance. A wide range of optics, drivers, connectors allows adapting luminaires to specific project needs.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

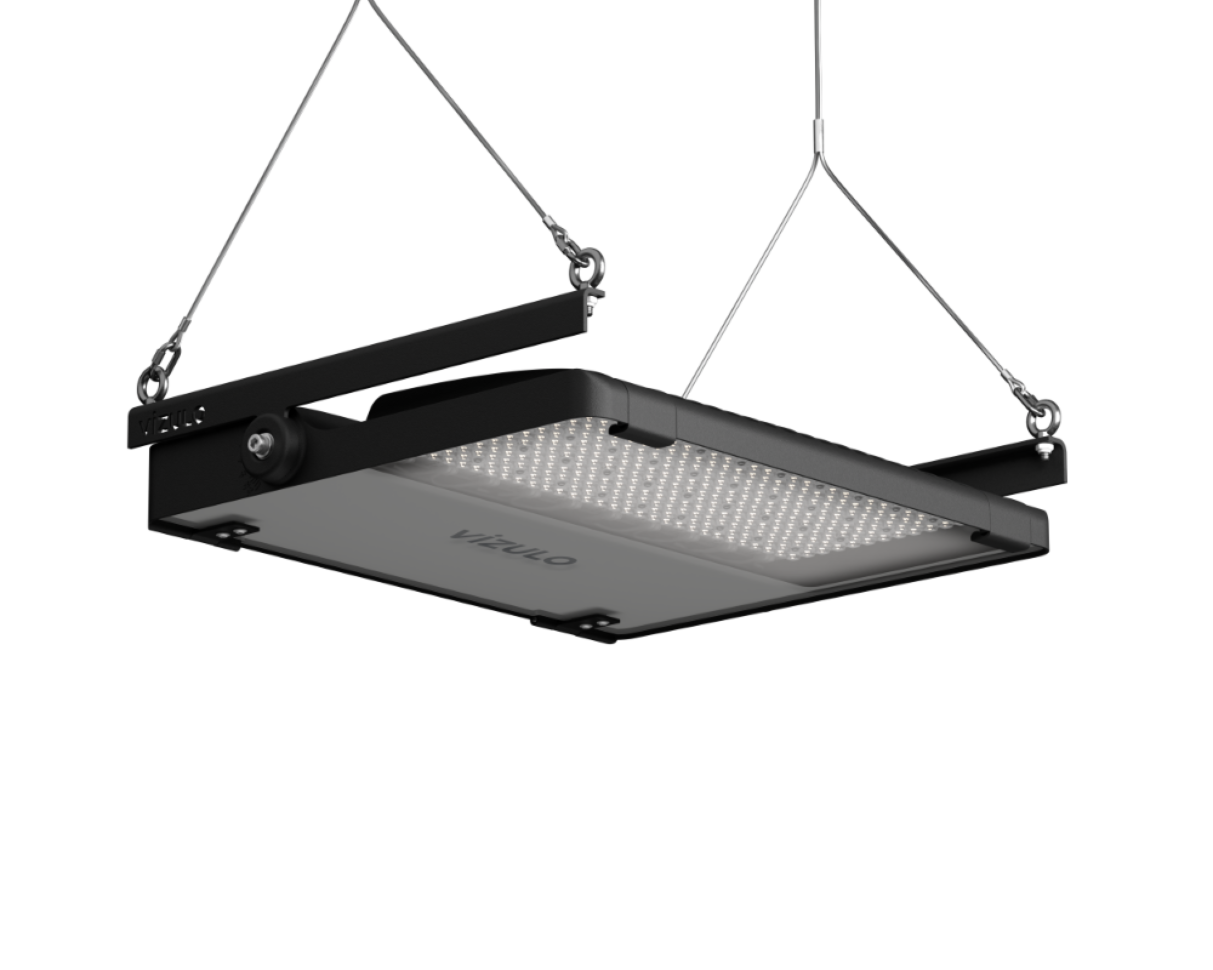

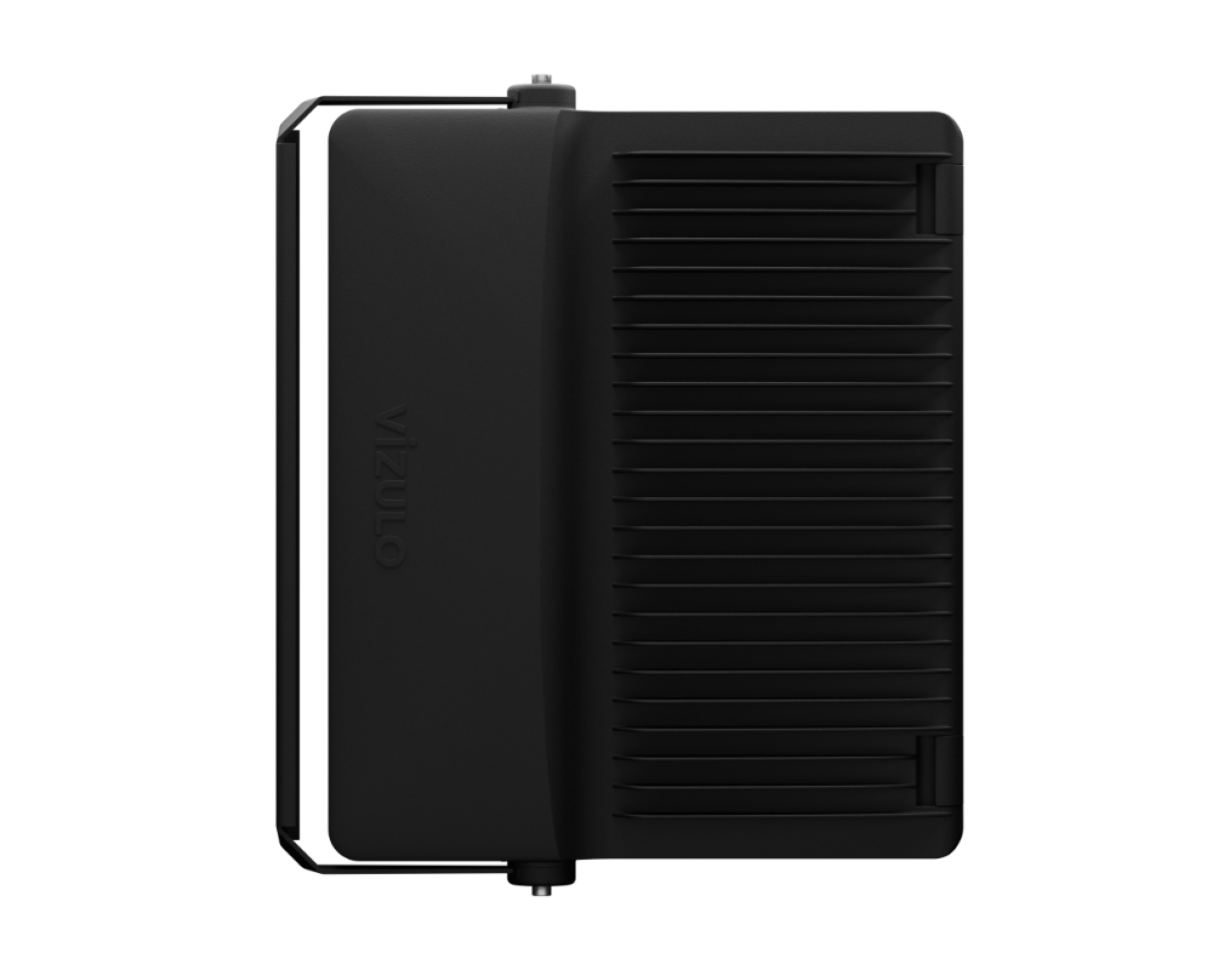

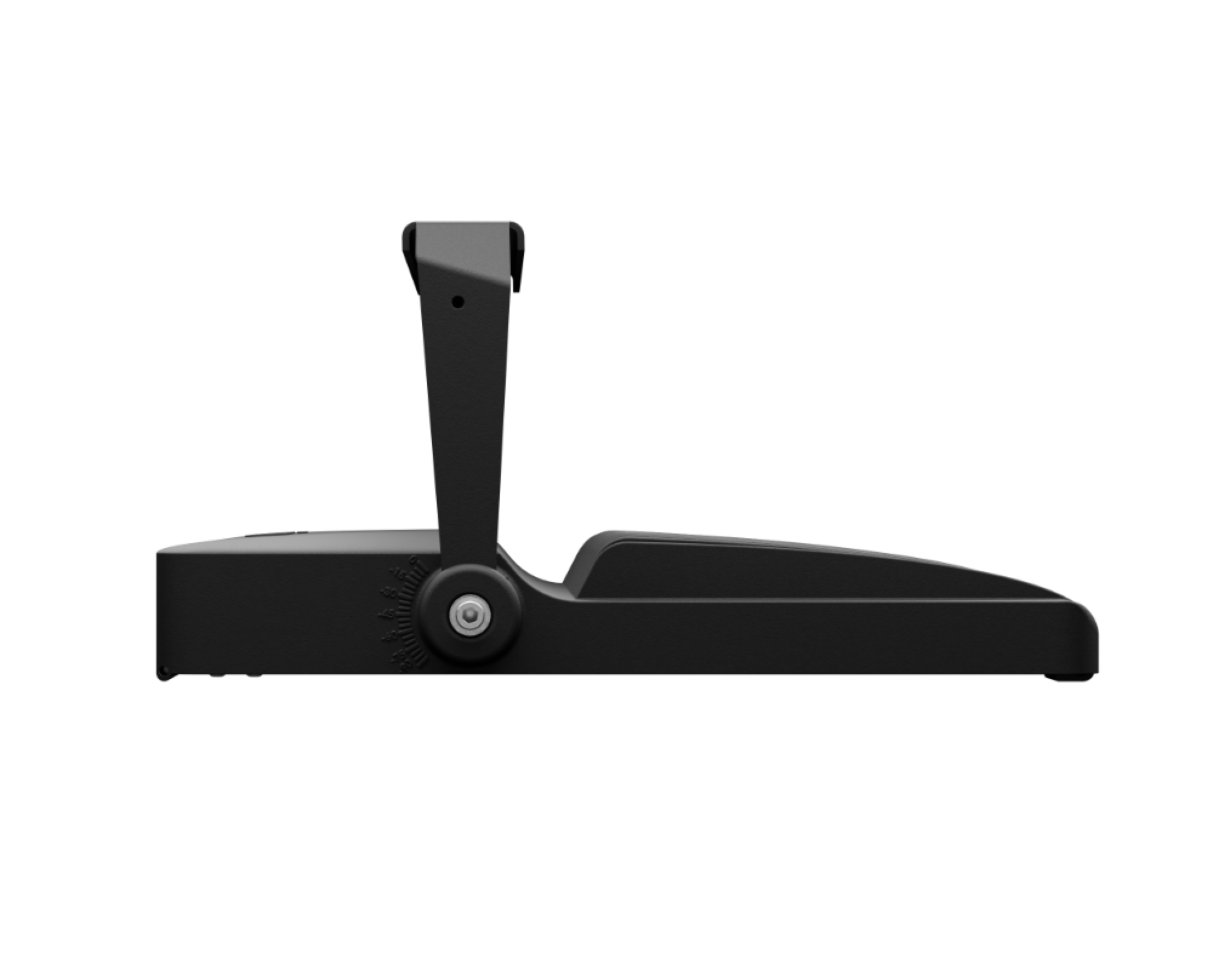

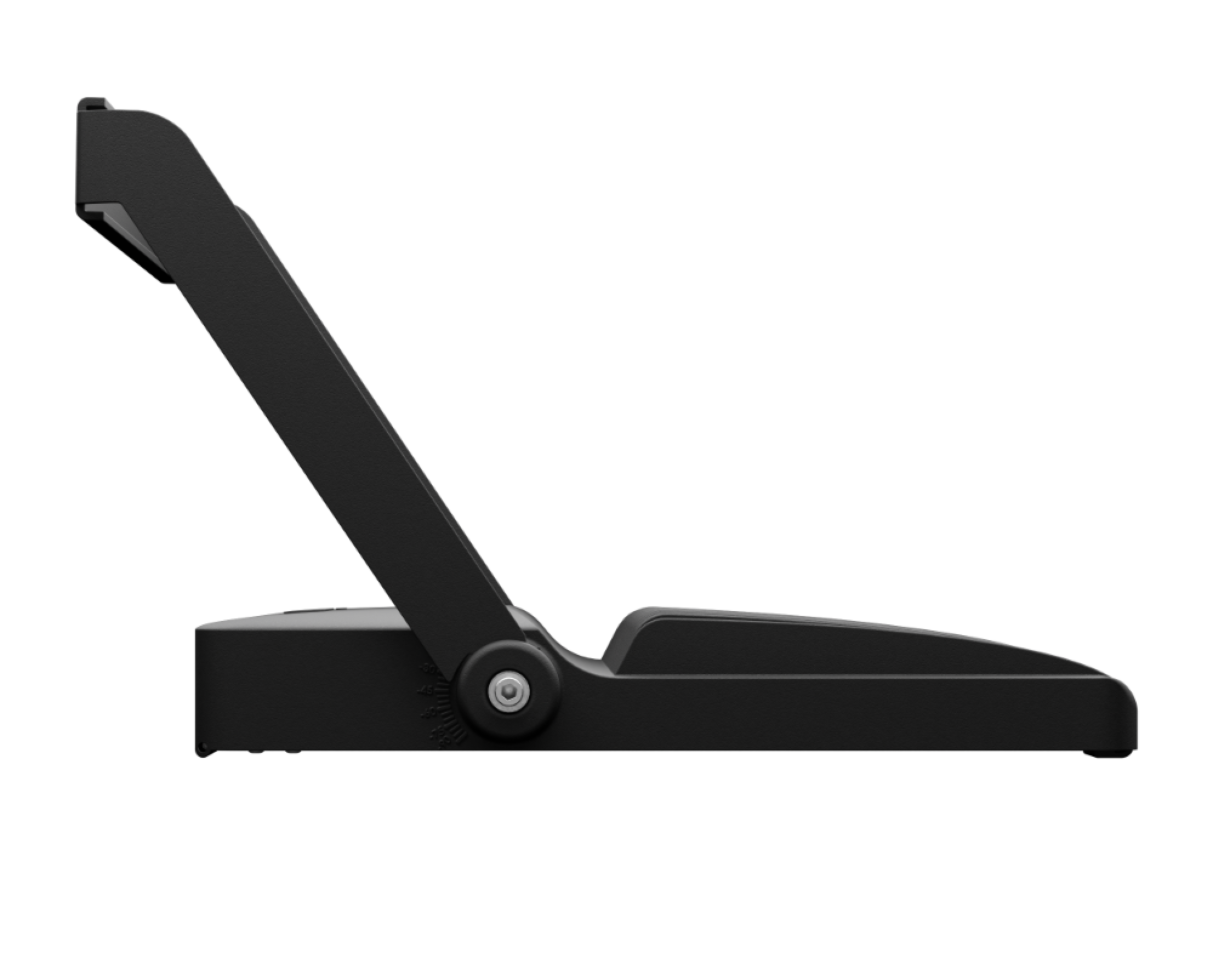

OWL
OWL
OWL
OWL

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

85 - 380

lm

11640 - 55455 2

lm/W

112 - 172

K

2700 / 3000 / 4000 3

℃

-40 to +50 | 85 - 340W
-40 to +45 | 340 - 380W

CRI

>70 / >80 / >90 3

mm

533 x 655 x 85

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming / Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: On bracket / wall / ceiling

Socket: NEMA / Top Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Daylight

Surge protection: 10 kV

Corrosion protection: Up to C5

Neto weight: Up to 19 kg

Max. wind load area, SCd, m2: 0.064

Class I
Class II
IP66
IK08
CE
UKCA
EAC
RoHS
Ball proof test 4
cUL 5
Zhaga zdi4
ENEC
ENEC Plus
International EPD System
Synergrid approved 5
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 Ball proof: tested according to DIN 57710-13
5 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L08
L10
L15
L35
L88
L01
L07
L37
Flux (lm)
20028
58002
20028
58002
Efficacy (lm/W)
111
162
111.3
162.1
Power (W)
170
380
170
380
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 4000
  • 3000
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • Midnight dimming + DALI
  • D4i (Zhaga)
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level than the former. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • 6 ... 10 kV
  • SPD 10 kV
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
LED type
Standard (outdoor) - Premium LED's (L98 at 100 000 h) Eco - Economic LED's (L90 at 100 000 h)
  • Eco
  • Standard
Optic Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming LED type Datasheet LDT file
OWE 380 740 L08 B160 CJF RG147102372 57046 150.1 380 70 4000 Midnight dimming + DALI Eco
OWE 380 740 L08 B160 CJF RG247102373 57046 150.1 380 70 4000 Midnight dimming + DALI Eco
OWE 380 740 L08 B160 CJF RH147102374 57046 150.1 380 70 4000 Midnight dimming + DALI Eco
OWE 380 740 L08 B160 CJF RH247102375 57046 150.1 380 70 4000 Midnight dimming + DALI Eco
OWE 380 740 L08 B160 CJF ZG147102376 56790 149.4 380 70 4000 D4i (Zhaga) Eco
OWE 380 740 L08 B160 CJF ZG247102377 56790 149.4 380 70 4000 D4i (Zhaga) Eco
OWE 380 740 L08 B160 CJF ZH147102378 56790 149.4 380 70 4000 D4i (Zhaga) Eco
OWE 380 740 L08 B160 CJF ZH247102379 56790 149.4 380 70 4000 D4i (Zhaga) Eco
OWE 380 740 L10 B096 CJF RG147102380 51200 134.7 380 70 4000 Midnight dimming + DALI Eco
OWE 380 740 L10 B096 CJF RG247102381 51200 134.7 380 70 4000 Midnight dimming + DALI Eco
