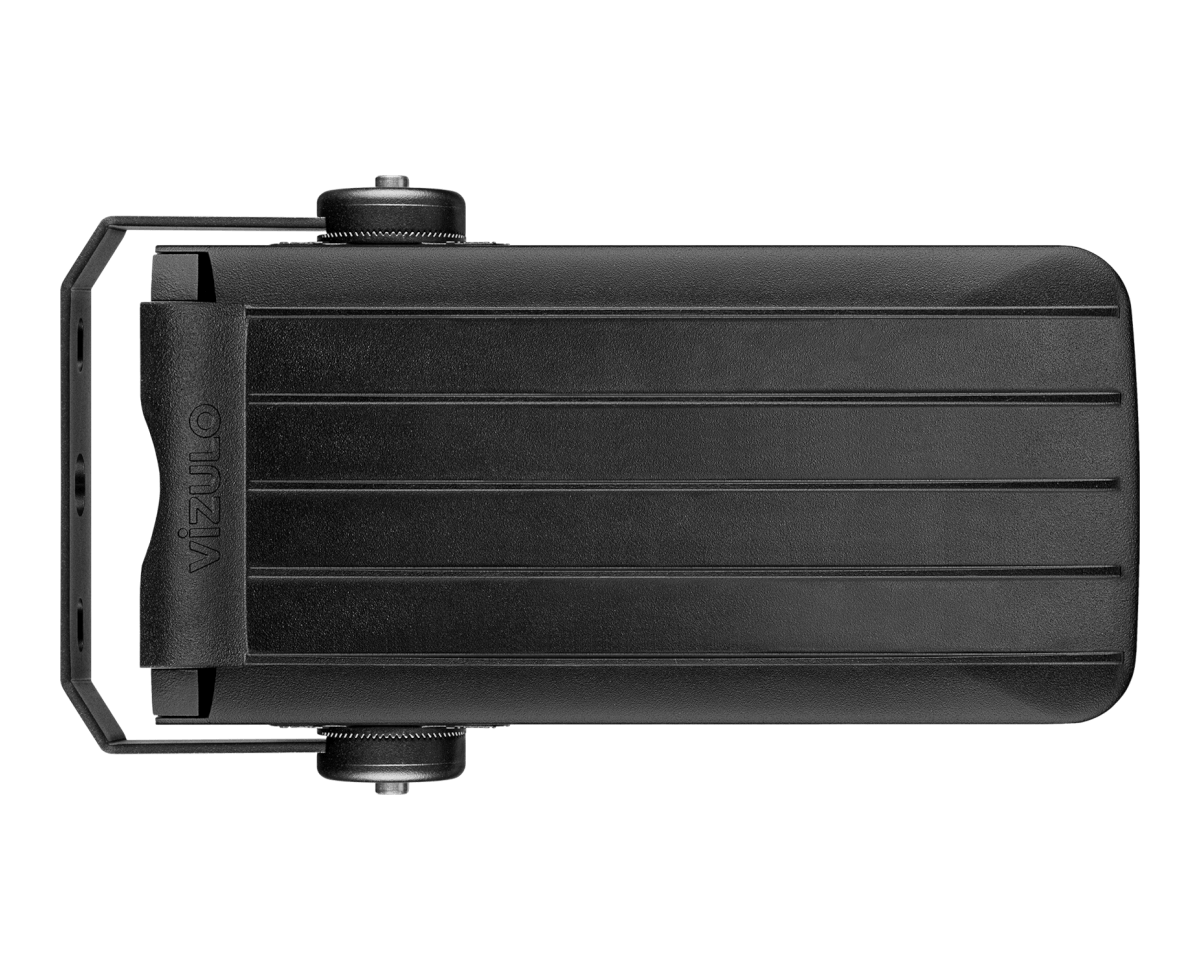

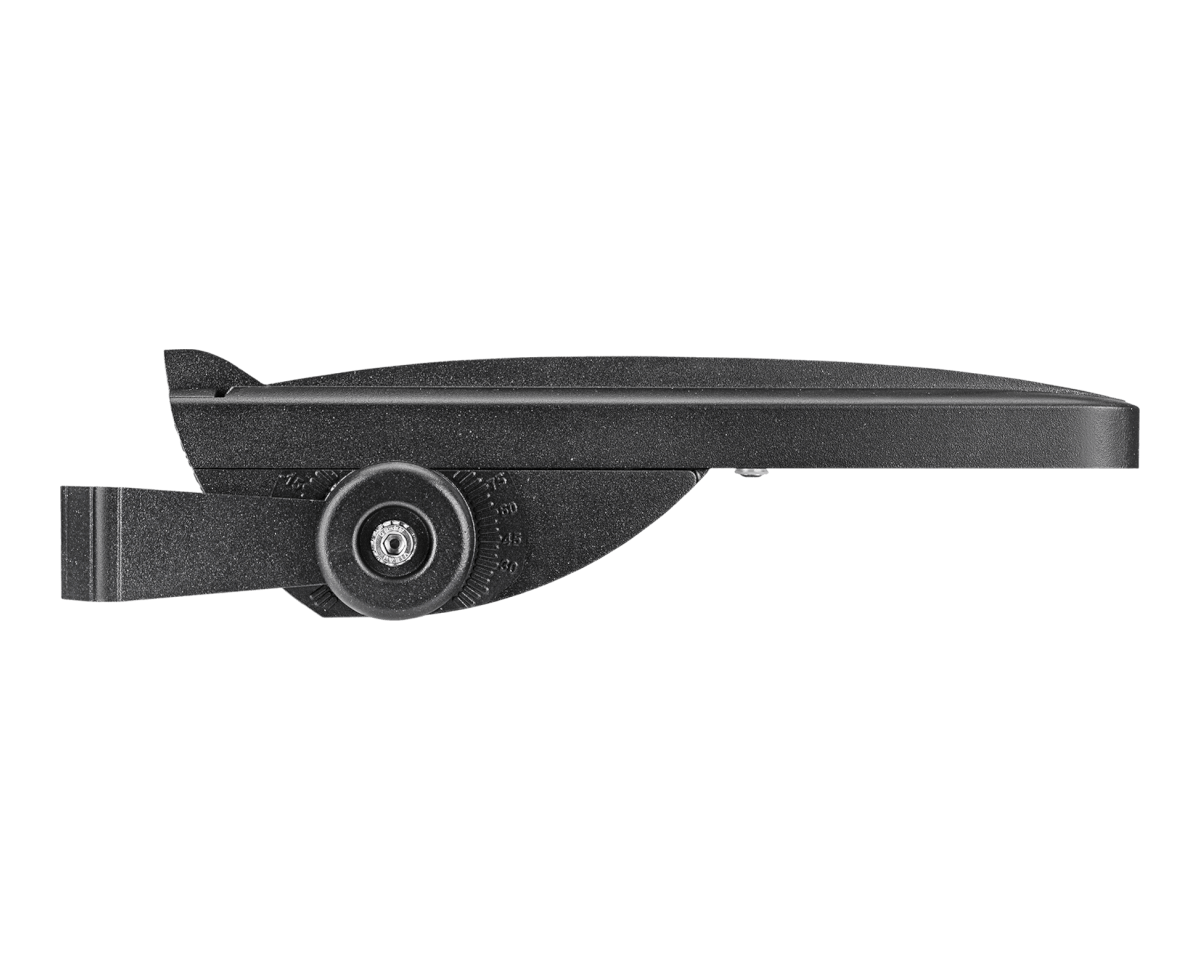

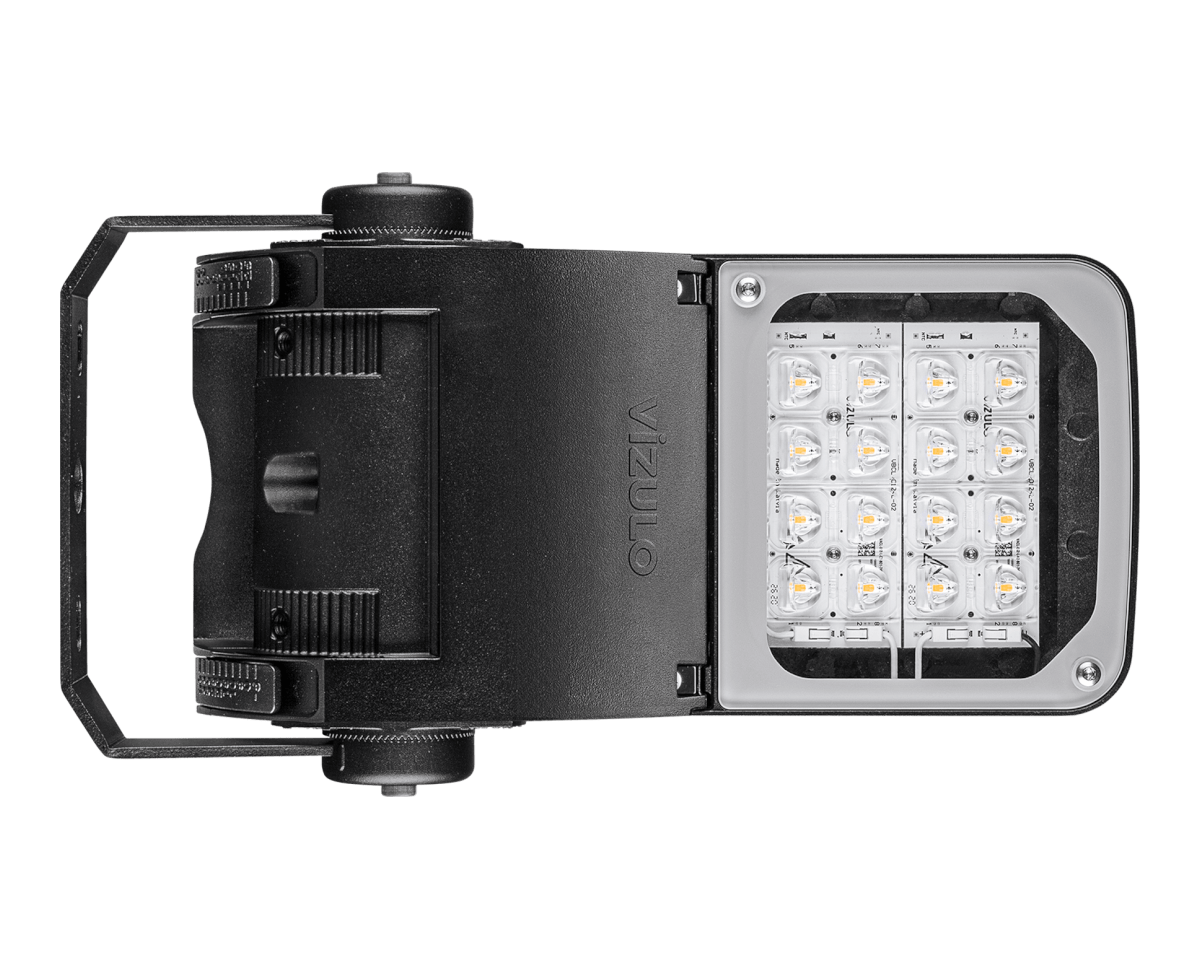

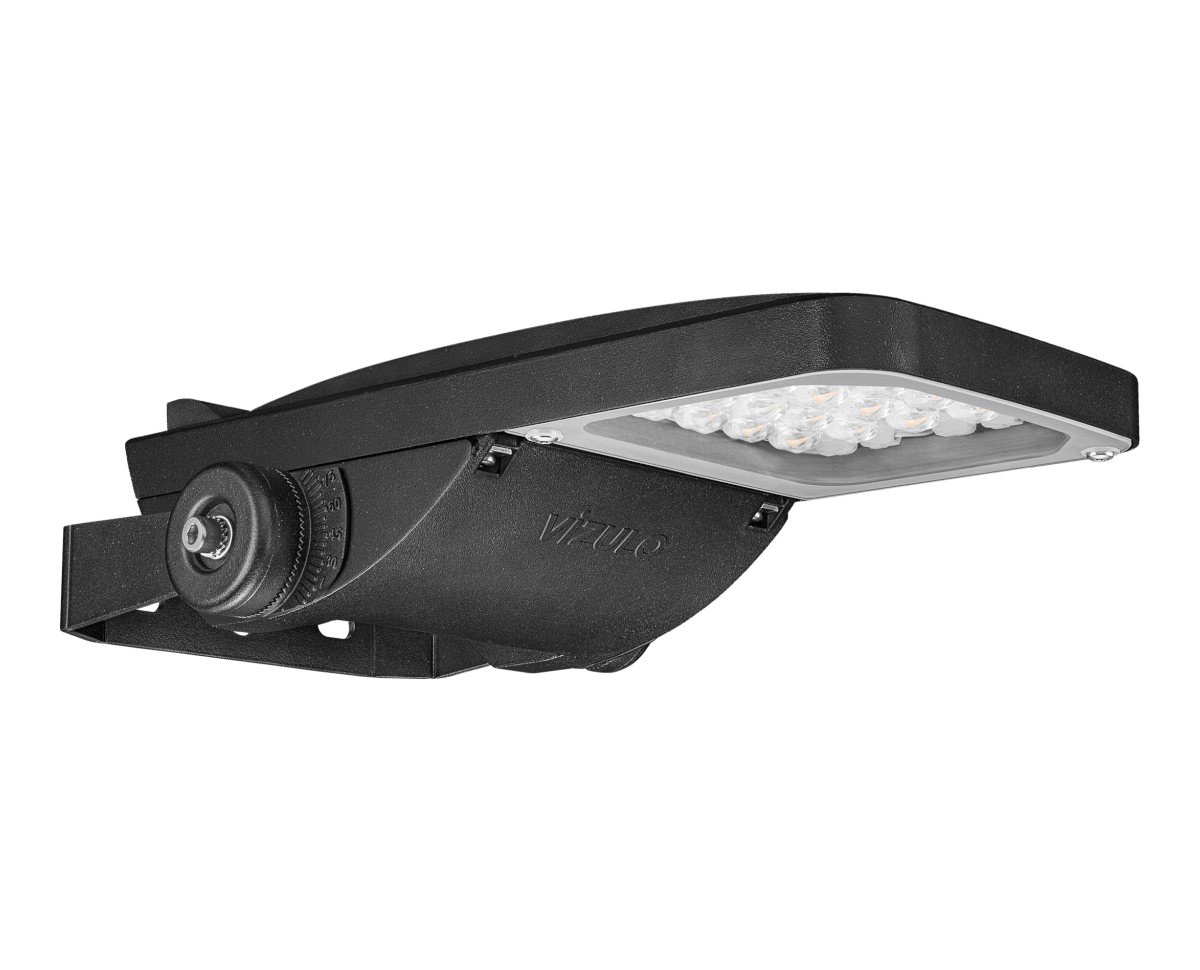

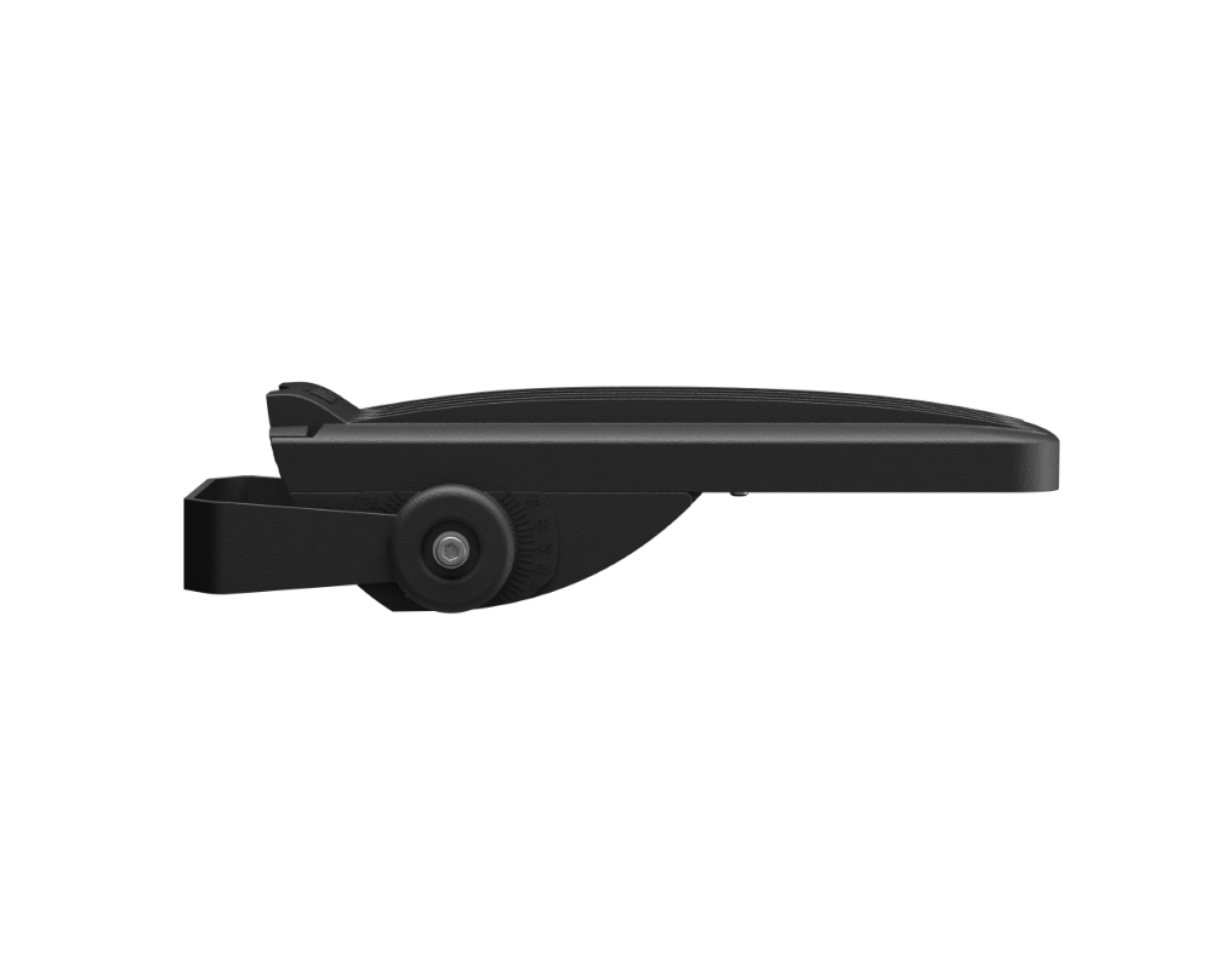

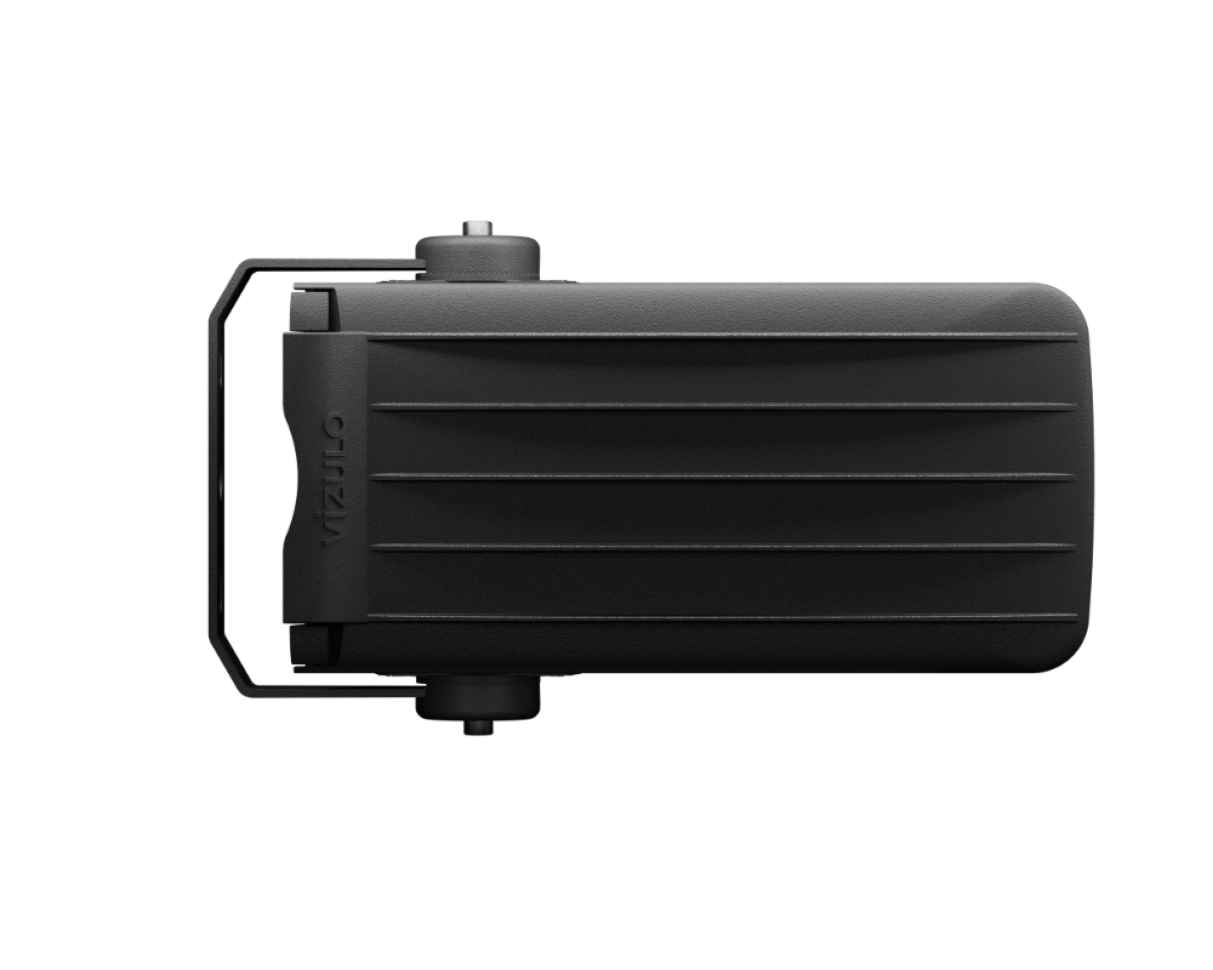

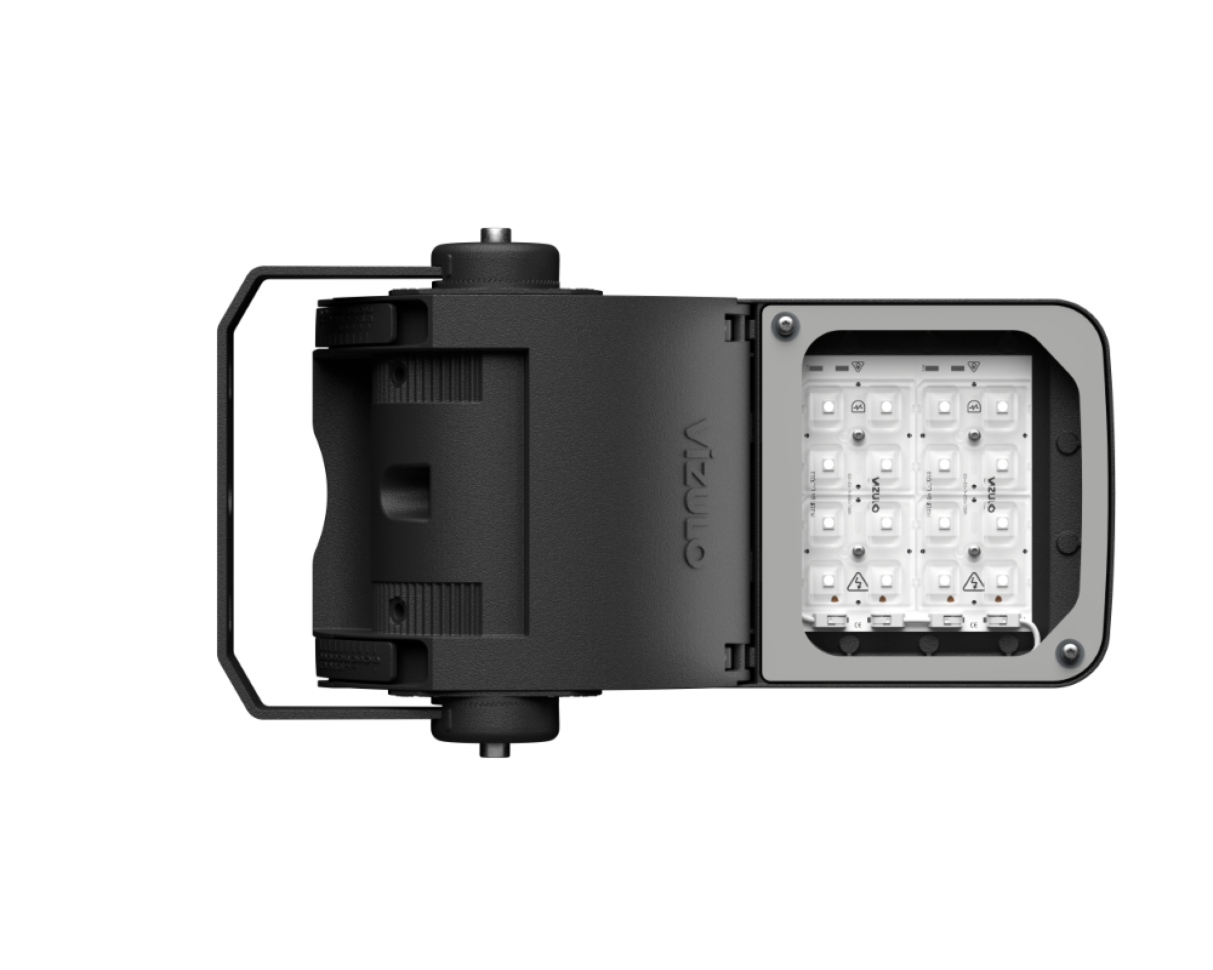

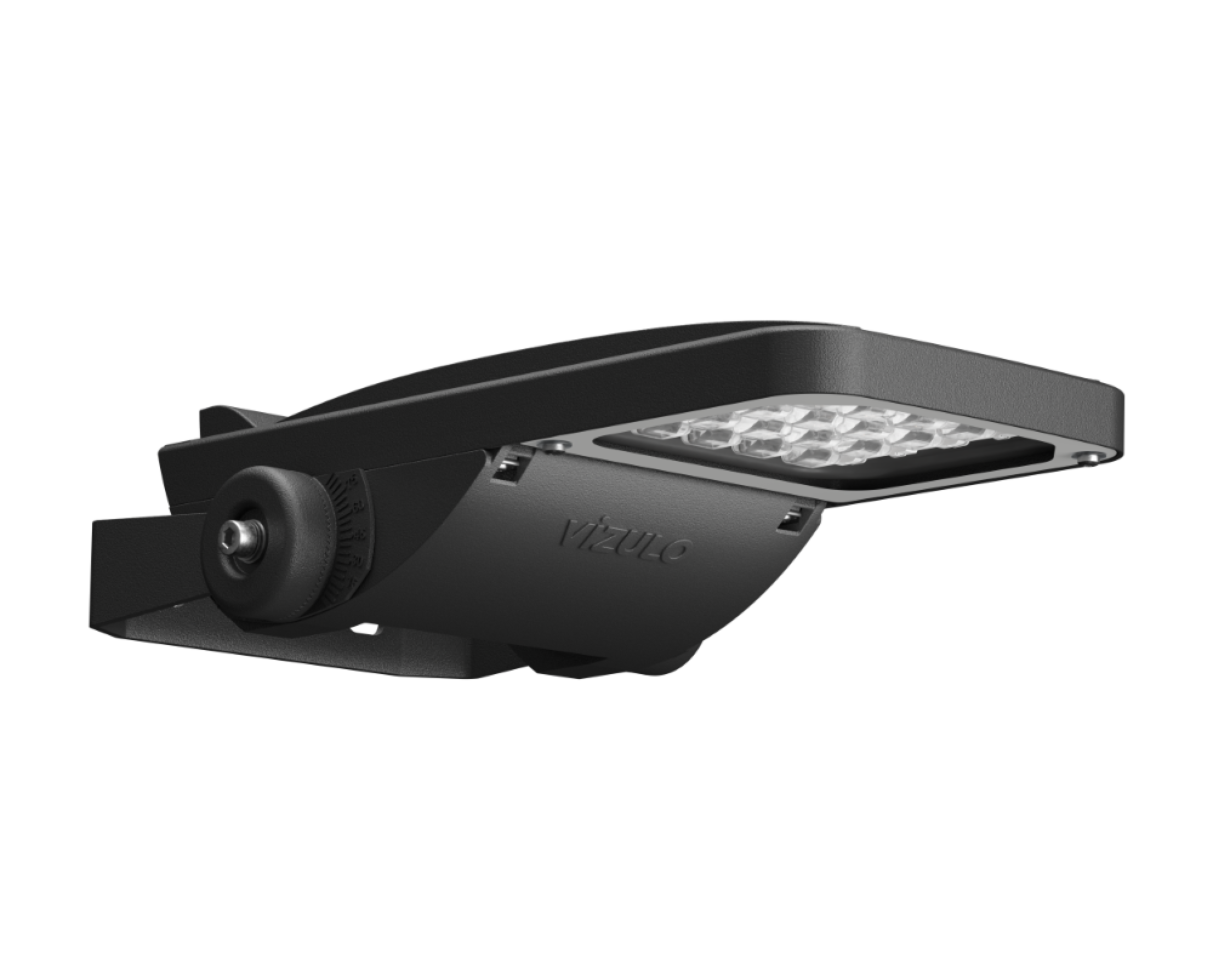

STORK LITTLE SISTER Flood

Product Overview

Like all Stork family premium products, Stork Little sister is an elegant powerhouse with a perfect balance of performance and style. Despite the compact size, it can provide extraordinary power and various configuration options, including vandal protection, automatic midnight dimming (no need for external control infrastructure!), and quick tool-less access for the most effortless maintenance ever. A safety switch disconnects the power as soon you open the enclosure. And you can choose between two form-factors: with or without heat dissipation fins. But the customization doesn’t stop there! According to your needs, we can help you choose between a variety of sockets (Zhaga/NEMA), drivers, optics, reflectors, connectors, and even luminaire angle setups. Stork Little sister and the whole Stork product family are premium choices if you’re looking to light up the city streets or any outdoor spaces in style and grace.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035
STORK LITTLE SISTER Flood
STORK LITTLE SISTER Flood
STORK LITTLE SISTER Flood
STORK LITTLE SISTER Flood
STORK LITTLE SISTER Flood

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 80

lm

430 - 10500 2

lm/W

86 - 150

K

2700 / 3000 / 4000 3

℃

-40 to +50

CRI

>70 / >80 / >90 3

mm

392 x 225 x 94

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Tool - less

Mounting: On bracket / wall / ceiling

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 3

Nature friendly: PC Amber / Red / 1800 K

Corrosion protection: Up to C5

Neto weight: Up to 3,5 kg

Max. wind load area, SCd, m2: 0,026

Class I
Class II
IP66
IK10
CE
UKCA
RoHS
Zhaga zdi4
ENEC
ENEC Plus
Synergrid approved
International EPD System 5
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 10 kV (L-N; L/N-PE) surge protection device available on request
5 EPD registration number: S-P-04349 (link to page)

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Lens
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L05
L08
L35
V05
V35
Flux (lm)
1004
10580
1004
10580
Efficacy (lm/W)
92
138
92
138
Power (W)
10
80
10
80
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
LED module
AA
AF
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • D4i (Zhaga)
  • Midnight dimming
  • Midnight dimming + DALI
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • ≥6 kV
  • SPD 10 kV
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
Lumen depreciation
Standard (outdoor) - Premium LED's (L98 at 100 000 h) Eco - Economic LED's (L90 at 100 000 h)
  • L90 (Eco)
  • L98
Lens Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming Datasheet LDT file
SRUFE 035 830 L35 AA008 CJF RG144606847 3443 98 35 80 3000 Midnight dimming + DALI
SRUFE 035 830 L35 AA008 CJF RG244606848 3443 98 35 80 3000 Midnight dimming + DALI
SRUFE 035 830 L35 AA008 CJF RH144606849 3443 98 35 80 3000 Midnight dimming + DALI
SRUFE 035 830 L35 AA008 CJF RH244606850 3443 98 35 80 3000 Midnight dimming + DALI
SRUFE 035 830 L35 AA008 CJF ZG144606851 3420 98 35 80 3000 D4i (Zhaga)
SRUFE 035 830 L35 AA008 CJF ZG244606852 3420 98 35 80 3000 D4i (Zhaga)
SRUFE 035 830 L35 AA008 CJF ZH144606853 3420 98 35 80 3000 D4i (Zhaga)
SRUFE 035 830 L35 AA008 CJF ZH244606854 3420 98 35 80 3000 D4i (Zhaga)
SRUFE 050 730 L05 AA016 CJF MG144606855 6269 125 50 70 3000 Midnight dimming
SRUFE 050 730 L05 AA016 CJF MG244606856 6269 125 50 70 3000 Midnight dimming
