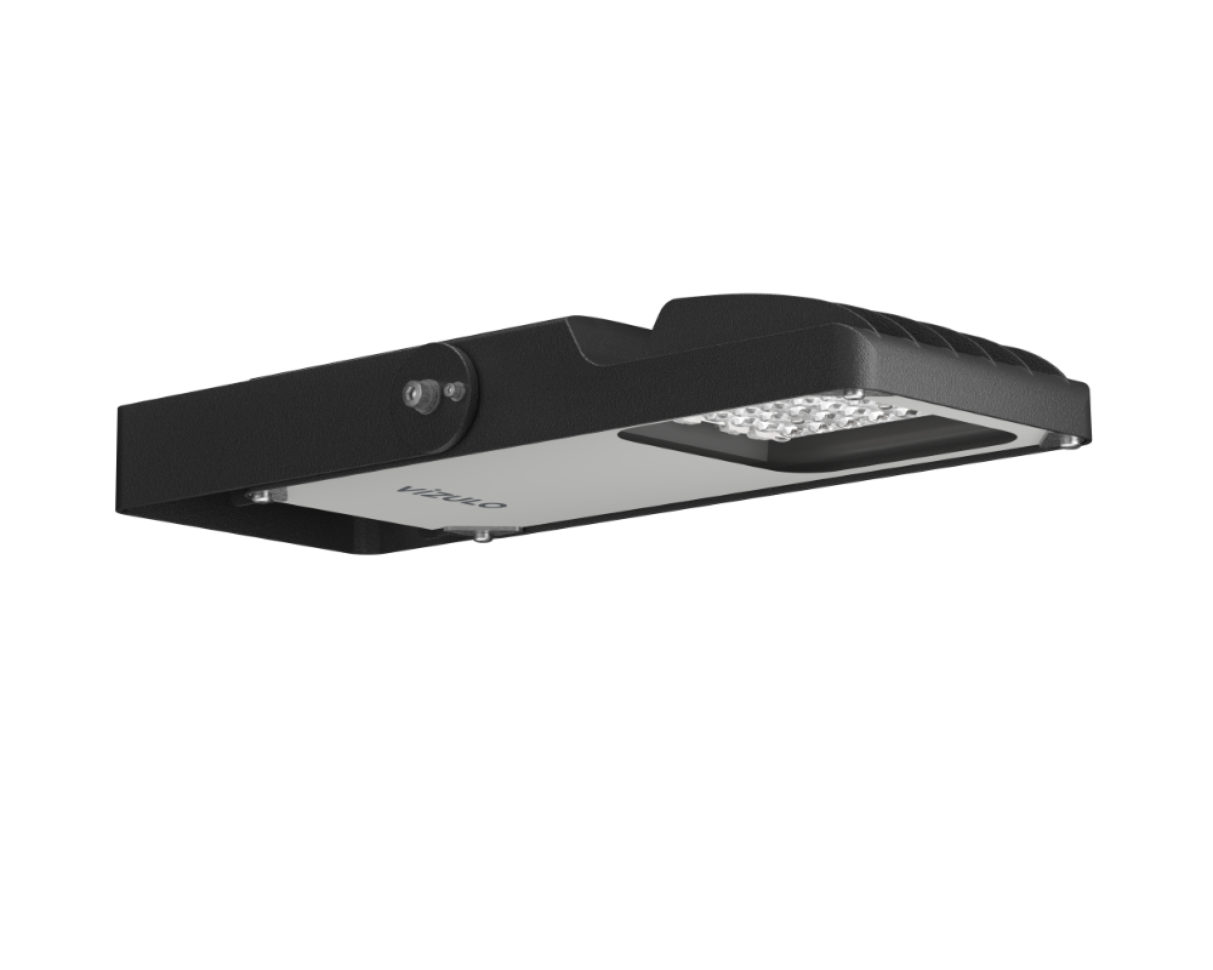

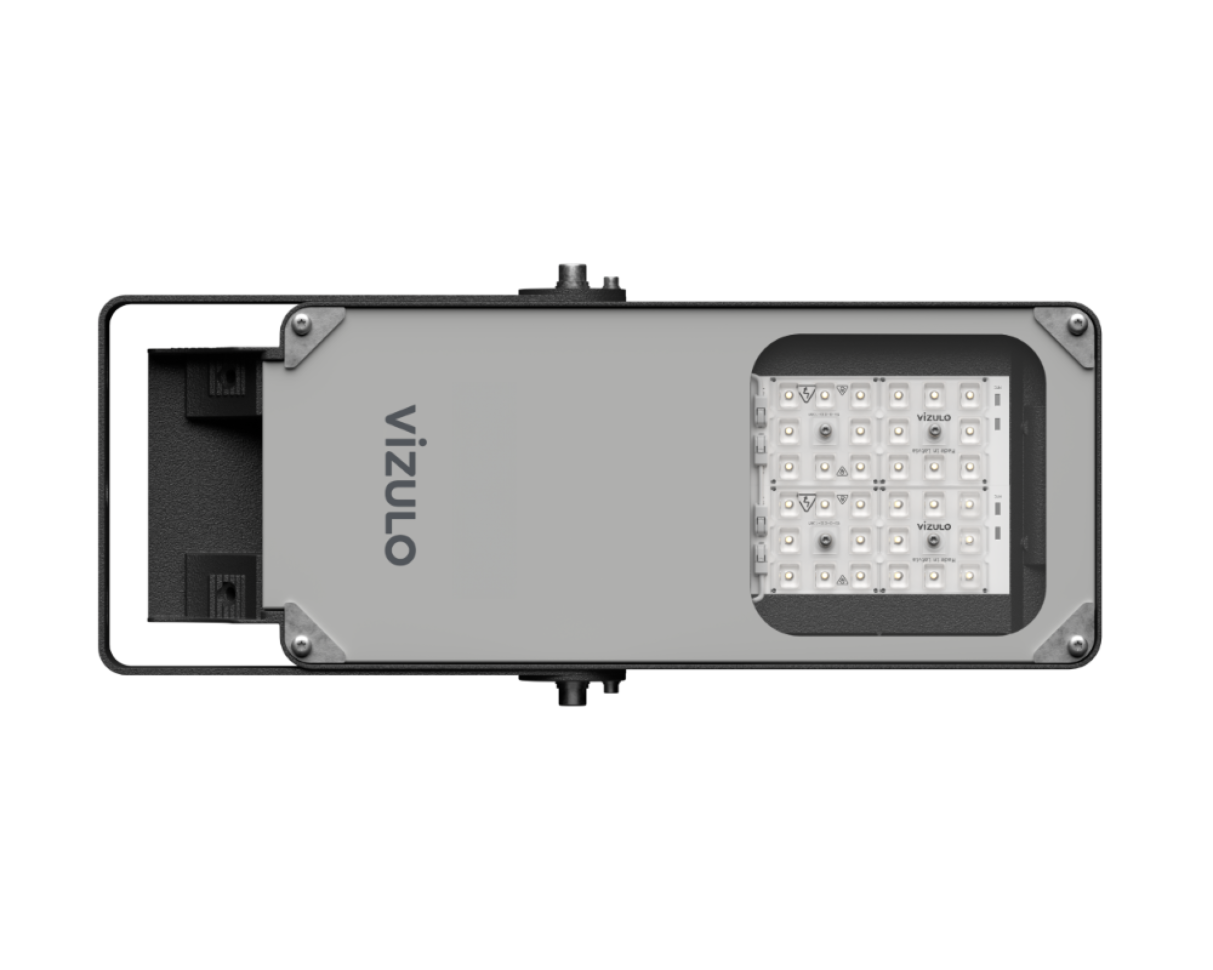

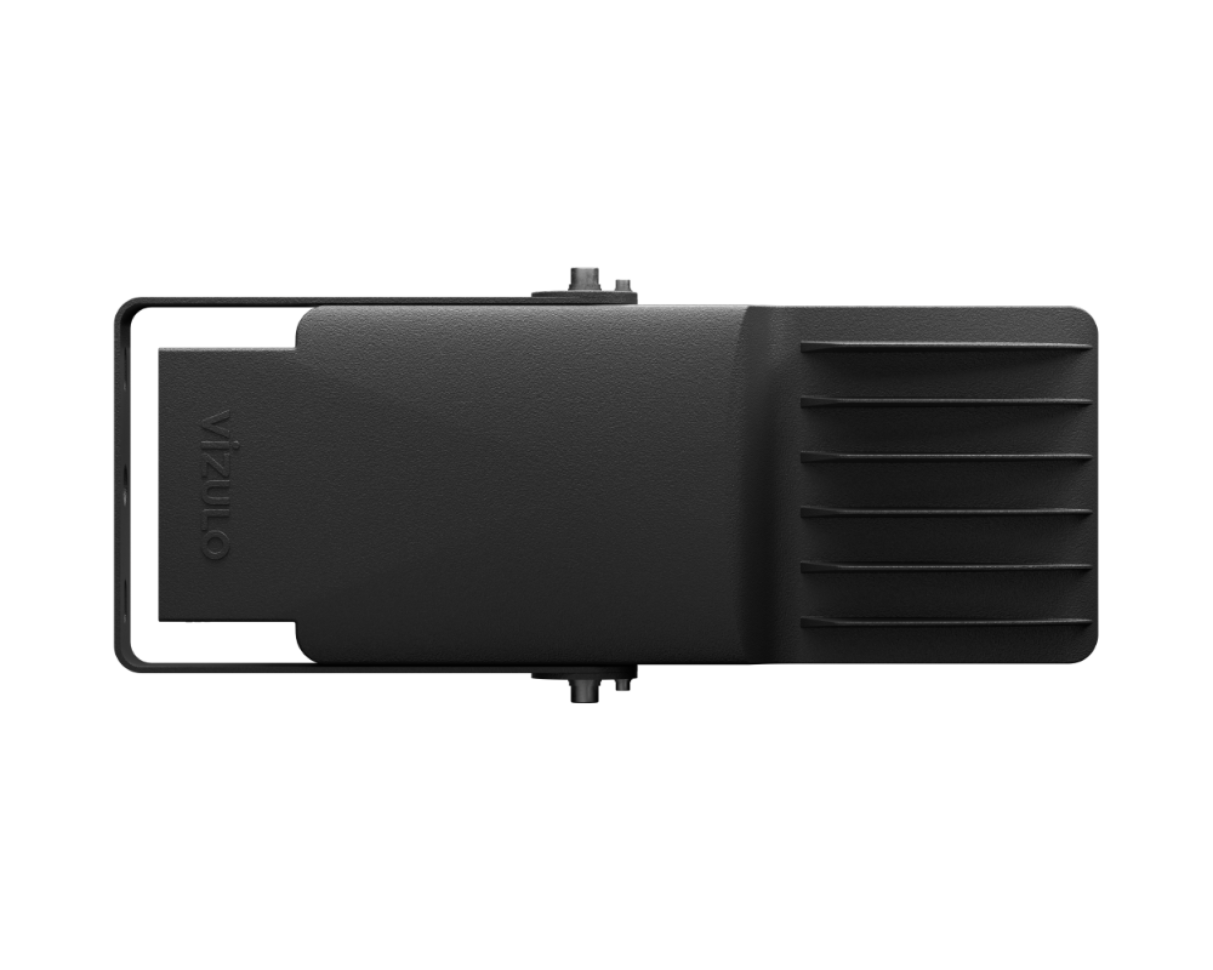

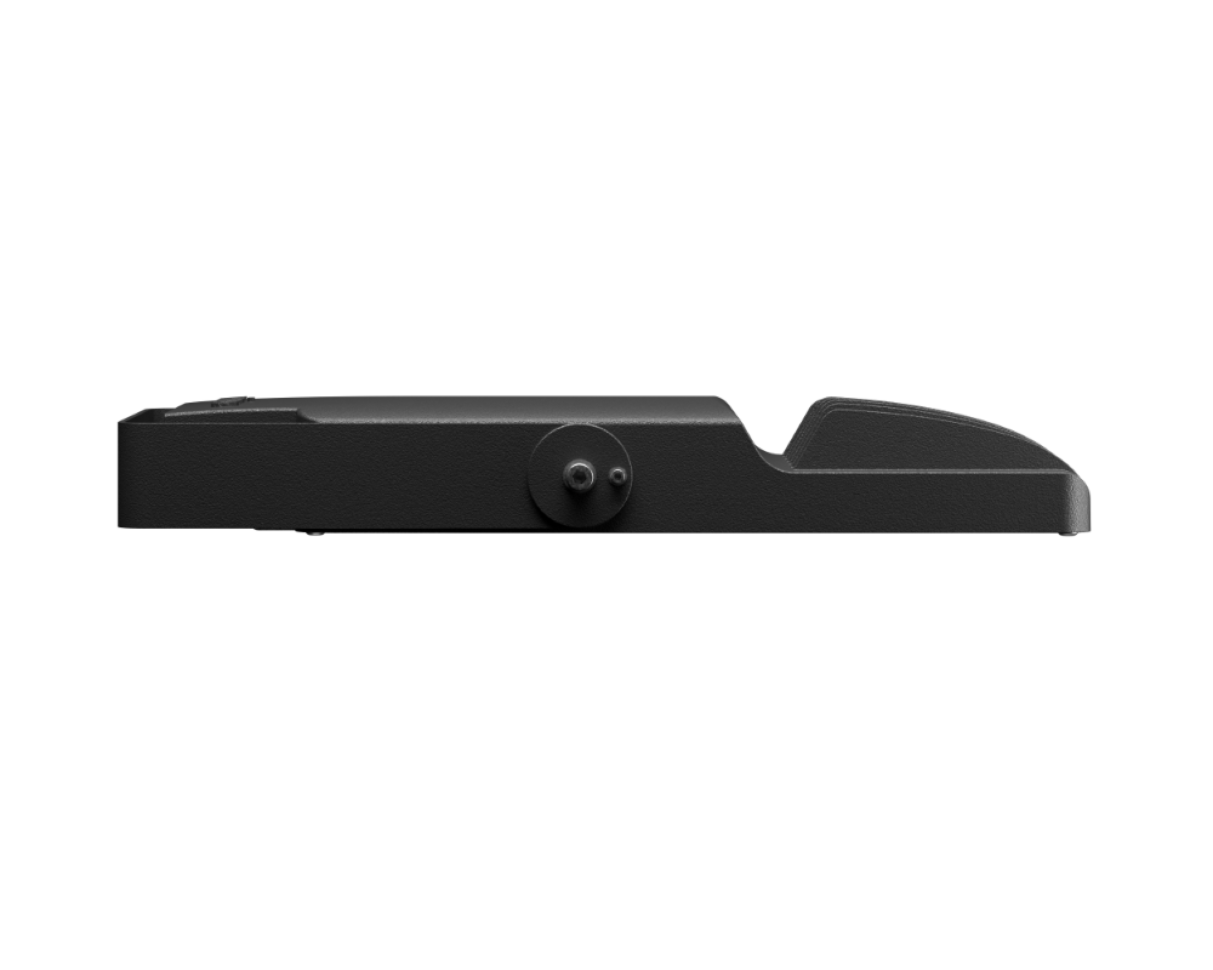

MICRO MARTIN Flood

Product Overview

This little bird has the heart of an eagle. Remarkable power and precision with more than 50 optics ready to illuminate city landscapes, sports events and large industrial areas. The sturdy Micro Martin won’t let you down even in the harshest environments. We have developed four convenient enclosure options, including a tool-less configuration – for ultimate accessibility. Spend less time on installation or maintenance, and more time living!

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 75

lm

446 - 10400 2

lm/W

90 - 160

K

2700 / 3000 / 4000 3

-40 to +50

CRI

>70 / >80 / >90 3

mm

466 x 205 x 60

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 4

Mounting: On bracket / wall / ceiling

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 5

Corrosion protection: Up to C5

Neto weight: Up to 4.3 kg

Max. wind load area, SCd, m2: 0,029

Class I
Class II
IP66
IK08
IK09 6
CE
UKCA
EAC
RoHS
Ball proof test 7
cUL 8
Zhaga zdi4
ENEC
ENEC Plus
Synergrid approved
International EPD System 9
LED module replaceable by a professional
LED driver replaceable by a professional

Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2
  Lumen output indicated at CRI > 70
3  1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4  Other lengths available on request
5  10 kV (L-N; L/N-PE) surge protection device available on request
6  With clear glass
7  Ball proof: tested according to DIN 57710-13
8  Coming soon
9  EPD registration number: S-P-04350 (link to page)

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L35
L05
L08
V05
V35
Flux (lm)
1028
10319
1028
10319
Efficacy (lm/W)
98
149
97.7
149
Power (W)
10
75
10
75
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 80
  • 70
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • Midnight dimming + DALI
  • D4i (Zhaga)
  • Midnight dimming
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level than the former. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • 6 ... 10 kV
  • SPD 10 kV
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
LED type
Standard (outdoor) - Premium LED's (L98 at 100 000 h) Eco - Economic LED's (L90 at 100 000 h)
  • Eco
  • Standard
Optic Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming LED type Datasheet LDT file
MRUFE 035 830 L35 AA016 CJF RG155311253 4098 117.1 35 80 3000 Midnight dimming + DALI Eco
MRUFE 035 830 L35 AA016 CJF RG255311254 4098 117.1 35 80 3000 Midnight dimming + DALI Eco
MRUFE 035 830 L35 AA016 CJF RH155311255 4098 117.1 35 80 3000 Midnight dimming + DALI Eco
MRUFE 035 830 L35 AA016 CJF RH255311256 4098 117.1 35 80 3000 Midnight dimming + DALI Eco
MRUFE 035 830 L35 AA016 CJF ZG155311257 4066 116.2 35 80 3000 D4i (Zhaga) Eco
MRUFE 035 830 L35 AA016 CJF ZG255311258 4066 116.2 35 80 3000 D4i (Zhaga) Eco
MRUFE 035 830 L35 AA016 CJF ZH155311259 4066 116.2 35 80 3000 D4i (Zhaga) Eco
MRUFE 035 830 L35 AA016 CJF ZH255311260 4066 116.2 35 80 3000 D4i (Zhaga) Eco
MRUFE 050 730 L05 AA016 CJF MG155311261 6444 128.9 50 70 3000 Midnight dimming Eco
MRUFE 050 730 L05 AA016 CJF MG255311262 6444 128.9 50 70 3000 Midnight dimming Eco
