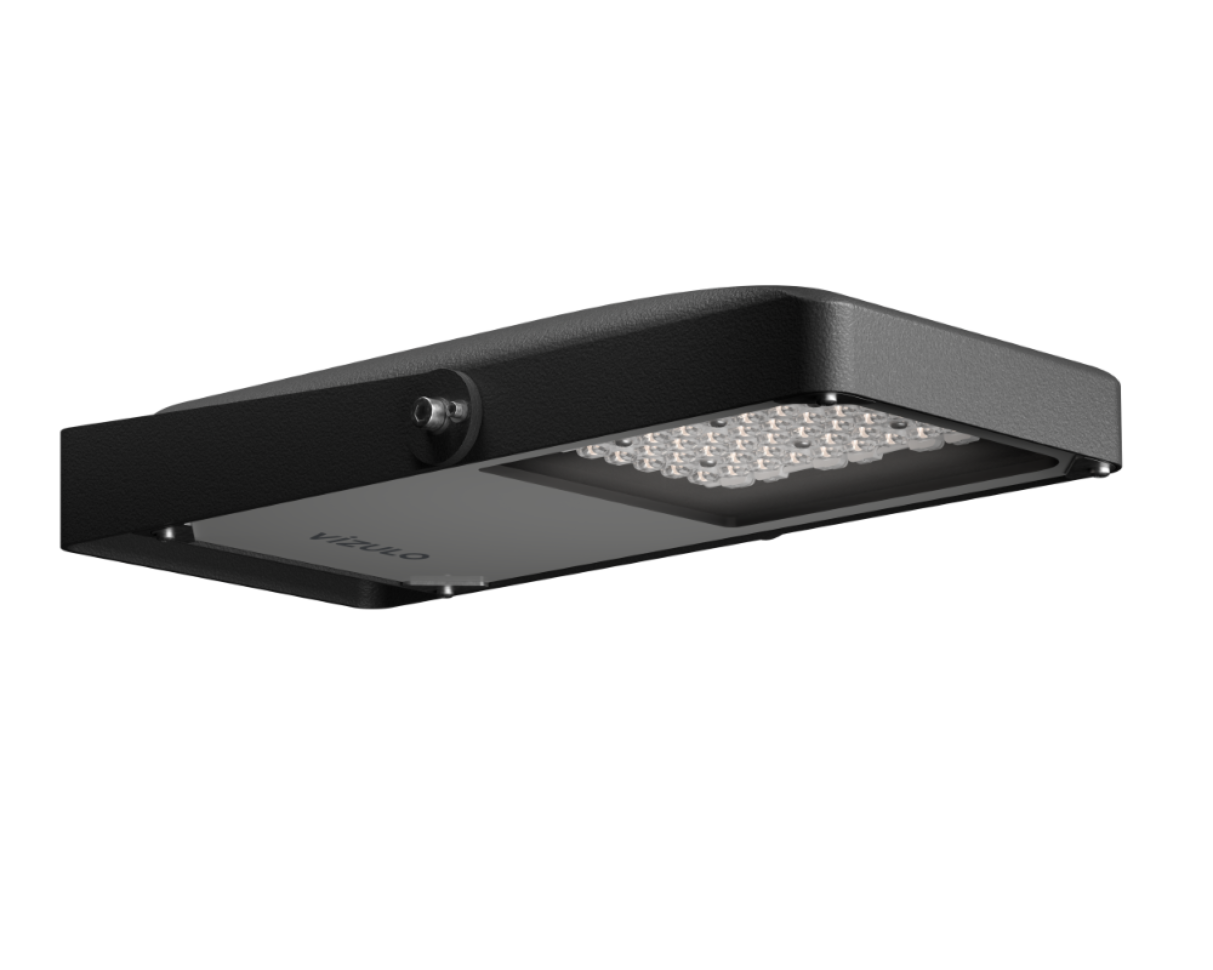

COLIBRI MIDI Flood

Product Overview

Solve all your budgeting challenges with the unprecedented value of the Colibri Midi street luminaires. Featuring an IP66 rating, vandal protection, robust aluminium body, brightness up to 13100 lm, and many hardware customization options, Colibri Midi can be the missing link in urban projects of any scale. With the best price-performance ratio on the market. There are two spigot options: post-top and side-entry. You can also choose between the regular and the floodlight models – all versions come with full ENEC/ENEC+/Class I/Class II certification. Further customization includes different drivers, optics, sockets (Zhaga/NEMA), reflectors, and connectors. Colibri Midi – wholesale pricing, luxurious design.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

220 - 240 / 110 - 277 1

Hz

50 - 60

W

5 - 87

lm

446 - 13100 2

lm/W

90 - 164

K

2700 / 3000 / 4000 3

-40 to +50 | 5 - 70 W
-40 to +35 | 70 - 87 W

CRI

>70 / >80 / >90 3

mm

465 x 222 x 67

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 4

Mounting: On bracket / wall / ceiling

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 5

Corrosion protection: Up to C5

Neto weight: Up to 4.6 kg

Max. wind load area, SCd, m2: 0,031

Class I
Class II
IP66
IK09
CE
UKCA
RoHS
cUL 6
Zhaga zdi4
ENEC
ENEC Plus 6
International EPD System
Synergrid approved 6
LED module replaceable by a professional
LED driver replaceable by a professional

Maximum operating voltage, ENEC certificate voltage 220 - 240 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 Available on request along with other not listed CRI and CCT
4 Other lengths available on request
5 10 kV (L-N; L/N-PE) surge protection device available on request
6 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Best selling articles

Other options available on request

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L05
L08
L35
V05
V35
Flux (lm)
3668
11520
3668
11520
Efficacy (lm/W)
103
136
103.2
135.5
Power (W)
35
85
35
85
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • Midnight dimming
  • Midnight dimming + DALI
  • D4i (Zhaga)
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level than the former. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • 6 ... 10 kV
  • SPD 10 kV
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
LED type
Standard (outdoor) - Premium LED's (L98 at 100 000 h) Eco - Economic LED's (L90 at 100 000 h)
  • Flood
  • Flood, Eco
Optic Model Flux lm Efficacy lm/W Power W CRI CCT K Dimming LED type Datasheet LDT file
CLMF 035 730 L05 A016 CJF MG183102267 4292 122.6 35 70 3000 Midnight dimming Flood
CLMF 035 730 L05 A016 CJF MG283102268 4292 122.6 35 70 3000 Midnight dimming Flood
CLMF 035 730 L05 A016 CJF MH183102269 4292 122.6 35 70 3000 Midnight dimming Flood
CLMF 035 730 L05 A016 CJF MH283102270 4292 122.6 35 70 3000 Midnight dimming Flood
CLMF 035 730 L05 A016 CJF RG183102271 4265 121.9 35 70 3000 Midnight dimming + DALI Flood
CLMF 035 730 L05 A016 CJF RG283102272 4265 121.9 35 70 3000 Midnight dimming + DALI Flood
CLMF 035 730 L05 A016 CJF RH183102273 4265 121.9 35 70 3000 Midnight dimming + DALI Flood
CLMF 035 730 L05 A016 CJF RH283102274 4265 121.9 35 70 3000 Midnight dimming + DALI Flood
CLMF 035 730 L05 A016 CJF ZG183102275 4233 120.9 35 70 3000 D4i (Zhaga) Flood
CLMF 035 730 L05 A016 CJF ZG283102276 4233 120.9 35 70 3000 D4i (Zhaga) Flood
