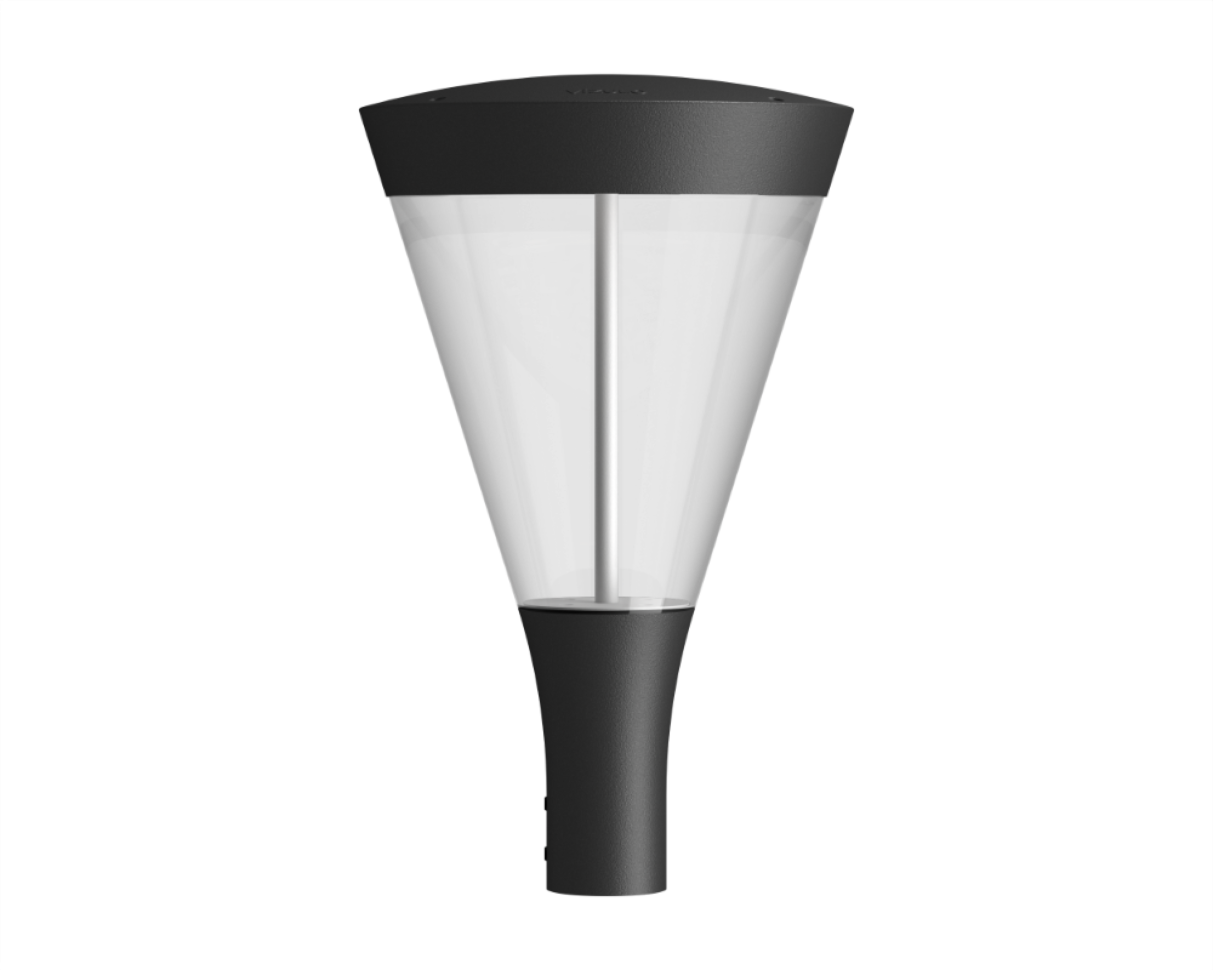

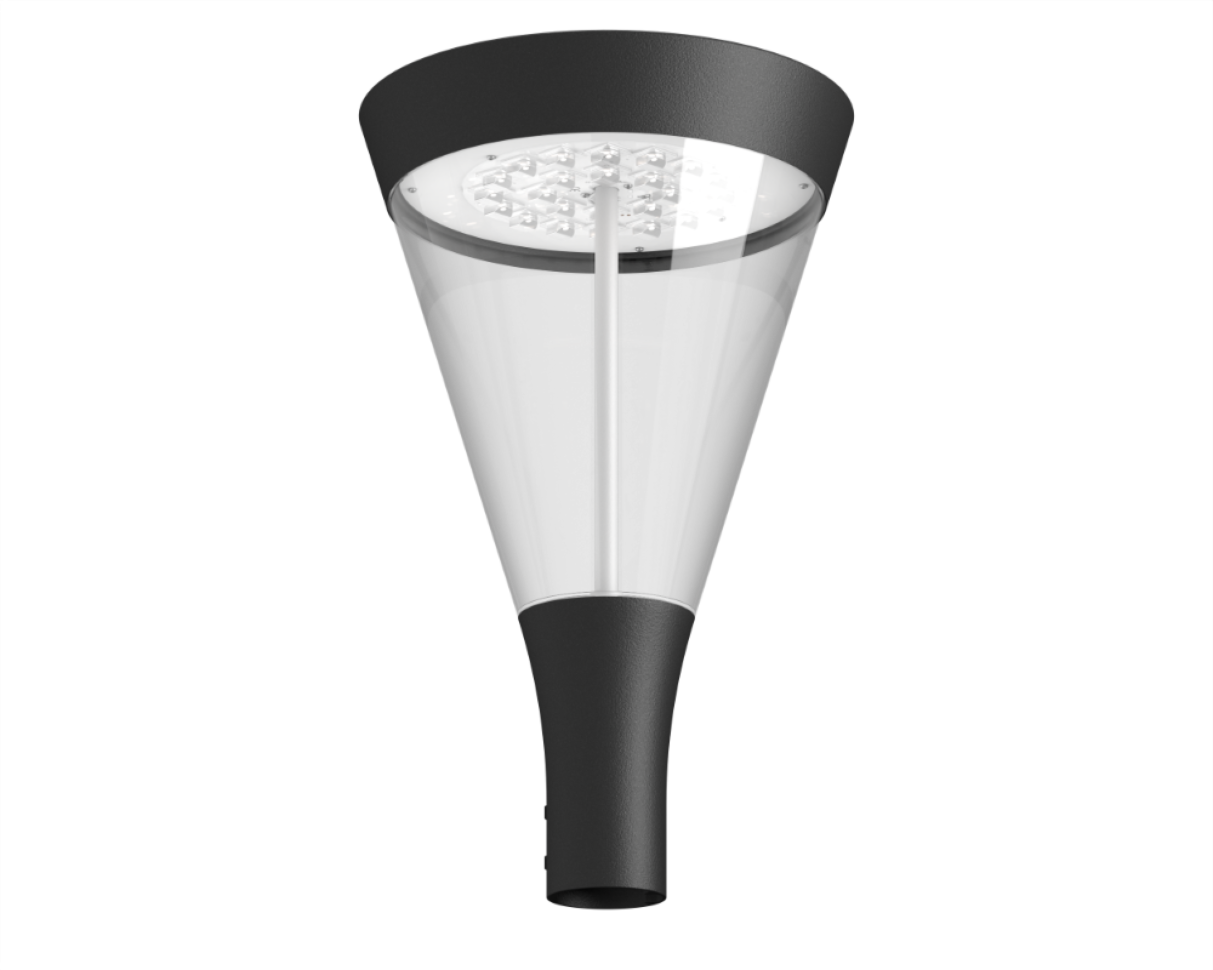

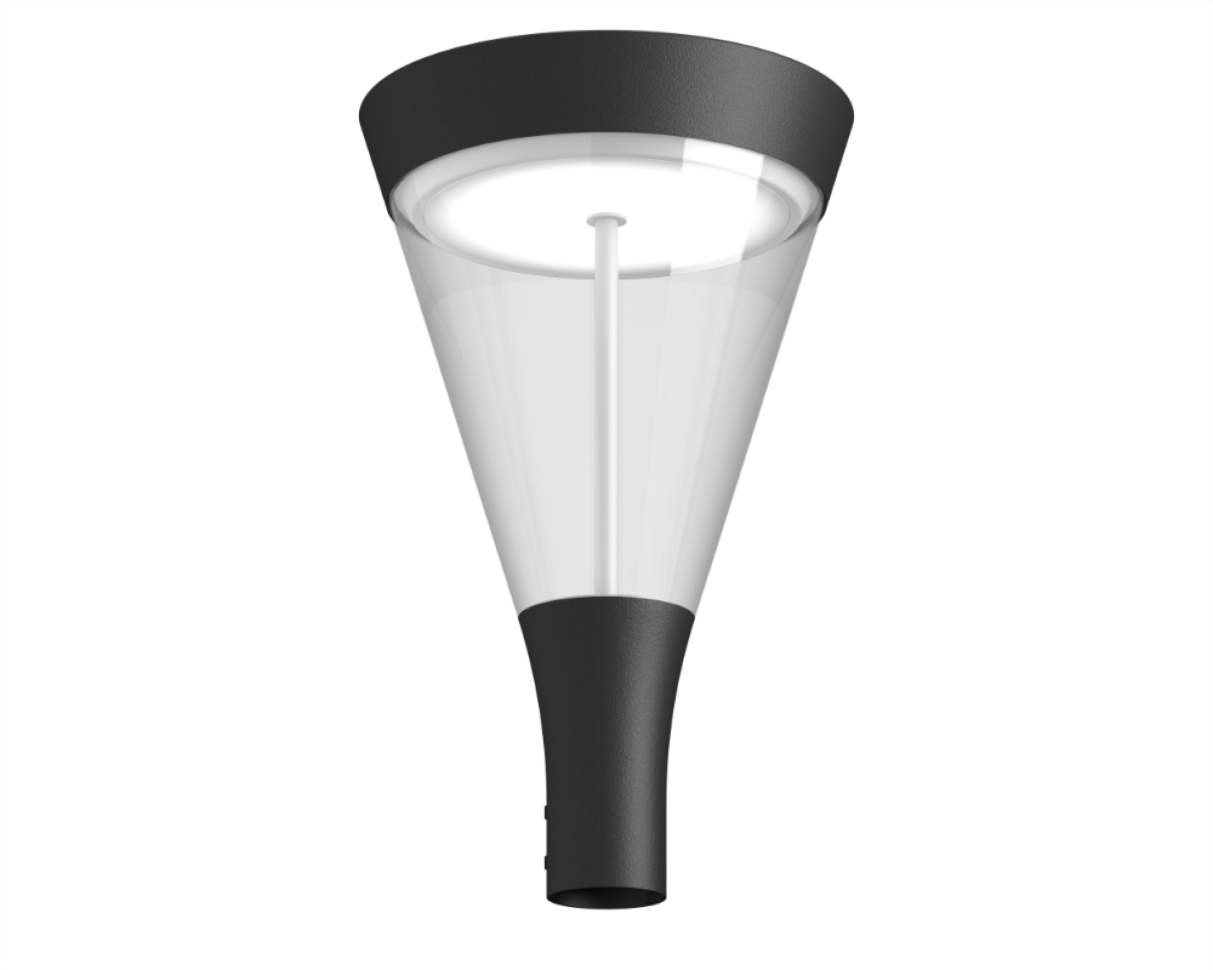

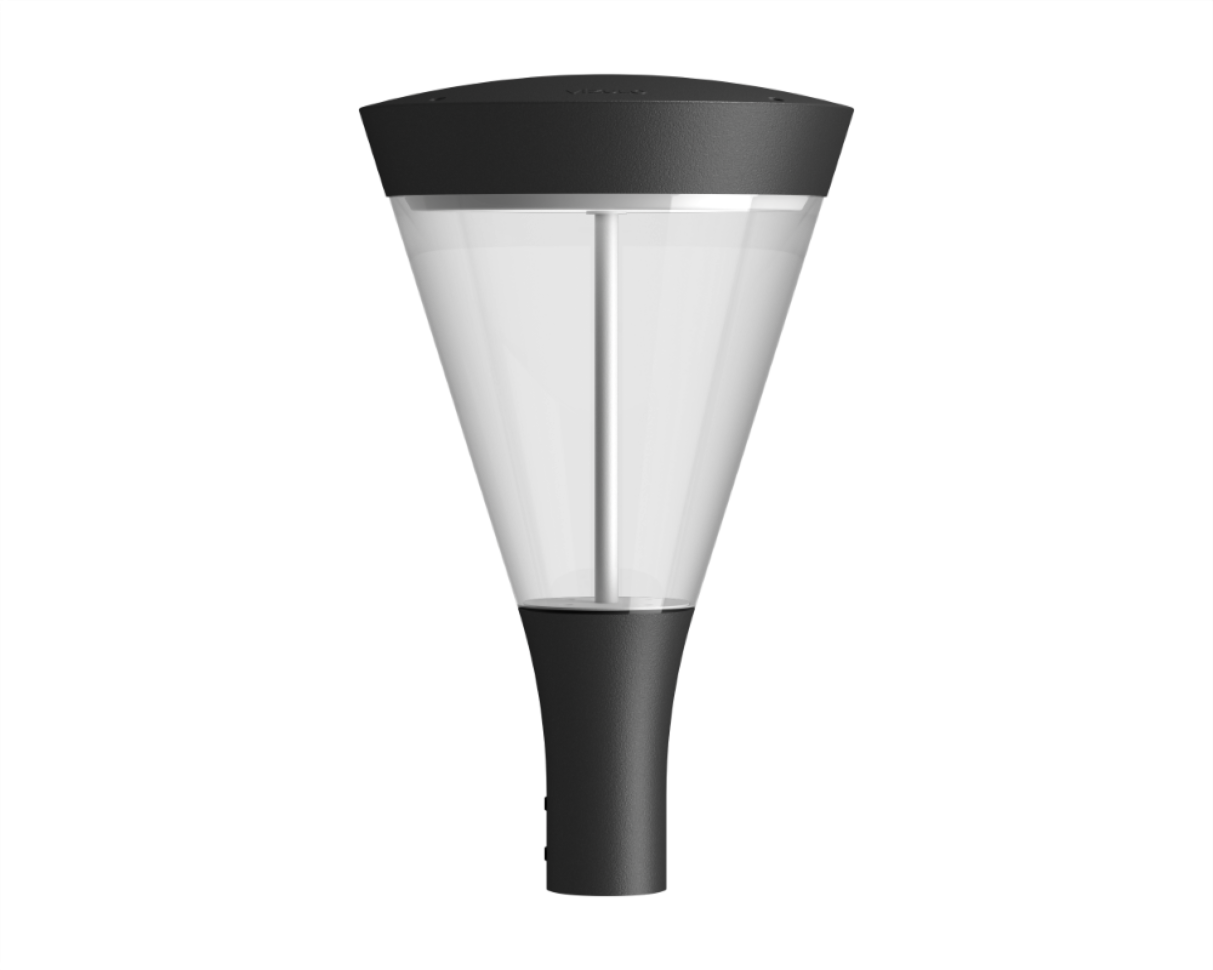

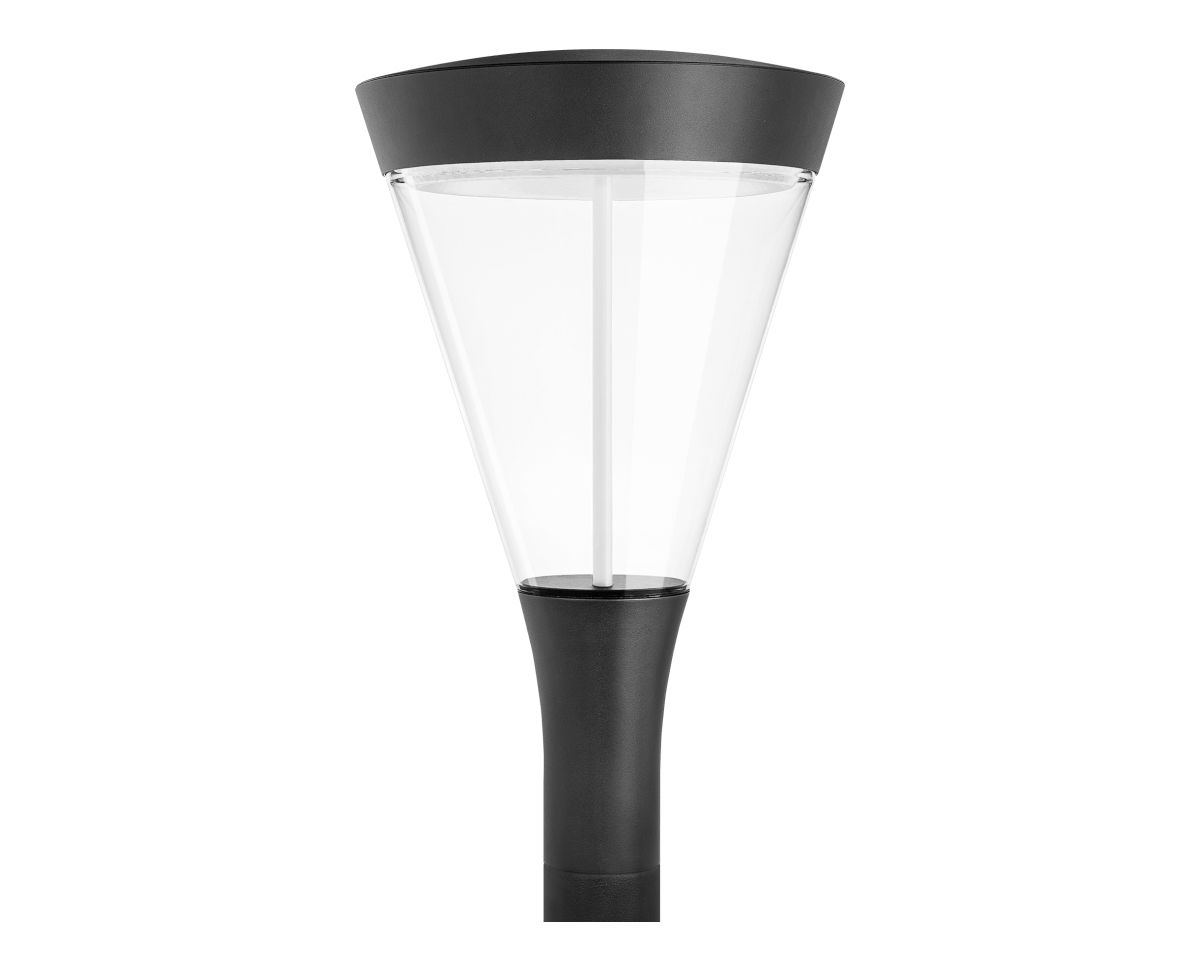

LUSCINIA Post top

Product Overview

This park luminaire is all about the feeling. Watch your outdoor space transform into an elegant and welcoming experience. Minimalist design without superfluous details attracts less unwanted attention, while still managing to inspire everyone around it. Sophisticated, yet casual. An instant timeless classic. State-of-the-art polycarbonated, shock-resistant body with clear and frosted finish ensures exceptional longevity. Depending on your needs, we can provide a wide range of configuration options.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 75

lm

490 - 11400 2

lm/W

98 - 161

K

2700 / 3000 / 4000 3

-40 to +50 | 5 - 50 W
-40 to +35 | 50 - 75 W

CRI

>70 / >80 / >90 3

mm

343 x 570

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 4

Spigot: 32 - 40 mm 5 / 40 - 60 mm / 76 mm 5

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 6

Corrosion protection: Up to C5

Neto weight: Up to 6.5 kg

Max. wind load area, SCd, m2: 0,12

Class I
Class II
IP66
IK10
CE
UKCA
RoHS
cUL 7
Zhaga zdi4
ENEC
ENEC Plus
International EPD System
Synergrid approved 7
LED module replaceable by a professional
LED driver replaceable by a professional

Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 Other lengths available on request

5 Achievable with an adapter for 40 - 60 mm spigot
6 10 kV (L-N; L/N-PE) surge protection device available on request
7 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Exterior

Accessories

Best selling articles

Other options available on request

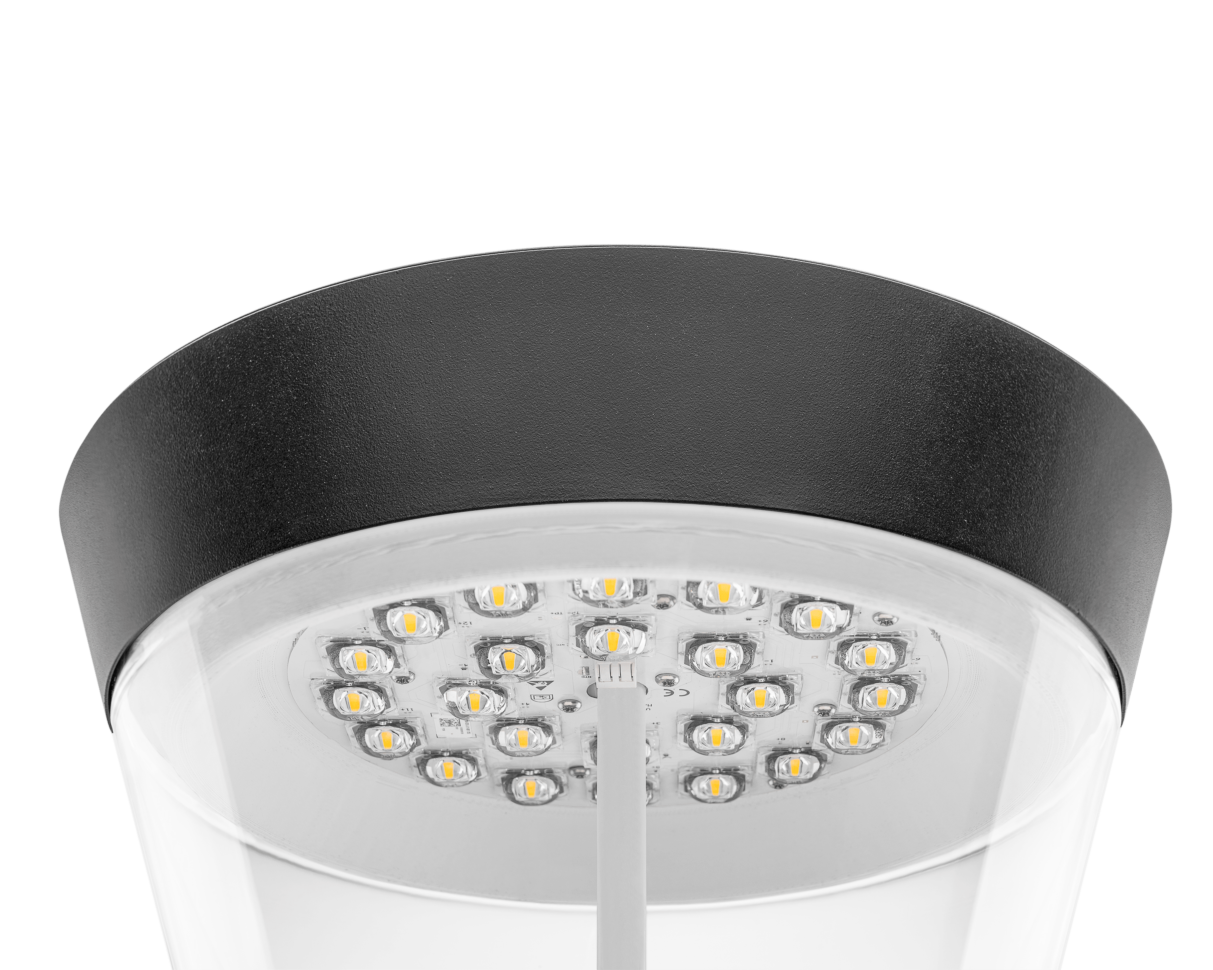

Optic
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L01
L05
L20
L22
L35
V20
V22
V35
V01
V05
Power (W)
10
75
10
75
Color
Other colors available on request
  • Jet black
  • Light grey
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
Luminous flux (lm)
1065
11502
1065
11502
CRI
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • Midnight dimming + DALI
  • D4i (Zhaga)
Efficacy (lm/W)
102
153
101.5
153.4
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 4000
  • 3000
  • 2700
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level than the former. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • 6 ... 10 kV
  • SPD 10 kV
Optic Model Luminous flux lm Efficacy lm/W Power W CRI CCT K Dimming Datasheet LDT file
LUPE 075 740 L01 BL024 CB RG181104661 10484 139.8 75 70 4000 Midnight dimming + DALI
LUPE 075 740 L01 BL024 CB RG281104662 10484 139.8 75 70 4000 Midnight dimming + DALI
LUPE 075 740 L01 BL024 CB RH181104663 10484 139.8 75 70 4000 Midnight dimming + DALI
LUPE 075 740 L01 BL024 CB RH281104664 10484 139.8 75 70 4000 Midnight dimming + DALI
LUPE 075 740 L01 BL024 CB ZG181104665 10315 137.5 75 70 4000 D4i (Zhaga)
LUPE 075 740 L01 BL024 CB ZG281104666 10315 137.5 75 70 4000 D4i (Zhaga)
LUPE 075 740 L01 BL024 CB ZH181104667 10315 137.5 75 70 4000 D4i (Zhaga)
LUPE 075 740 L01 BL024 CB ZH281104668 10315 137.5 75 70 4000 D4i (Zhaga)
LUPE 075 740 L01 BL024 CJ RG181104669 10484 139.8 75 70 4000 Midnight dimming + DALI
LUPE 075 740 L01 BL024 CJ RG281104670 10484 139.8 75 70 4000 Midnight dimming + DALI
