ORRIS Basic

Product Overview

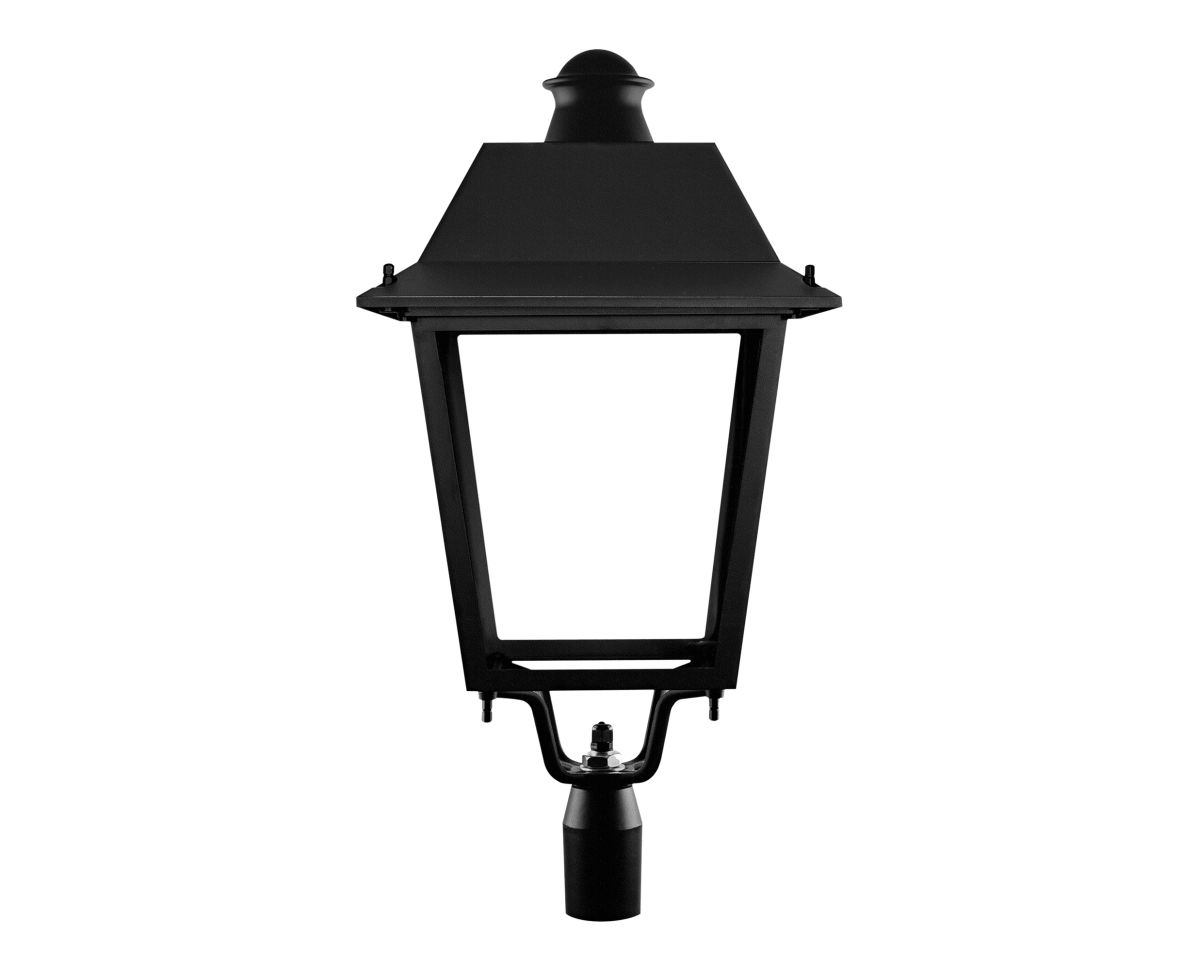

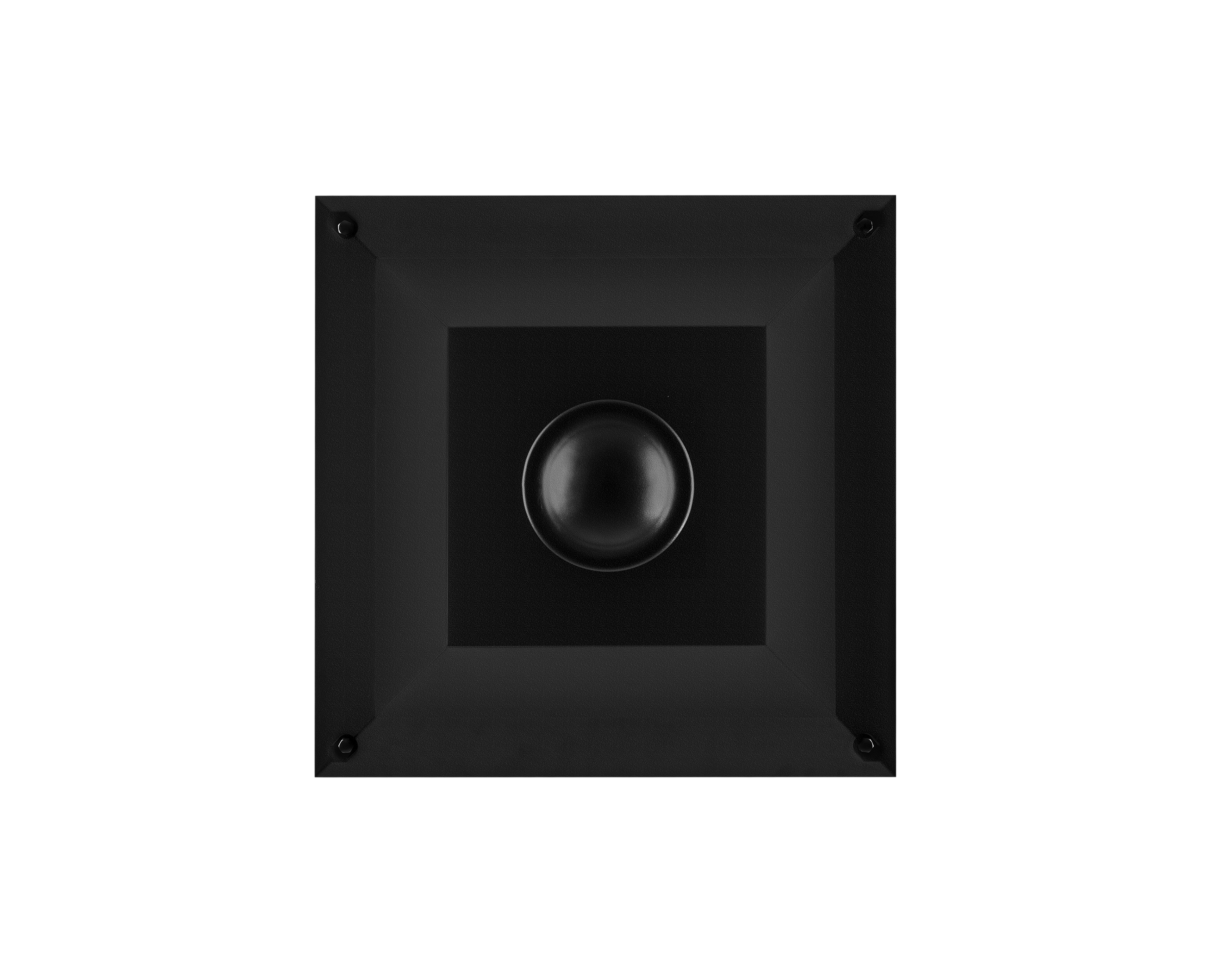

Classic style park luminaire, most used as Old town luminaire. Wide range of optics. It is also available with correlated color temperature CCT 2200 or 2700 K, which creates a significant advantage for luminaire used in inhabited places historical centers.

Basic colours

  • Black RAL9005

Specification

V

220 - 240

Hz

50 - 60

W

5 - 75

lm

400 - 8920 1

lm/W

80 - 128

K

2700 / 3000 / 4000 /
TW 2700 - 6500 2

-40 to +50 | 5 - 50W
-40 to +40 | 50 - 75W

CRI

>70 / >80 / >90 2

mm

425 x 425 x 816

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Spigot: 60 - 100 mm

Socket: NEMA / Top Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Daylight

Surge protection: 4 / 6 / 10 kV 3

Nature friendly: PC Amber / Red / 1800 K

Corrosion protection: Up to CX

Neto weight: Up to 7.6 kg

Max. wind load area, SCd, m2: 0.09

Class I
IP65
IK08
CE
UKCA
EAC
RoHS
ENEC
LED module replaceable by a professional
LED driver replaceable by a professional

1 Lumen output indicated at CRI > 70
2 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT

3 10 kV (L-N; L/N-PE) surge protection device available on request

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.
