LILLY

Product Overview

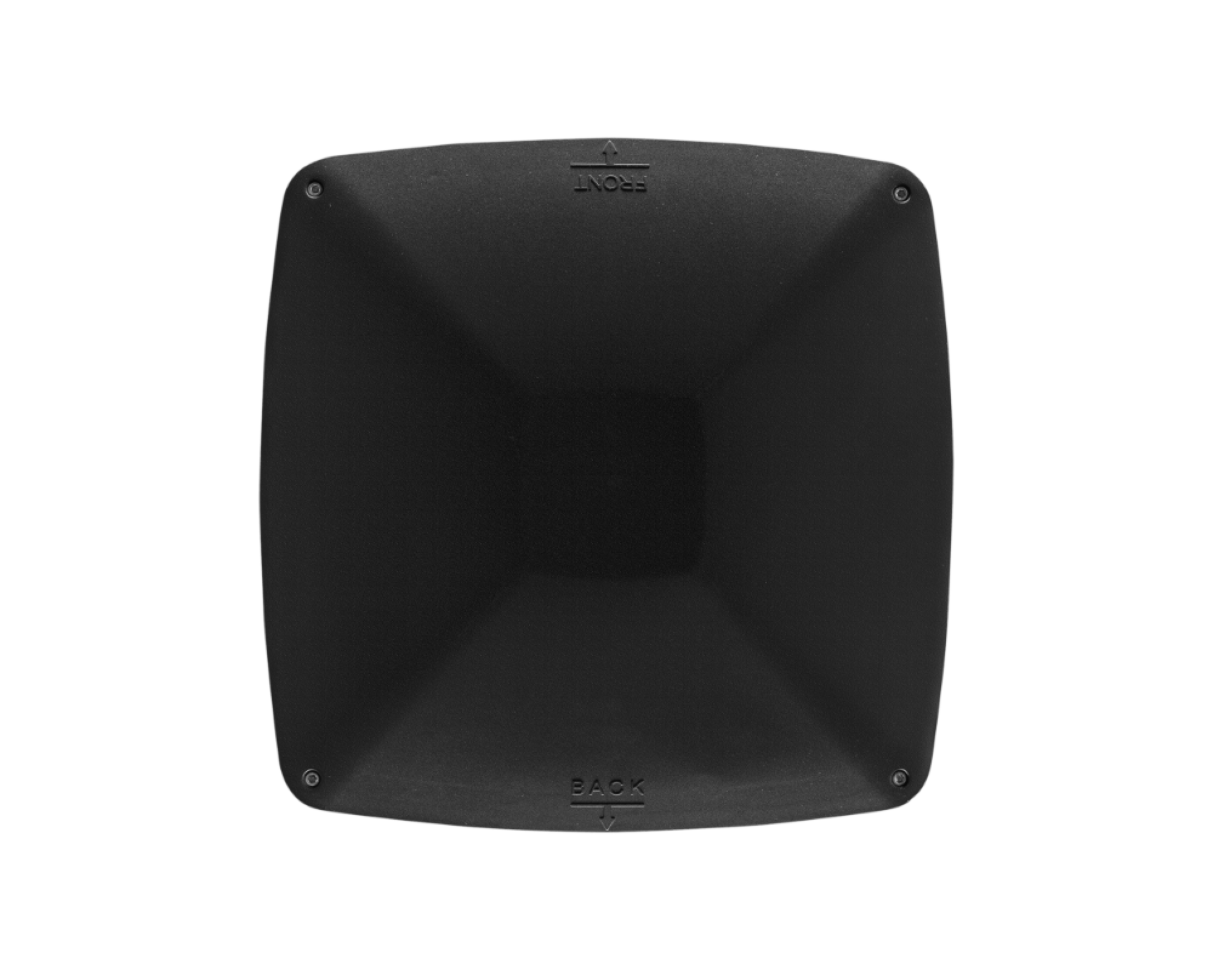

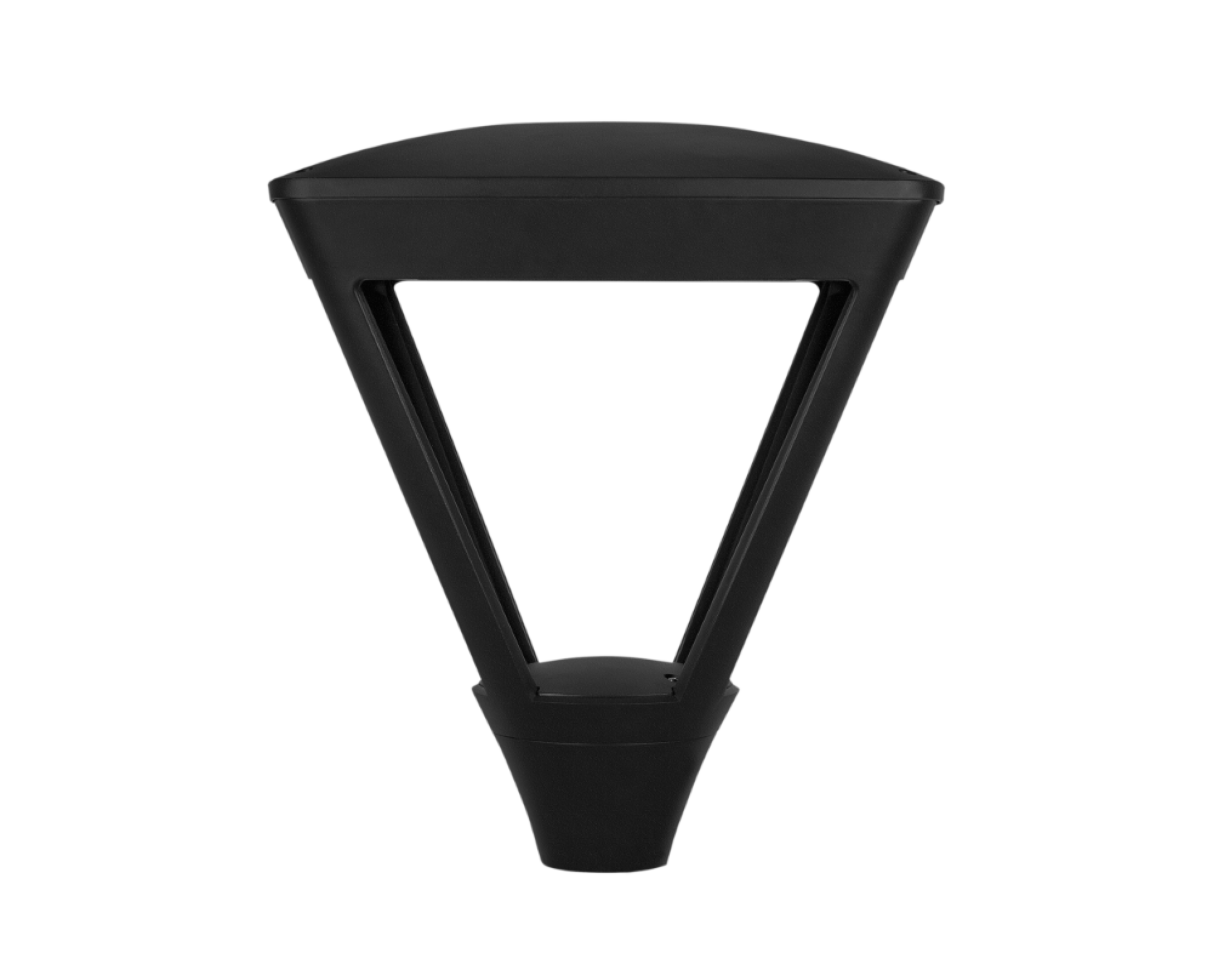

Park luminaire with modernized historical design. Developed for modern cities. Upon particular order, it is also available with correlated color temperature CCT 2200 or 2700 K and with color rendering index 70, 80, or 90. Wide range of optics, drivers, connections for the most effective lighting solution.

Basic colours

  • Black RAL9005

Possible any colours

Specification

V

220 - 240

Hz

50 - 60

W

5 - 100

lm

398 - 12475 1

lm/W

77 - 131

K

2700 / 3000 / 4000 2

-40 to +40

CRI

>70 / >80 3

mm

475 x 475 x 520

1-10 V; DALI; Midnight dimming

Chromaticity tolerance (initial MacAdam): 5

Warranty 5 years

> 70 000 h (L90B10) at Ta = 25 °C 4



Surge protection: 6 kV (L-N) and 10 kV

(L/N -PE without DALI connection) 5

Intelligent light control system: Radio frequency / Power line 6

Socket: Zhaga / NEMA

Neto weight: 10,10 kg

Max. wind load area, SCd, m2: 0,10

Class I
CE
EAC
RoHS
IP66
IK08
LED module replaceable by a professional
LED driver replaceable by a professional

1 Lumen output indicated at CRI > 70
2 1800 / 2200 / 5000 / 5700 / 6500 K available on request  Amber option available
3 Luminaries with color rendering index (CRI): Ra > 90 on request
4 Average lifetime value for ECO model at Ta = 25 °C is 100 000 h L80/B10*
5 10 kV ( L-N; L/N-PE ) surge protection device available on request
6 Optional. Available only with DALI ; 1 - 10 V

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models and will reach 100 000 h L90/B10. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
