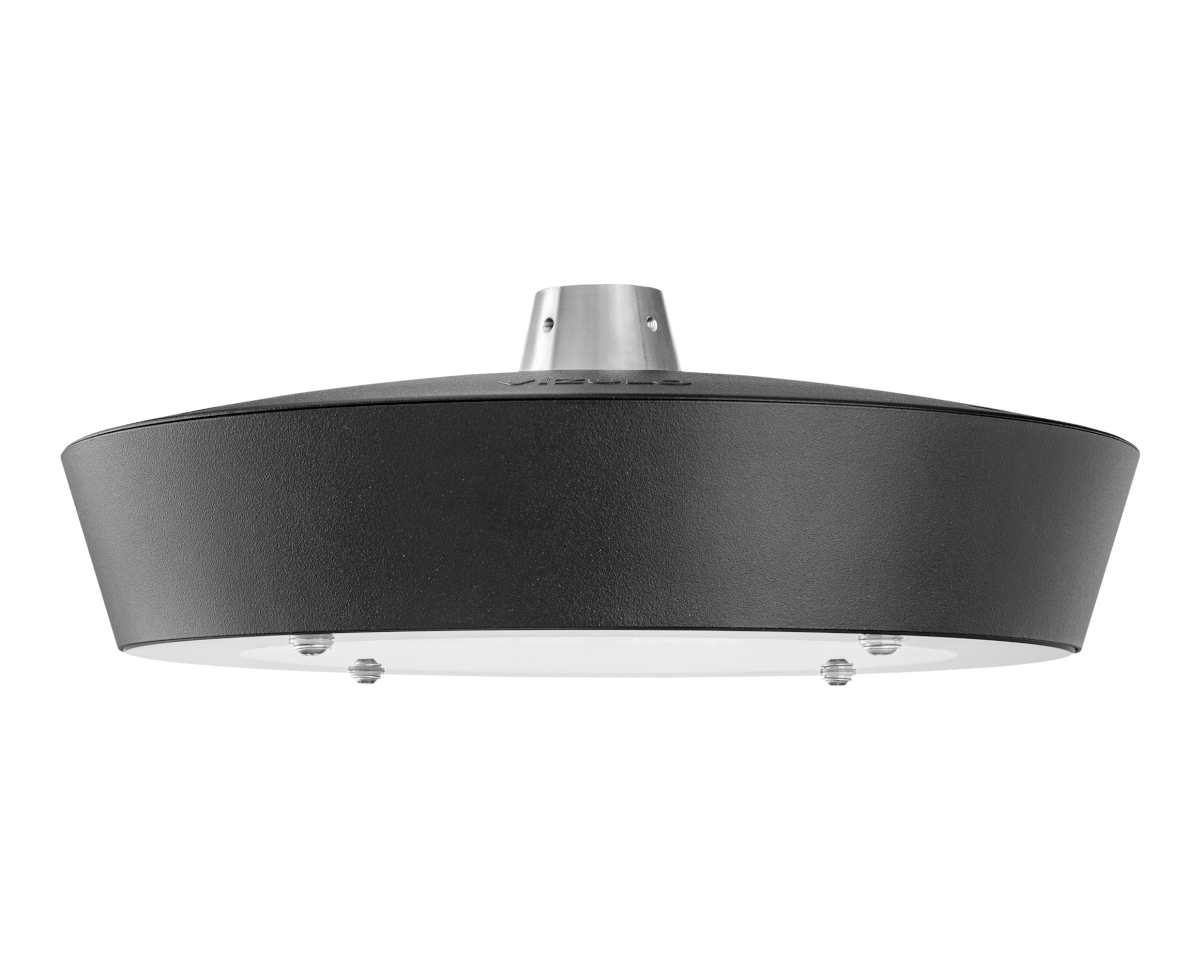

LUSCINIA Top entry

Product Overview

This luminaire is all about the feeling. Watch your outdoor space transform into an elegant and welcoming experience. Minimalist design without superfluous details attracts less unwanted attention, while still managing to inspire everyone around it. Sophisticated, yet casual. An instant timeless classic. Depending on your needs, we can provide a wide range of configuration options.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005
  • RAL7035

Specification

V

198 - 264 / 110 - 277 1

Hz

50 - 60

W

5 - 75

lm

490 - 11400 2

lm/W

95 - 158

K

2700 / 3000 / 4000 3

-40 to +50 | 5 - 50 W
-40 to +35 | 50 - 75 W

CRI

>70 / >80 / >90 3

mm

343 x 115

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Pre-wired cable 30 cm 4

Mounting: On console with 1/2" thread

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 5

Corrosion protection: Up to C5

Neto weight: Up to 6 kg

Max. wind load area, SCd, m2: 0.09

Class I
Class II
IP66
IK08
CE
UKCA
RoHS
cUL 6
Zhaga zdi4 6
ENEC 6
ENEC Plus 6
Synergrid approved 6
International EPD System
LED module replaceable by a professional
LED driver replaceable by a professional

1 Maximum operating voltage, ENEC certificate voltage 198 - 264 V, UL certificate voltage 110 - 277 V
2 Lumen output indicated at CRI > 70
3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 Other lengths available on request
5 10 kV (L-N; L/N-PE) surge protection device available on request
6 Coming soon

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes
