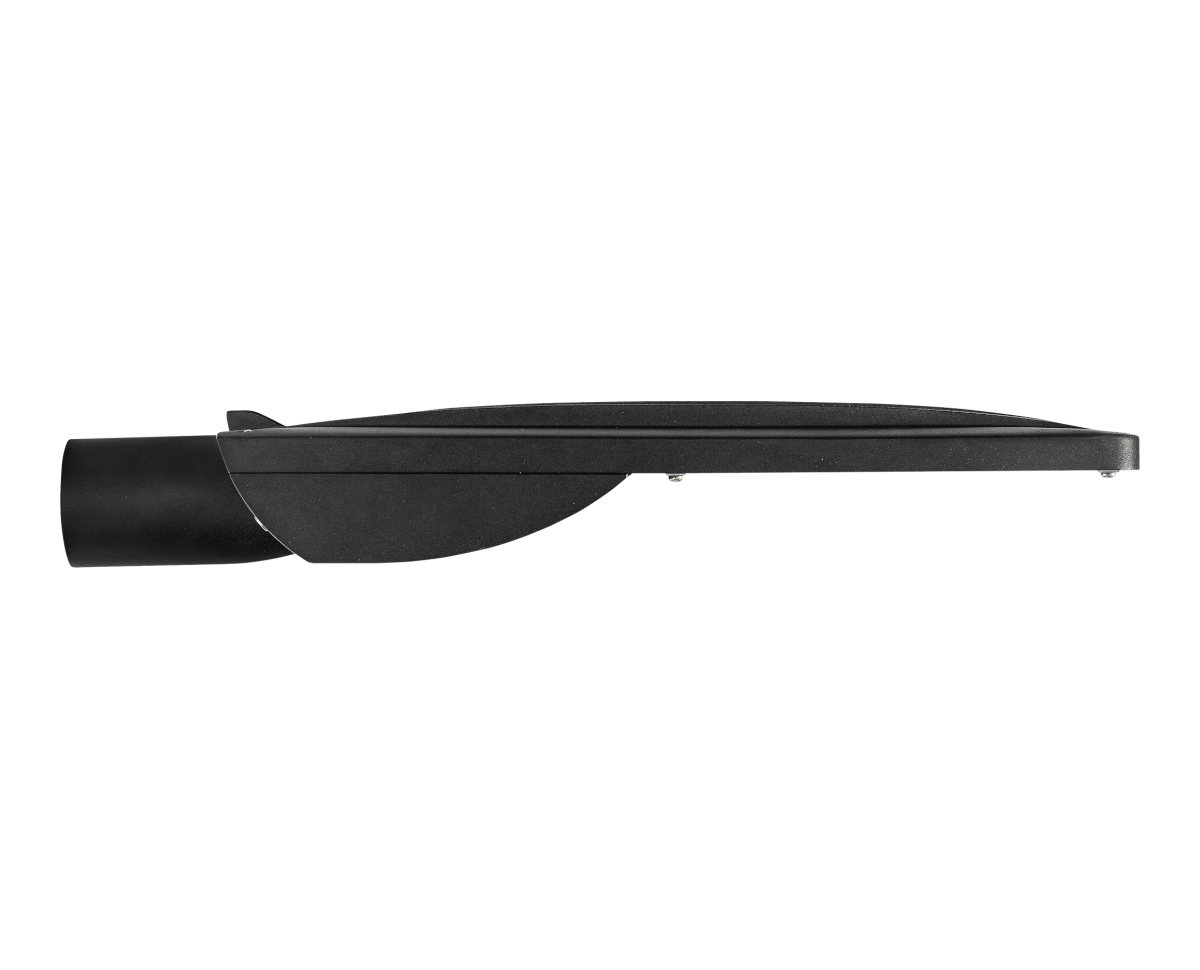

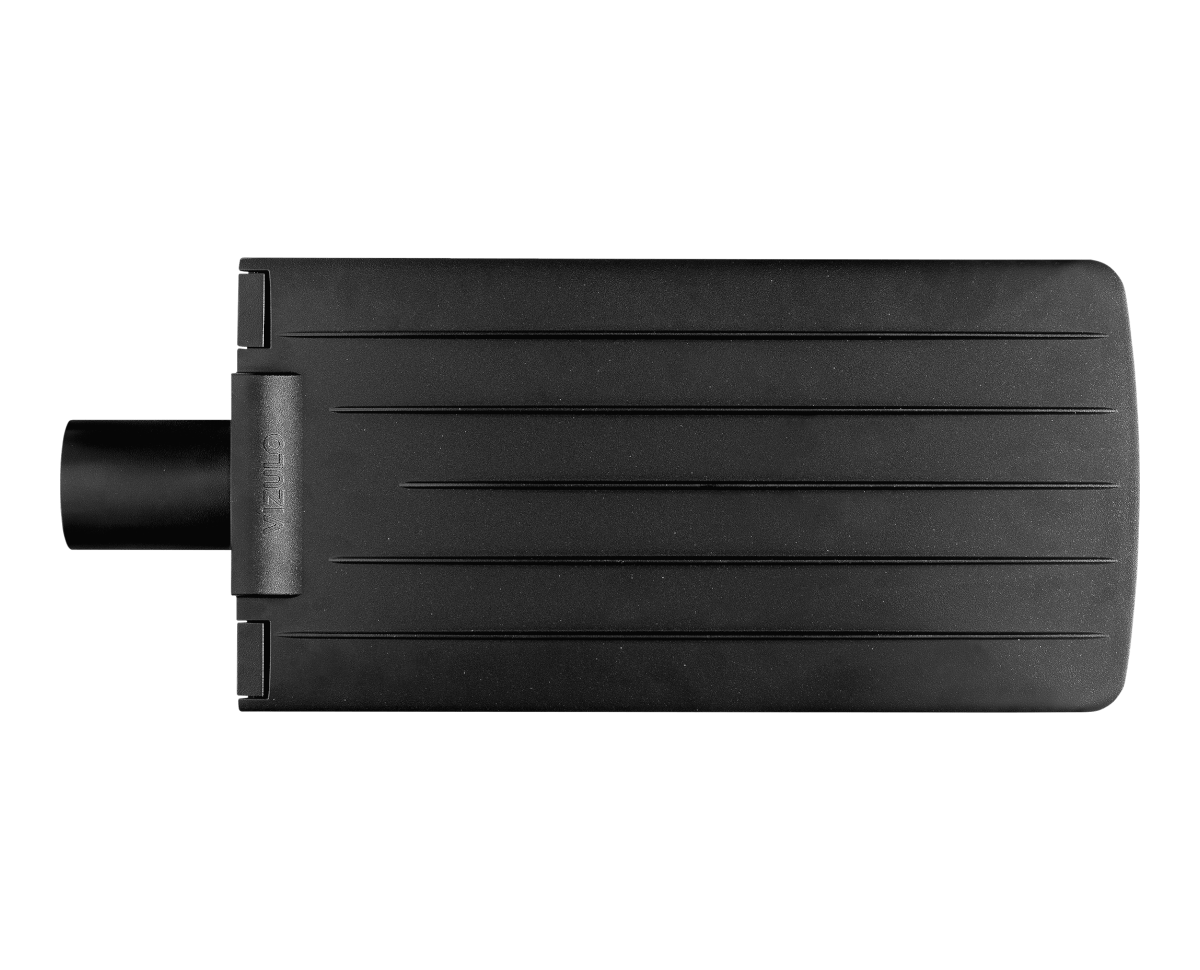

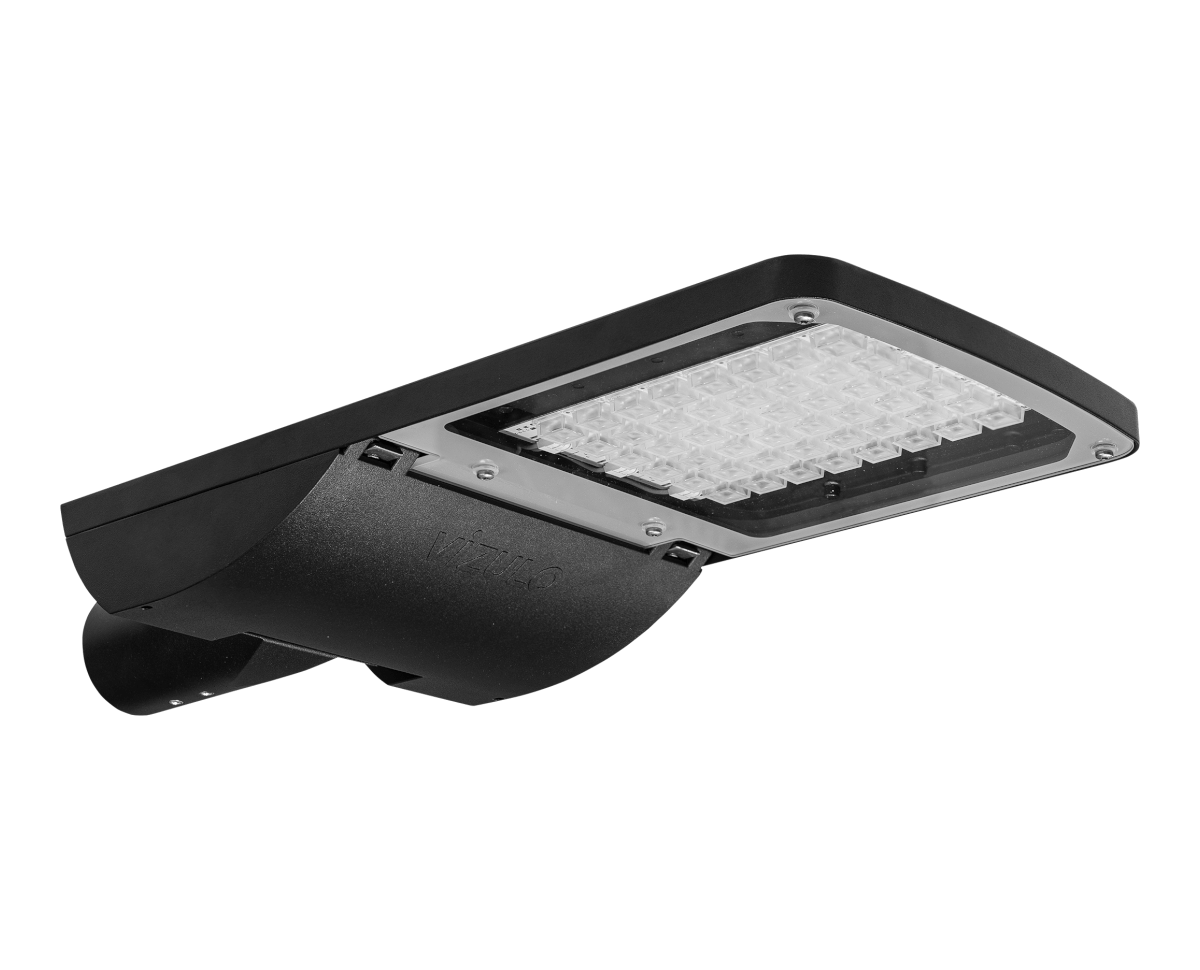

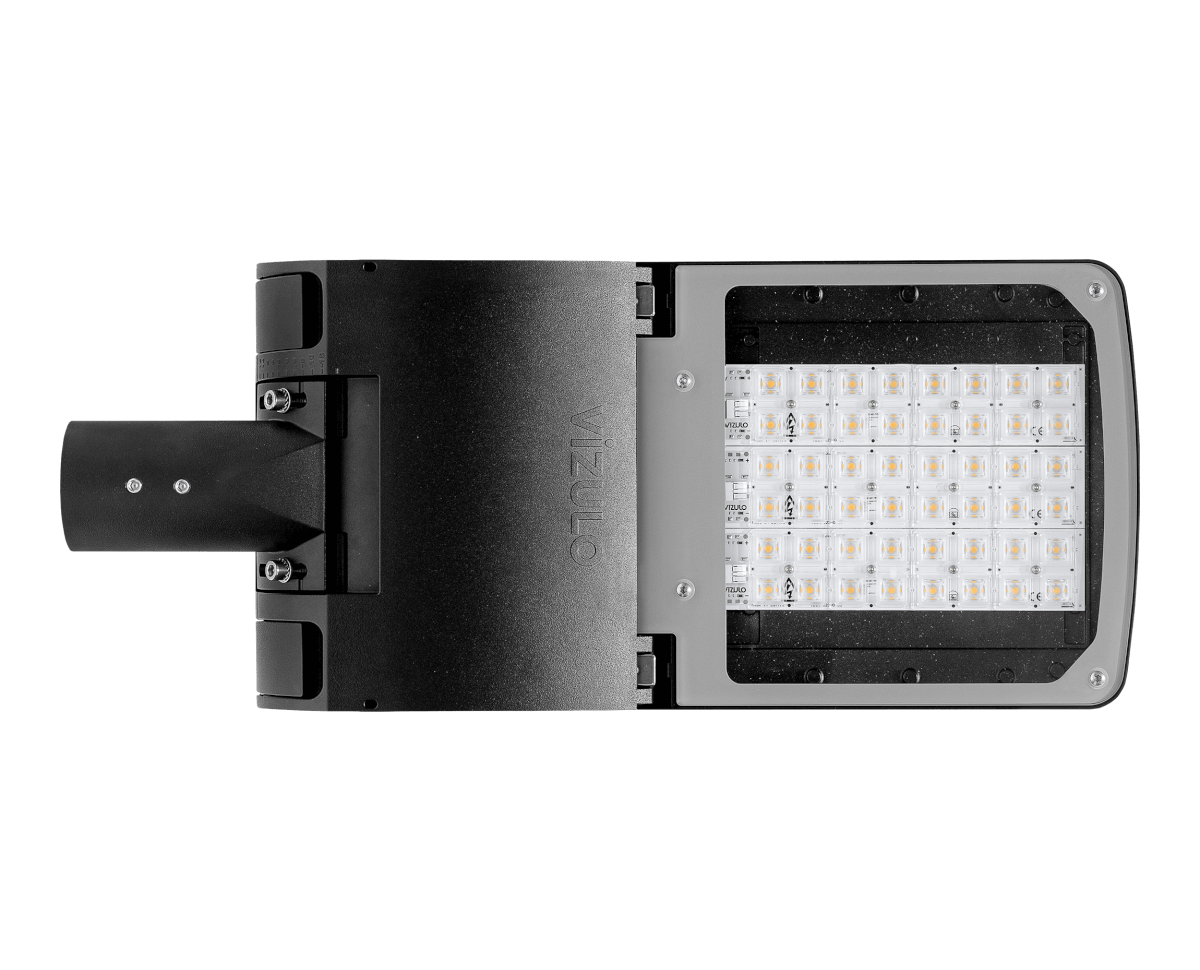

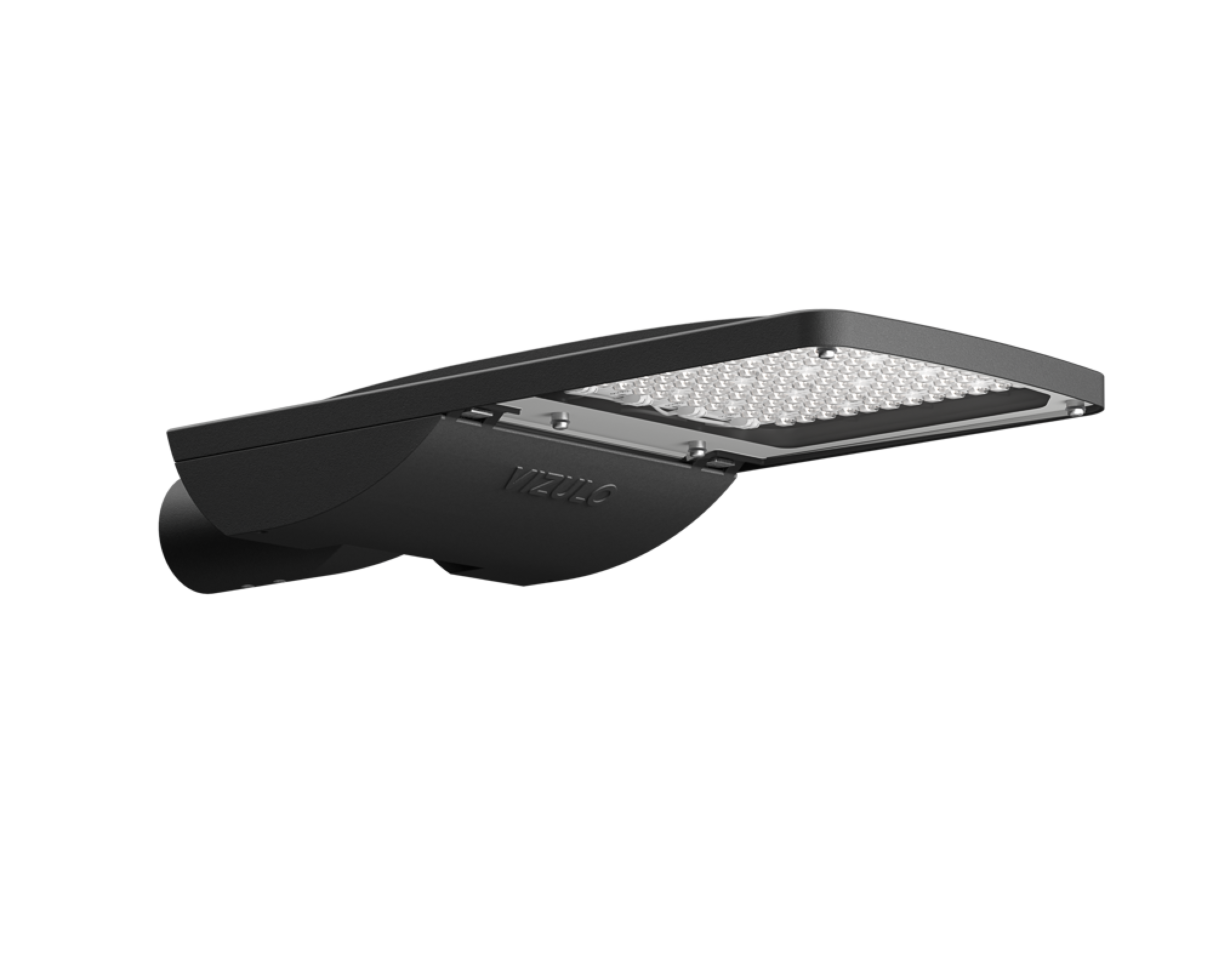

STORK LITTLE BROTHER

Product Overview

Minimalist design that won’t make you choose between function, form, and versatility. You can have it all. But don’t let the elegant and discreet look fool you – our Stork Little Brother can handle even the harshest conditions. Limitless configuration options, vandal protection, quick installation, and easy maintenance - that's what makes this luminaire a desirable addition to all kinds of environments. Busy urban roads and business centers, residential areas, parks, even agricultural hubs – Stork Little Brother will fit in as if it was always there.

Basic colours

  • Silver RAL9006
  • Asphalt DB703
  • Black RAL9005

Possible any colours

Specification

V

200 - 240

Hz

50 - 60

W

5 - 200 1

lm

487 - 26000 2

lm/W

98 - 161

K

2700 / 3000 / 4000 /
TW 2700 - 6500 3

-40 to +50

CRI

>70 / >80 / >90 3

mm

665 x 280 x 104

Body: Die-cast aluminium

Dimming: DALI / 1 - 10 V / Midnight dimming /
Step dimming / Mains dimming

Initial chromaticity: MacAdam 5

Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C* /

Standard / High density 100 000 h (L98B10) at Ta = 25 °C*

Warranty: 5 years

Installation: Tool - less

Spigot: 32 - 40 mm 4 / 40 - 60 mm / 60 - 76 mm

Socket: NEMA / Top and Bottom Zhaga

Intelligent control: Stand-alone / Group / CMS

Sensor: Motion / Motion + Daylight / Daylight

Surge protection: 4 / 6 / 10 kV 5

Nature friendly: PC Amber / Red / 1800 K

Corrosion protection: Up to C5

Neto weight: Up to 8 kg

Max. wind load area, SCd, m2: 0,04

Class I
Class II
IP66
IK10
CE
EAC
RoHS
cUL
Zhaga zdi4
ENEC
ENEC Plus
International EPD System 6
SundaHus assessment available 7
LED module replaceable by a professional
LED driver replaceable by a professional

1 5 - 178 W with standard fins and 178 - 200 W with additional fins
2
Lumen output indicated at CRI > 70

3 1800 / 2200 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
4 Achievable with an adapter for 40 - 60 mm spigot
5 10 kV (L-N; L/N-PE) surge protection device available on request

6 EPD registration number: S-P-04347 (link to page)
7 Check SundaHus web page for product assessment results

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes

Download Documents

Features

Electronics

Controls & Connectivity

Light

Optics

Accessories

Best selling articles

Other options available on request

Luminous flux (lm)
3934
27362
3934
27362
Color rendering index
CRI Higher value means that the colors of illuminated objects will be rendered more accurately. Red tones are most affected by the the increase in this value. Contact our sales representatives to request CRI ≥ 90.
  • 70
  • 80
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • D4i (Zhaga)
  • DALI
Insulation
Class I - Requires connection to electrical earth Class II - Double insulated (no earth connection required)
  • Class I
  • Class II
Efficacy (lm/W)
106
154
106
154
Color temperature (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
LED type
  • Eco
  • Standard
Power (W)
35
178
35
178
Lens
Affects light distribution. Other optics available on request. Press on "Explore all optics" above to see the available options.
Explore all optics
L01
L04
L22
L35
L90
V01
V05
V22
V35
Surge protection
Protects against voltage surges. Comes either integrated in driver or as a separate built-in device - SPD. The latter offers higher protection level than the former. Typical values: • Driver: L/N-PE - 10 kV; L-N - 6 kV • SPD: L/N-PE - 10 kV; L-N - 10 kV
  • 6 ... 10 kV
  • SPD 10 kV
Optic Model Luminous flux lm Efficacy lm/W Dimming Power W CRI CCT K Datasheet LDT file
SRL 035 730 L01 B032 CSN DG144402044 5037 144 DALI 35 70 3000
SRL 035 730 L01 B032 CSN DG244402045 5037 144 DALI 35 70 3000
SRL 035 730 L01 B032 CSN DH144402046 5037 144 DALI 35 70 3000
SRL 035 730 L01 B032 CSN DH244402047 5037 144 DALI 35 70 3000
SRL 035 730 L01 B032 CSN ZG144402048 4812 137 D4i (Zhaga) 35 70 3000
SRL 035 730 L01 B032 CSN ZG244402049 4812 137 D4i (Zhaga) 35 70 3000
SRL 035 730 L01 B032 CSN ZH144402050 4812 137 D4i (Zhaga) 35 70 3000
SRL 035 730 L01 B032 CSN ZH244402051 4812 137 D4i (Zhaga) 35 70 3000
SRL 035 730 L04 B032 CSN DG144402052 5037 144 DALI 35 70 3000
SRL 035 730 L04 B032 CSN DG244402053 5037 144 DALI 35 70 3000
