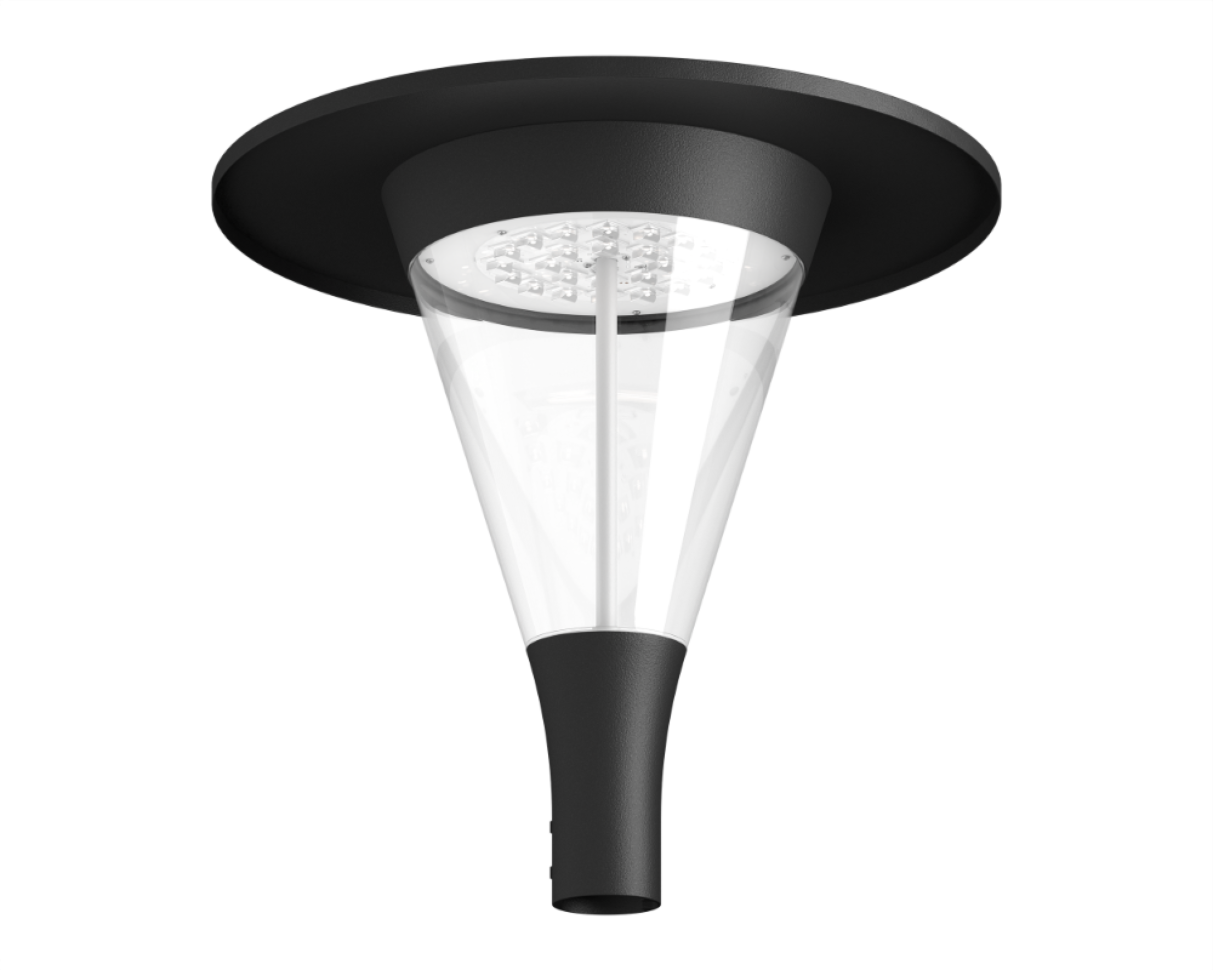

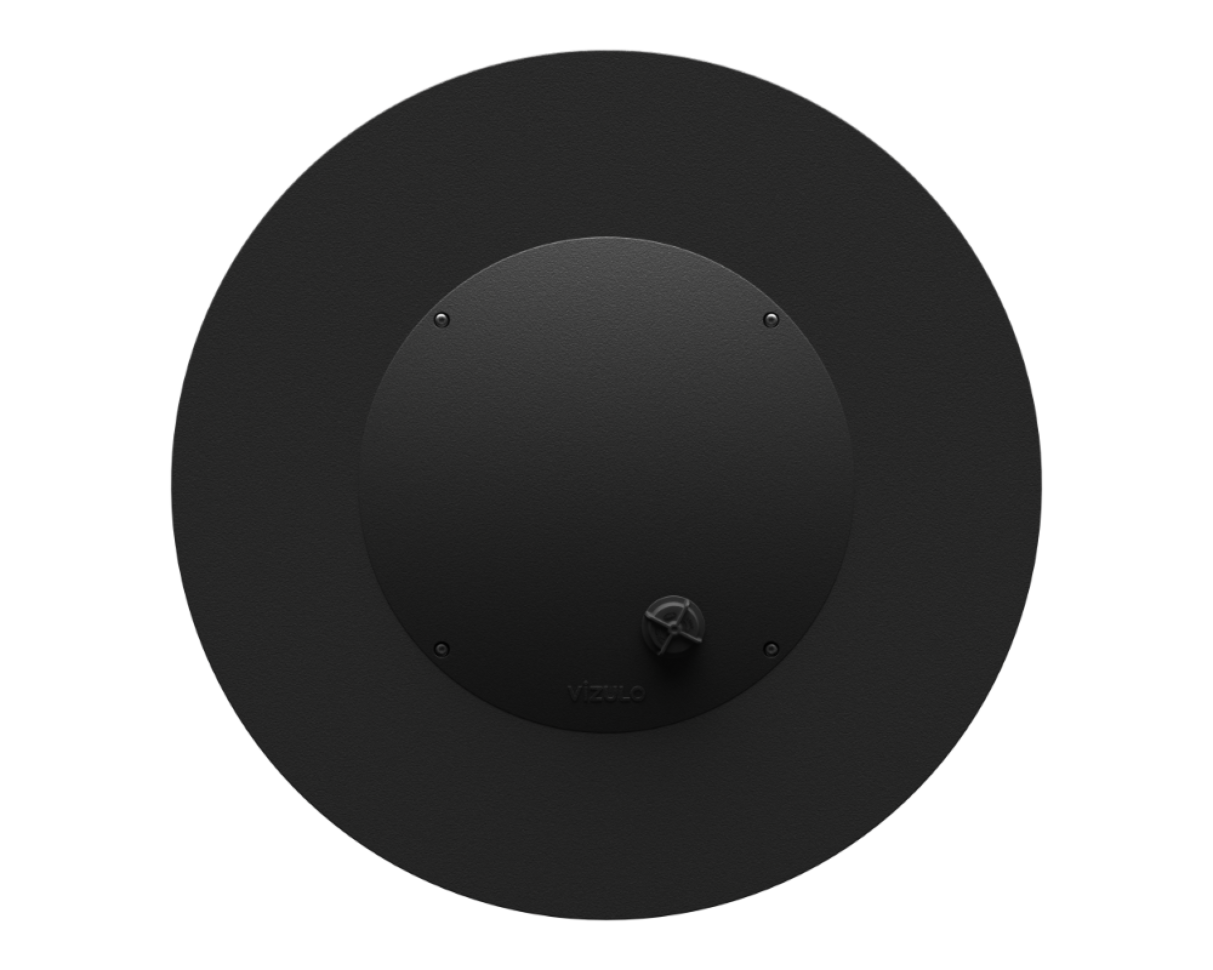

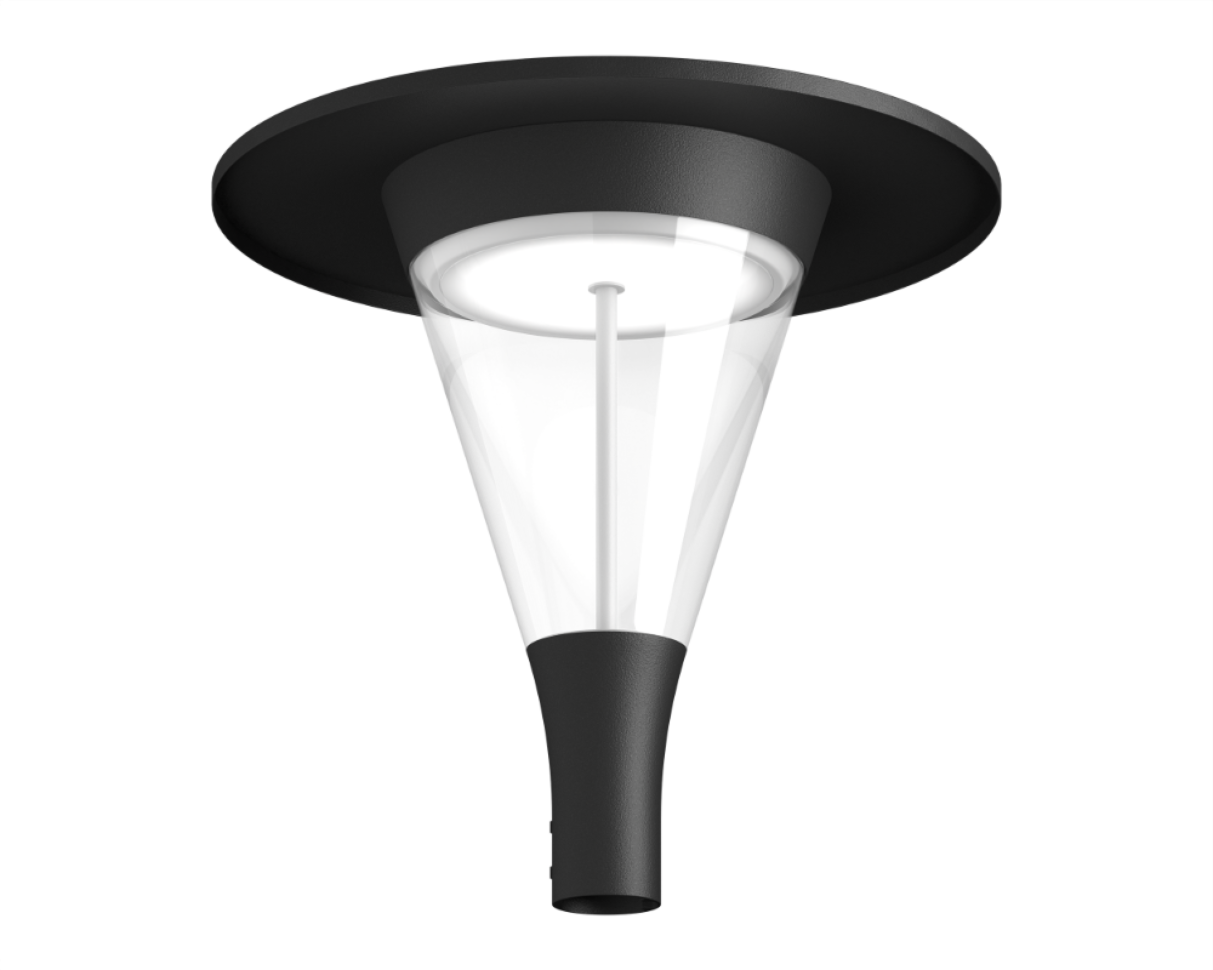

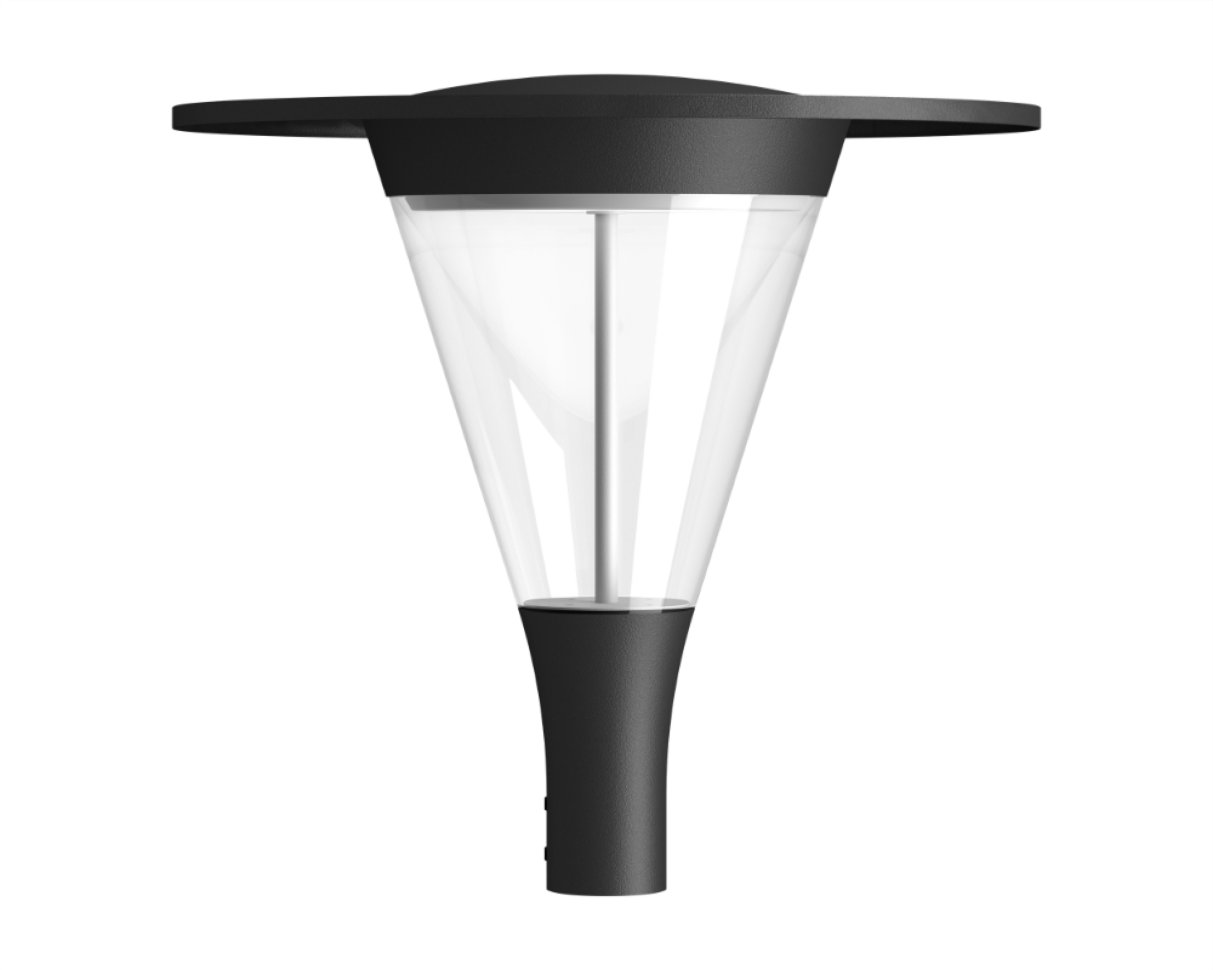

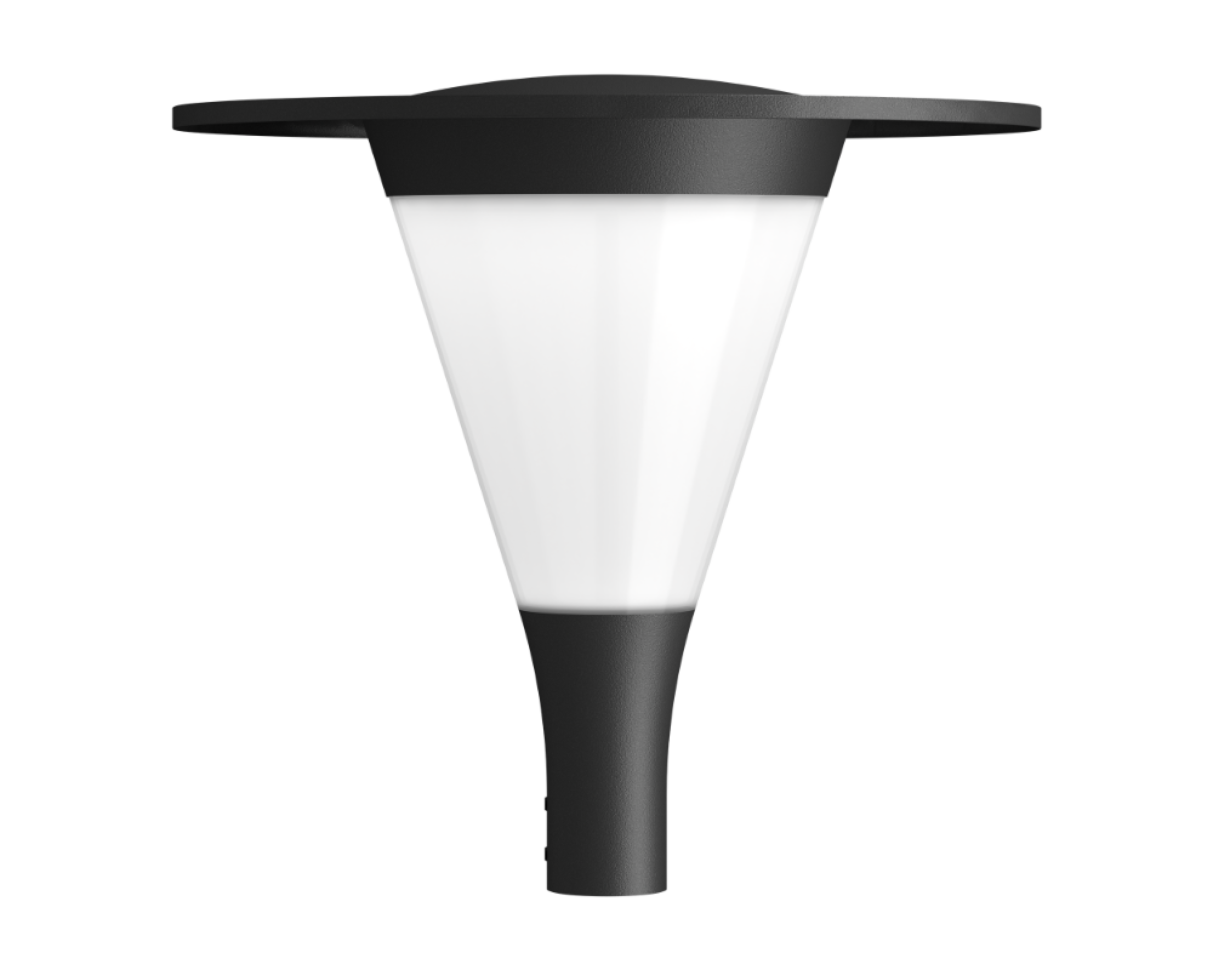

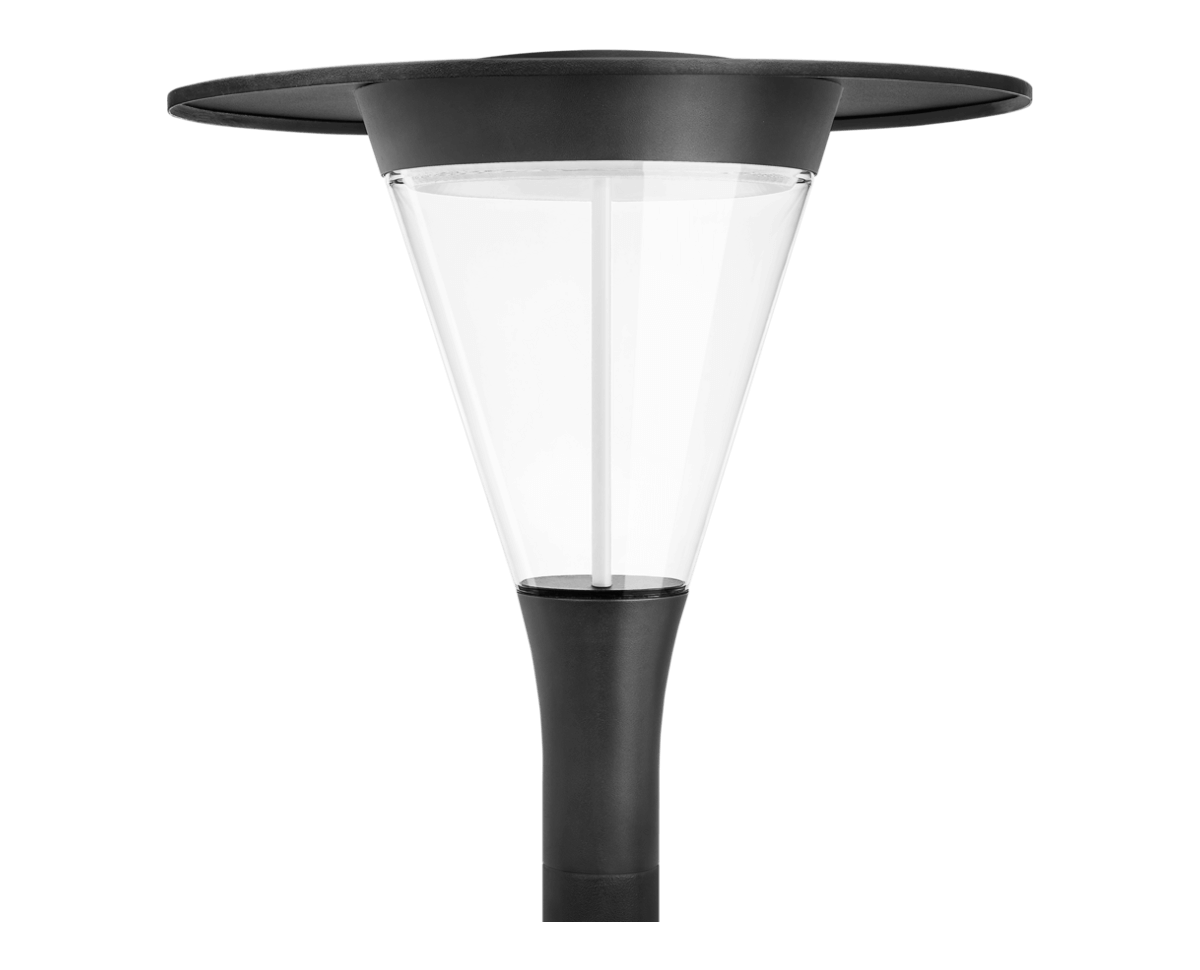

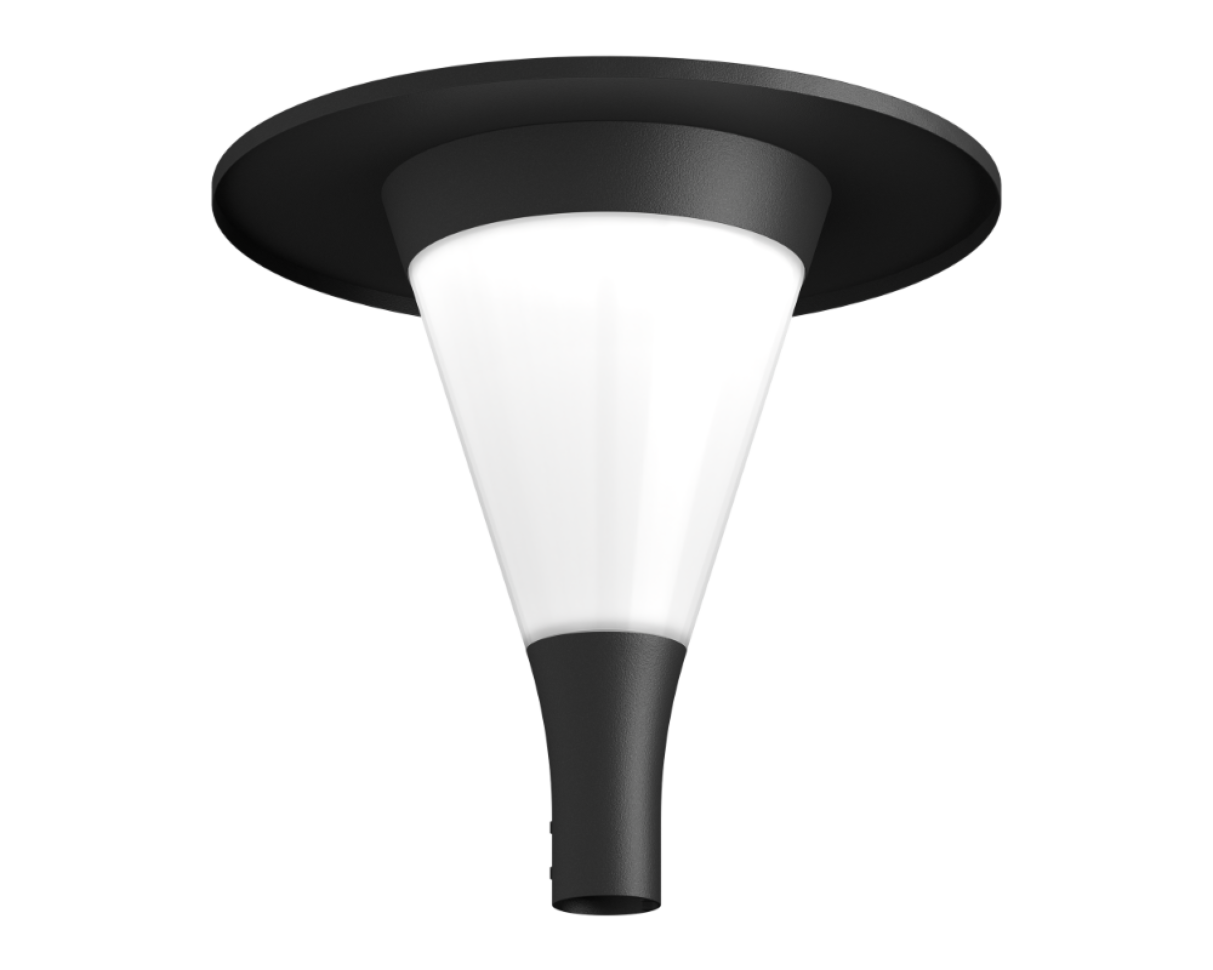

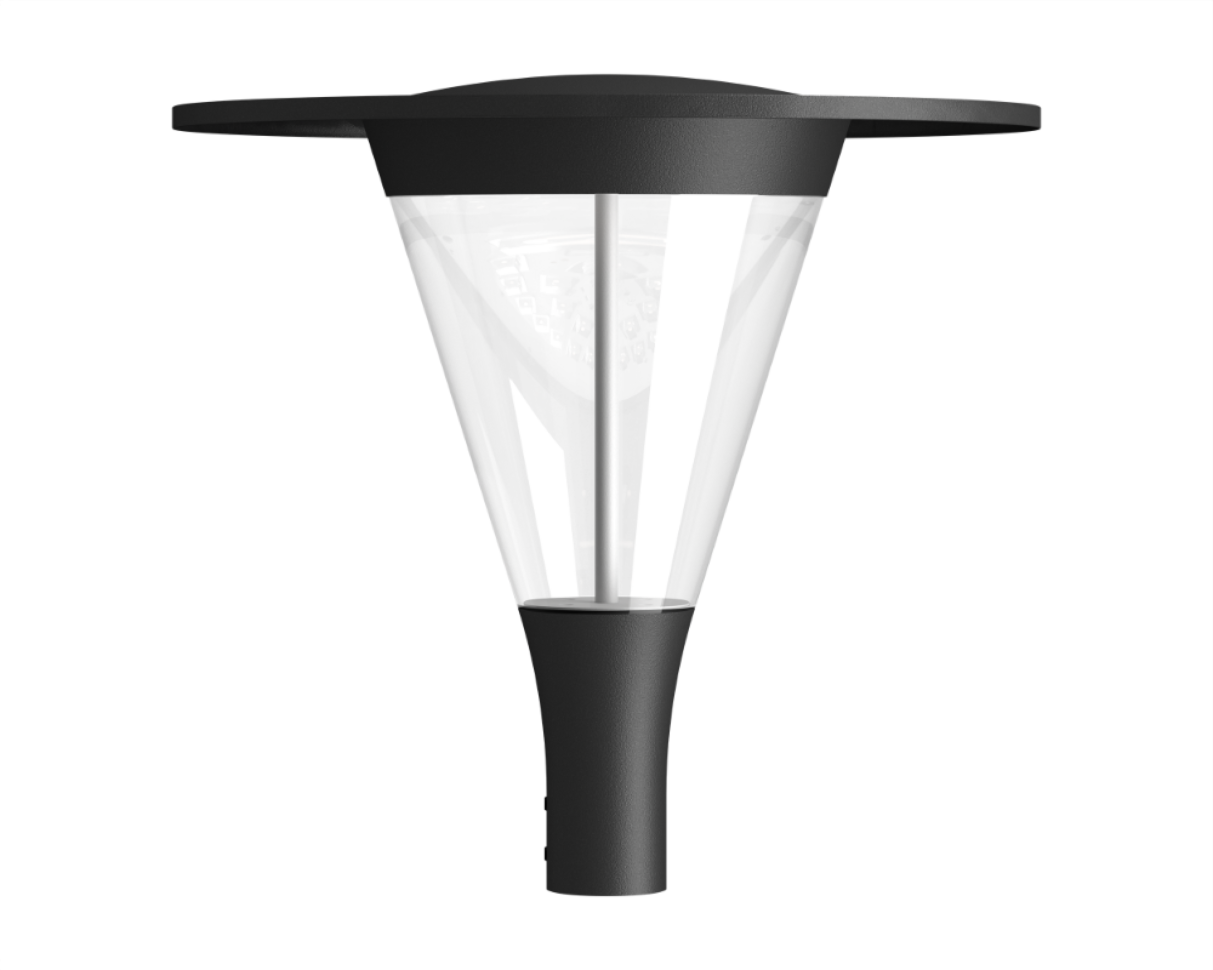

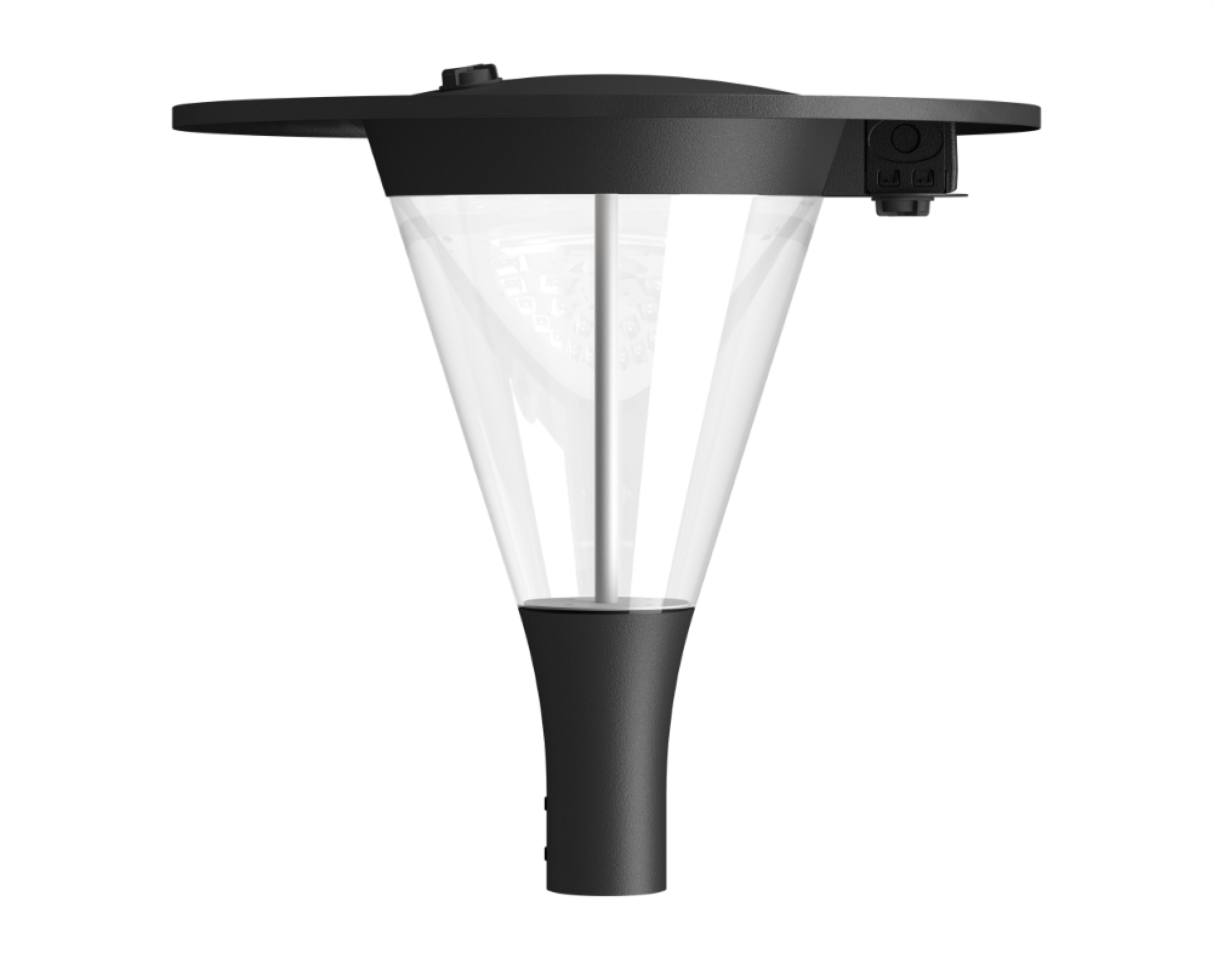

LUSCINIA with Cap
Product Overview
This park luminaire is all about the feeling. Watch your outdoor space transform into an elegant and welcoming experience. Minimalist design without superfluous details attracts less unwanted attention, while still managing to inspire everyone around it. Sophisticated, yet casual. An instant timeless classic. State-of-the-art polycarbonated, shock-resistant body with clear and frosted finish ensures exceptional longevity. Depending on your needs, we can provide a wide range of configuration options.
Basic colours
Specification
V
198 - 264 / 110 - 277 1
Hz
50 - 60
W
5 - 80
lm
490 - 12 890 2
lm/W
98 - 161
K
2700 / 3000 / 4000 3
°C
-40 up to +55 4
CRI
>70 / >80 / >90 3
mm
600 x 570
Body: Die-cast aluminium
Dimming: DALI / 1-10 V / Midnight dimming / Step dimming / Mains dimming
Initial chromaticity: MacAdam 5
Lifetime: Eco 100 000 h (L90B10) at Ta = 25 °C*
Standard / High density 100 000 h (L98B10) at Ta = 25 °C*
Warranty: 5 years
Installation: Pre-wired cable 30 cm 5
Spigot: 40 - 60 mm / 60 - 76 mm
Socket: NEMA Top / Zhaga Top and Bottom 6
Intelligent control: Stand-alone / Group / CMS
Sensor: Motion / Motion + Daylight / Daylight
Surge protection: 4 / 6 / 10 kV 7
Corrosion protection: Up to C5
Neto weight: Up to 7.15 kg
Max. wind load area, SCd: 0.13 m2
