FERN

Product Overview

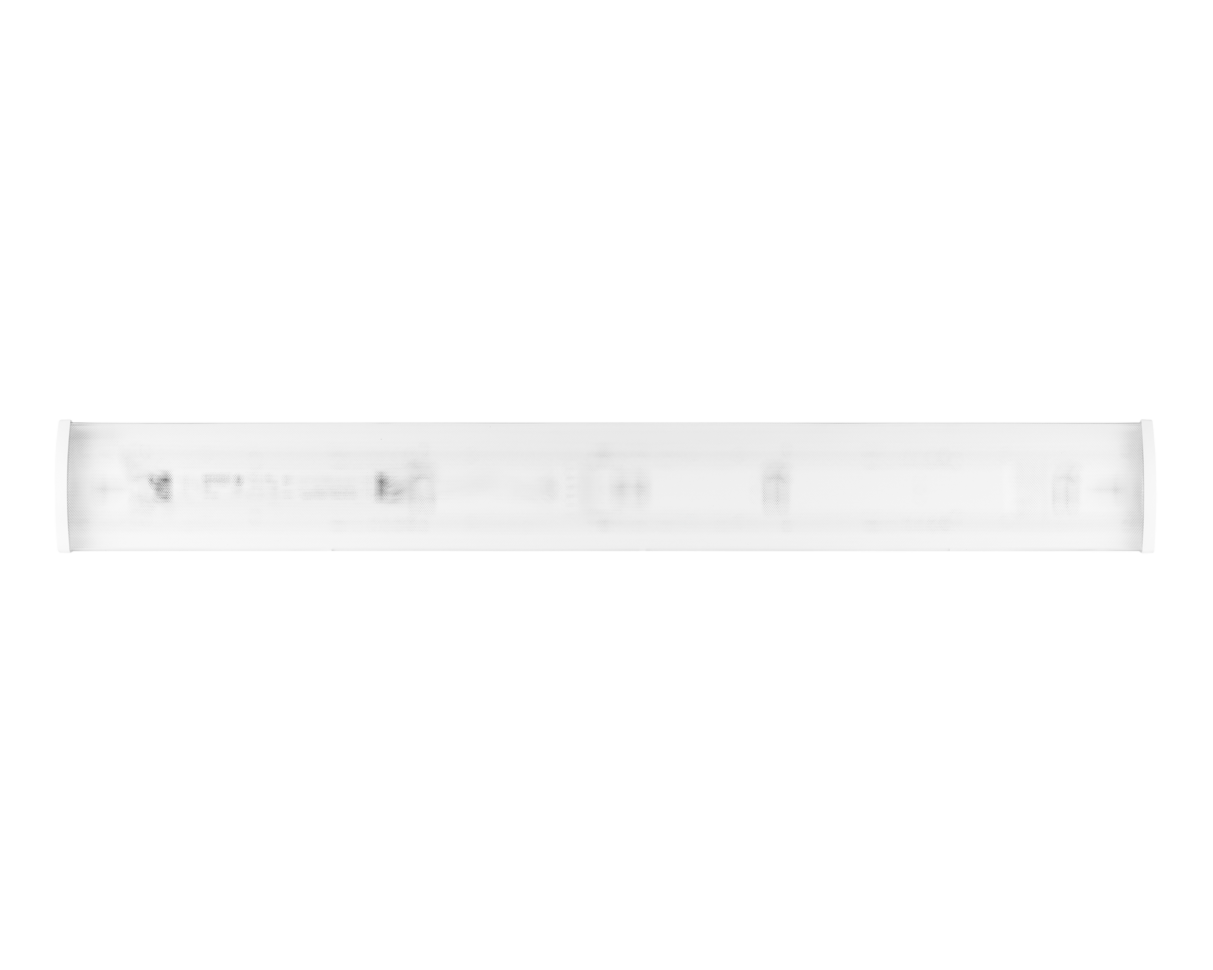

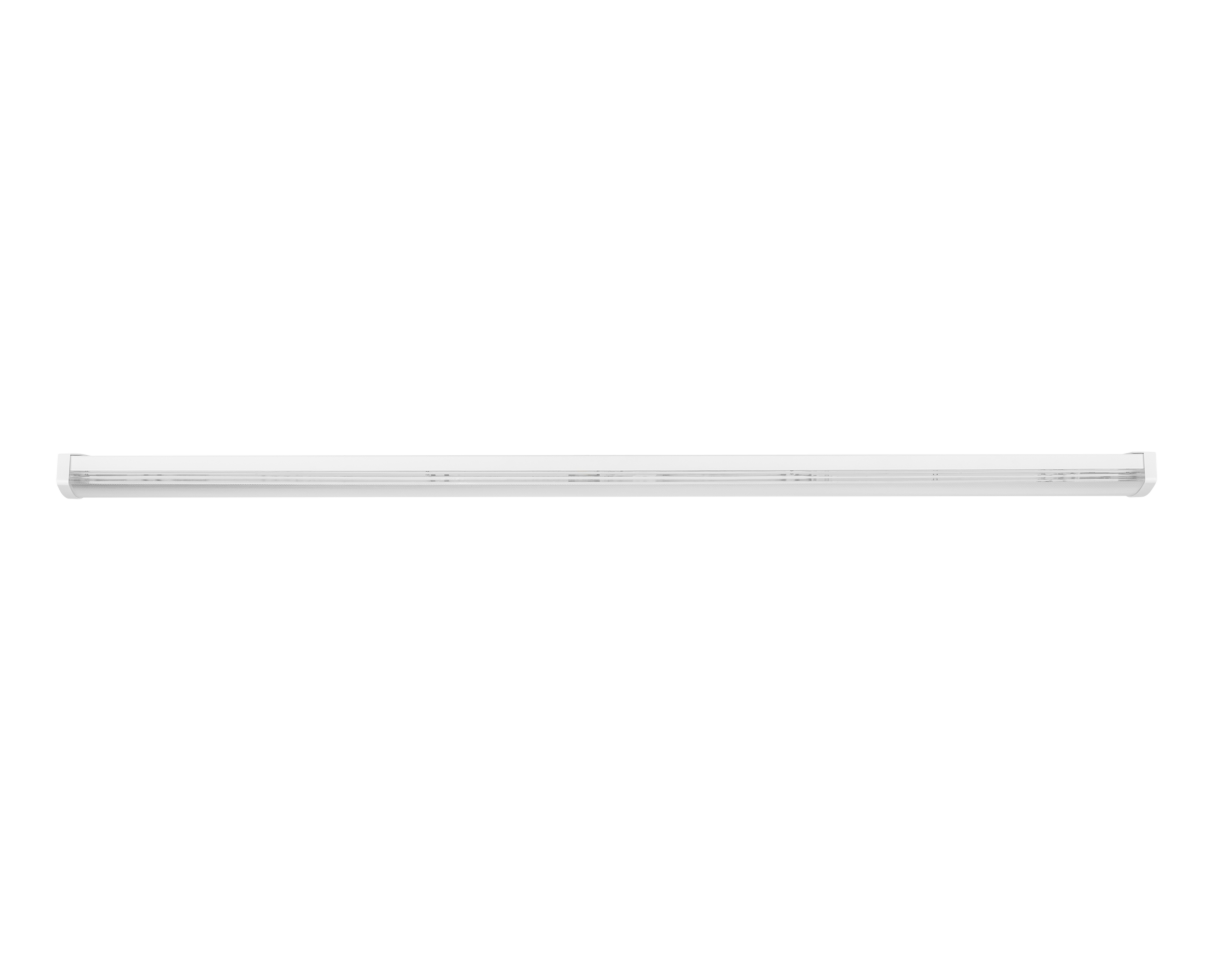

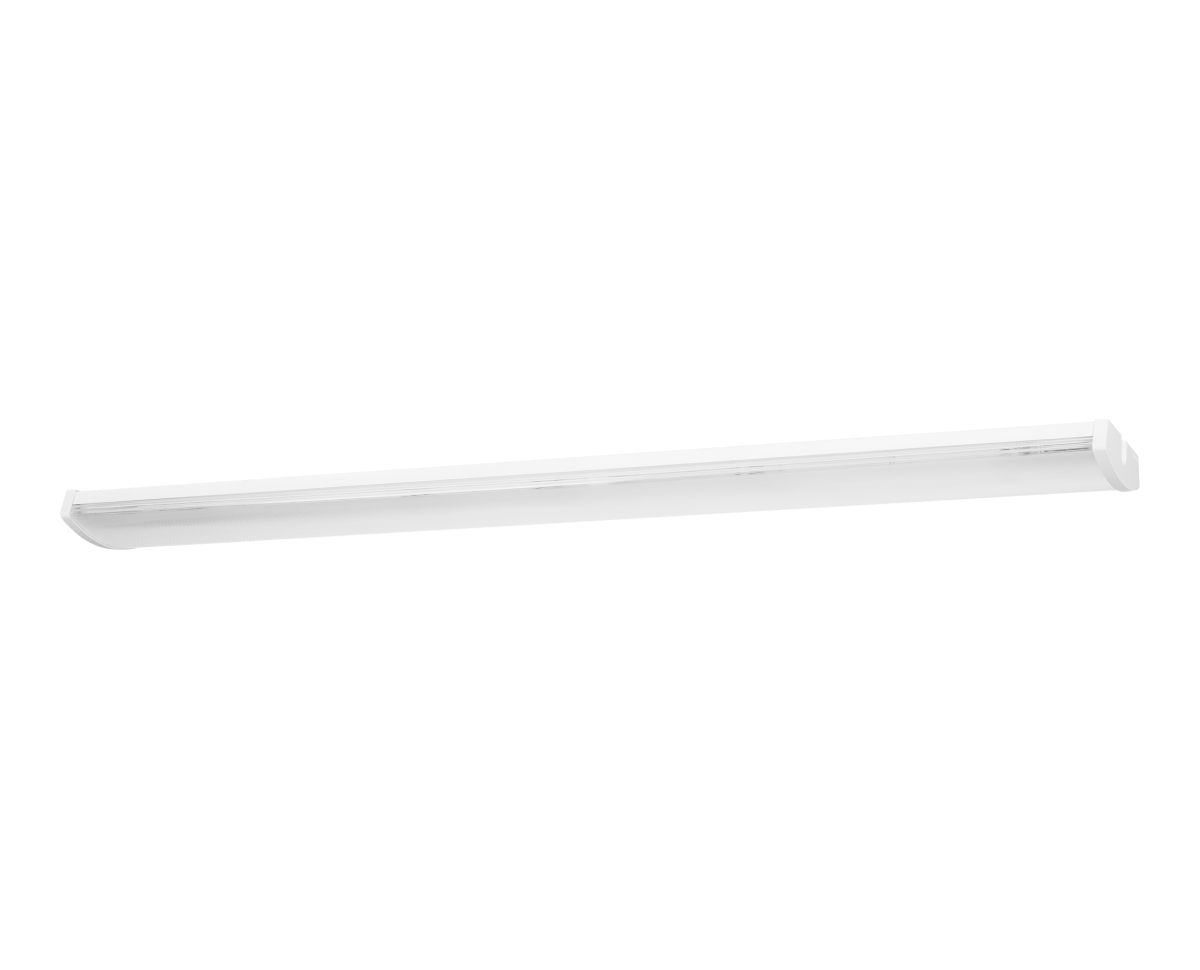

It all starts with the basics - Fern surface. It is an industrial luminaire, available with a length of 60 cm, 120 cm, or 150 cm on your choice. If you want to get Fern closer to your eyes – we invite You to choose a suspended version. Fern can also be mounted on wire or the wall using special mount kits available as an accessory. Fern is the luminaire for public areas, usable in various premises and projects: corridors, basements, utility rooms, small warehouses, as an emergency luminaire, etc.  A wide range of drivers allows adapting luminaires to specific project needs, while sensors adjust Fern into creating smart solutions.

Basic colours

  • White

Specification

V

220 - 240

Hz

50 - 60

W

12 - 75

lm

Up to 9700 1

lm/W

Up to 140

K

3000 / 4000 / TW 2700 - 6500 2

+10 to +40

CRI

>80 / >90 / >95 3
>90 / >95 4

Body: Alu-zinc

Dimming: DALI / Bluetooth / Non dimmable

Sensor: Microwave / PIR / PIR + Daylight

Initial chromaticity: MacAdam 3

Lifetime: 100 000 h (L80B10) at Ta = 25 °C*

                 50 000 h (L90B10) at Ta = 25 °C*

Warranty: 5 years

                  2 years (emergency configuration)

Mounting: Surface / Wire / Pendant / Wall

Cover: Prismatic PMMA

Human Centric Lighting: Available

Class I
IP44
CE
RoHS
Byggvarubedömningen Accepted
Emergency lighting
International EPD System 5
SundaHus assessment available 6
LED module replaceable by a professional
LED driver replaceable by a professional

1 Lumen output indicated at CRI > 70
2 1800 / 2200 / 2700 / 3500 / 5000 / 5700 / 6500 K available on request along with other not listed CRI and CCT
3 Standard LED CRI
4 Sun-Mimic LED CRI
5 EPD registration number: S-P-04200 (link to page)

6 Check SundaHus web page for product assessment results

*This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.

Total lumen output for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.Lumen output indicated at 4000 K.

Download Documents

Features

Application

Feature glass diffusion hanging plates

Electronics

Light

Best selling articles

Other options available on request

Flux (lm)
2514
8145
2514
8145
Efficacy (lm/W)
124
143
123.5
143.1
Power (W)
20
60
20
60
CCT (K)
CCT Lower value = Warmer light Higher value = Cooler light Contact our sales representative to request other values.
  • 3000
  • 4000
Size (mm)
  • 600
  • 1200
  • 1500
Through wiring
  • None
  • 1.5 mm²
Dimming
Control interface: • DALI - Industry standard for digital control of luminaires. • Midnight dimming - Automatically adjusts output level based on preprogrammed schedule. • D4i - Comes equipped with Zhaga socket for external connection of sensors and controllers. By default the socket is mounted on top (other configurations available on request).
  • No dimming
  • DALI
Sensor
  • None
  • Microwave sensor
Model Flux lm Efficacy lm/W Power W CRI CCT K Size mm Dimming LED type Datasheet
FR 020 830 P06 TT NN1 NS066100063 2514 125.7 20 80 3000 600 No dimming Standard
FR 020 830 P06 TT NN1 MW066100064 2514 125.7 20 80 3000 600 No dimming Standard
FR 020 830 P06 TT ND1 NS066100065 2561 128.1 20 80 3000 600 DALI Standard
FR 020 830 P06 TT VN1 NS066100067 2514 125.7 20 80 3000 600 No dimming Standard
FR 020 830 P06 TT VN1 MW066100068 2514 125.7 20 80 3000 600 No dimming Standard
FR 020 830 P06 TT VD1 NS066100069 2561 128.1 20 80 3000 600 DALI Standard
FR 020 830 P12 TT NN1 NS066100071 2663 133.2 20 80 3000 1200 No dimming Standard
FR 020 830 P12 TT NN1 MW066100072 2663 133.2 20 80 3000 1200 No dimming Standard
FR 020 830 P12 TT ND1 NS066100073 2710 135.5 20 80 3000 1200 DALI Standard
FR 020 830 P12 TT VN1 NS066100075 2663 133.2 20 80 3000 1200 No dimming Standard
