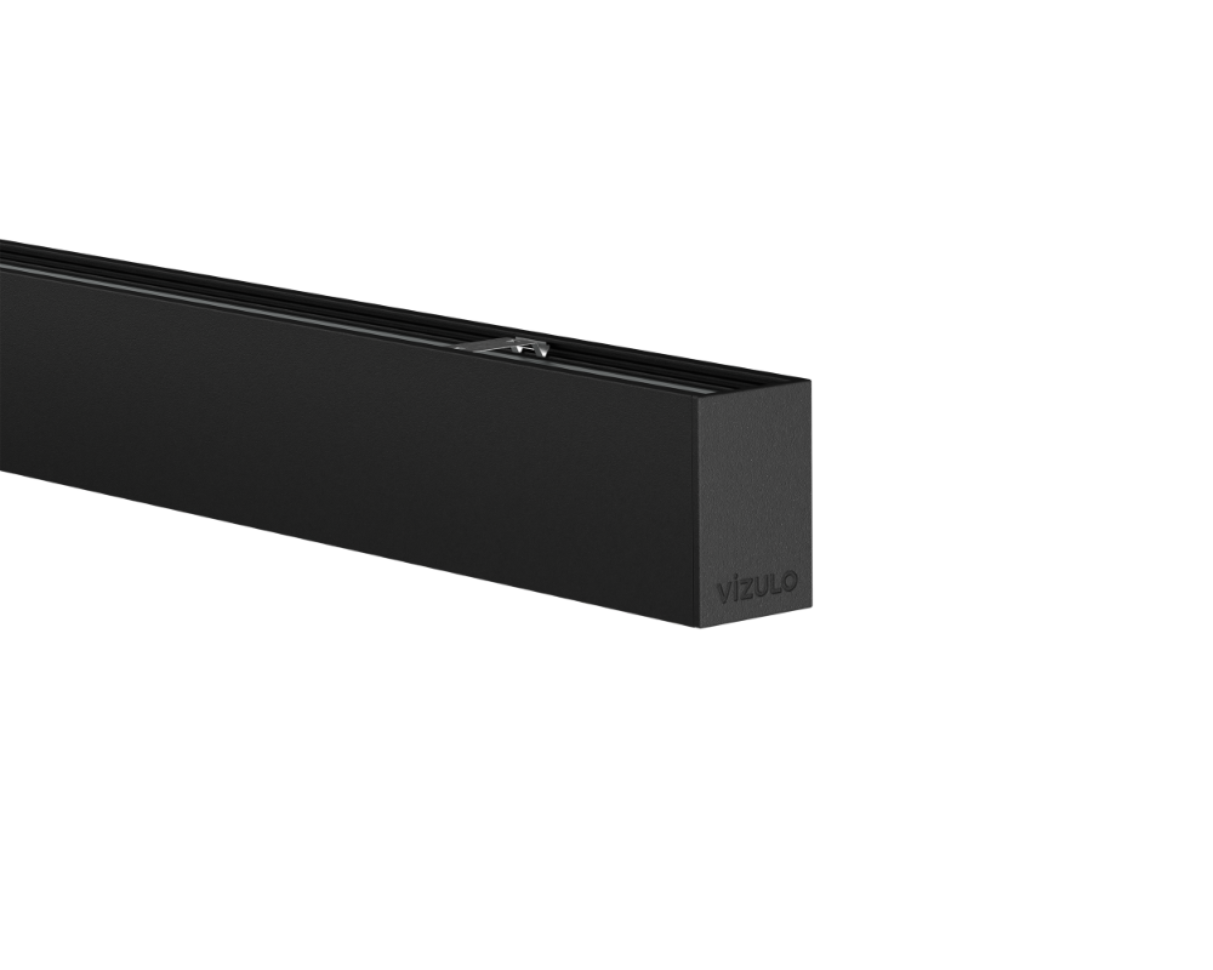

MILZO Number 2 Surface
Product Overview
With its strict lines, modern minimalist design, and the most promising technologies, Number 2 can be used in public premises, offices, schools, kindergartens, and private spaces. You can adapt Milzo No 2 to Your room coloristic, design, and needs by choosing luminaire body-color, reflectors type and color, and optics variety. Luminaire proposes to select from 3 mounting types: surface, suspended, with rod suspension, to achieve the most comprehensive design possibilities.
Basic colours
Specification
V
220 - 240
Hz
50 - 60
W
12 - 90
lm
Up to 9290 1
Up to 12474 2
lm/W
Up to 130 1
Up to 120 2
K
3000 / 4000 3
°C
+10 to +35
CRI
>80 / >90 / >95 4
>90 / >95 5
Body: Aluminium profile
Dimming: DALI / 1-10 V / Pull dimmer / Bluetooth / Non dimmable
Sensor: PIR / PIR + Daylight
Initial chromaticity: MacAdam 3
Lifetime: 50 000 h (L90B10) at Ta = 25 °C*
100 000 h (L80B10) at Ta = 25 °C*
Warranty: 5 years
2 years (emergency configuration)
Optics: PMMA optic / PC shade
Downlight: Opal / Microprismatic
Mounting: Surface
Human Centric Lighting: Available
1 For optic with shade
2 For microprismatic and opal
3 Other CCT available on request
4 Standard LED CRI
5 Sun-Mimic LED CRI
* This value is only informative and may change according to selected article. LED Lifetime is strongly depending from LEDs current and junction temperature – increase in LED current and luminaire power lead to increase of junction temperature and as consequence lifetime decrease. Thus, luminaire models with lower power, lower current (and lower junction temperature) will have higher lifetime than standard models. And high power and high current luminaire models may have negative lifetime deviation comparing to standard models. To receive precise value please contact VIZULO export representatives.
Technical parameters for final product can differ from typical data by 7% due to special conditions of LED manufacturing processes.
Download Documents
Features
Application
Feature glass diffusion hanging plates
Electronics
Controls & Connectivity
Light
Accessories
Mounting
Terminal blocks and plugs
